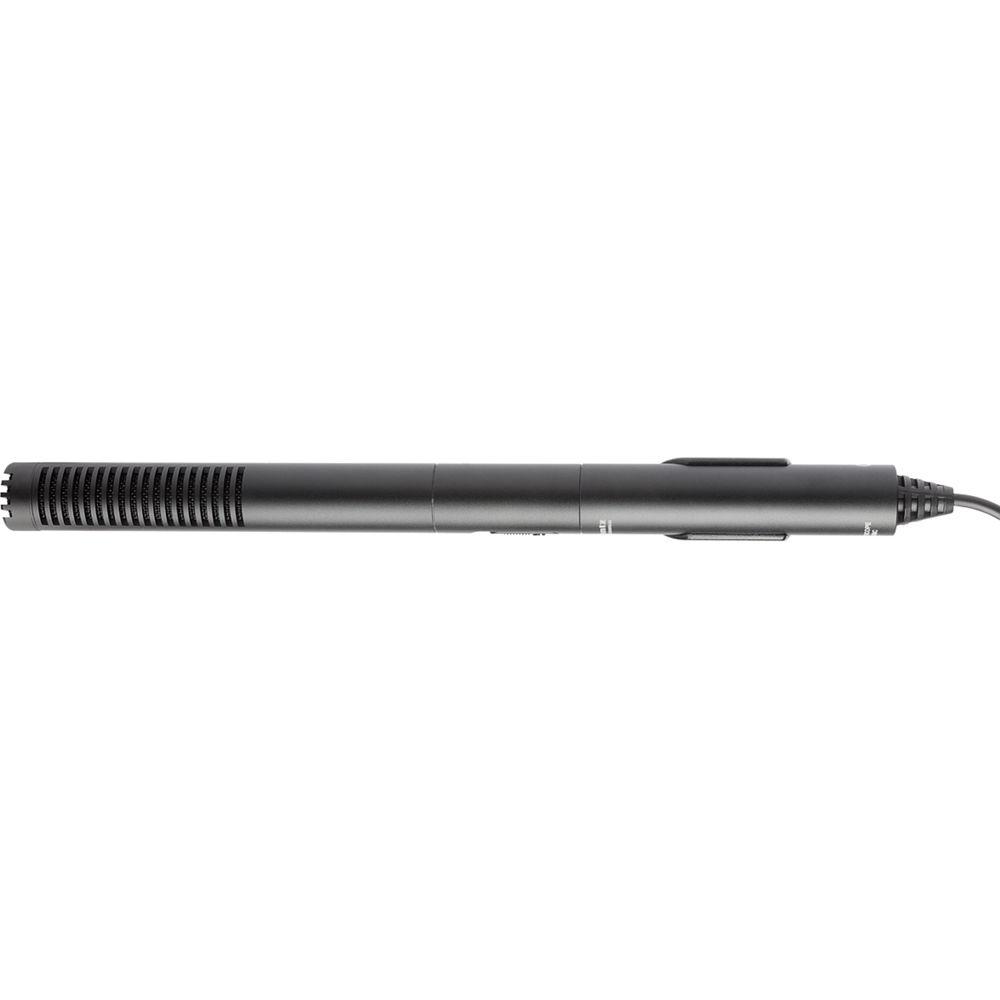

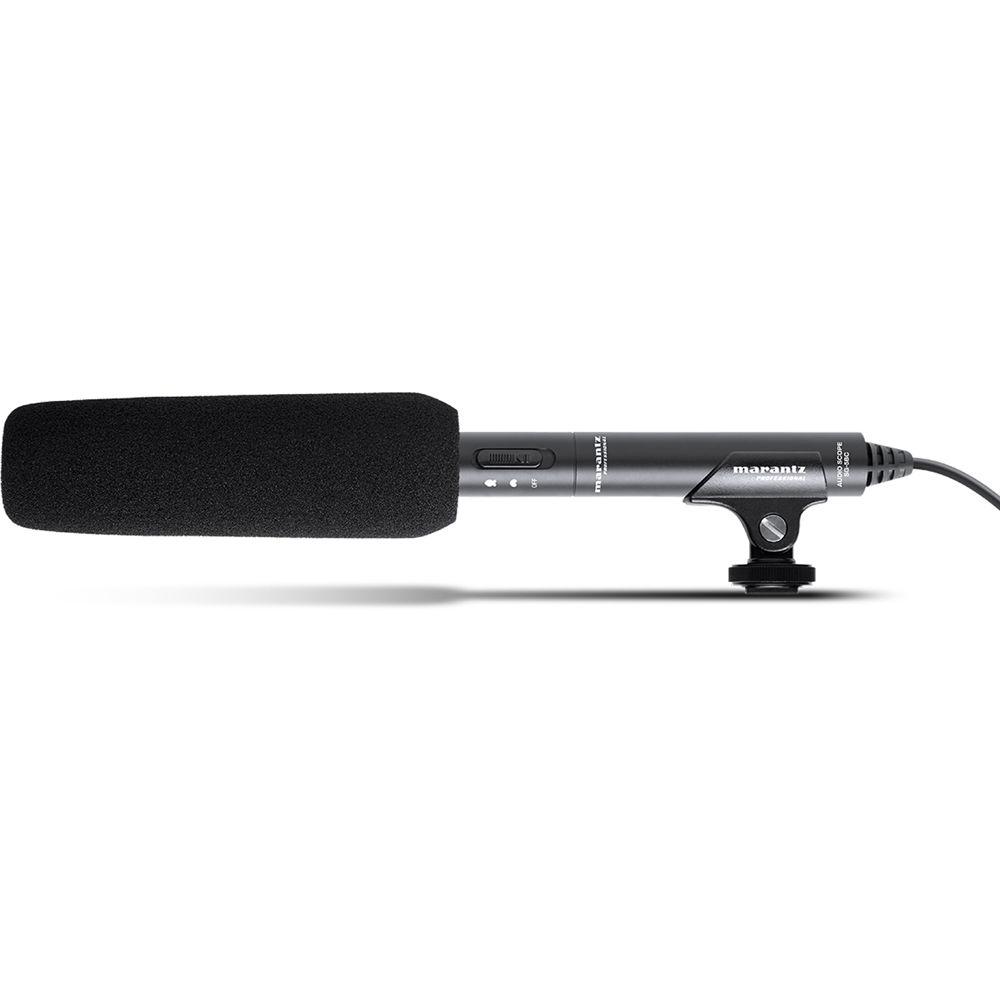

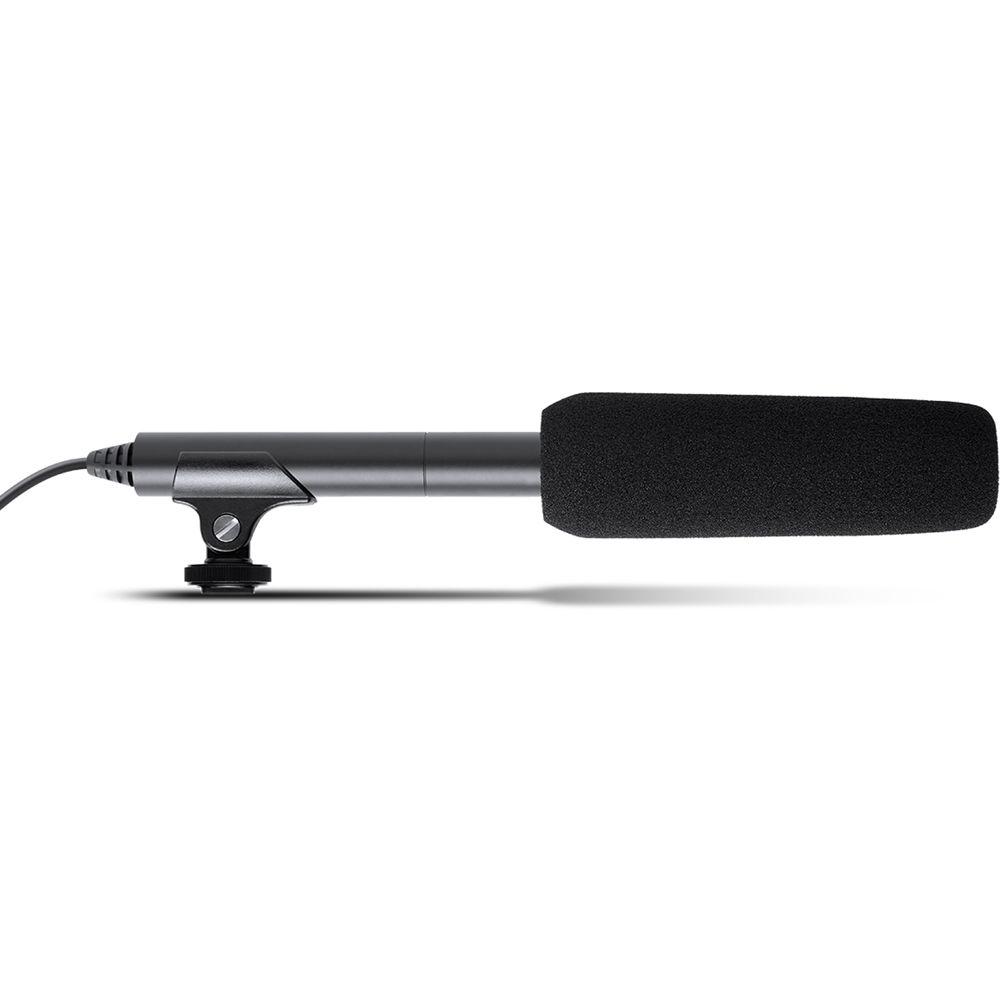

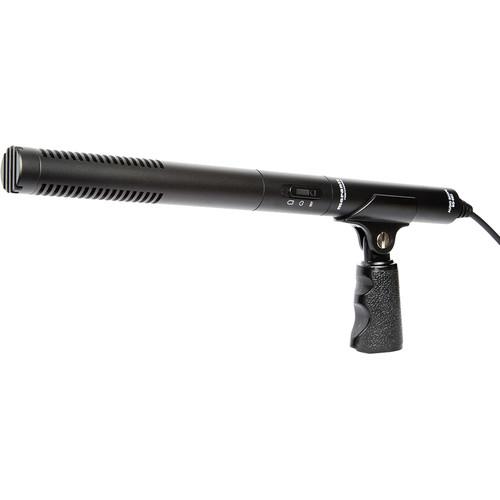

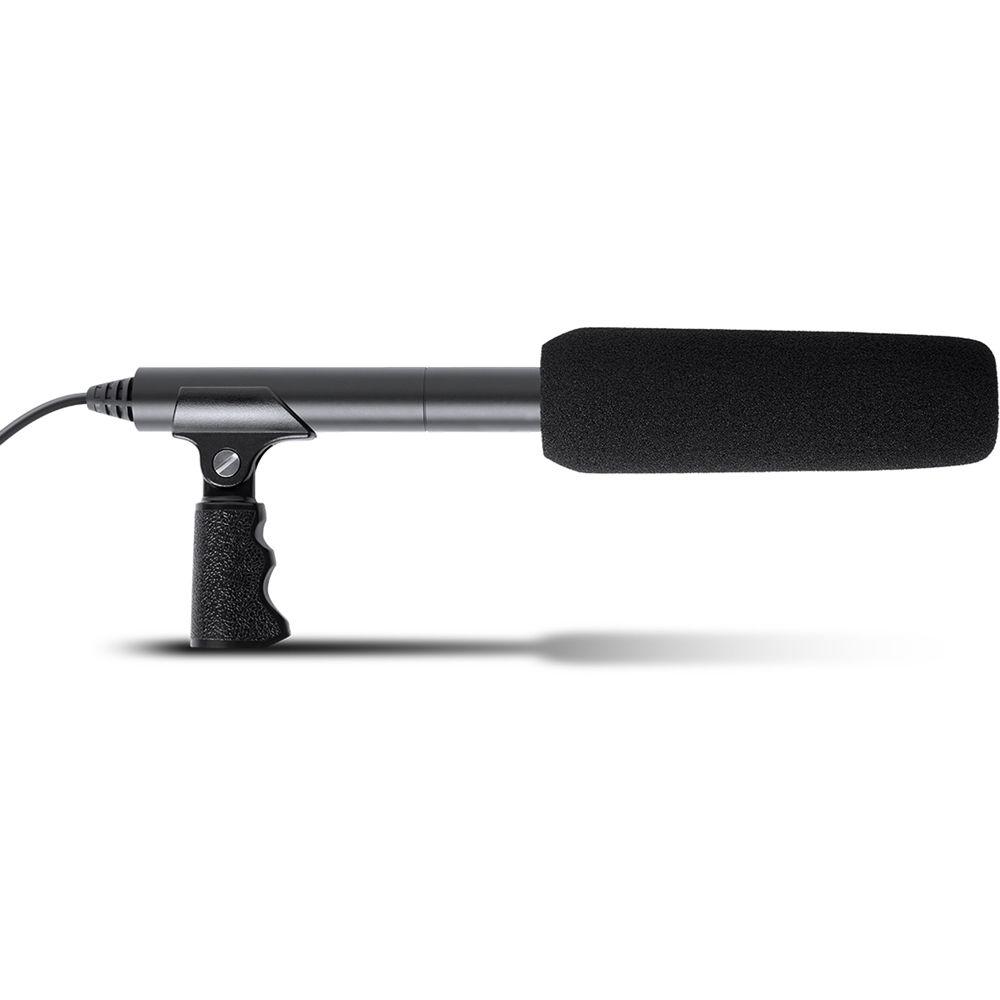

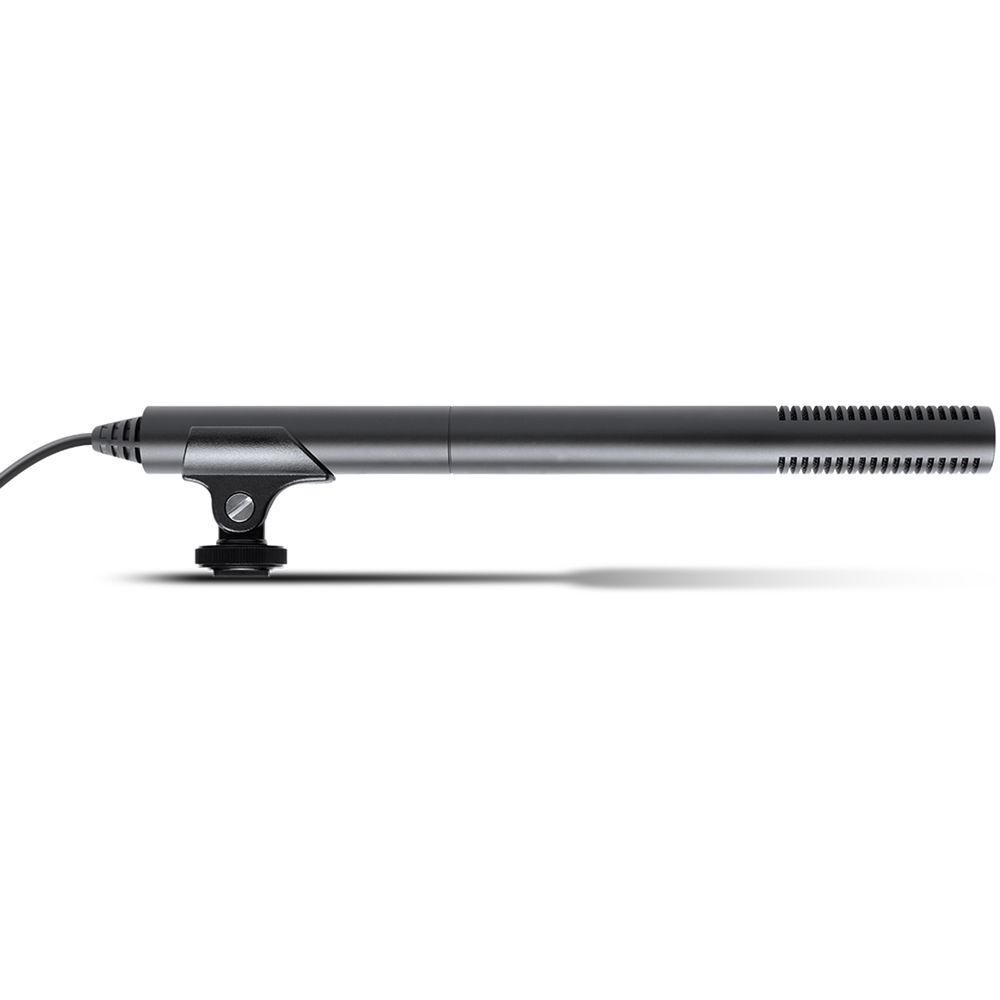

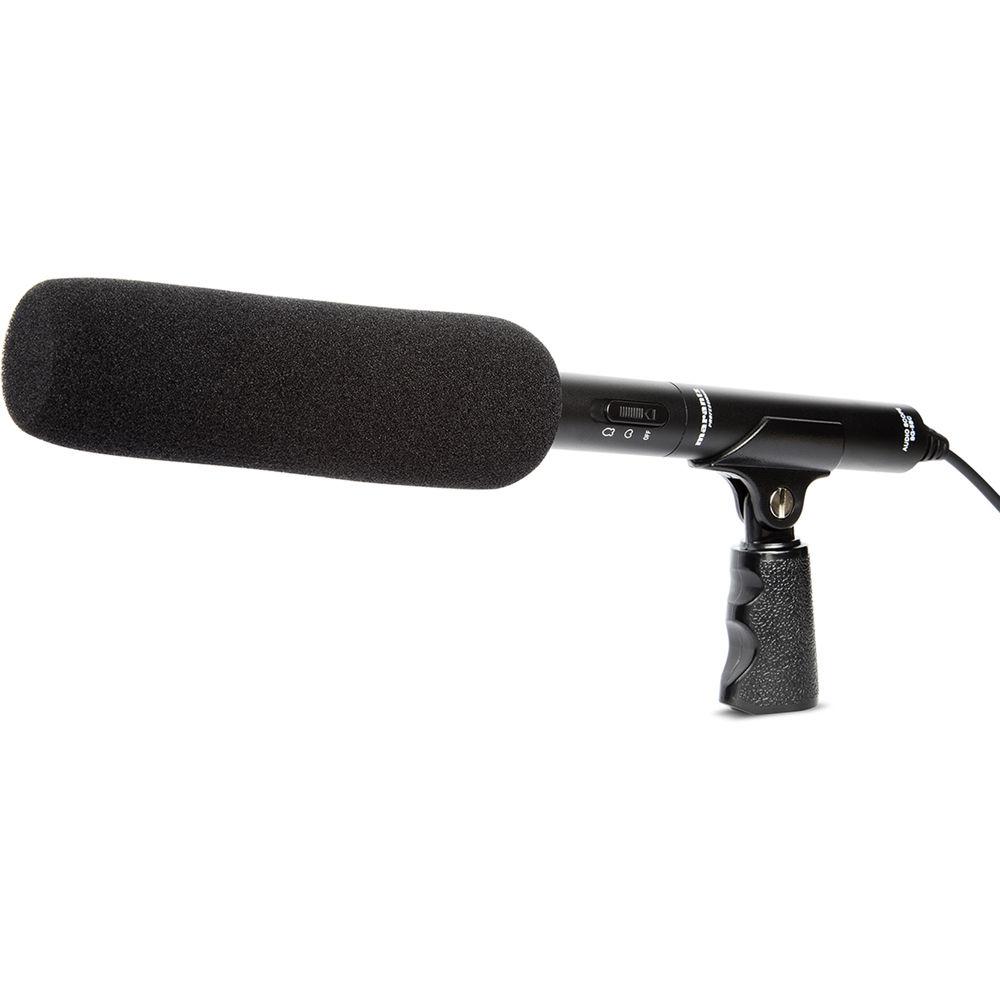

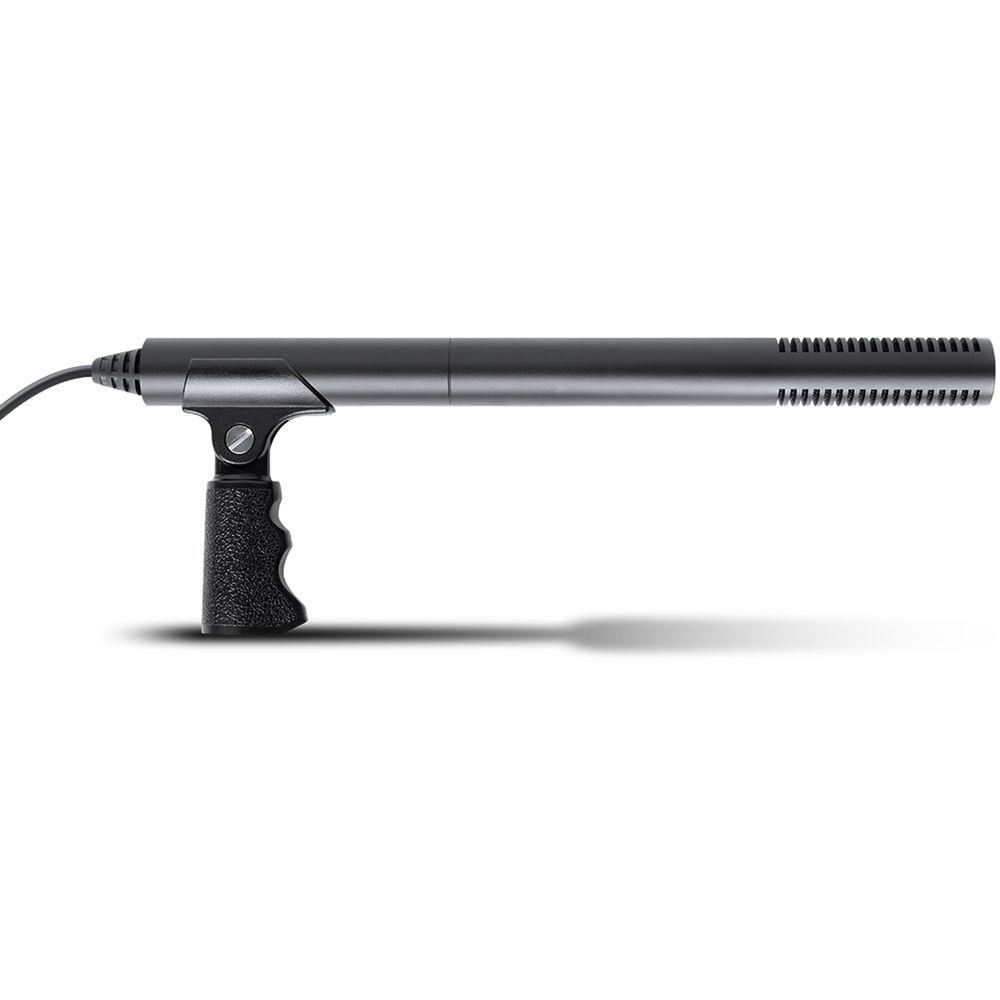

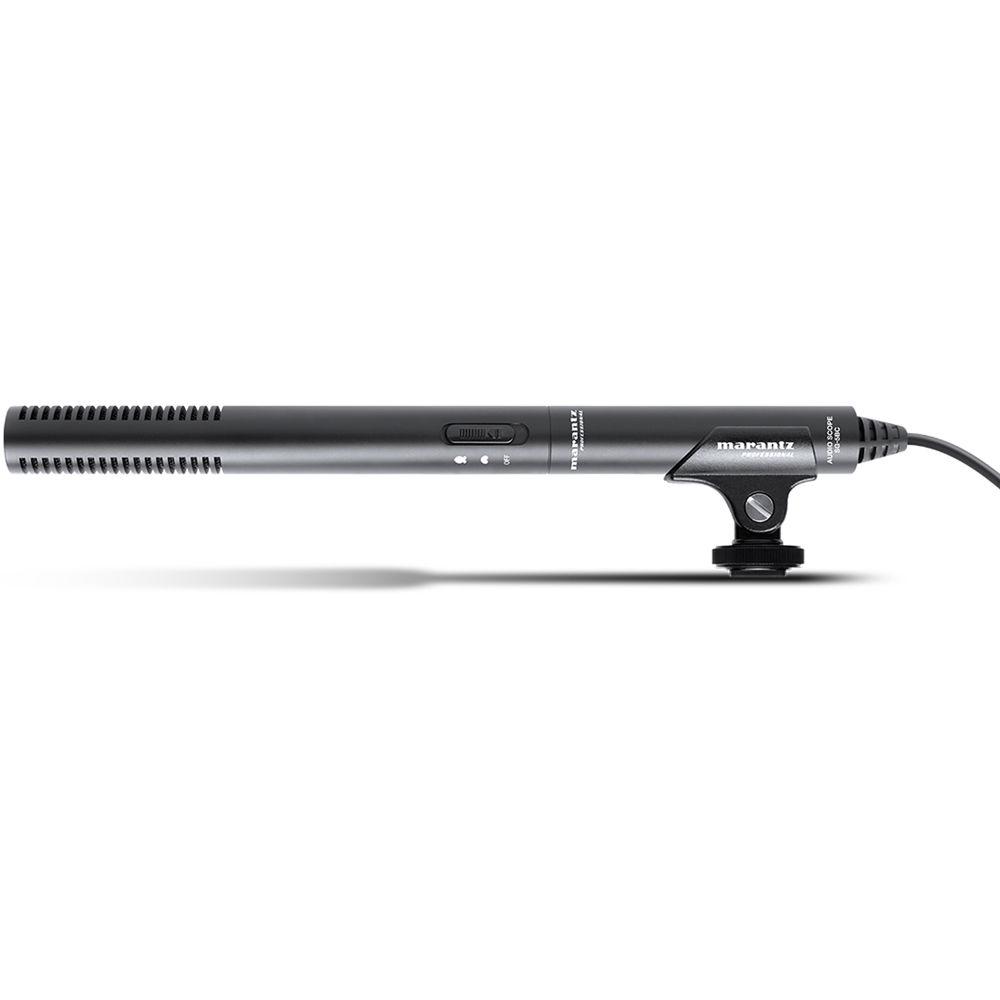

User Manual for Marantz Professional Audio Scope SG-5BC Battery-Powered Short Shotgun Microphone with 3.5mm Plug Click to enlarge the picture
Contents of the user manual for the Marantz Professional Audio Scope SG-5BC Battery-Powered
- Product category: Shotgun Microphones Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Shotgun Microphones
 |
User manual for the Marantz Professional Audio Scope SG-5BC Battery-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|

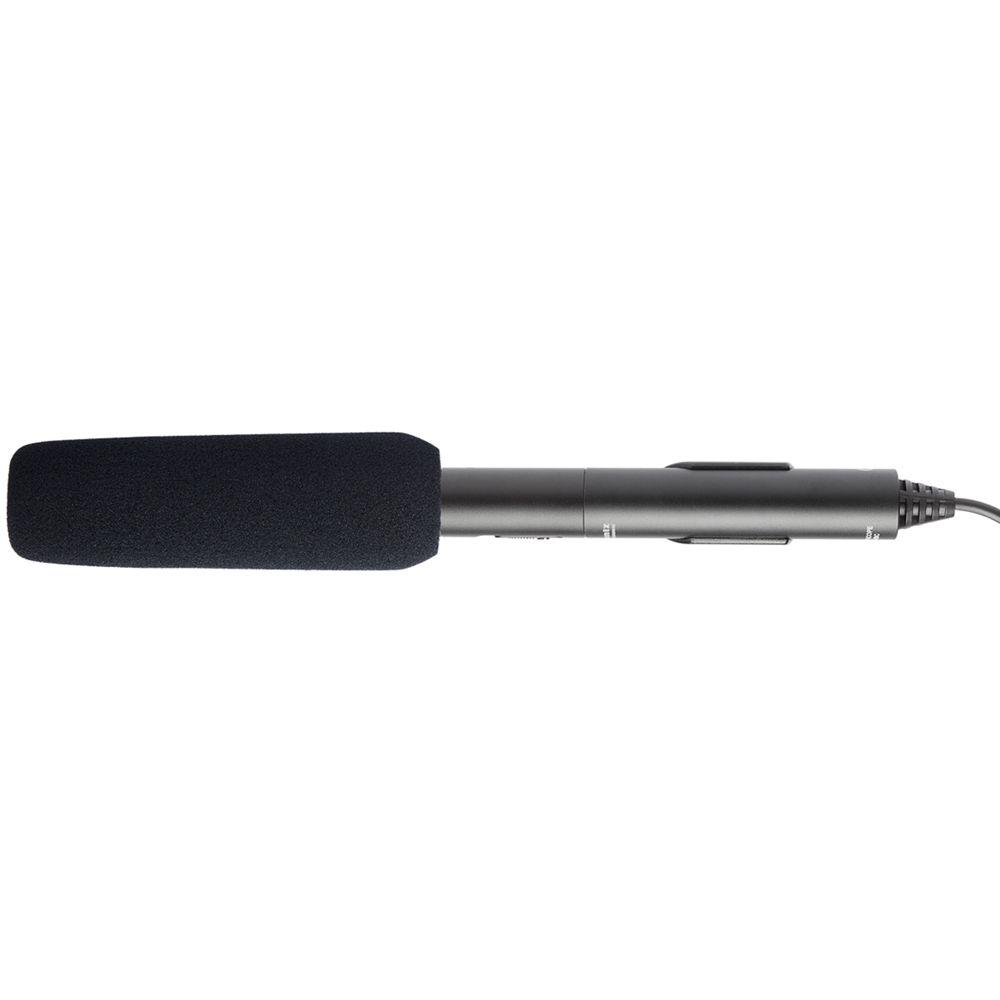

Product description The Marantz Professional Audio Scope SG-5BC is a battery-powered short shotgun microphone offering variable directivity and low visibility for sound recordists, filmmakers, and content creators in ENG, EFP, and various audio-for-video productions. Its lightweight body is compact and durable, making it ideal for mounting on a camera or boompole—it even includes multiple mic clips to accommodate such scenarios. Powered via a AA battery (available separately), the electret condenser element yields a frequency response of 70 Hz to 16 kHz, naturally attenuating extreme low and high frequencies for a clear, intelligible tone. The selectable cardioid or supercardioid polar pattern provides customizable rejection of off-axis sounds such as room ambience or environmental noise. Reduce wind noise and plosives by fitting the supplied windscreen to the SG-5BC. The microphone's attached cable is terminated with a 3.5mm TS connector to ensure compatibility with mic inputs on a variety of cameras, portable recorders, and wireless transmitters. - Short shotgun style with excellent off-axis rejection
- Selectable cardioid or supercardioid polar pattern
- Powered via 1.5V AA battery (available separately)
- Attached cable terminated with a 3.5mm TS connector
UPC: 694318020456 In the Box Marantz Professional Audio Scope SG-5BC Battery-Powered Short Shotgun Microphone with 3.5mm Plug Windscreen Hot Shoe Mic Holder Clip Tripod/Boompole Mic Holder Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional Audio Scope SG-5BC Battery-Powered Short Shotgun Microphone with 3.5mm Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional SG-5BC Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Electret Condenser | | Tube | No | | Polar Pattern | Cardioid, Supercardioid | | Pattern Selection | Switched | | Frequency Range | 70 Hz to 16 kHz | | Signal to Noise Ratio | 60 dB | | Equivalent Noise Level | 34 dB | | Maximum SPL | 120 dB SPL | | Pad | None | | Impedance | 2200 Ohms ± 30% @ 1 kHz | | Sensitivity | Supercardioid: -56 dB
Cardioid: -70 dB | | Low-Cut Filter | None | | | | Output Connectors | 1 x 1/8" (3.5 mm) TS | | Battery Type | 1 x AA | | Operating Voltage | 1.5 V | | Length | 10.91" / 277 mm | | Diameter | 0.87" / 22 mm | | Weight | 0.38 lb / 0.17 kg | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 13.7 x 5.0 x 2.1" |
