User Manual for Marantz Professional AVS Audio-Video Streamer All-In-One Broadcasting System Click to enlarge the picture
Contents of the user manual for the Marantz Professional AVS Audio-Video Streamer All-In-One
- Product category: Video Conferencing Cameras Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Video Conferencing Cameras
 |
User manual for the Marantz Professional AVS Audio-Video Streamer All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|

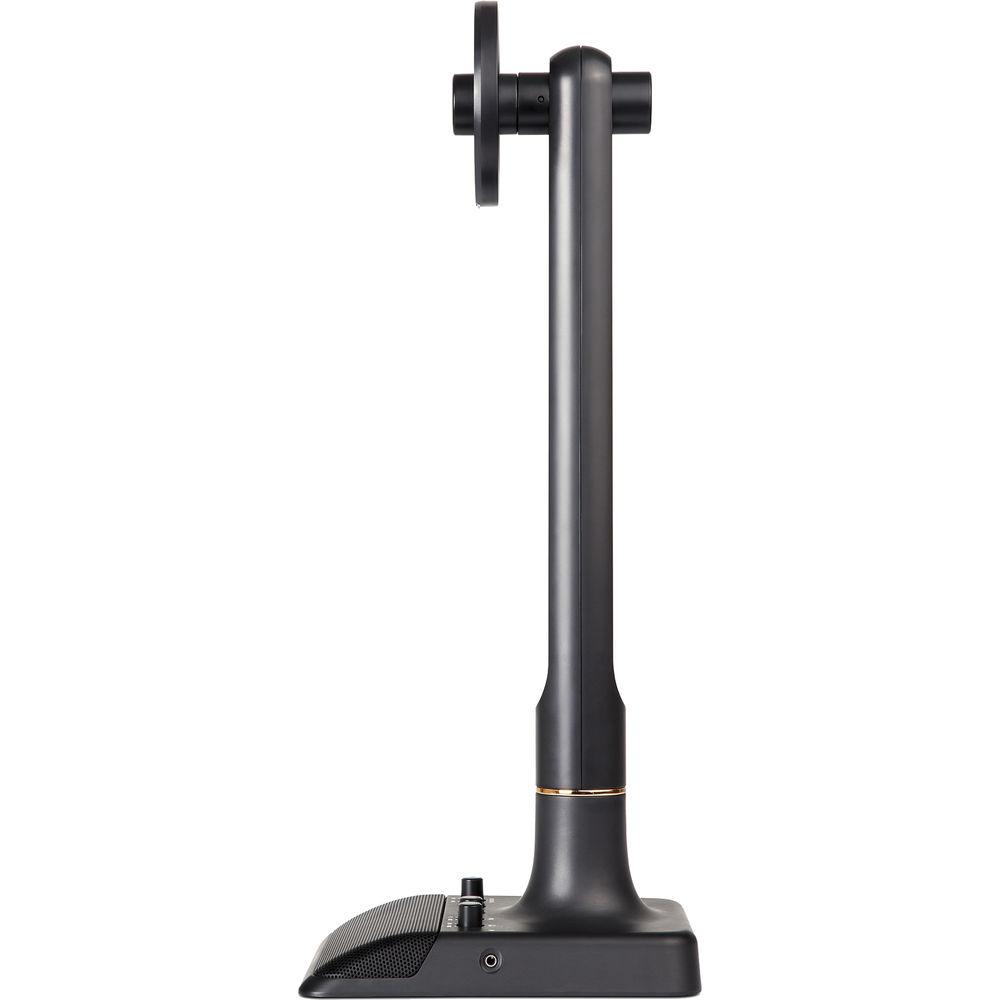

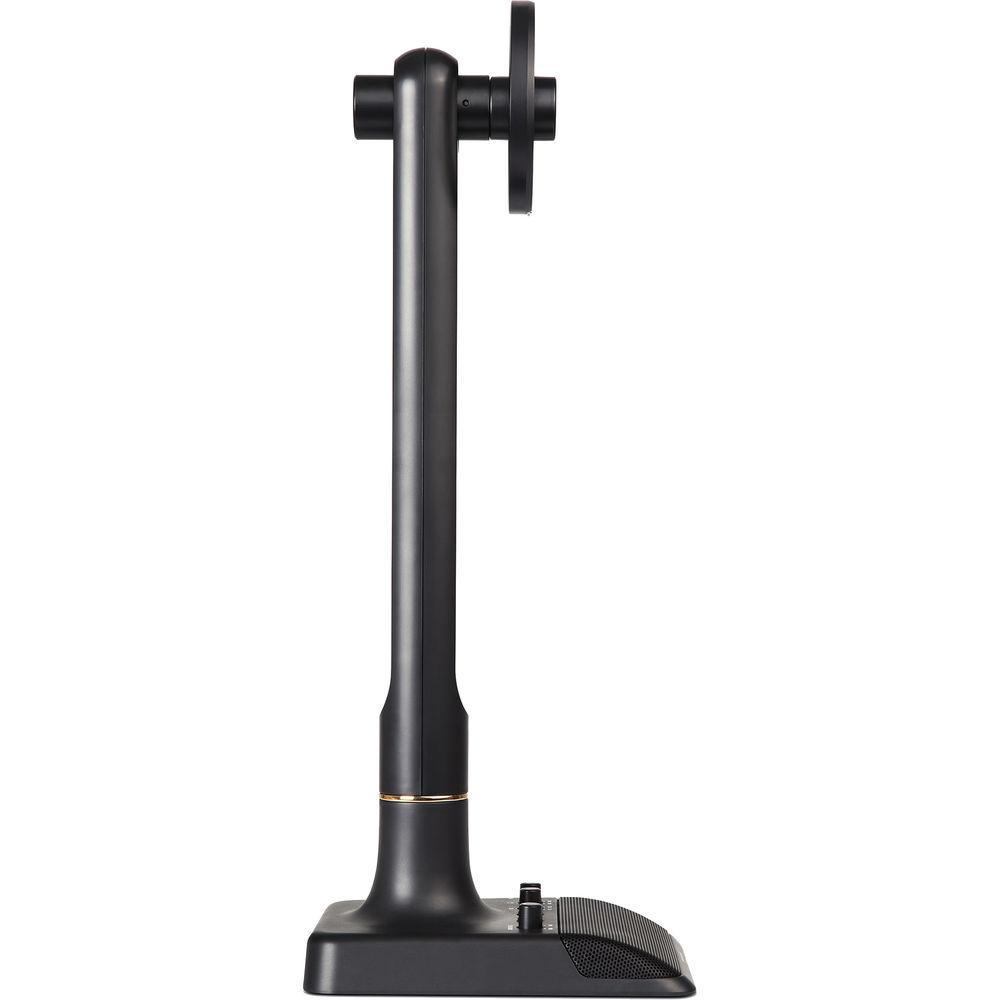

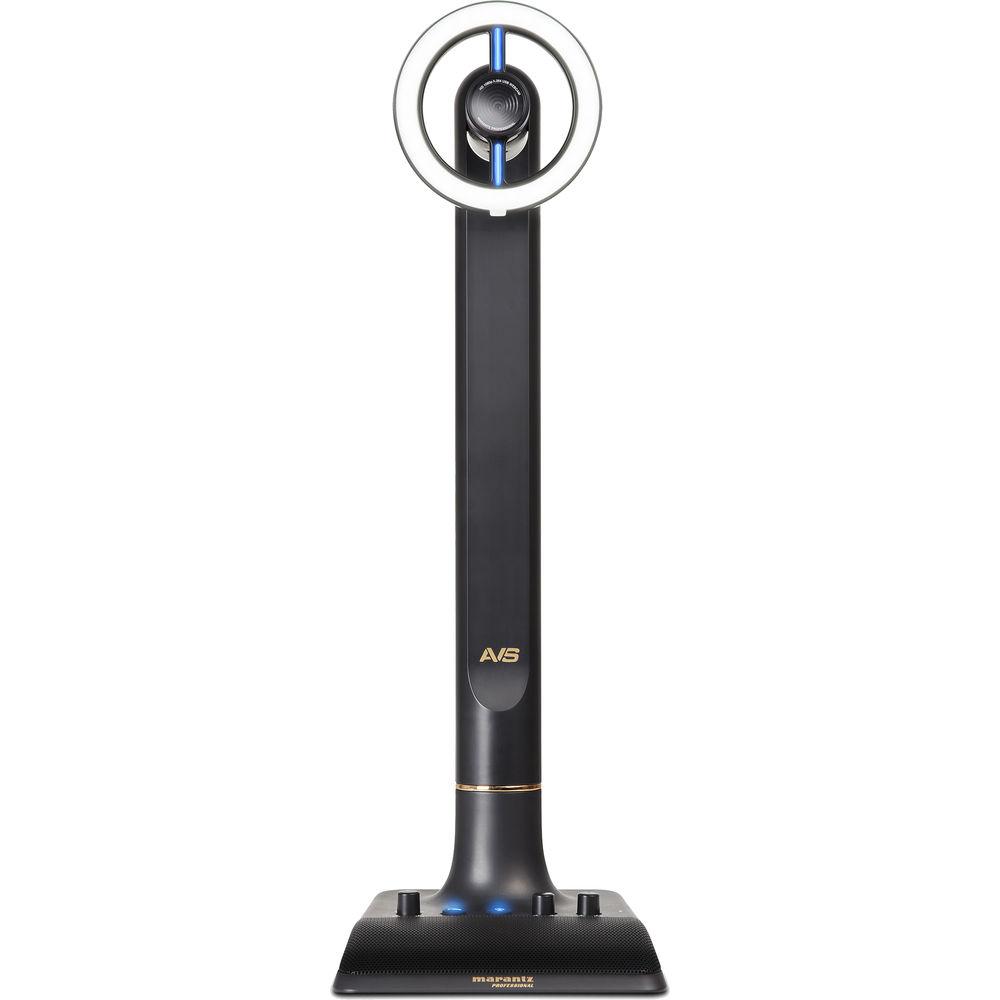

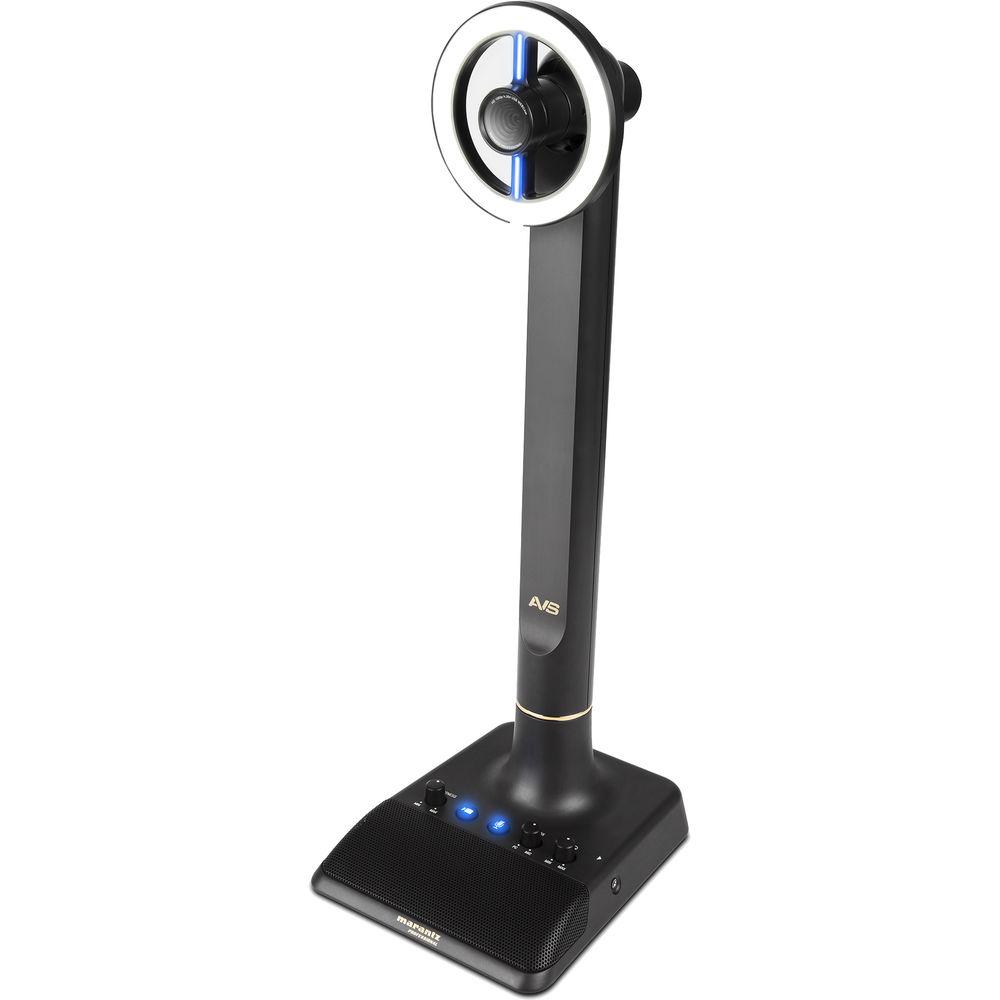

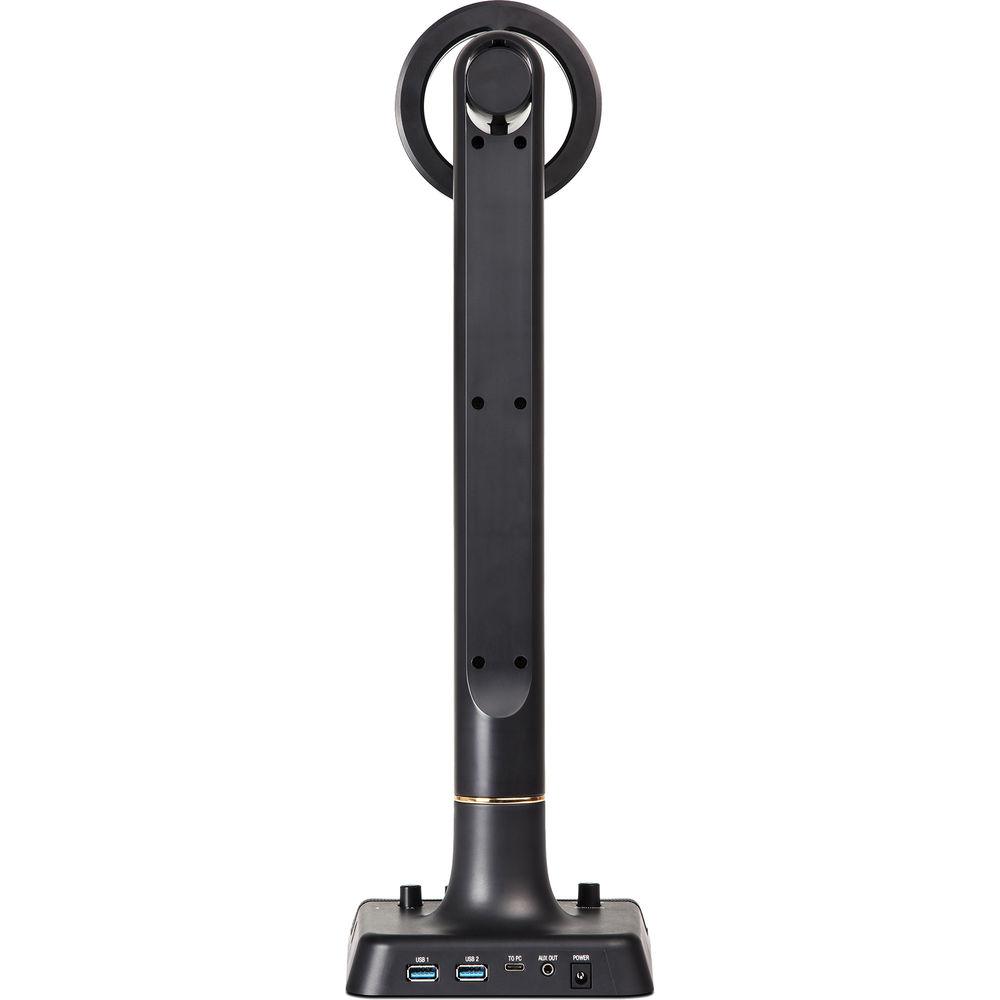

Product description The Marantz Professional AVS Audio-Video Streamer is an all-in-one broadcasting system offering high-resolution audio and video capture for vlogging, video conferencing, gaming, and more. It features an HD 1080p webcam, a half-cardioid condenser boundary microphone, and an integrated USB Type-A hub. The USB Type-C host connection allows the AVS to deliver H.264 video at 30 fps and digital audio at up to 16-bit / 48 kHz over a single cable. Compliance with UVC and USB Audio Class 2 ensures easy configurability.The 4" LED light ring is dimmable and daylight-balanced, and may be outfitted with any of the included filter accessories to change the color tone. Buttons on the base of the AVS provide dedicated on/off switching for the camera and microphone. Connect headphones to the side-panel 3.5mm TRS output, which has adjustable level. The rear-panel 3.5mm line-level output may be utilized for routing to an audio interface or mixer input. - All-in-one freestanding broadcaster system
- HD webcam with built-in H.264 video compression
- Automatic low-light and white balance correction
- USB electret condenser boundary microphone built into base
- Half-cardioid polar pattern reduces pickup of ambient noise and reflections
- Digital audio resolution up to 16-bit / 48 kHz
- Dimmable 4" daylight-balanced LED light ring with cool, warm, and diffusion filter accessories
- USB Type-C host connection provides high speed audio and video transmission with low latency
- Built-in USB hub with two USB Type-A ports
- 3.5mm stereo headphone output with dedicated level control
- 3.5mm stereo line-level output
- Adjustable mix knob for blending the mic and computer output signals
- Separate camera and microphone on/off buttons
- Includes power adapter and USB Type-C to Type-A cable
UPC: 694318024034 In the Box Marantz Professional AVS Audio-Video Streamer All-In-One Broadcasting System USB Type-C to Type-A Cable 3 x Filters (Diffuse, Warm Diffuse & Cool Diffuse) Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional AVS Audio-Video Streamer All-In-One Broadcasting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional AVS Specs | | | Operating Systems Supported | Mac OS X
Windows XP, 7, 8, and 10
Linux
Android | | USB | Operates in USB Video Device Class (UVC) mode
USB 2.0 Class 2 compliant driver | | Sensor | CMOS | | Focus | Fixed | | Diagonal Field of View (FOV) | 70° | | Optical Resolution | 2 MP native | | Video Capture | HD 1080p (up to 1920 x 1080 pixels) | | Frame Rate | 30 fps | | Video Compression | H.264 | | | | Type | Back electret condenser | | Polar Pattern | Half-cardioid (cardioid in hemisphere above mounting surface) | | Frequency Response | 150 Hz to 10 kHz | | Maximum SPL | 100 dB | | Sensitivity | -44 dB (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
