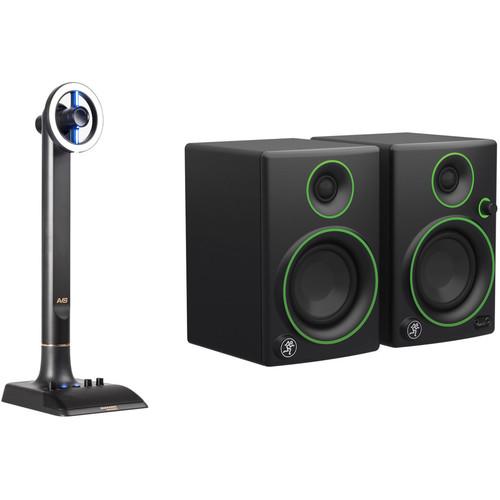

User Manual for Marantz Professional AVS Audio-Video Streamer and Speaker Conference Setup Kit Click to enlarge the picture
Contents of the user manual for the Marantz Professional AVS Audio-Video Streamer and
- Product category: Video Conferencing Cameras Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Video Conferencing Cameras
|
User manual for the Marantz Professional AVS Audio-Video Streamer and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|
Product description The Marantz Professional AVS Audio-Video Streamer and Speaker Conference Setup Kit from includes the Marantz AVS Audio-Video Streamer All-In-One Broadcasting System, two Mackie CR3 3" Woofer Creative Reference Multimedia Monitors, a USB type-C to type-A cable, three filters (diffuse, warm diffuse, and cool diffuse), and a power adapter. This kit can be used for video conferencing, gaming, and audio/video capture for vlogging and delivers a compact and portable solution for audio playback in home and studio environments. - Marantz Professional AVS Audio-Video Streamer All-In-One Broadcasting System The Marantz Professional AVS Audio-Video Streamer is an all-in-one broadcasting system offering high-resolution audio and video capture for vlogging, video conferencing, gaming, and more. It features an HD 1080p webcam, a half-cardioid condenser boundary microphone, and an integrated USB Type-A hub. The USB Type-C host connection allows the AVS to deliver H.264 video at 30 fps and digital audio at up to 16-bit / 48 kHz over a single cable. Compliance with UVC and USB Audio Class 2 ensures easy configurability.The 4" LED light ring is dimmable and daylight-balanced, and may be outfitted with any of the included filter accessories to change the color tone. Buttons on the base of the AVS provide dedicated on/off switching for the camera and microphone. Connect headphones to the side-panel 3.5mm TRS output, which has adjustable level. The rear-panel 3.5mm line-level output may be utilized for routing to an audio interface or mixer input.
- All-in-one freestanding broadcaster system
- HD webcam with built-in H.264 video compression
- Automatic low-light and white balance correction
- USB electret condenser boundary microphone built into base
- Half-cardioid polar pattern reduces pickup of ambient noise and reflections
- Digital audio resolution up to 16-bit / 48 kHz
- Dimmable 4" daylight-balanced LED light ring with cool, warm, and diffusion filter accessories
- USB Type-C host connection provides high speed audio and video transmission with low latency
- Built-in USB hub with two USB Type-A ports
- 3.5mm stereo headphone output with dedicated level control
- 3.5mm stereo line-level output
- Adjustable mix knob for blending the mic and computer output signals
- Separate camera and microphone on/off buttons
- Includes power adapter and USB Type-C to Type-A cable
UPC: 694318024034 - Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair) The Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair) is a compact and portable solution for providing audio playback in home and studio environments. They're designed for multimedia work such as mixing music or post-production sound design. The pair consists of one passive unpowered speaker and one Class-AB amplifier powered speaker that connects with an included 6' stereo cable. The monitors use 3" polypropylene-coated woofers, a rear port tube for the low end, and 0.75" silk dome tweeters for the highs to deliver a frequency response of 80 Hz to 20 kHz with a maximum SPL of 97 dB.
A switch allows you to select whether the powered speaker will function as the left or right speaker. This is helpful when having to position the speakers near power outlets or when deciding which side is preferable for the volume knob. A front-panel, LED power-ring illuminated on/off switch and volume knob allows you to control level. A dedicated front-panel headphone jack defeats the main speaker output and can be used to expand the system's monitoring versatility.
A front panel 3.5mm stereo input and included 3.5mm to 3.5mm cable allows you to connect your smartphone or other mobile device directly to the monitors. Other equipment such as audio interfaces, CD players, or mixers, can be connected to the rear panel's 1/4" TRS, 3.5mm TRS, or RCA inputs.The monitors come with a 3.5mm stereo-to-RCA cable for connecting to a computer. Also included are isolation pads for reducing the transmission of structural vibrations and for allowing the monitors to be tilted slightly up or down for a better listening angle. UPC: 663961044751 In the Box - AVS Audio-Video Streamer All-In-One Broadcasting System zbteeefdvzabuycx
- USB Type-C to Type-A Cable
- 3 x Filters (Diffuse, Warm Diffuse & Cool Diffuse)
- Power Adapter
- Limited 3-Year Warranty
- Mackie - CR3 3" Woofer Creative Reference Multimedia Monitors (Pair)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional AVS Audio-Video Streamer and Speaker Conference Setup Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Marantz Professional AVS Audio-Video Streamer All-In-One Broadcasting System
| | | Operating Systems Supported | Mac OS X
Windows XP, 7, 8, and 10
Linux
Android | | USB | Operates in USB Video Device Class (UVC) mode
USB 2.0 Class 2 compliant driver | | Sensor | CMOS | | Focus | Fixed | | Diagonal Field of View (FOV) | 70° | | Optical Resolution | 2 MP native | | Video Capture | HD 1080p (up to 1920 x 1080 pixels) | | Frame Rate | 30 fps | | Video Compression | H.264 | | | | Type | Back electret condenser | | Polar Pattern | Half-cardioid (cardioid in hemisphere above mounting surface) | | Frequency Response | 150 Hz to 10 kHz | | Maximum SPL | 100 dB | | Sensitivity | -44 dB (
