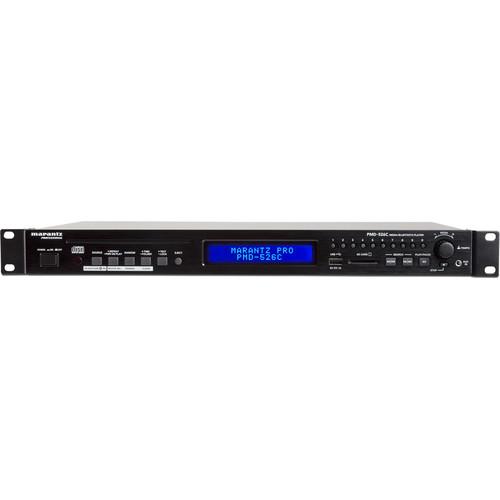

User Manual for Marantz Professional PMD-526C CD Media Bluetooth Player with RS-232c Control Click to enlarge the picture
Contents of the user manual for the Marantz Professional PMD-526C CD Media Bluetooth
- Product category: CD/DVD/Blu-Ray Recorders & Players Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional CD/DVD/Blu-Ray Recorders & Players
|
User manual for the Marantz Professional PMD-526C CD Media Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|
Product description The PMD-526C from Marantz Professional is a media player which can play audio from CDs, CD-Rs, USB formats, and SD/SDHC cards; it also provides a 3.5mm auxiliary input for compatible devices and Bluetooth connectivity for streaming audio wirelessly. With such a wide array of connection possibilities, the unit is suitable both for home audio and commercial applications—and with tempo lock and pitch control, the applications for this device are greatly increased, making it useful for use in dance and fitness applications, as well as retail settings, education scenarios, and more.
Other features include front panel lock, power on play, direct access to tracks with 10 buttons, the ability to recall settings after loss of power, Bluetooth pairing for up to eight devices at a time, and balanced XLR outputs for hookup to pro audio rigs. The PMD-526C also offers RS-232c control, and includes a remote for operation from a distance. Also included are two rack ears and six screws for mounting the unit in a professional audio rack. - Key Features at a Glance
-
- Bluetooth 4.0 pairing to (8) devices
- Slot-loading CD transport
- Playback from SD/SDHC media
- USB host port for file playback
- Pitch and tempo control
- 10-button direct track access
- 3.5mm Aux input for playback from portable players
- RS-232c control capable
- Balanced and unbalanced outputs (XLR and RCA)
- Included RCA cable
UPC: 694318022214 In the Box Marantz Professional PMD-526C CD/Media/Bluetooth Player with RS-232c Control Power Cable Remote Control RCA Cable 2 x Rack Ears 6 x Rackmount Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional PMD-526C CD Media Bluetooth Player with RS-232c Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional PMD-526C Specs | | | Channels | 2x, stereo | | Frequencies Supported | 10 Hz to 20 kHz, ±1 dB | | Dynamic Range | > 85 dB (10 Hz to 20 kHz, A-weighted) | | Signal-to-Noise Ratio | > 90 dB (1 kHz, 0 dB, A-weighted) | | Channel Separation | > 80 dB (1 kHz, 0 dB, A-weighted) | | Total Harmonic Distortion | < 0.01% (1 kHz, 0 dB, A-weighted) | | | | Type | 2 x RCA (unbalanced)
2 x XLR (balanced) | | Load Impedance | > 10 kOhms | | Output Level | Unbalanced: 2 Vrms / at 10 kOhms load
Balanced: +4 dBu | | | | Type | 1 x 3.5 mm TRS terminal | | Input Impedance | > 10 kOhms | | Maximum Input Level | 1 Vrms | | | | Class | Output class: Class 2 | | Bluetooth Version | 4.0 | | Supported Profiles | A2DP, AVRCP, HFP, SPP, BAS, BLE, DIS, FMP, HRP, HRS, HTP, HTS, IAS, LLS | | Range | 49' / 15 m | | | | IR | Infrared Transmission Protocol: NEC format
Transmit output level: > 200 mVp-p | | Serial | D-sub 9-pin female RS-232C
Mode: Full duplex
Baud rate: 9600/38400 b/s (selectable in the menu)
Data: 8-bits
Start bit: 1 bit
Stop bit: 1 bit
Parity: none
Flow control: none | | | | Sample Rate | CD-DA, Audio file 44.1 kHz | | Word Length | CD-DA, Audio file 16-bit | | File Format | WAV / MP3 / AAC | | Bit Rate | MP3, AAC, CBR / VBR ST / Mono 32 to approximately 320 kps | | D3 Tag | MP3 V1.x ~ 2.4 | | CD Player | File System: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R | | USB | File system: FAT 16/32
Media type: Flash/ HDD | | SD Format Support | File system: FAT 16/32 | | | | Operating Temperature | 41 to 95° F / 5 - 35° C | | Operating Humidity | 25 to approximately 85% non-condensing | | | | LCD Display | LCD 2 lines, 16 characters x 2 lines LCM display | | Power Requirements | 100 to 230 VAC | | Power Consumption | 15 W | | Dimensions (W x H x D) | 19 x 1.7 x 9.4" / 483 x 240 x 44 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 20.551 x 13.858 x 5.276" |
