User Manual for Marantz Professional PMD-602A 2-Channel DSLR Audio Interface Click to enlarge the picture
Contents of the user manual for the Marantz Professional PMD-602A 2-Channel DSLR Audio
- Product category: Camcorder XLR Adapters Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Camcorder XLR Adapters
 |
User manual for the Marantz Professional PMD-602A 2-Channel DSLR Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|

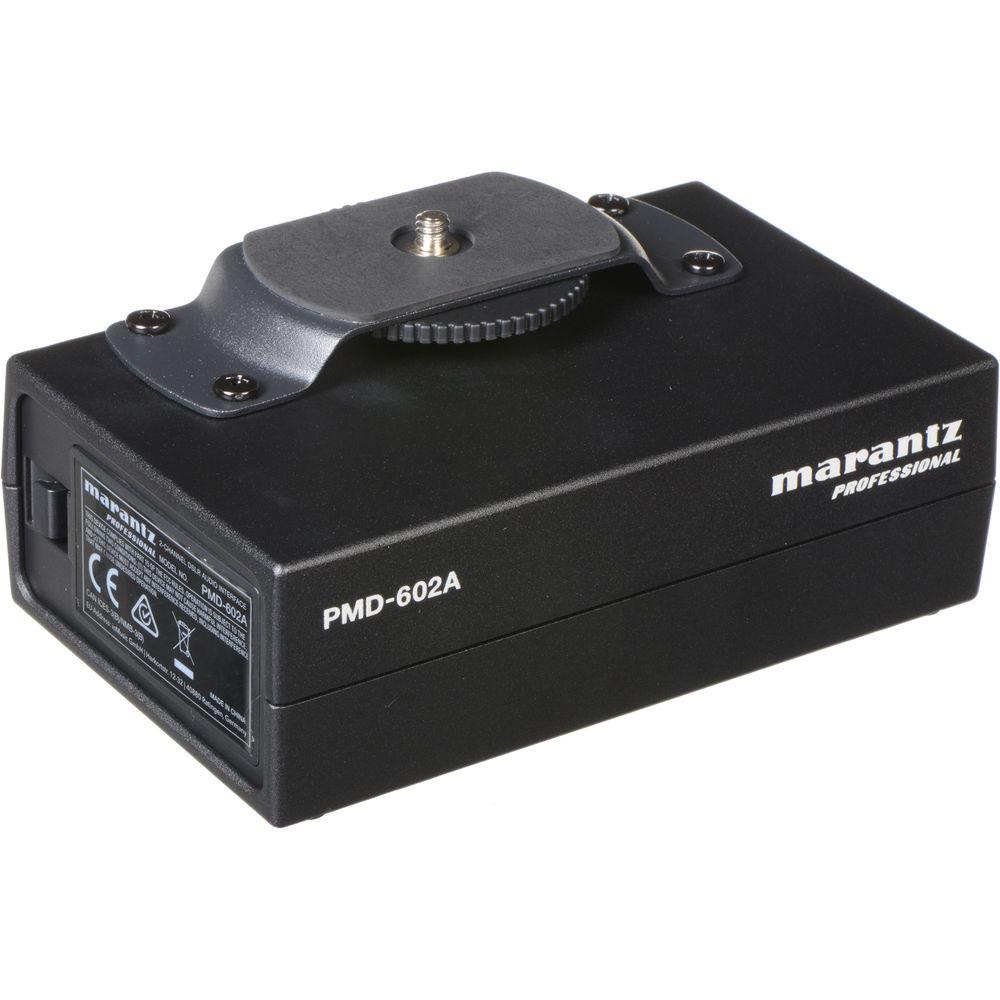

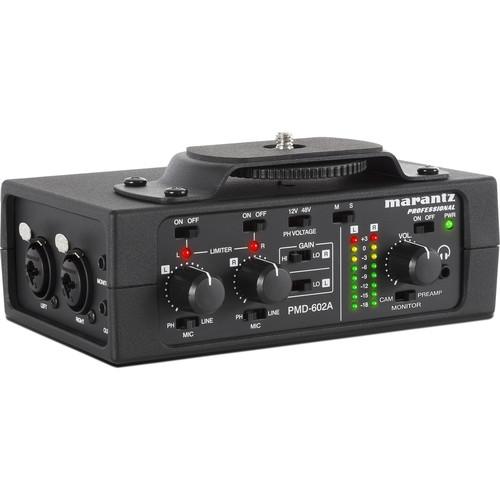

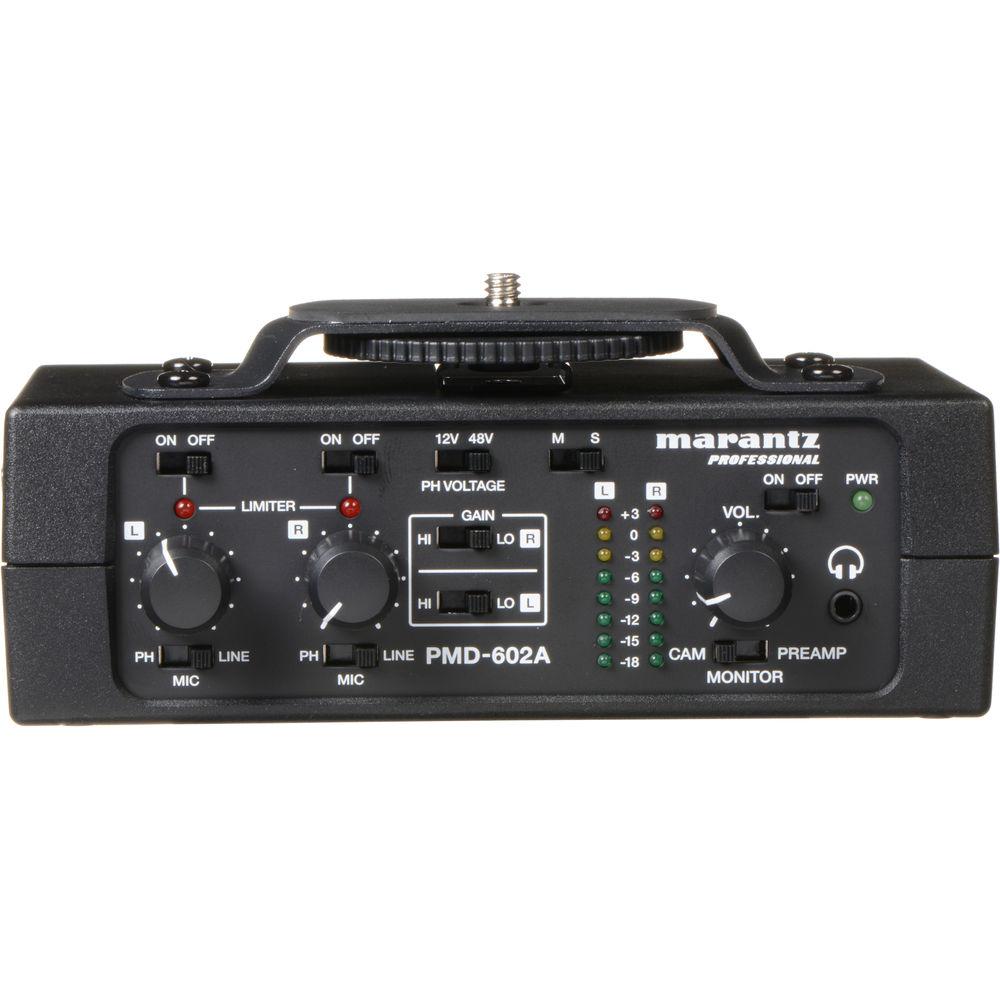

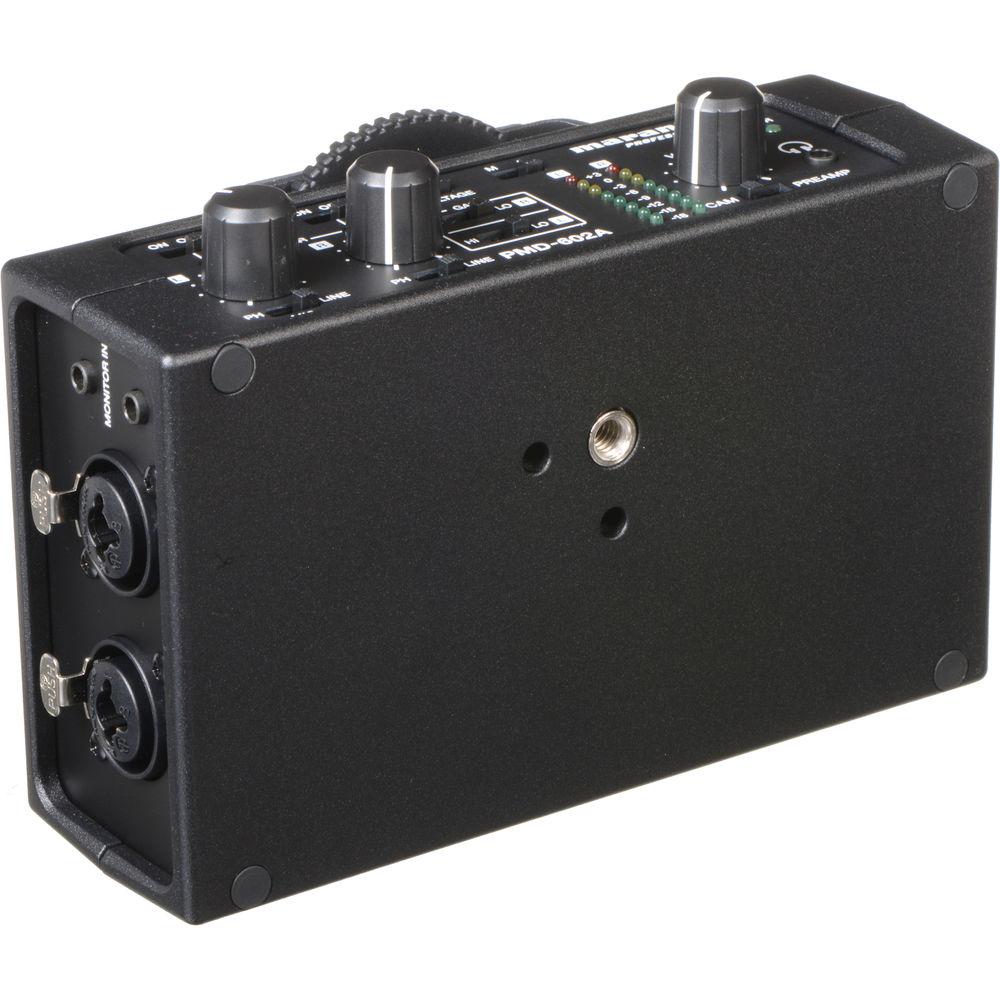

Product description The PMD-602A 2-Channel DSLR Audio Interface from Marantz Professional is a two-channel battery-operated interface with 12V or 48V phantom power that can be used with condenser microphones or line-level audio devices for DSLR cameras or other field recording equipment. Featuring two XLR-1/4" combo inputs with input sensitivity and two-stage gain control, the PMD-602A has a 1/8" stereo line input and limiter to ensure gain matching. The line output master allows you to feed any camera or recorder line input while monitoring through the headphone output. Other features include a 1/4"-20 mounting bracket on the top for attachment to a camera, and a tripod socket on the bottom of the unit for added flexibility. It is powered by four AA batteries (sold separately). UPC: 694318022757 In the Box Marantz Professional PMD-602A 2-Channel DSLR Audio Interface Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional PMD-602A 2-Channel DSLR Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional PMD-602A Specs | | | Frequency Response | 20 Hz to 20 kHz, +1 dB | | Signal to Noise Ratio | > 94 dB | | Mic Input Level | Maximum: -20 dBu (high gain), +10 dB (low gain) | | Mic Input Sensitivity | -40 dBu | | Mic Input Impedance | 2 kOhms | | Max Line Input Level | +24 dB | | Line Input Impedance | 10 kOhms | | Maximum Voltage Gain | -24 dB | | Phantom Power | 12 V and 48 V (switchable) | | | | Inputs | 2 x XLR-1/4" (6.3 mm) TRS combo jacks | | Outputs | 1/8" (3.5 mm) TRS stereo output | | Headphone Output | 1/8" (3.5 mm) TRS stereo mini-jack | | | | Operating Temperature | 41 to 140°F (5 to 60°C) | | Operating Humidity | 25 to 85%, non-condensing | | | | Power Requirement | 4 x AA batteries | | Battery Life | 15 hours (phantom power OFF)
12 hours (phantom power on) | | Power Consumption | < 5 W | | Dimensions (H x W x D) | 1.5 x 2.5 x 6" (38 x 64 x 152 mm) | | Weight | 1.4 lb (0.63 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.0 x 5.6 x 4.1" |
Rating72% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
