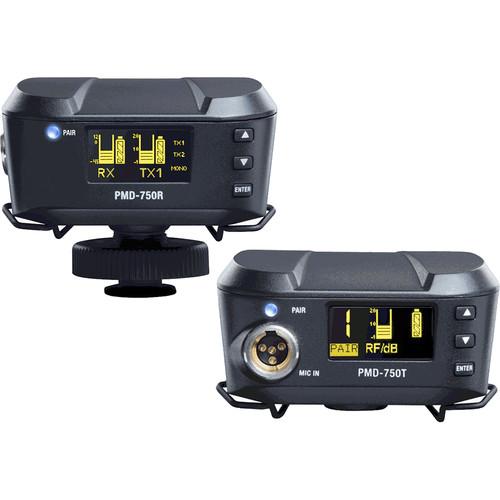

User Manual for Marantz Professional PMD-750 Camera-Mount Digital Wireless System with Omnidirectional Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Marantz Professional PMD-750 Camera-Mount Digital Wireless
- Product category: Wireless Systems Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Wireless Systems
|
User manual for the Marantz Professional PMD-750 Camera-Mount Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|
Product description The Marantz Professional PMD-750 is a portable digital wireless system for film and video production, which features a beltpack transmitter, a receiver, and an omnidirectional lavalier microphone. The lightweight (at 3.02 oz) receiver is designed for mounting on a DSLR camera's hot shoe or rig, and is capable of pairing with two transmitters simultaneously (second transmitter available separately), giving you the option to capture speech or dialog for two people, in interview or acting situations. The system operates in the 2.4 GHz frequency range, which is less susceptible to TV and radio interference. It provides high-resolution 96 kHz / 24-bit uncompressed audio, at a range up to 100'. The receiver and transmitter are equipped with locking 4-pin mini-XLR jacks to ensure that body-worn microphones and receiver output cable are securely connected. Both units are powered with two AA batteries and feature a simple-to-operate interface with an OLED display that is easily readable outdoor in sunlight. The PMD-750 ships with a receiver output cable, foam and fuzzy windscreens, a cold-/hot-shoe adapter, and two belt clips. - Key Features
-
- Complete 2.4 GHz portable digital wireless system for DSLR cameras
- PMD-750R receiver with compact and lightweight (3.2 oz) design is ideal for mounting on camera hot shoe or on rig
- PMD-750T beltpack transmitter with robust belt clip
- Omnidirectional lavalier microphone for speech and dialog applications
- Rugged construction for use in the field
- Simple, easy-to-operate user interface
- OLED screens on the transmitter and receiver are easily readable outdoor in sunlight
- Locking 4-pin mini-XLR input and output jacks for secure connectivity
- AA battery-powered
- Receiver can pair to two transmitters for expandability (second transmitter available separately)
- System includes foam and fuzzy windscreens, right-angled receiver output cable, cold/hot shoe adapter, and two belt clips
UPC: 694318023501 In the Box Marantz Professional PMD-750 Camera-Mount Digital Wireless System with Omnidirectional Lavalier Mic PMD-750T Beltpack Transmitter with Lavalier Microphone (2.4 GHz) PMD-750R Receiver Omnidirectional Lavalier Microphone Foam and Fuzzy Windscreens Cold/Hot Shoe Adapter 2 x Belt Clips Output Cable with Right-Angle 3.5mm Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional PMD-750 Camera-Mount Digital Wireless System with Omnidirectional Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional PMD-750 Specs | | | Operating Frequencies | 2.401 to 2.483 GHz | | Dynamic Range | > 110 dB | | THD | < 0.01 % | | Latency | 3.5 ms | | Operating Range | Up to 100.0' / 30.4 m | | | | Frequency Response | 50 Hz to 18 kHz | | Audio Quality | 96 kHz / 24-bit, uncompressed | | Input Connector | Mic Input: 4-pin mini-XLR, locking | | Maximum Input Level | 1 Vrms | | Bias Voltage | 5 V (for condenser mics) | | Input Impedance | 10 kOhms | | Power | 2 x AA alkaline batteries | | Dimensions (W x D x H) | 2.6 x 4.0 x 1.6" / 66.0 x 101.6 x 40.6 mm | | Weight | 2.9 oz / 82.0 g | | | | Frequency Response | 20 Hz to 20 kHz | | Pairing Bands | 16 channels | | Output Connector | 4-pin mini-XLR, locking | | Operating Temperature | 14 to 131° F / -10 to 55° C | | Maximum Output Level | 1 Vrms | | Output Impedance | 300 Ohms | | Power | 2 x AA alkaline batteries | | Dimensions (W x D x H) | 2.6 x 4.0 x 2.2" / 66.0 x 101.6 x 55.9 mm | | Weight | 3.2 oz / 90.0 g | | | | Frequency Response | 20 Hz to 20 kHz | | Output Impedance | 3 kOhms | | Polar Pattern | Omnidirectional | | Type | Electret condenser | | Sensitivity | -38 dB,
