Product description

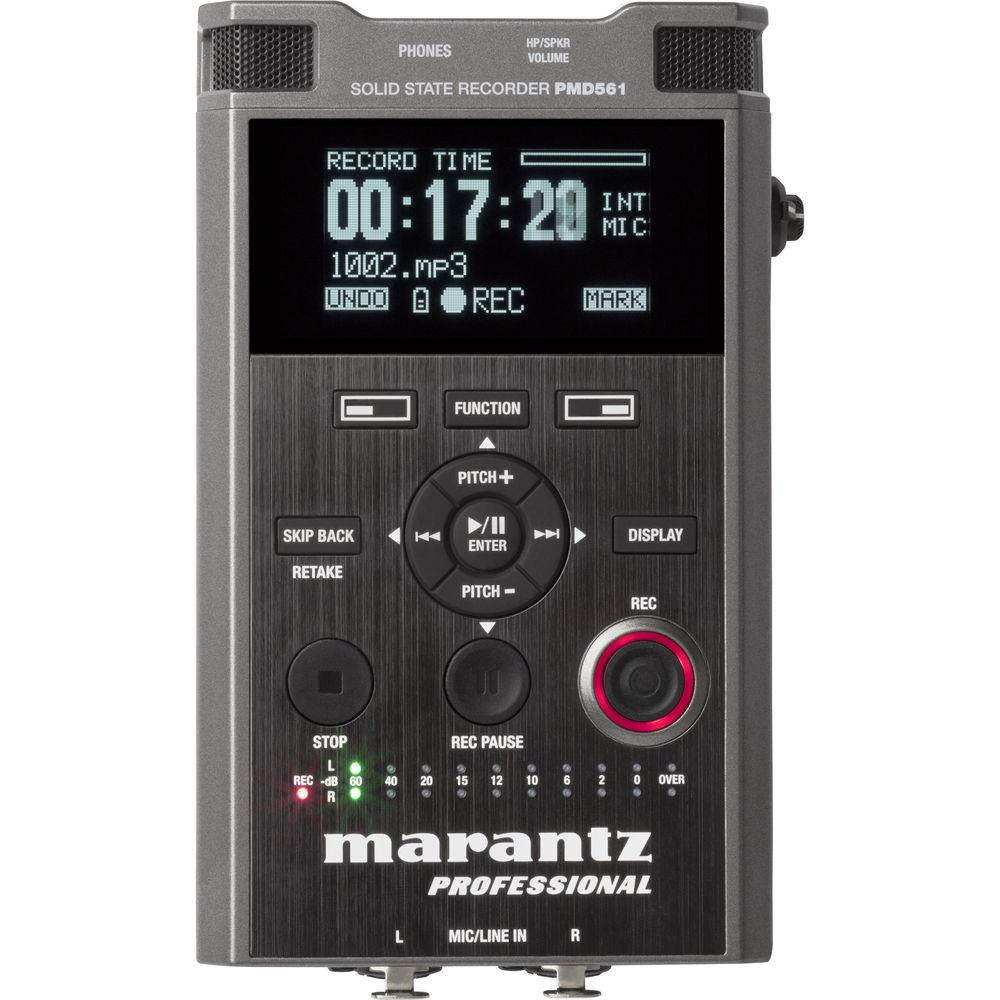

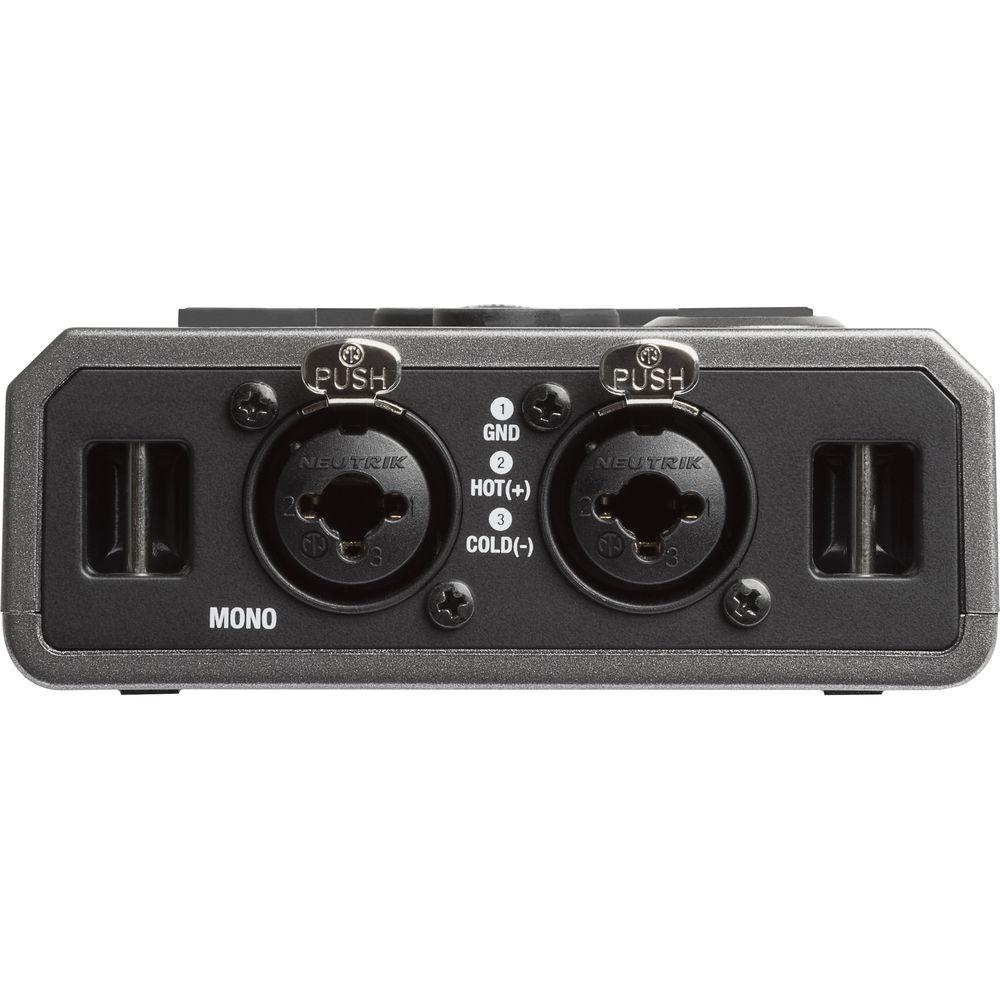

Make High-Quality Recordings with the Marantz Professional PMD561 Read More The PMD561 from Marantz Professional is a portable audio recorder designed for professional uses such as recording in the field, conducting interviews, or digitizing material played through a stereo receiver. Recording directly to SD and SDHC cards, the unit sports two combination XLR / 1/4" inputs for microphone and line-level signals, offering you 48V phantom power for the microphone inputs should you choose to use condenser microphones.

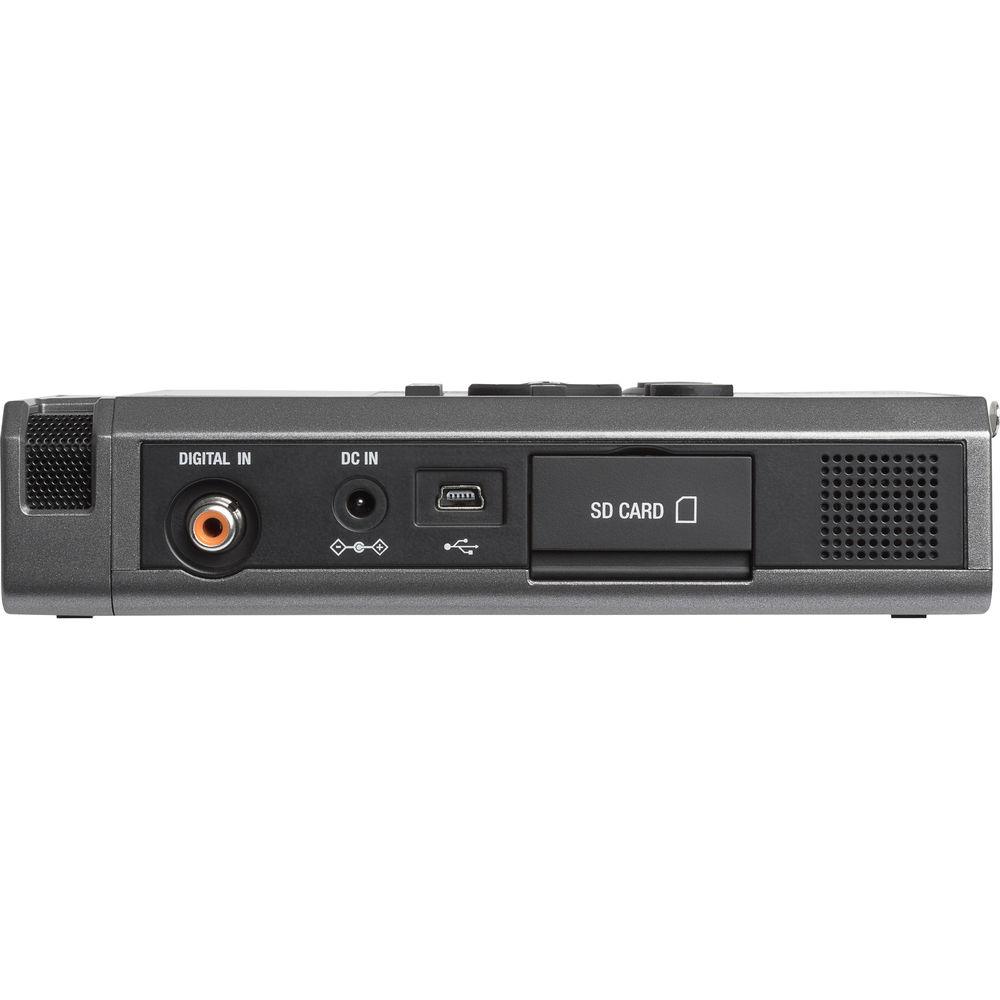

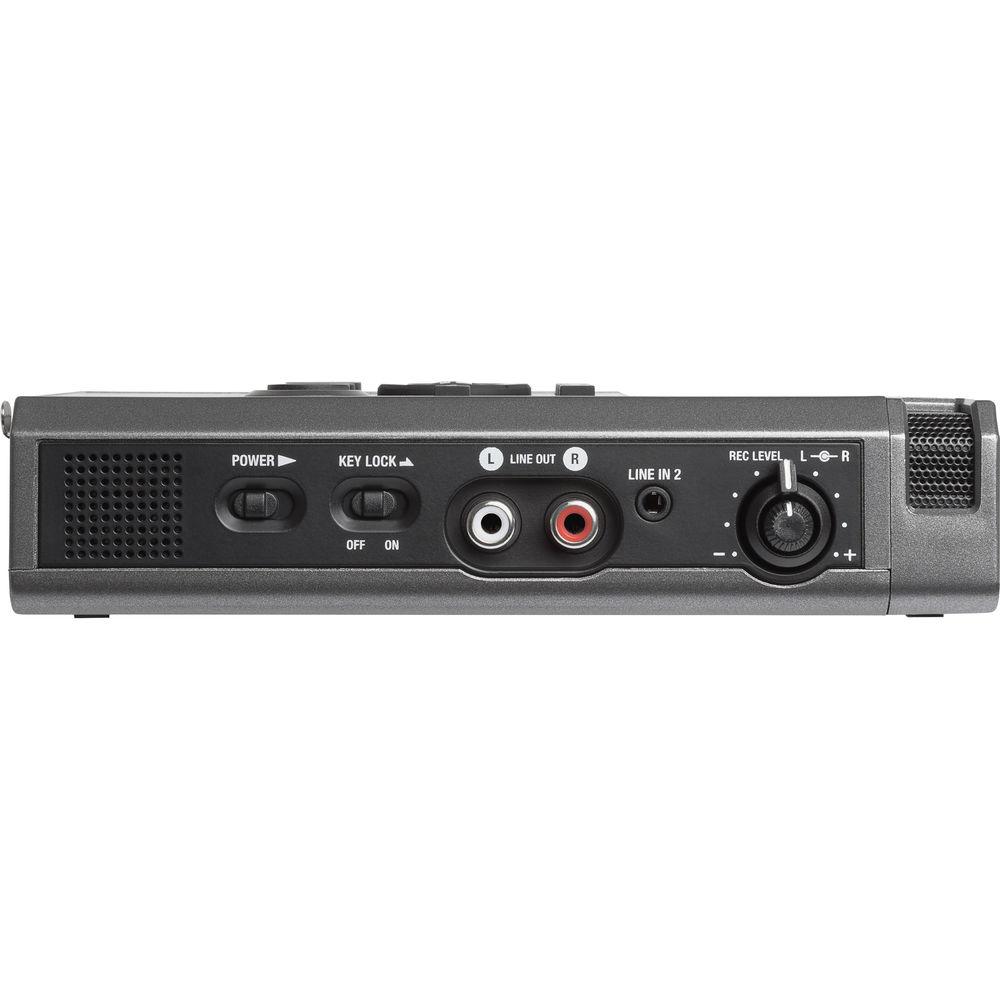

A stereo 3.5mm line input, used in conjunction with the included 3.5mm to RCA adapter cable, provides you the opportunity to input audio from a receiver or an amplifier. Should you wish to connect digital audio, the PMD561 boasts an RCA S/PDIF input.

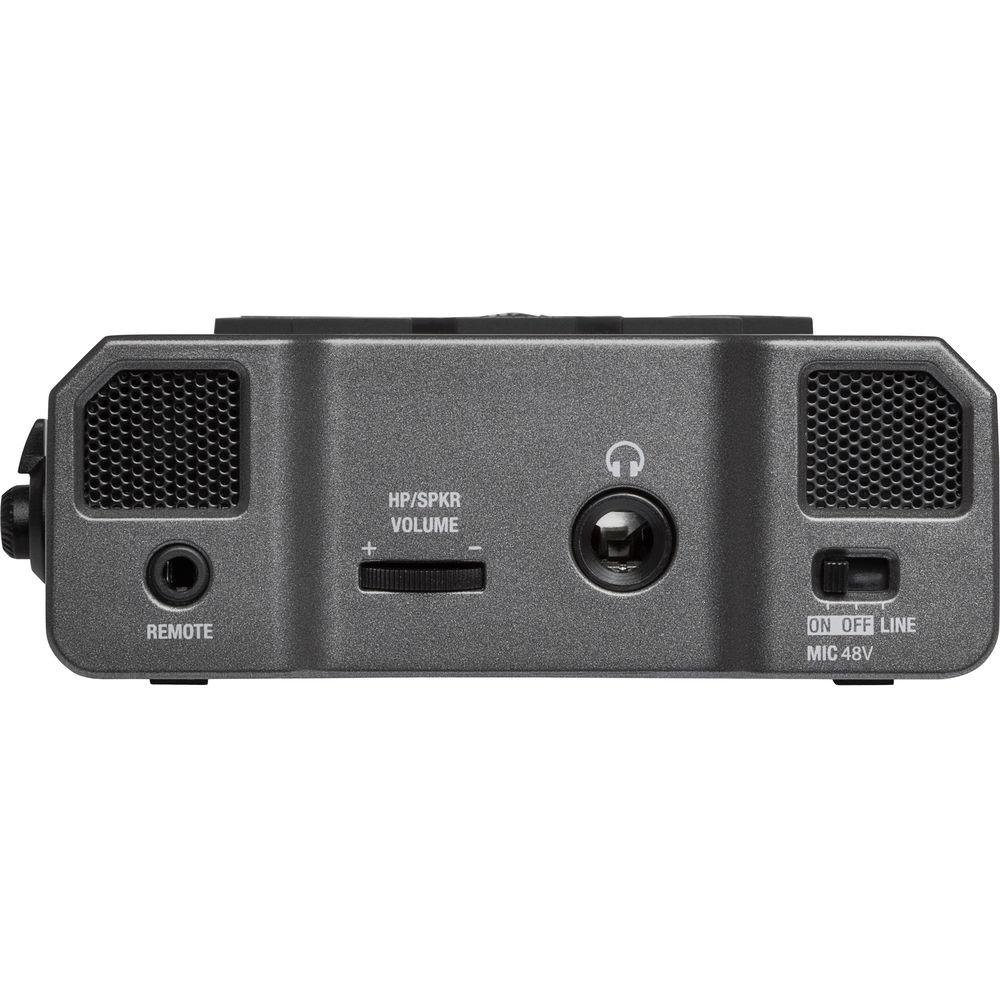

Playback options abound as well, with a 1/4" input for pro-audio headphones and dual RCA outputs to route signal to receiver equipment. Transferring your audio to computers can be accomplished via USB and while utilizing the included USB cable. This unit can record in MP3 formats up to 320 kbps, and in WAV formats up to 24-bit/96 kHz. With four AA batteries, the recorder lasts up to seven hours.
    Notable Features
    • Record professional-grade audio directly to SD/SDHC flash media
    • 2 x balanced XLR mic inputs with +48V phantom power
    • Selectable WAV / MP3 recording in mono or stereo
    • 44.1, 48 and 96 kHz sample rates in WAV formats
    • Selectable 16-/24-bit recording depths in WAV formats
    • 6 selectable bit rates from 32 kbps to 320 kbps for MP3
    • S/PDIF digital input for connecting to studio interfaces and more
    • On-board pitch-shifting buttons to speed/slow playback
    • On-board level LEDs
    • Remote control jack for optional RC600PMD and external remote controller
    • Connections make it suitable for recording microphones, stereo receivers, amplifiers, and other line-level signals

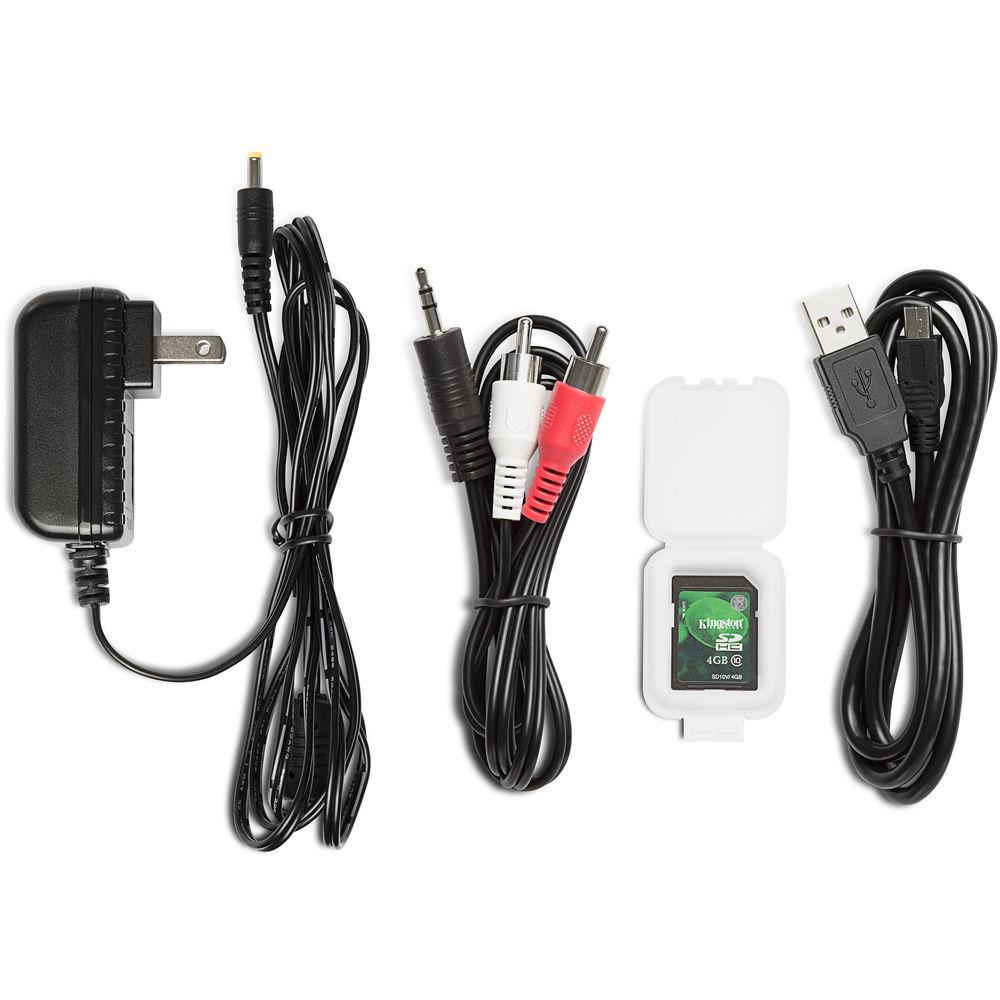

In the Box Marantz Professional PMD561 Professional Portable Audio Recorder
  • Power Adapter
  • SD Card
  • RCA to 3.5mm Audio Cable
  • USB Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Marantz Professional PMD561 Professional Portable Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Marantz Professional PMD-561 Specs

    Number of Tracks 2
    Max Sample Rate/Resolution 96 kHz / 24-Bit
    Microphone Built-In Stereo Pair
    Built-In Speaker Yes, 450 mW Stereo
    Memory Card Support SD, SDHC
    Audio File Formats MP3, WAV
    Sample Rates WAV:
    44.1 / 48 / 96 kHz
    Bit Depth 16/24-Bit
    Bit Rates 32 to 320 kb/s
    Timecode No
    Analog I/O 2 x Combo XLR / 1/4" TRS Line/Mic Input
    1 x 1/8" / 3.5 mm Line Input
    2 x RCA Line Output
    1 x 1/4" TRS Headphone Output
    Digital I/O 1 x Digital RCA S/PDIF Input
    Phantom Power +48 V
    Phantom Power Current ≤10 mA
    Host Connection 1 x Mini-USB
    Frequency Response 20 Hz to 24 kHz +1 dB
    Headphone Output Power 16 mW into 32 Ohms
    Dynamic Range 85 dB
    SNR Mic Inputs:
    65 dBA
    Line Inputs:
    85 dBA
    THD Mic Inputs:
    0.08%
    Line Inputs:
    0.02%
    Battery Type 4 x AA
    Approximate Battery Life 7 Hours
    AC/DC Power Adapter 5 VDC at 1.5 A, Center-Positive (Included)
    Dimensions 4.1 x 1.6 x 6.7" / 105.0 x 40.0 x 170.0 mm
    Weight 12.5 oz / 353.0 g (Without Batteries)
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 9.1 x 8.1 x 2.1"
