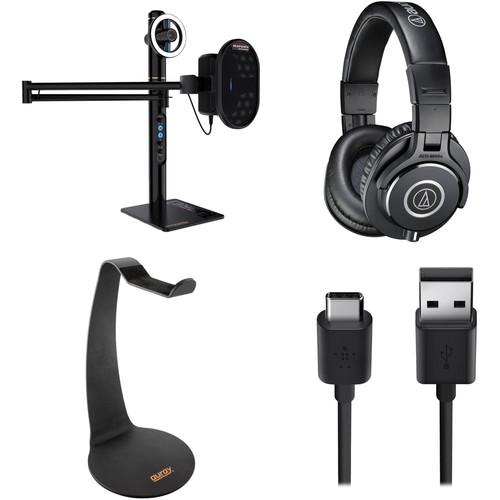

User Manual for Marantz Professional Turret Broadcaster Video-Streaming System Kit with Audio-Technica ATH-M40x Headphones

• Product category: Video Conferencing Cameras Marantz Professional
• Brand: Marantz Professional
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Marantz Professional Video Conferencing Cameras

Product description

• Marantz Professional Turret Broadcaster Video-Streaming System
  • Hands-On Review: Marantz Professional Turret Broadcaster
  • Marantz Professional Turret - Broadcast Video Streaming System
  The Turret Broadcast Video Streaming System from Marantz Professional combines an HD video camera, microphone, ring light, and headphone amplifier with a control tower/stand. Together, these components provide an all-in-one broadcast tool expressly designed for streaming and podcasting. The Turret System's compact, portable size suits it to both desktop and location use with the centrally located camera, microphone, and light controls placed within easy reach on the control tower. The Turret camera features full HD recording at 1080p, automatic low-light correction, a 78° wide-angle lens, auto-focusing, and both Windows and Mac compatibility. H.264 video compression is built-in for easy streaming, and the Turret includes an internal USB hub; a high-speed USB-C output minimizes signal latency. On the audio side, the Turret features a high-performance condenser mic, gain control with an integrated preamp, pop filter, and direct monitoring while recording. To add music or an effects channel, a mix control enables you to blend the mic's audio with a USB audio input. The preamp outputs a pristine signal to your headphones, enabling you to hear your audio output as your audience does. The LED ring light surrounds the Turret camera, providing even illumination of the streamer/podcaster. This dimmable, daylight-balanced LED fixture comes with cool white, and warm filters for matching to the light at your location.

  Features

  • • Complete, freestanding streaming/recording system
    • Full HD video at 1080p/30 with H.264 compression, and a 78° wide-angle lens
    • Automatic low-light exposure correction
    • USB condenser microphone 48 kHz/16-bit with pop filter
    • Mix control enables mixing of mic's audio with USB audio input
    • Dimmable, daylight-balanced LED ring light provides even illumination
    • Outputs to your computer via USB-C port; internal USB hub
    • Headphone preamp for accurate monitoring
    • Fixed line-level output via 3.5mm TRS jack
  System Compatibility
  • • Windows
    • Mac 10.6 or later
    • Operates in USB Video Device Class (UVC) mode
  UPC: 694318023440
• Audio-Technica ATH-M40x Monitor Headphones (Black)
  • Hands-On Review: Marantz Professional Turret Broadcaster
  • Marantz Professional Turret - Broadcast Video Streaming System
  The black ATH-M40x Monitor Headphones from Audio Technica are designed for use in studio tracking and mixing and well as for DJ monitoring applications. They feature 40mm Neodymium drivers with copper-clad aluminum voice coils tuned for a flat response. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ear cups on the ATH-M40x can be swiveled up to 90 degrees, allowing for single-ear monitoring. The headphones have a detachable single-sided cable system, and both coiled and straight cables are included. When not in use, the ATH-M40x can be folded down and stored in the included carry pouch.
• Auray HPDS-B Desktop Headphone Stand (Black)
  • Hands-On Review: Marantz Professional Turret Broadcaster
  • Marantz Professional Turret - Broadcast Video Streaming System
  The black Auray HPDS-B is a desktop headphone stand designed to provide convenient headphone storage and access for musicians, DJs, podcasters, audio engineers, and vocalists in home, project, and commercial recording studios and live stage applications. It features a slim and unobtrusive design, with a matte black finish to complement your workspace and decrease clutter and cord tangles.Sturdy one-piece steel construction accommodates lightweight, standard, and large headphones without bending or warping. The base is weighted to increase stability and prevent tipping. An upturned lip and neoprene padding on the arm and base eliminate headphone slippage, keeping your headphones securely hung on the stand.The HPDS-B requires no assembly or modification—simply set it on a desk, table, stand, or other flat surface.
  • Slim, unobtrusive design and matte black finish contribute style without distracting the eye
  • Keeps headphones accessible without cluttering your workspace
  • Sturdy one-piece steel stand easily holds standard and large, oversized headphones, and won't bend or break under the weight of heavy headphones
  • Weighted base keeps the stand planted and prevents tipping
  • Upturned lip and neoprene padding on arm and base eliminate headphone slippage
  • No assembly or desk modification required
  UPC: 847628002906
• Belkin USB 2.0 Type-A to USB Type-C Charge Cable (6', Black)
  • Hands-On Review: Marantz Professional Turret Broadcaster
  • Marantz Professional Turret - Broadcast Video Streaming System
  The 6', black USB 2.0 Type-A to USB Type-C Charge Cable from Belkin allows you to charge your USB Type-C devices as well as sync your photos, music, and data to your existing laptop at transfer speeds of 480 Mb/s. The cable also supports up to 3A of power output. It connects USB Type-C enabled devices and computers to standard USB Type-A enabled laptops and hard drives.
  USB Type-C Construction
  • Precision-welded metal shield protects PCB and E Marker, minimizes radiated emissions levels, and provides additional mechanical strength.
  Powers and Charges Other Devices
  • This USB Type-C cable supports up to 3A of power output and can be used for charging and powering USB Type-C devices.
  Reversible C-Connector
  • USB Type-C is a user-friendly reversible connector that allows you to connect your cable to your device in any direction.
  USB-IF Certification
  • This cable has been certified by USB-IF to meet all electrical, mechanical, and environmental standards.
  UPC: 745883692330

• Turret Broadcaster Video-Streaming System dutevttzxvrwax
• Microphone Pop Filter
• Cool & Warm Ring-Light Filters
• Limited 1-Year Warranty

• Audio-Technica - ATH-M40x Monitor Headphones (Black)

• Auray - HPDS-B Desktop Headphone Stand (Black)

Includes Free

• Belkin - USB 2.0 Type-A to USB Type-C Charge Cable (6', Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Marantz Professional Turret Broadcaster Video-Streaming System

  Diagonal Field of View (FOV)	78°
  Optical Resolution	5 MP native
  Recording	1080p HD video, up to 1920 x 1080
  Frame Rates	1080p: 30 fps 720p: 60 fps
  Video Compression	H.264

  Condenser Capsule	0.6" (14 mm) diameter
  Sensitivity	-34 dB to Rating 100% users recommend this product to others. And what about you? This product has already been rated by 35 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
