User Manual for Marathon Comp-200 - Dynamic Processor Click to enlarge the picture
Contents of the user manual for the Marathon Comp-200 - Dynamic Processor
- Product category: Dynamics Processors Marathon
- Brand: Marathon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marathon Dynamics Processors
|
User manual for the Marathon Comp-200 - Dynamic Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marathon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marathon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marathon product will considerably shorten its lifespan!
|

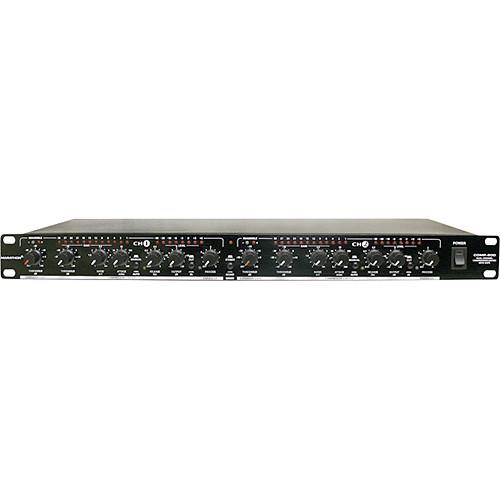

Product description The Comp-200 from Marathon is a dual channel compressor/limiter with gate, housed in a 19 inch, single rack-space chassis. Dual mono or stereo linking is selectable, along with manual or auto attack/release settings. Both channels have bypass switches and LEDs to display input and gain reduction levels. - Two channels of compression/limiting with gates
- Dual mono or stereo operation
- Auto or manual attack/release operation
- "Process" controls help compensate for tonal changes introduced with heavy compression
- Input and gain reduction LEDs
- Channel bypass switch with LED indicator per channel
UPC: 111311005056 Table of Contents
|
Upload User Manual
Have you got an user manual for the Marathon Comp-200 - Dynamic Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarathon Comp-200 Specs | Function | Compressor, Expander/Gate, Limiter | | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone | | Outputs | 2 x XLR
2 x 1/4" TRS phone | | Maximum Input Level | +21dBu, balanced and unbalanced | | Compression Threshold | -40dB to +20dB | | Compression Ratio | 1:1 to infinity:1 | | Attack Time | <1ms> | | Release Time | 100ms/100dB | | Gate Threshold | Off to 10dBu (variable ) | | Maximum Output Level | +21dBu, balanced and unbalanced | | Frequency Response | 0.35Hz to 200kHz, +0.0/-3.0dB | | Dynamic Range | Not specified by manufacturer | | Noise | >-95dBu, unweighted, 22Hz to 22kHz | | Power Requirements | 100~120VAC, 60Hz or 200~240VAC, 50Hz (selectable) | | Dimensions (WxDxH) | 19 x 7 x 1.75" (483 x 180 x 45mm) | | Weight | 8 lbs (3.7kg) | | Specialties | Output gain -20dB to +20dB |
