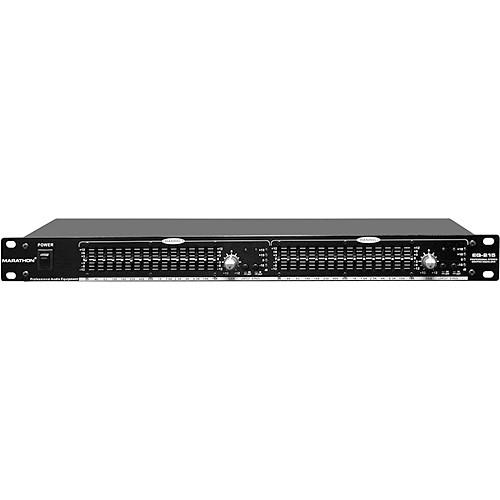

User Manual for Marathon EQ-215 - Graphic Equalizer Click to enlarge the picture
Contents of the user manual for the Marathon EQ-215 - Graphic Equalizer
- Product category: Equalizers Marathon
- Brand: Marathon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marathon Equalizers
|
User manual for the Marathon EQ-215 - Graphic Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marathon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marathon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marathon product will considerably shorten its lifespan!
|
Product description The EQ-215 from Marathon is a dual-channel, 15-band 2/3 octave graphic equalizer. The sliders are center detent with a boost/cut range of +/-12dB, and the unit provides balanced and unbalanced input and output connections, fixed high pass filters, variable output level controls, clip level indicators, along with an internal universal power supply. The unit has EQ bypass switches for each channel with LED status indicators, and is housed in a rugged, all-steel 1U rack space chassis. The EQ-215 is intended for installation in standard 19" equipment racks and may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment. - Dual channel, 15-band, 2/3 octave graphic equalizer
- Variable output level control
- Per channel EQ bypass switch
- Balanced and unbalanced input and output connections
UPC: 111311003564 In the Box Marathon EQ-215 - Graphic Equalizer AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marathon EQ-215 - Graphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarathon EQ-215 Specs | Filter Type | Graphic | | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone | | Outputs | 2 x XLR
2 x 1/4" TRS phone | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | 2 x 15 | | Bandwidth | 2/3 octave | | Range (Boost/Cut) | +/-12dB | | Maximum Output Level | +21dB | | Frequency Response | Not specified by manufacturer | | Dynamic Range | Not specified by manufacturer | | Noise | SNR: >95dB | | Power Requirements | 100~120/210~230VAC, 60Hz/50Hz | | Dimensions (WxDxH) | 19 x 5.9 x 1.75" (483 x 150 x 45mm) | | Weight | 5 lbs (2.3kg) | | Specialties | High-pass filter and bypass per channel |
