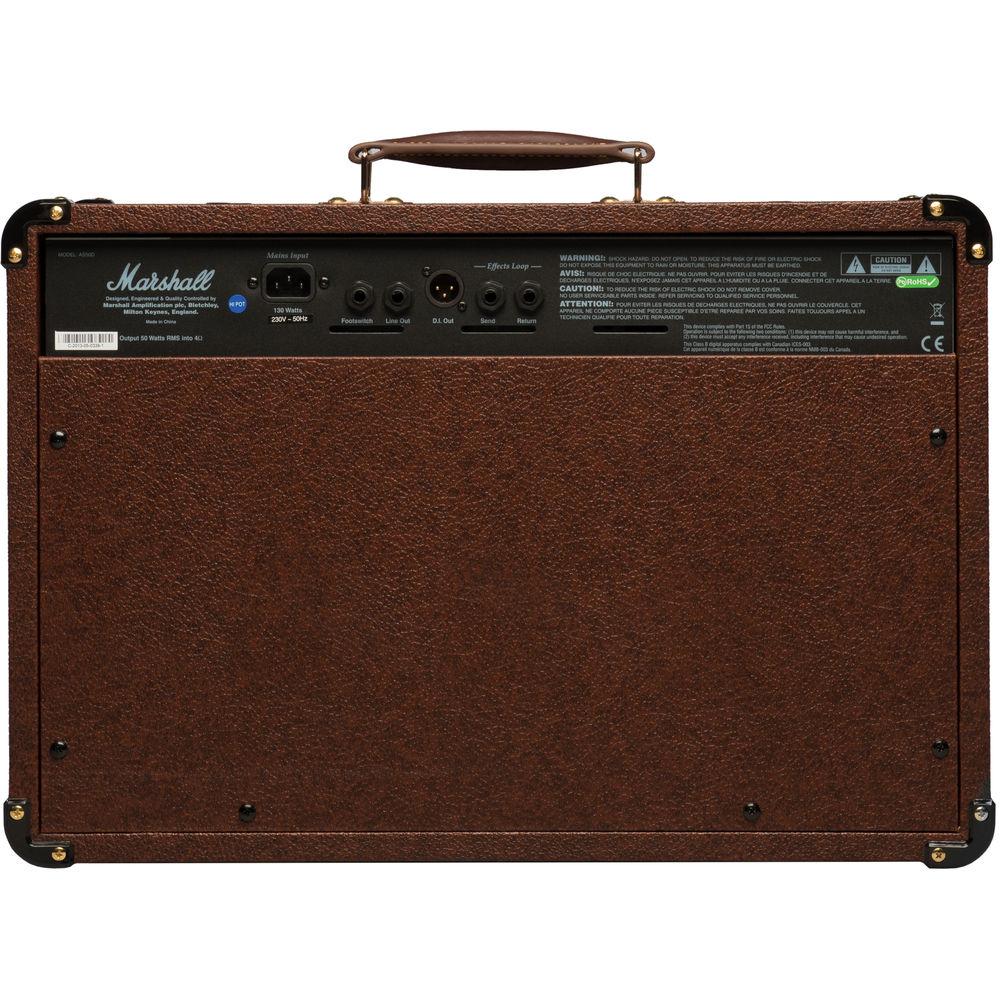

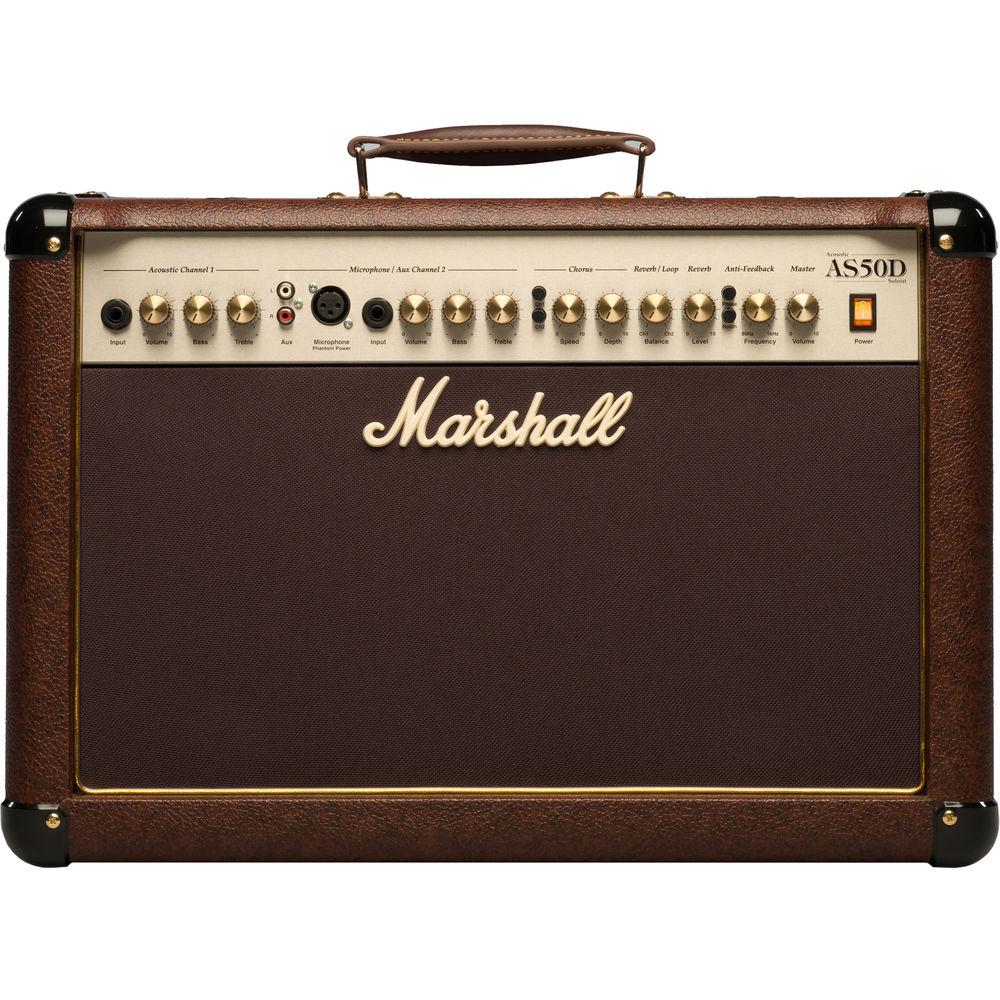

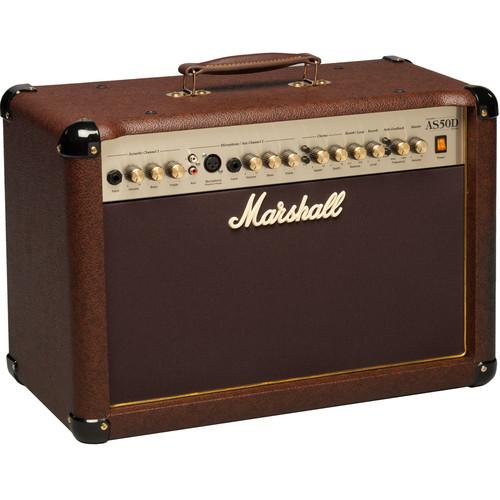

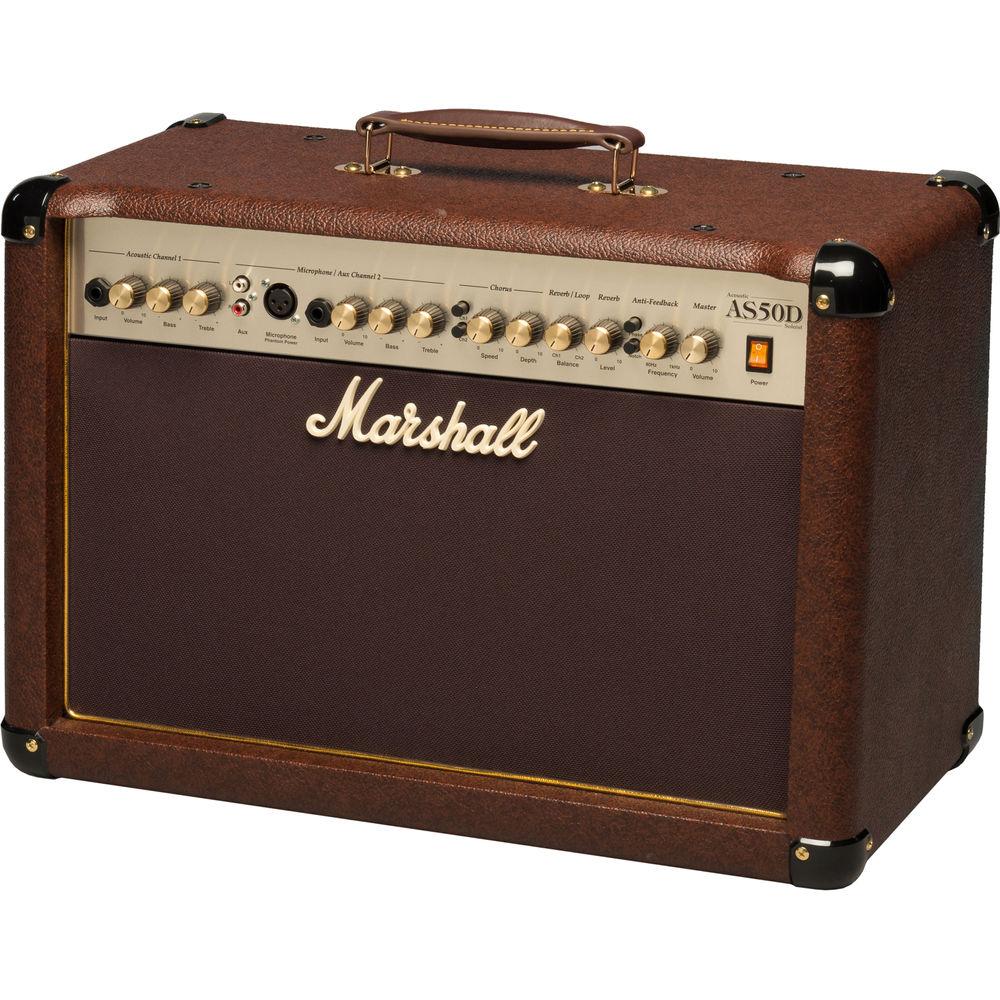

Product description The brown AS50D from Marshall Amplification is a 2-channel acoustic guitar combo amplifier that is well suited for small and mid-sized venues, and can function as a full PA for solo performers. This 50W amplifier features two specially designed 8" Celestion drivers, and a polymer dome tweeter to deliver full range sound that is clear and powerful. Channel one provides a Hi-Z 1/4" instrument input, while channel two provides a 1/4" instrument input, an XLR microphone input, and stereo RCA auxiliary inputs, for instrument, vocal, or backing track amplification. Both channels offer dedicated volume, treble, and bass controls.The master section includes channel-assignable chorus with speed and depth controls, reverb level, reverb/effects balance, a phase switch, an anti-feedback notch filter with a (80 Hz to 1 kHz) variable frequency control, and a master volume control. The rear panel includes a footswitch input, a 1/4" line output, an XLR DI output, and 1/4" send and return jacks (effects loop) for working with your favorite pedal effects. The AS50D ships with a standard IEC power cord. -
- 50W RMS
- 2x specially designed 8″ Celestion speakers
- Polymer dome tweeter
- 2x input channels
- Volume, treble, and bass controls for each channel
- Master volume control
- Phase switch
- Anti-feedback notch filter with variable frequency control
- Chorus with speed and depth
- Reverb
- FX Loop (send and return)
- Reverb and loop balance control
- Microphone input with phantom power
- 2x RCA auxiliary input
- Line out
- DI out
- Footswitch input for reverb and chorus on/off control
In the Box Marshall Amplification AS50D - 50W 2x8" 2-Channel Acoustic Guitar Combo Amplifier with FX (Brown) IEC Power Cord Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification AS50D - 50W 2x8" 2-Channel Acoustic Guitar Combo Amplifier with FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification M-AS50D-U Specs | | | Amplifier Type | Solid State | | Output Power | 50 W RMS | | Channels | 2 | | Output Impedance | 8 Ohms Mono | | Effects Loop | Yes, Parallel | | Built-In Effects | Chorus, Digital Reverb | | Master Volume | Yes | | Inputs | 2 x 1/4" Hi Instrument
1 x XLR Hi Mic Level
2 x RCA Low Line Level
1 x 1/4" Parallel Effects Return
1 x 1/4" Series Footswitch | | Outputs | 1 x 1/4" Mono Line Level
1 x XLR Mono DI
1 x 1/4" Parallel Effects Send | | Tone Section | Channel 1: Bass, Treble
Channel 2: Bass, Treble | | | | Configuration | 2 x 8" Speaker(s)
1 x 1" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 50 W | | | | Dimensions (WxHxD) | 21.3 x 16.4 x 10.3" / 541.0 x 416.6 x 261.6 mm Combo | | Weight | 35.3 lb / 16.01 kg Combo | | | | Package Weight | 36.8 lb | | Box Dimensions (LxWxH) | 24.003 x 17.8 x 13.3" |
