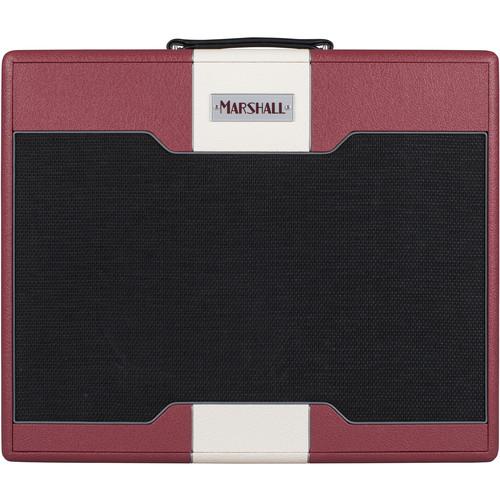

User Manual for Marshall Amplification Astoria AST2C Dual Channel Hand-Wired 30W 1x12 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Marshall Amplification Astoria AST2C Dual Channel
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
|
User manual for the Marshall Amplification Astoria AST2C Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|
Product description Designed to bring vintage Marshall Amplification tone to your electric guitar, the Astoria Dual AST2C is a dual-channel 30W RMS combo sporting a 1x12" Celestion Creamback speaker. While its built-in speaker provides 75W RMS of power, the amplifier itself is capable of powering 4-, 8-, or 16-Ohm external cabinets.
This tube-driven combo offers you two channels, one for clean tones and one for overdrive, with the option of utilizing a pull-knob or an included footswitch to change between the two. In addition to its three-band EQ, the AST2C features an edge control for presence and several pull-knobs to expound further upon tonal versatility: Pull-Body thickens your sound by adding a +8 dB shelved low-frequency boost at 120 Hz and below, while Pull-Power reduction reduces the total output from 30W to 5W, thereby enabling you to produce softer, warmer tones.
Two separate instrument inputs—one high and one low—provide flexibility in dealing with different types of pickups, and an effects loop located on the rear panel allows you to patch in your external gear. Furthermore, every element of the turret board has been handwired in England's Marshall factory to ensure the most efficient signal path. A footswitch, power-cable, and dust-cover are included with this amplifier. - Edge
- This function regulates the high-frequency content of the power-amp stage, allowing for further tonal shaping
- Multiple Connections
- The AST2C features 5x 1/4" speaker jacks wired for 4-, 8-, and 16-Ohm cabinets, as well as a 1/4" footswitch input
- Built-In Effects Loop
- A 1/4" effects loop, complete with true-bypass switch and level knob, allows you to introduce external effects straight into the amplifier's routing
- Cabinet
- This combo features a 1x12" Celestion Creamback speaker
In the Box Marshall Amplification Astoria AST2C Dual Channel Hand-Wired 30W 1x12 Combo Amplifier Power Cable Footswitch Dust Cover Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor & Speaker Limited 90-Day Warranty on Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification Astoria AST2C Dual Channel Hand-Wired 30W 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification AST2C Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 1 | | Tube Types | 4 x Preamp 12AX7/ECC83
2 x Power 6L6GC/5881
1 x Rectifier 5AR4/GZ34 | | Output Impedance | 4/8/16 Ohms Mono | | Effects Loop | Yes, Series | | Master Volume | Yes | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/4" Low Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Mono Footswitch | | Outputs | 5 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Presence, Treble
Channel 2: Bass, Gain, Mid, Presence, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 75 W RMS | | Input Impedance | 4/8/16 ohms Stereo | | | | Dimensions (WxHxD) | 23.6 x 21.3 x 9.1" / 600.0 x 540.0 x 230.0 mm Combo | | Weight | 60.63 lb / 27.5 kg Combo |
