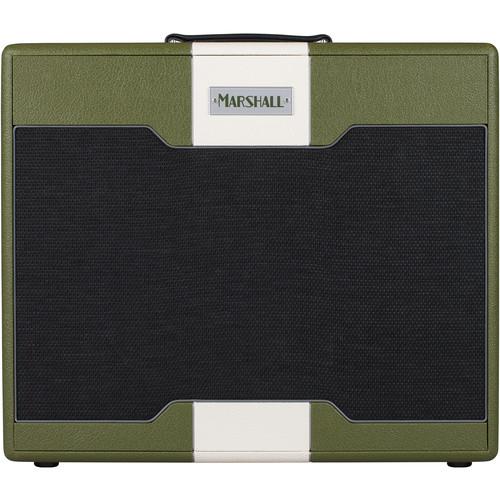

User Manual for Marshall Amplification Astoria Classic AST1C Hand-Wired 30W Single Channel 1x12 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Marshall Amplification Astoria Classic AST1C Hand-Wired
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification Astoria Classic AST1C Hand-Wired contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

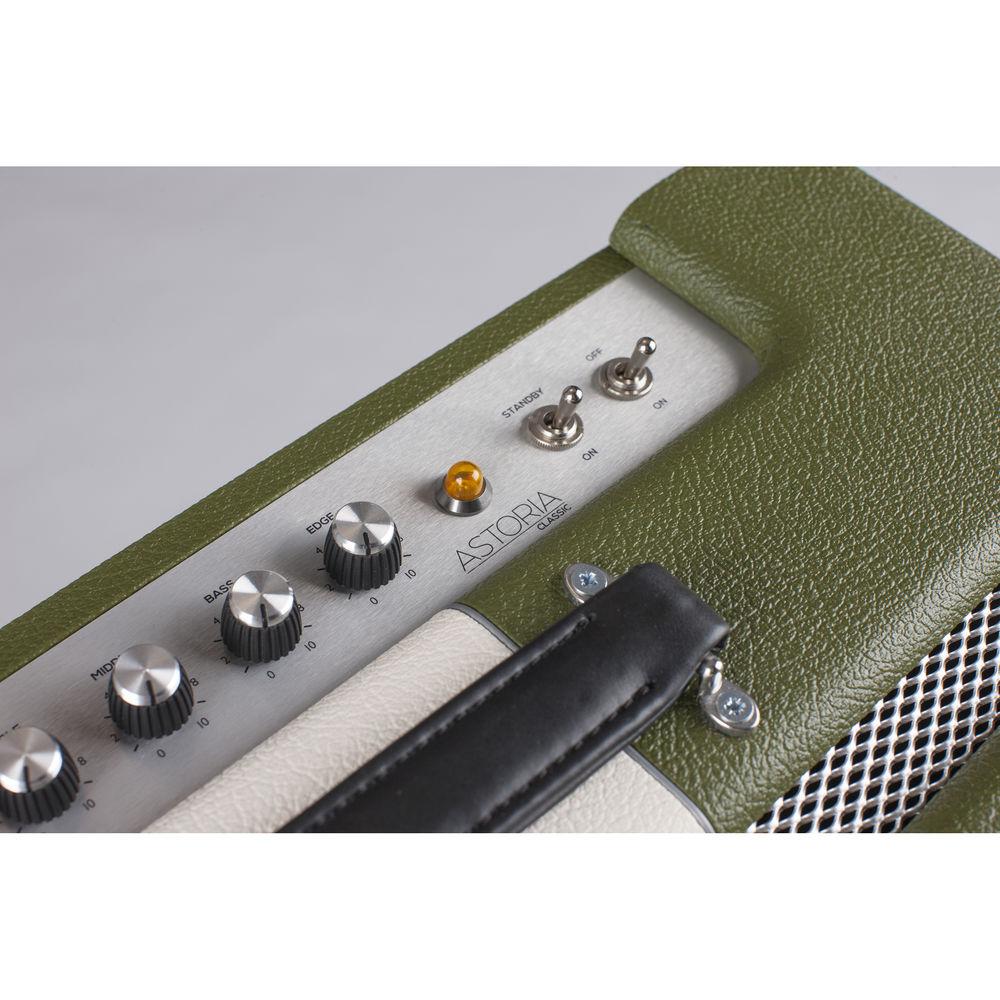

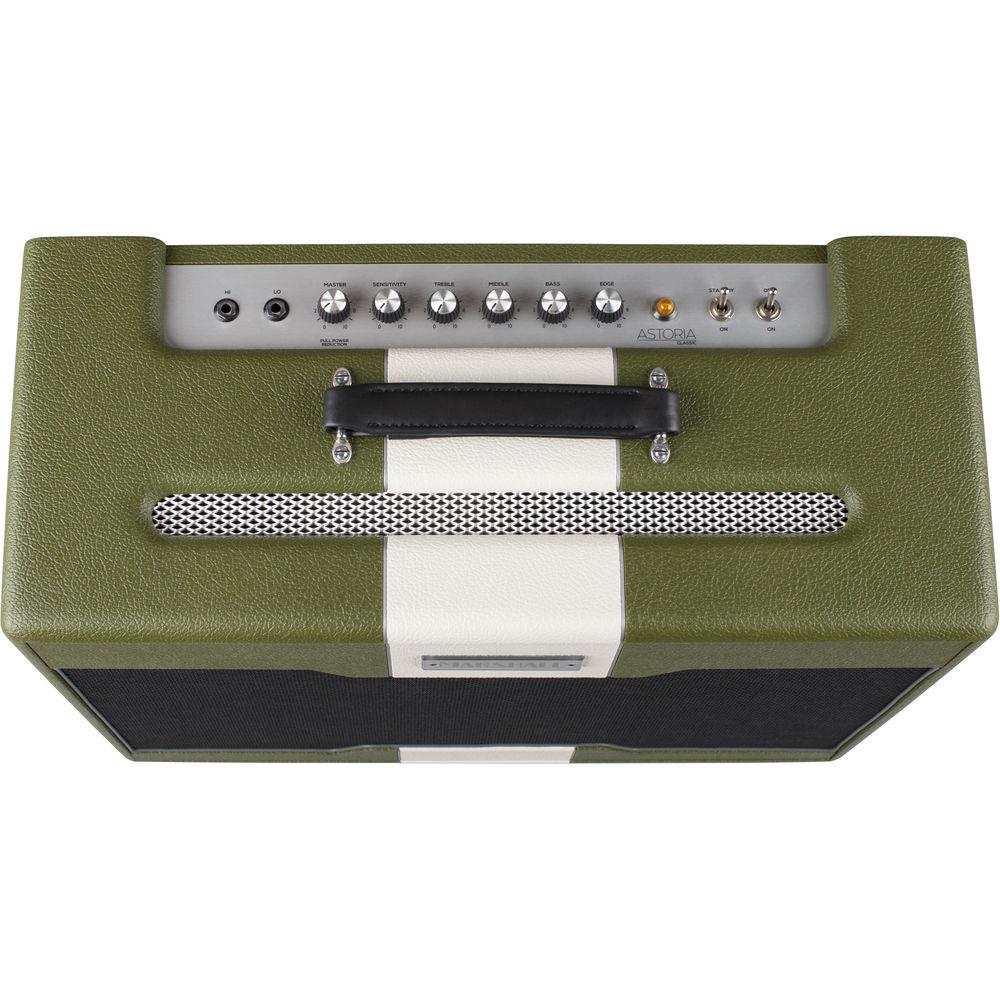

Product description Designed to bring vintage Marshall Amplification tone to the table, the Astoria Classic AST1C is a single channel combo amplifier intended for electric guitars. It powers 30W into its 8 Ohm 1x12" Celestion Creamback speaker, and furthermore, is capable of powering 4-, 8-, or 16-Ohm cabinets. In addition to its three-band EQ, the AST1C features a sensitivity knob, an edge control, and a pull-power reduction function which drops output from 30W to 5W in order to produce a softer, less abrasive tone. This single channel, tube-powered amplifier also sports two inputs, one high and one low, for optimal flexibility in dealing with different types of pickups with different output levels. Also, every element of the turret board has been hand-wired in England's Marshall factory to ensure the most efficient signal path. - Sensitivity
- This knob controls the sensitivity of the preamp, thereby increasing or decreasing gain without changing the output impedance of the first stage
- Edge
- This function regulates the high-frequency content of the power-amp stage, allowing for further tonal shaping
- Multiple Connections
- Although this combo features an 8 Ohm 1x12" Celestion Creamback speaker, the AST1C features 5x 1/4" speaker jacks wired for 4-, 8-, and 16-Ohm cabinets
In the Box Marshall Amplification Astoria Classic AST1C Hand-Wired 30W Single Channel 1x12 Combo Amplifier Power Cable Dust Cover Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor & Speakers Limited 90-Day Warranty on Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification Astoria Classic AST1C Hand-Wired 30W Single Channel 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification AST1C Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 1 | | Tube Types | 3 x Preamp 12AX7/ECC83
2 x Power 6L6GC/5881 | | Output Impedance | 4/8/16 Ohms Mono | | Effects Loop | No | | Master Volume | Yes | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/4" Low Instrument | | Outputs | 5 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Bass, Gain, Mid, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Power Rating | 75 W RMS | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 23.6 x 21.3 x 10.2" / 600.0 x 540.0 x 260.0 mm Amplifier | | Weight | 60.63 lb / 27.5 kg Amplifier |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
