User Manual for Marshall Amplification DSL1HR 1W 2-Channel Valve Amplifier Head with Reverb Click to enlarge the picture
Contents of the user manual for the Marshall Amplification DSL1HR 1W 2-Channel Valve
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification DSL1HR 1W 2-Channel Valve contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

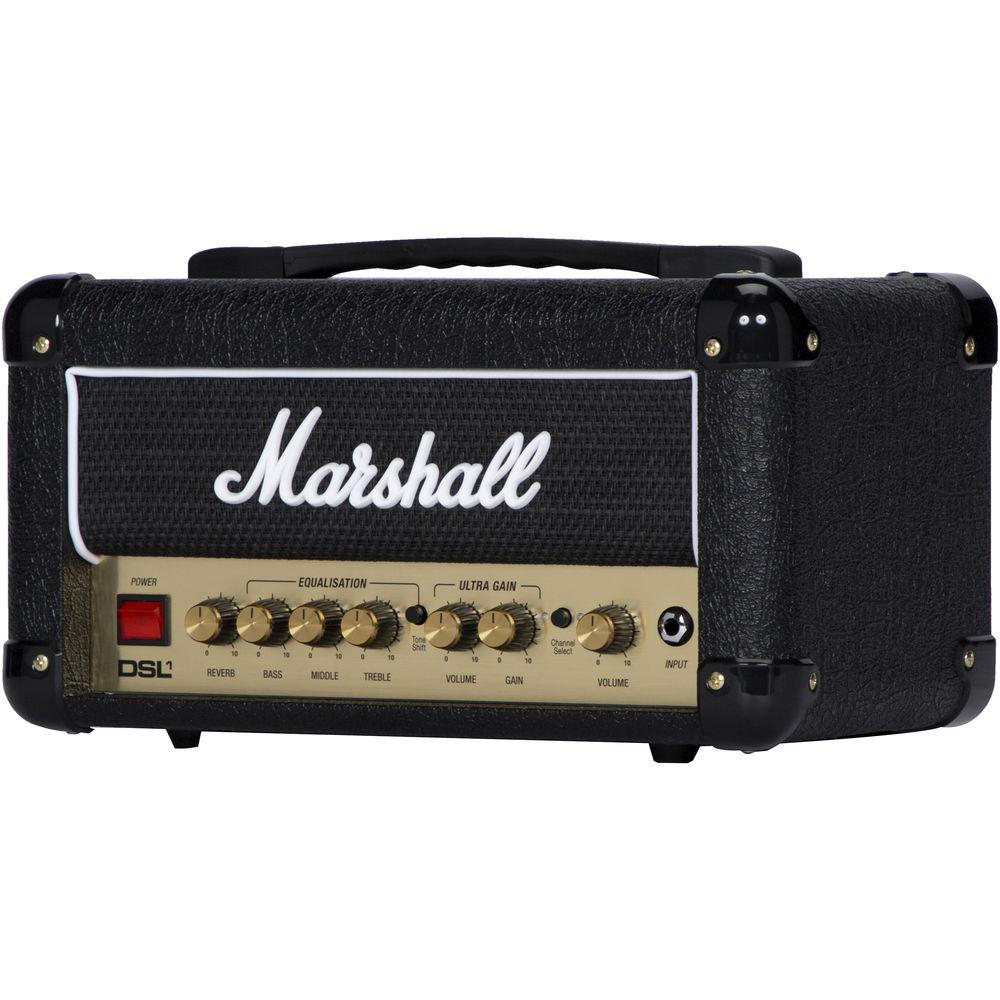

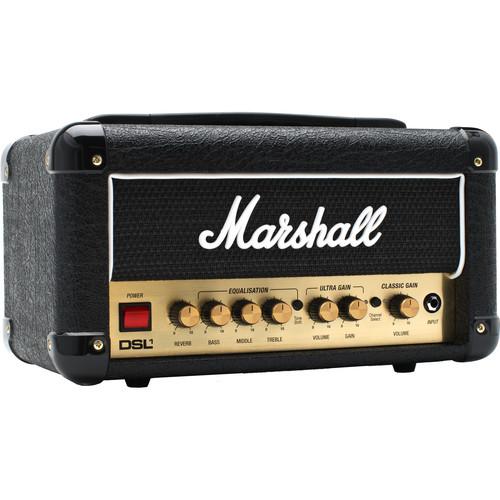

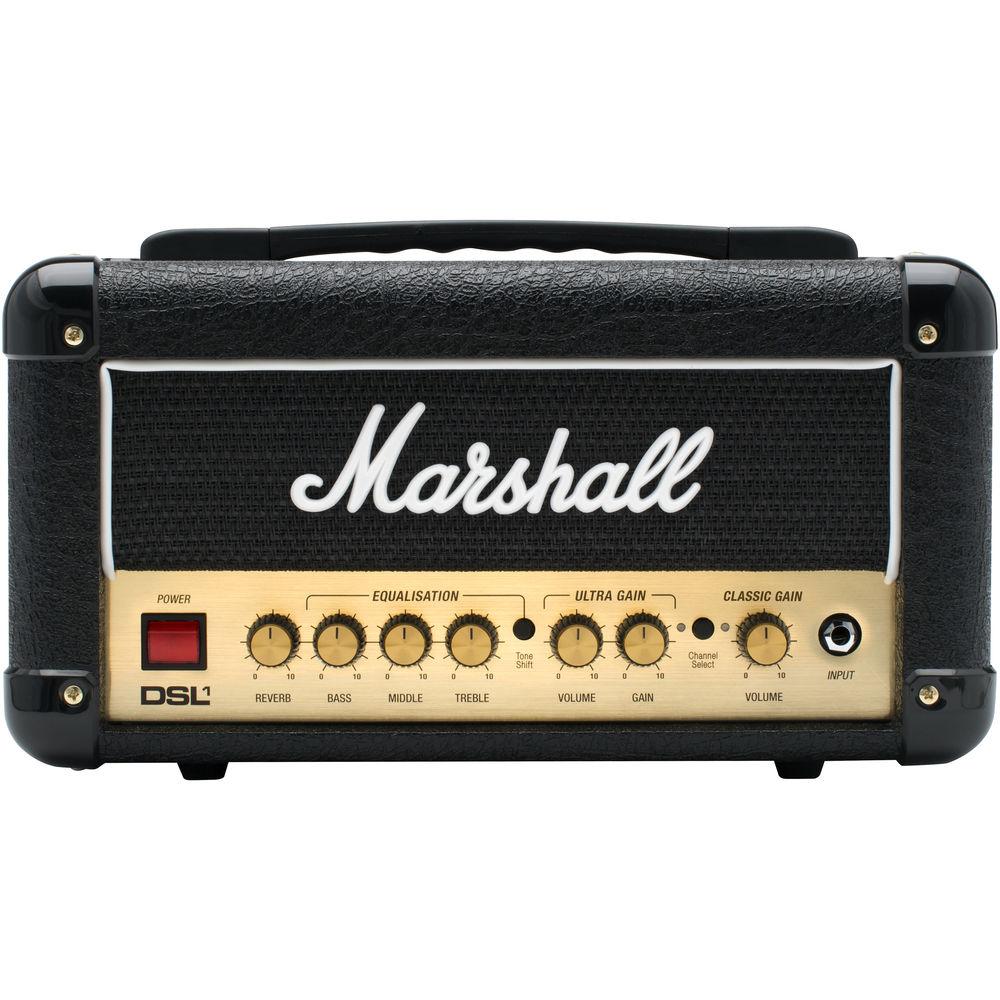

Product description The Marshall Amplification DSL1HR is a two-channel amplifier head powered by three valves/tubes. One channel gives you a cleaner tone, while the other is suitable for your distortion needs. A three-knob tone stack, coupled with a tone shift button that reshapes the preamp's EQ, helps you dial in your preferred timbre. With a low-power switch on the back, you can reduce the output from 1W to 0.1W without affecting the tone. Thus, you can practice in your home with minimal disturbance to your family or neighbors.

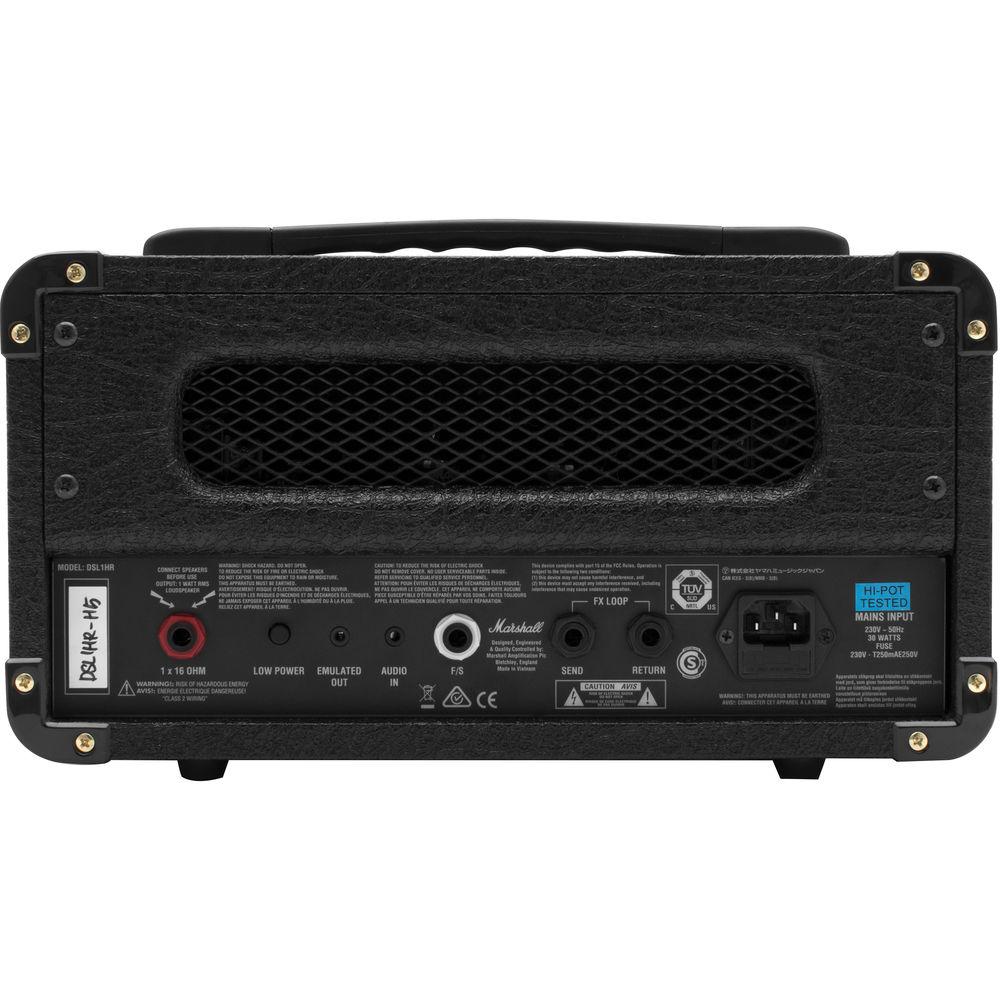

An onboard effects loop gives you the ability to put your pedals or external processors directly in the amplifier's signal path, while a reverb knob on the front panel allows you to apply some ambience to your signal. An auxiliary input is on hand for jamming along to your favorite tunes. You can route your signal from the emulated output jack to headphones or to a recording interface, taking advantage of the Softube-designed studio-cabinet emulation all the while.This amplifier head sports a single 1/4" speaker output jack rated at 16 Ohms. You can use this amplifier with speakers such as the 160HM extension speaker cabinet, or you can use it as a front end for your interface's DI input, using the emulated output jack in coordination with a 3.5mm-to-1/4" adapter. A footswitch is supplied, with which you can choose between the two channels. - Suitable for Home Practice
- With an emulated output and power reduction to 0.1W, the DSL1CR is perfect for recording and playing in the bedroom. Marshall has engineered the amp to provide an impactful sound at low levels; you can select a power option of 0.1W.
- Dual-Channel Operation
- Using the two, footswitchable gain channels, you can go from clean, classic tones to those with added distortion and extra bite.
- Effects Options
- Create the music you want using the studio quality reverb, tone shift, and onboard effects loop.
In the Box Marshall Amplification DSL1HR 1W 2-Channel Valve Amplifier Head with Reverb IEC Power Cord Footswitch Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Limited 90-Day Warranty on Tubes and Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification DSL1HR 1W 2-Channel Valve Amplifier Head with Reverb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification DSL1HR Specs | | | Amplifier Type | Tube | | Output Power | 1 W | | Channels | 2 | | Tube Types | 2 x Preamp 12AX7/ECC83
1 x Power 12AU7/ECC82 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | No | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Effects Return
1 x 1/8" Mono Aux | | Outputs | 1 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send
1 x 1/8" Mono Emulated Speaker | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Treble | | | | Dimensions (WxHxD) | 14.2 x 8.3 x 8.5" / 360.0 x 210.0 x 215.0 mm Amplifier | | Weight | 12.35 lb / 5.6 kg Amplifier |
