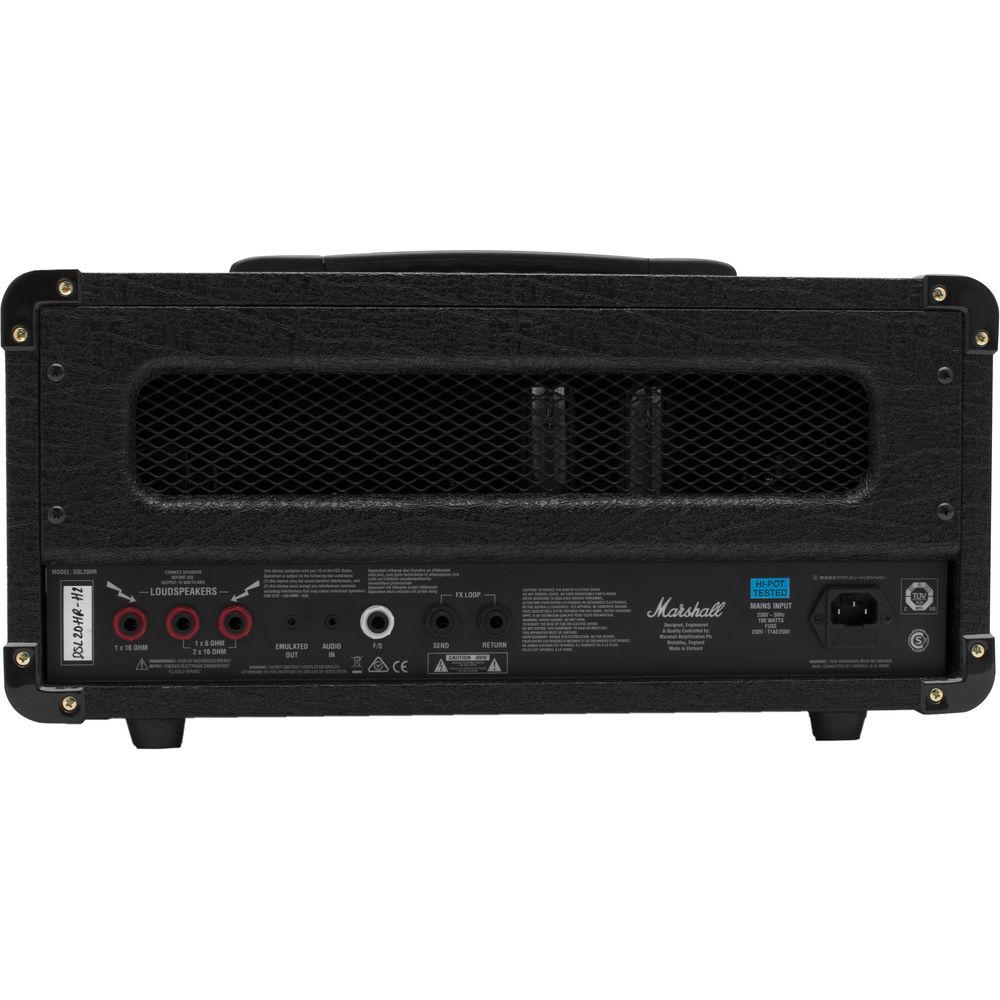

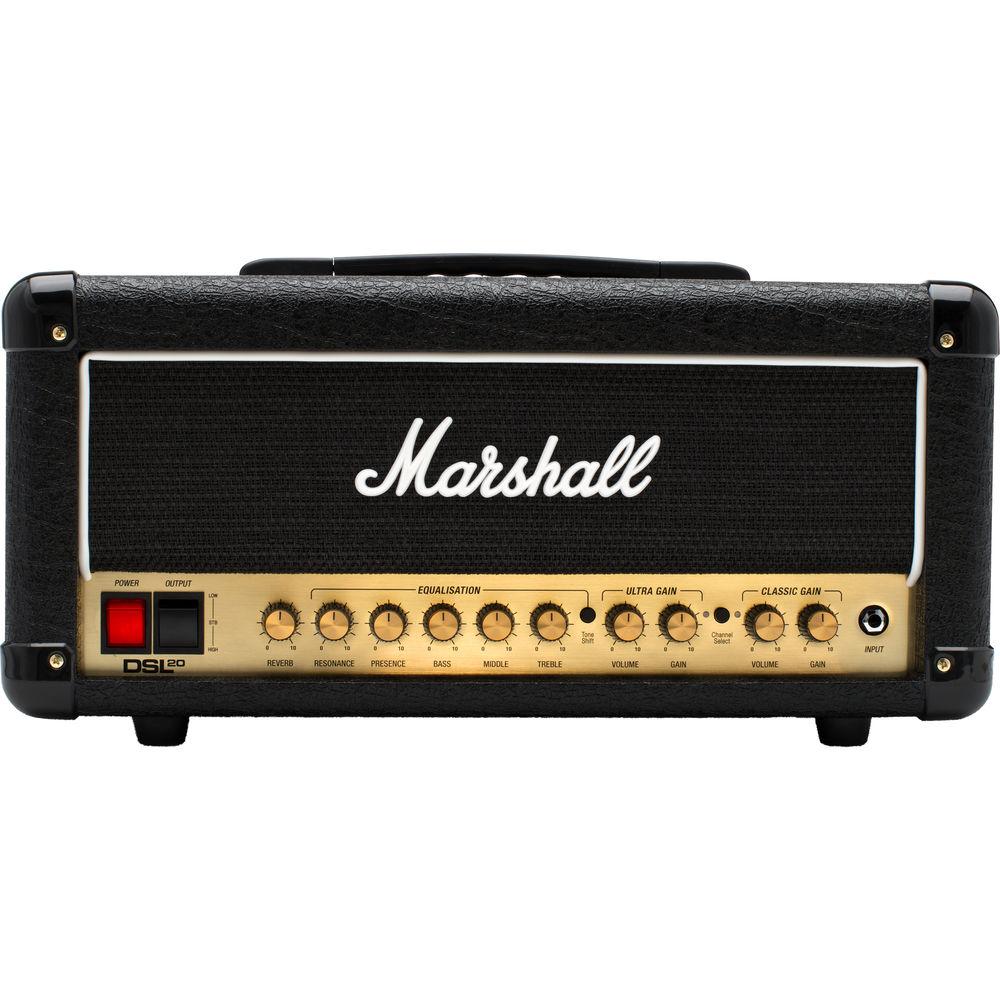

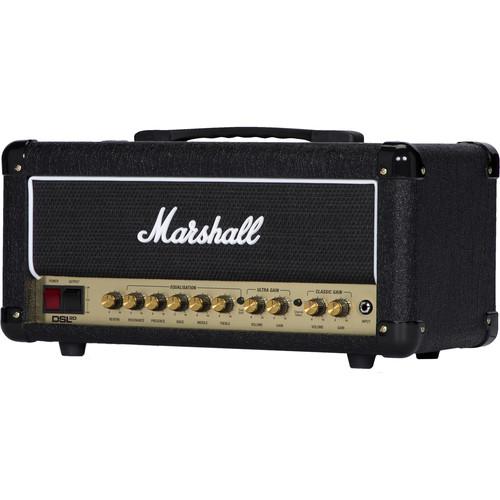

Product description Designed to replace the 15W model in the company's DSL line, the Marshall Amplification DSL20HR is a three-valve amplifier head for electric guitar. It features two channels with separate controls for volume and gain, a comprehensive equalization section, and reverb. The Dual Super Lead (DSL) offers Classic Gain and Ultra Gain channels.Though the amplifier offers many of the same features of the 15W model, this amplifier improves upon the design of the DSL20HR in several ways. For instance, the power-reduction switch has received an upgrade. Whereas the 15W model sported a back panel selector that flipped between pentode and triode operation, the DSL20HR boasts a front-panel rocker switch that works directly with the transformer, rather than the tubes. Thus, when you switch from 20W to 10W, you'll experience no shift in tone.On the rear panel, you'll note three 1/4" outputs supporting various impedances. You can make this amplifier work with 16- or 8-Ohm cabinets. An emulated output offers a cabinet simulation design by Softube and can be used in recording scenarios. You'll note the FX loop for introducing pedals and external gear into the amp's signal path as well as an auxiliary input for jamming along to your favorite tunes.Tonally, this amplifier is similar to the 15W version, with a wide array of classic Marshall timbres on hand. Another key difference, however, is the look of the DSL20HR. With elephant-grade tolex employed in its construction, you'll find it resembles classic British-built Marshall combos. The DSL20HR ships with a power cord and a dual footswitch for Classic/Ultra channel selection and reverb on/off. - Switchable Output Level on Front Panel

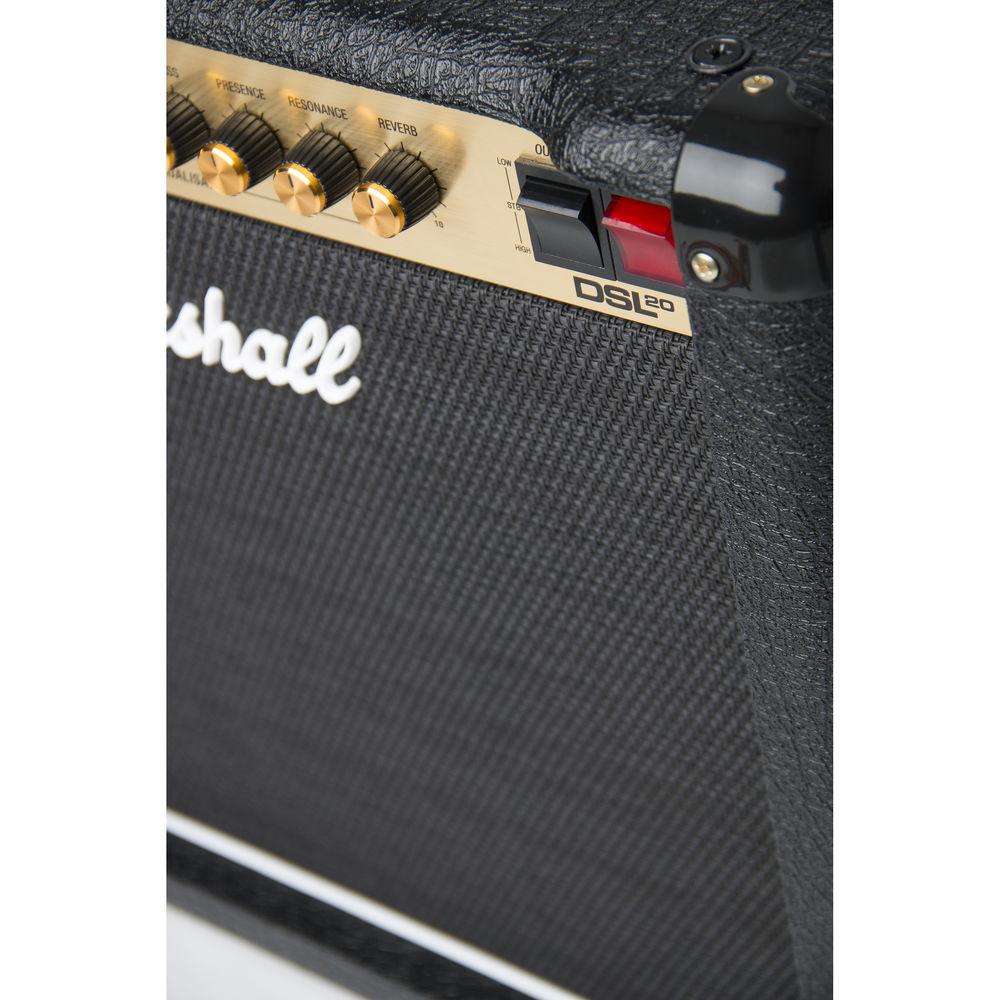

- A three-position rocker switch combines standby with high- and low-output power functions. The output stage and power control for this amplifier has been designed to deliver an even tonal performance at all power levels. The high and low output functions allow you to choose between two configurations of the internal power supply: 20W or 10W, depending on your predilections. These two configurations give the choice between two output power levels, but ensure that the output valves behave the same way for both. This means the amplifier can be put into low-power mode without compromising tone.
- Other Features at a Glance
-
- Classic Gain (channel 1)
- Ultra Gain (channel 2)
- Equalization
- Bass
- Middle
- Treble
- Presence
- Resonance (bass boost)
- Tone Shift Switch (mid-scoop)
- Digital reverb
- Included footswitch
- FX loop (series, send and return)
In the Box Marshall Amplification DSL20HR 2-Channel Valve Amplifier Head with Variable Output (20W) IEC Power Cord Two-Button Footswitch Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Limited 90-Day Warranty on Tubes and Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification DSL20HR 2-Channel Valve Amplifier Head with Variable Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification DSL20HR Specs | | | Amplifier Type | Tube | | Output Power | 20 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
2 x Power EL34/6CA7 | | Output Impedance | 16 Ohms Mono
16/8 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | No | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Stereo Footswitch
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/4" Mono Effects Send
3 x 1/4" Mono Speaker
1 x 1/8" Mono Emulated Speaker | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Tone, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble | | | | Dimensions (WxHxD) | 19.7 x 9.8 x 9.4" / 500.0 x 250.0 x 240.0 mm Amplifier | | Weight | 21.38 lb / 9.7 kg Amplifier |
