User Manual for Marshall Amplification DSL5CR 5W 2-Channel Valve Combo Amplifier with Reverb Click to enlarge the picture
Contents of the user manual for the Marshall Amplification DSL5CR 5W 2-Channel Valve
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification DSL5CR 5W 2-Channel Valve contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

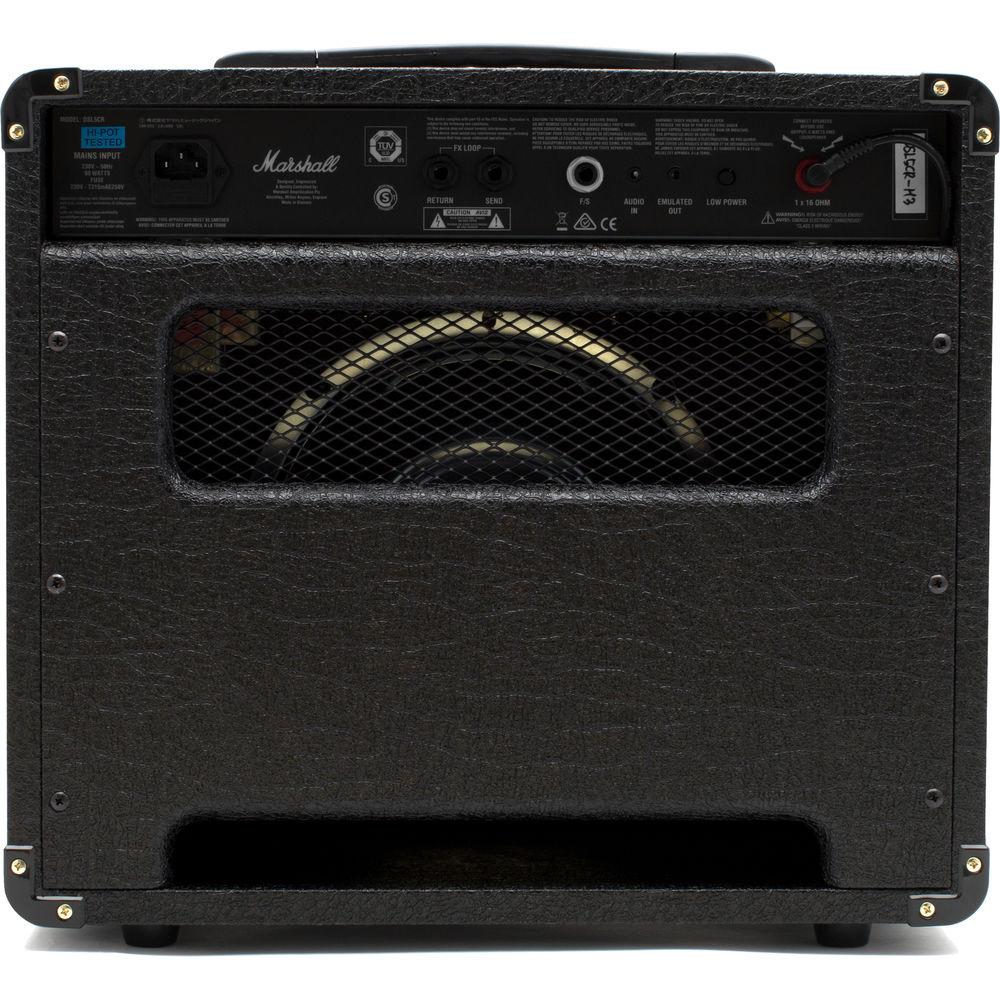

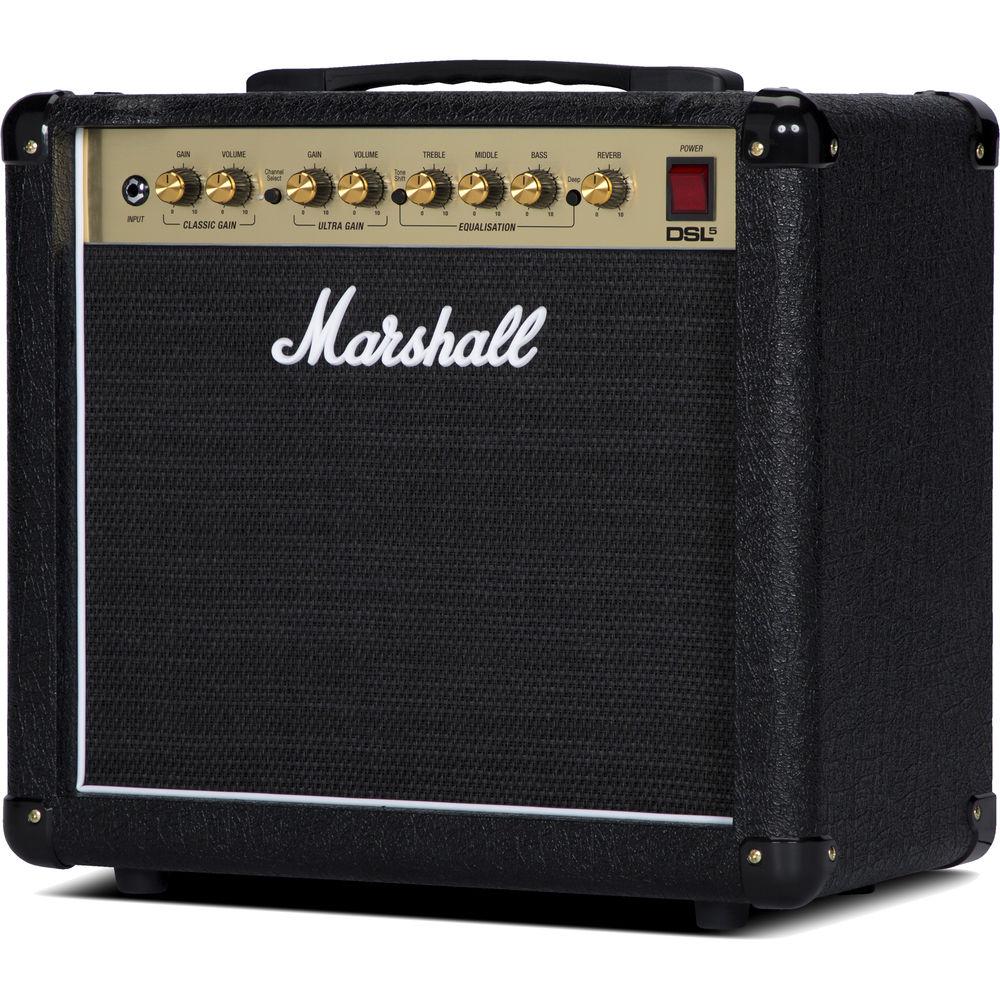

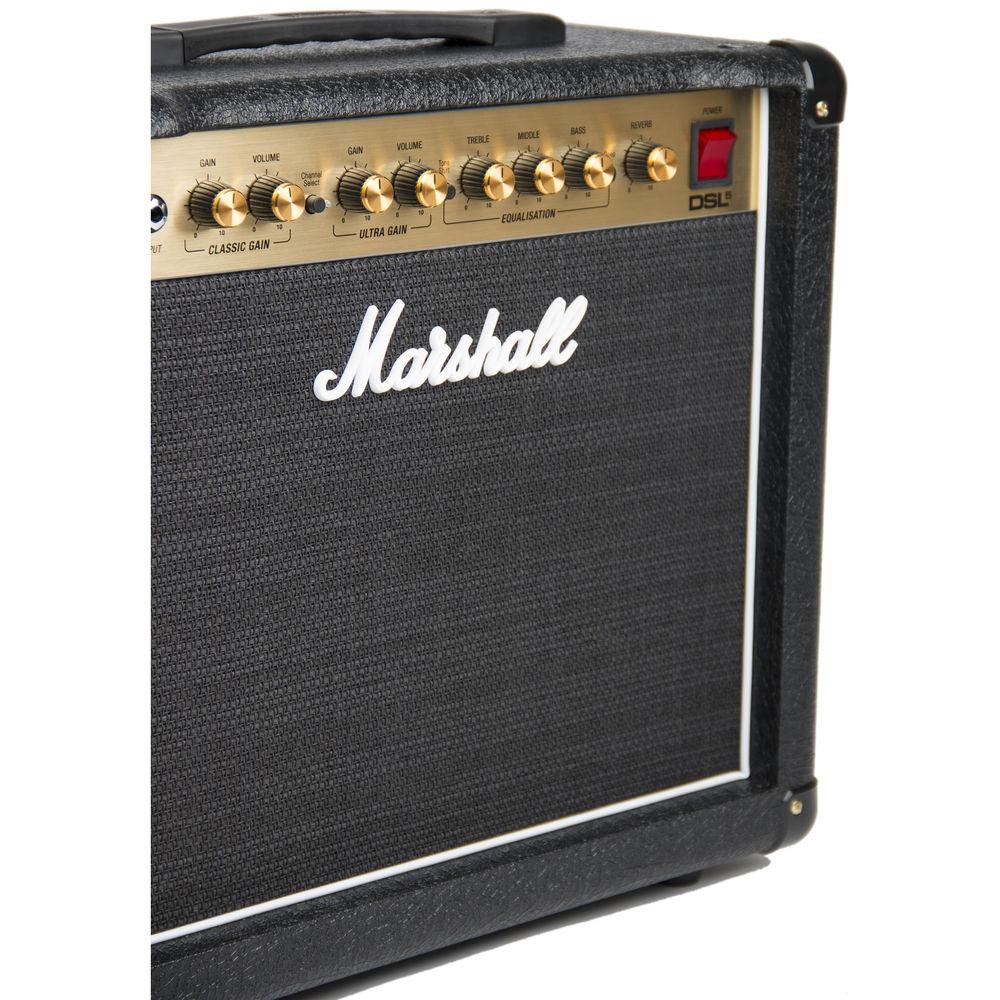

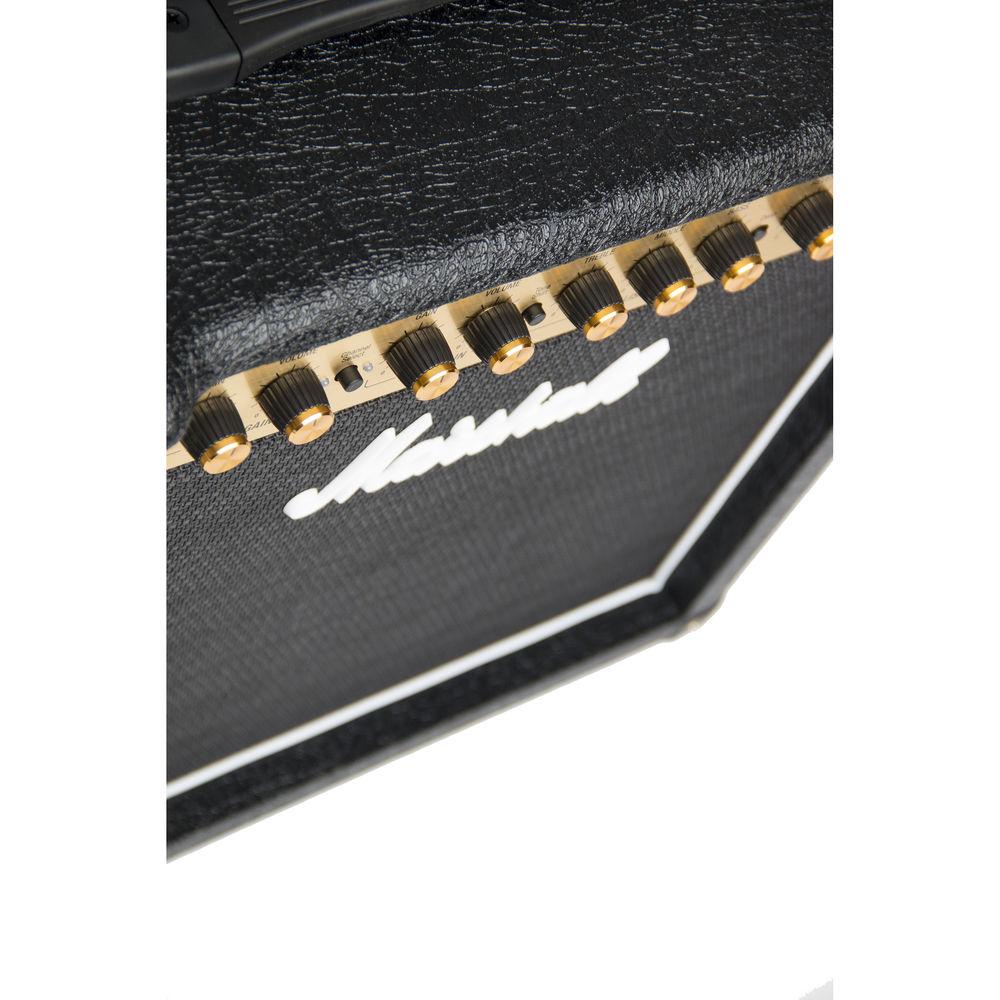

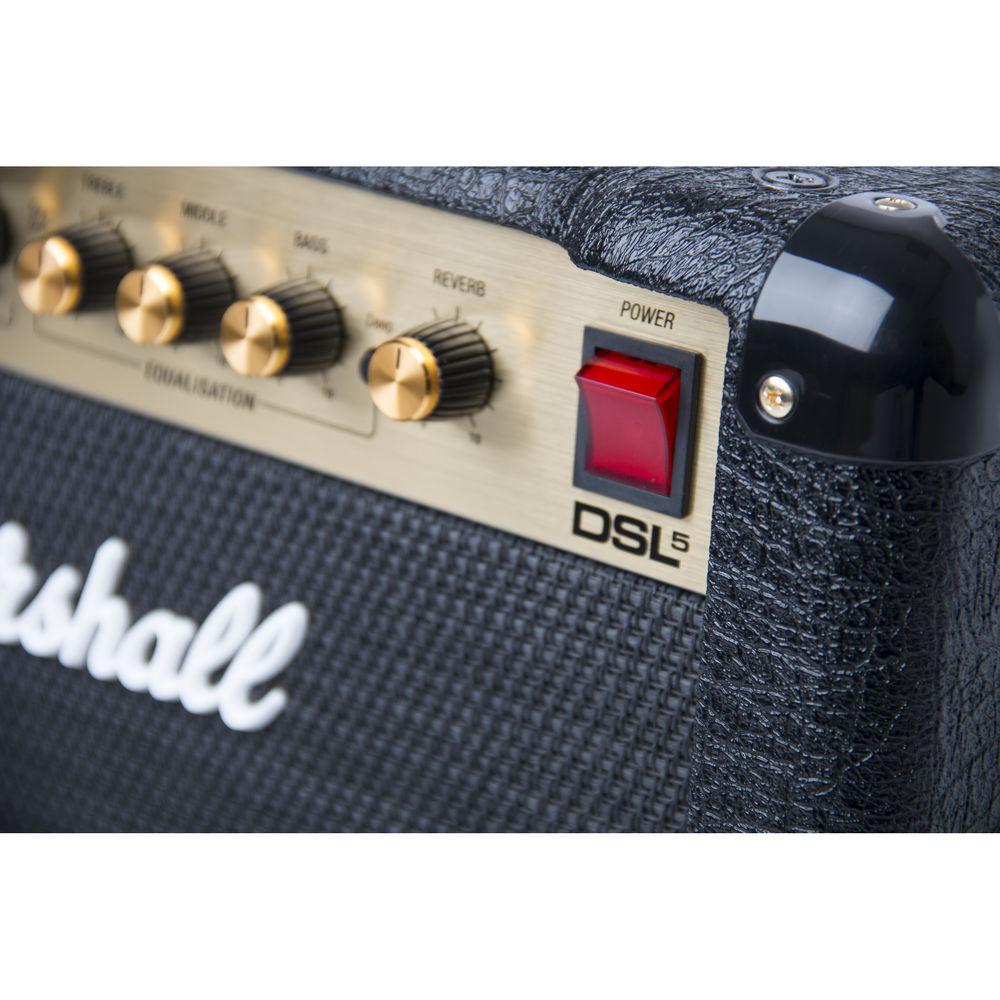

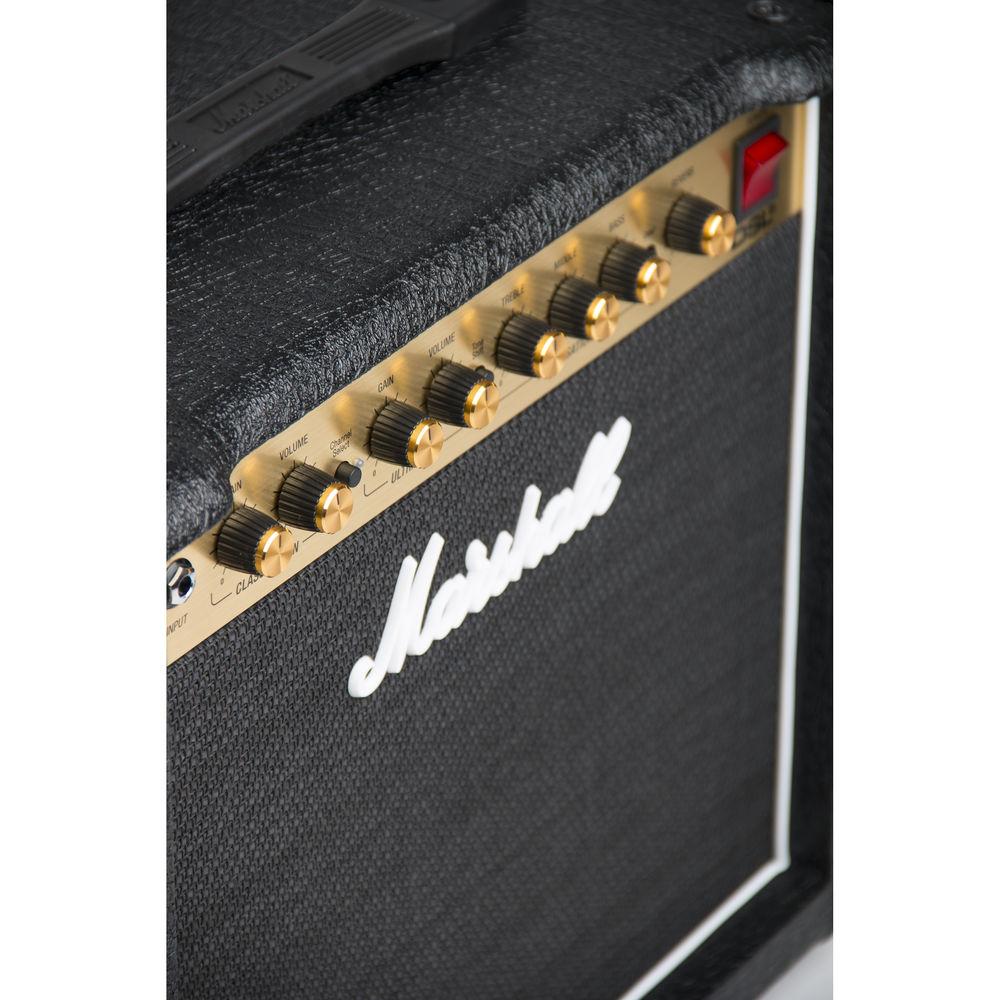

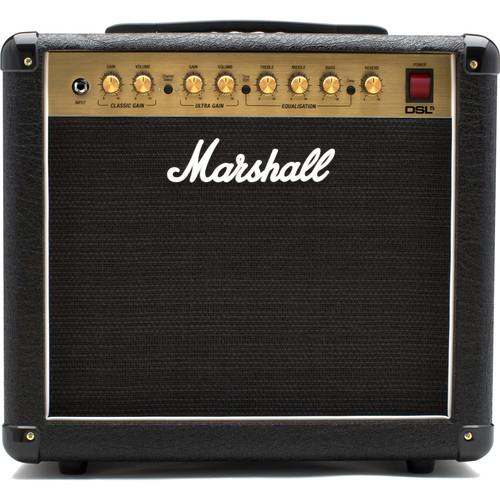

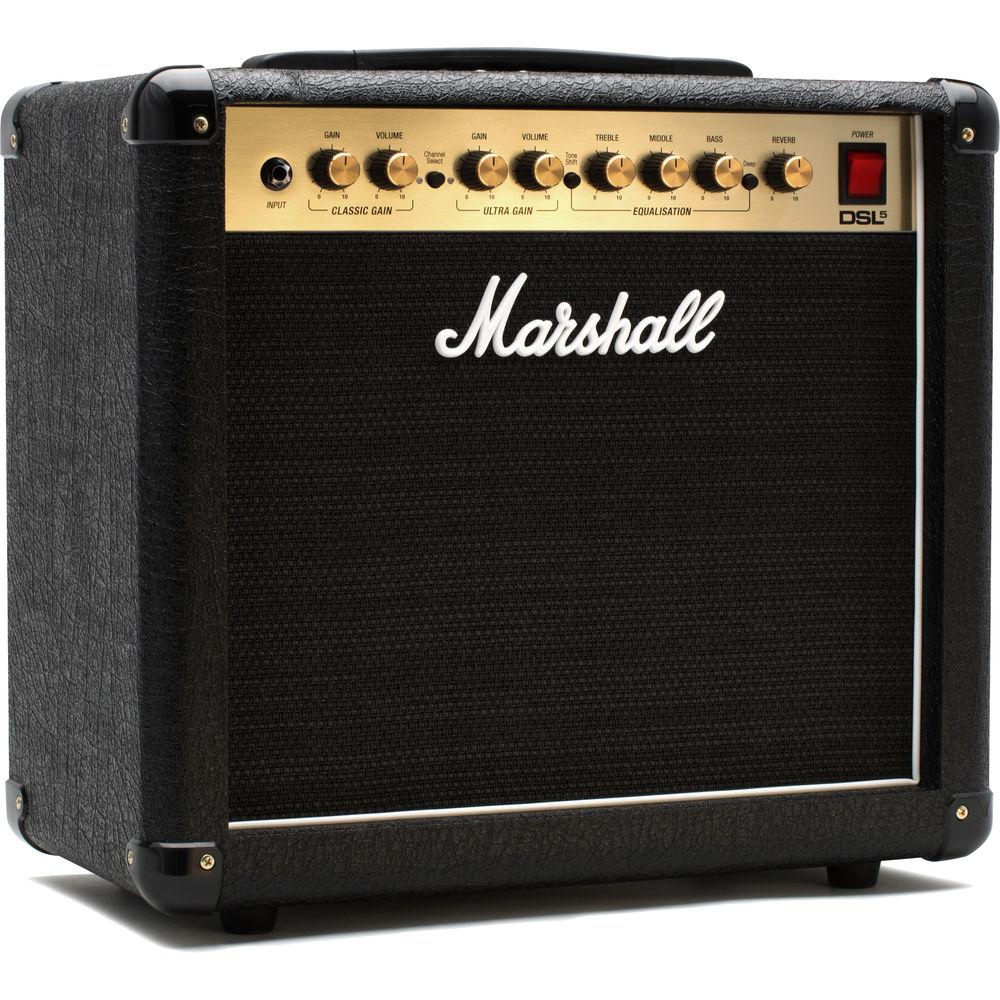

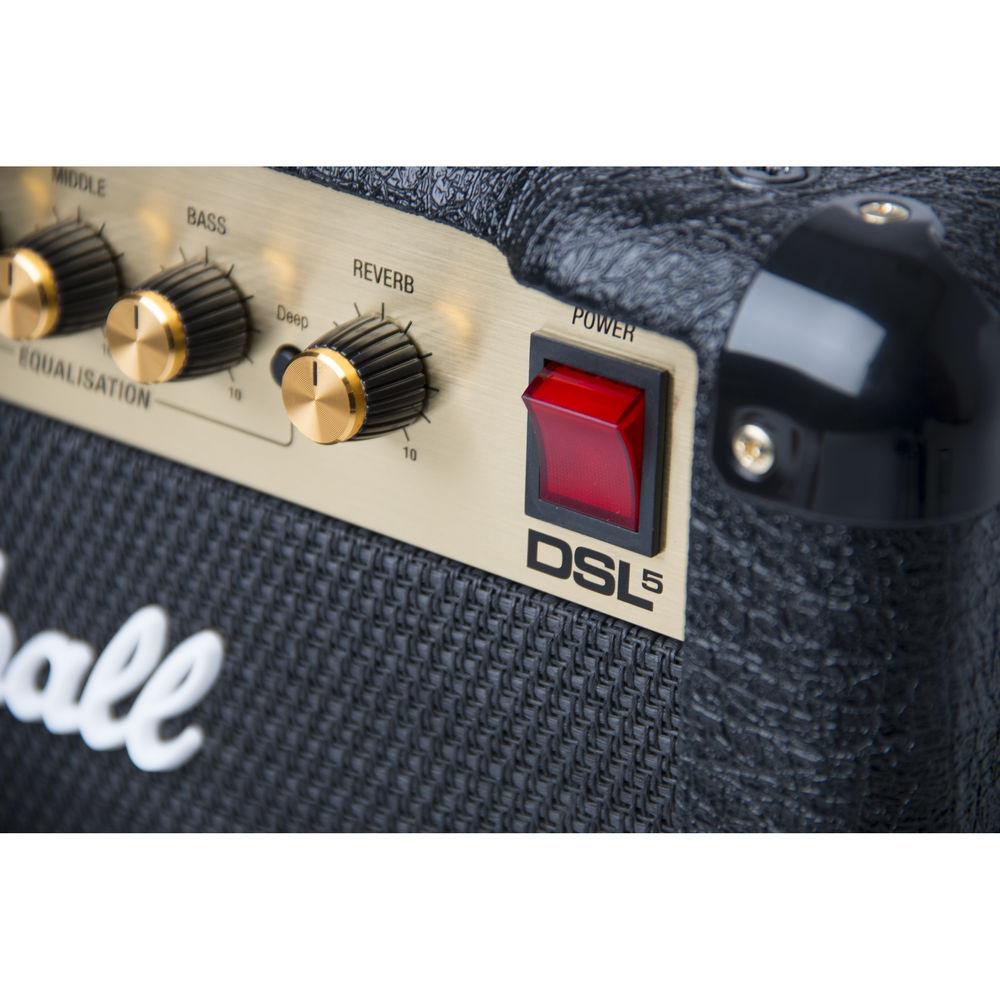

Product description The Marshall Amplification DSL5CR is a two-channel combo amplifier powered by three valves/tubes. One channel gives you a cleaner tone, while the other is suitable for your distortion needs. A three-knob tone stack, coupled with a tone-shift button that reshapes the preamp's EQ helps you dial in your preferred timbre. Also, a deep button adds a resonant bass boost to the sound, increasing the low end for a fat tone. With a low-power switch on the back, you can reduce the output from 5W to 1W without affecting the tone. Thus, you can practice in your home at later hours with minimal disturbance to your family or neighbors.
An onboard effects loop gives you the ability to put your pedals or external processors directly in the amplifier's signal path, while a reverb knob on the front panel allows you to apply some ambience to your tone. An auxiliary input is on hand for jamming along to your favorite tunes. You can route your signal from the emulated output jack to your headphones or to a recording interface, taking advantage of the Softube-designed studio cabinet emulation all the while.
This combo amp provides a 1x10" cabinet with a Celestion Ten 30 speaker, one capable of handling 30W at 16 Ohms. By default, the amplifier is plugged into the speaker with an included cable. If you want to add an optional extension speaker—or practice silently as you listen through headphones—first turn the amplifier off, and then disconnect the supplied speaker cable; failure to do so may result in damaging the amplifier. A footswitch is supplied with which you can choose between the two channels. - Suitable for Home Practice
- With an emulated output and power reduction to 1W, the DSL1CR is perfect for recording and playing in the bedroom. Marshall has engineered the amp to provide an impactful sound at low levels so, you can reduce power to 1W.
- Dual-Channel Operation
- Using the two foot-switchable gain channels, you can go from clean, classic tones to those with added distortion and extra bite.
- Effects Options
- Create the music you want using the studio quality reverb, tone shift, deep resonance boost, and onboard effects loop.
In the Box Marshall Amplification DSL5CR 5W 2-Channel Valve Combo Amplifier with Reverb IEC Power Cord Footswitch Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Limited 90-Day Warranty on Tubes and Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification DSL5CR 5W 2-Channel Valve Combo Amplifier with Reverb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification DSL5CR Specs | | | Amplifier Type | Tube | | Output Power | 5 W | | Channels | 2 | | Tube Types | 2 x Preamp 12AX7/ECC83
1 x Power 12BH7 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | No | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Effects Return
1 x 1/8" Mono Aux | | Outputs | 1 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send
1 x 1/8" Mono Emulated Speaker | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Treble | | | | Speaker Through/Output | 1 x 1/4" | | Configuration | 1 x 10" Speaker(s) | | Cabinet Type | Straight Semi-Open Mono | | Power Rating | 30 W | | Input Impedance | 16 ohms Mono | | Covering | Tolex | | | | Dimensions (WxHxD) | 14.2 x 13.4 x 8.5" / 360.0 x 340.0 x 215.0 mm Combo | | Weight | 17.42 lb / 7.9 kg Combo | | | | Package Weight | 36.25 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 13.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
