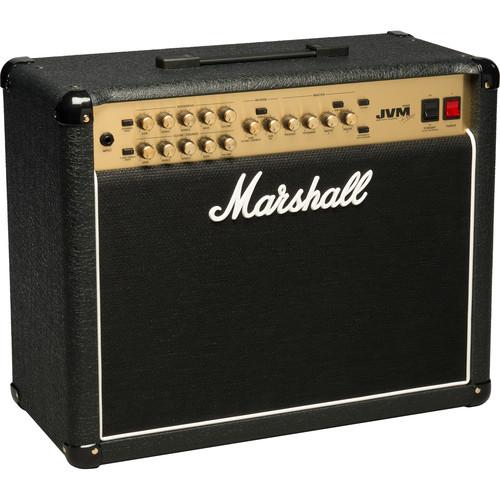

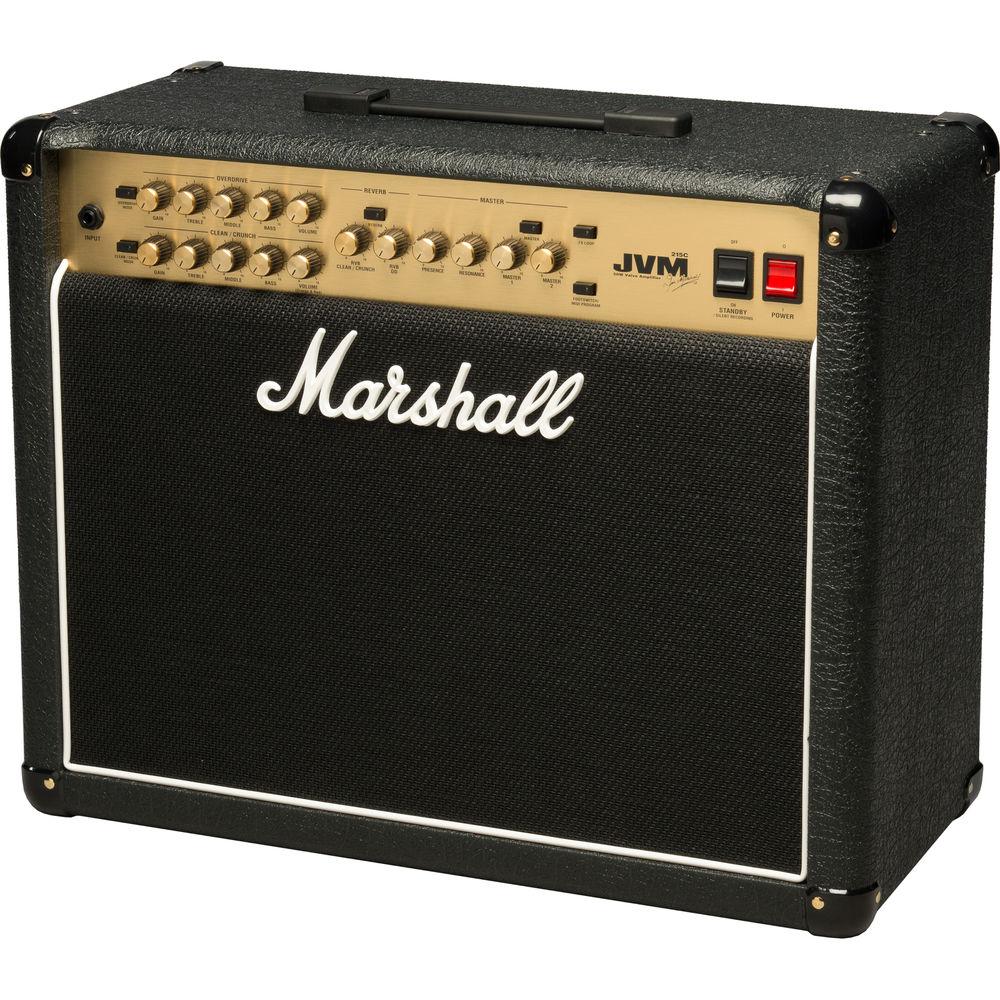

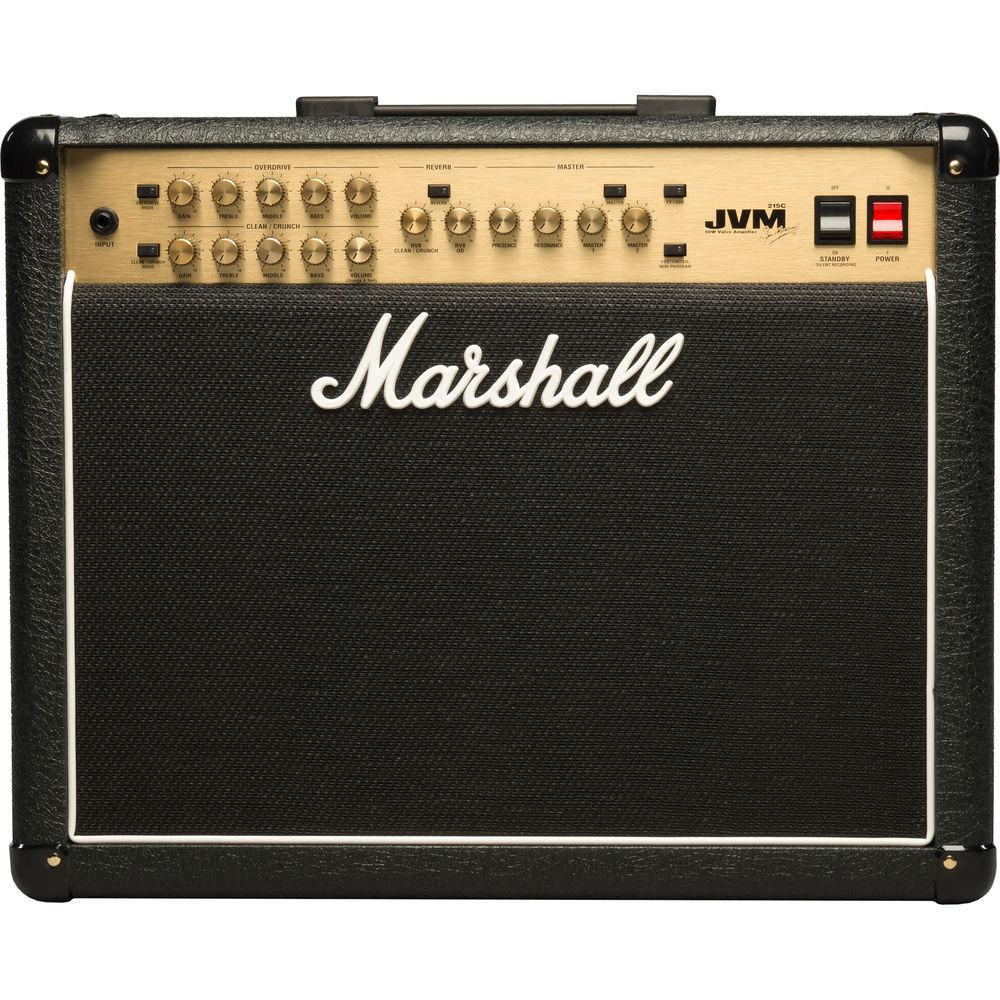

Product description Designed to impart a classic and much-lauded tone upon your electric guitar, the JVM215C from Marshall Amplification is a two-channel 1x12" combo amplifier featuring 50W RMS of power. Both of its channels boast three specific modes to boot, giving you a total of six different timbres to choose from at any one time.
You can cycle through modes in one of two ways: with the mode buttons next to the gain knobs or with the provided footswitch. Either way, mode selection introduces different types of gain, allowing you to soar into the ethereal planes of heavy metal, to reach back to the days of the plexi, or to seek the clean for tonal inspiration. The JVM215C also offers separate reverbs and master levels for each channel. - It's All About Connections

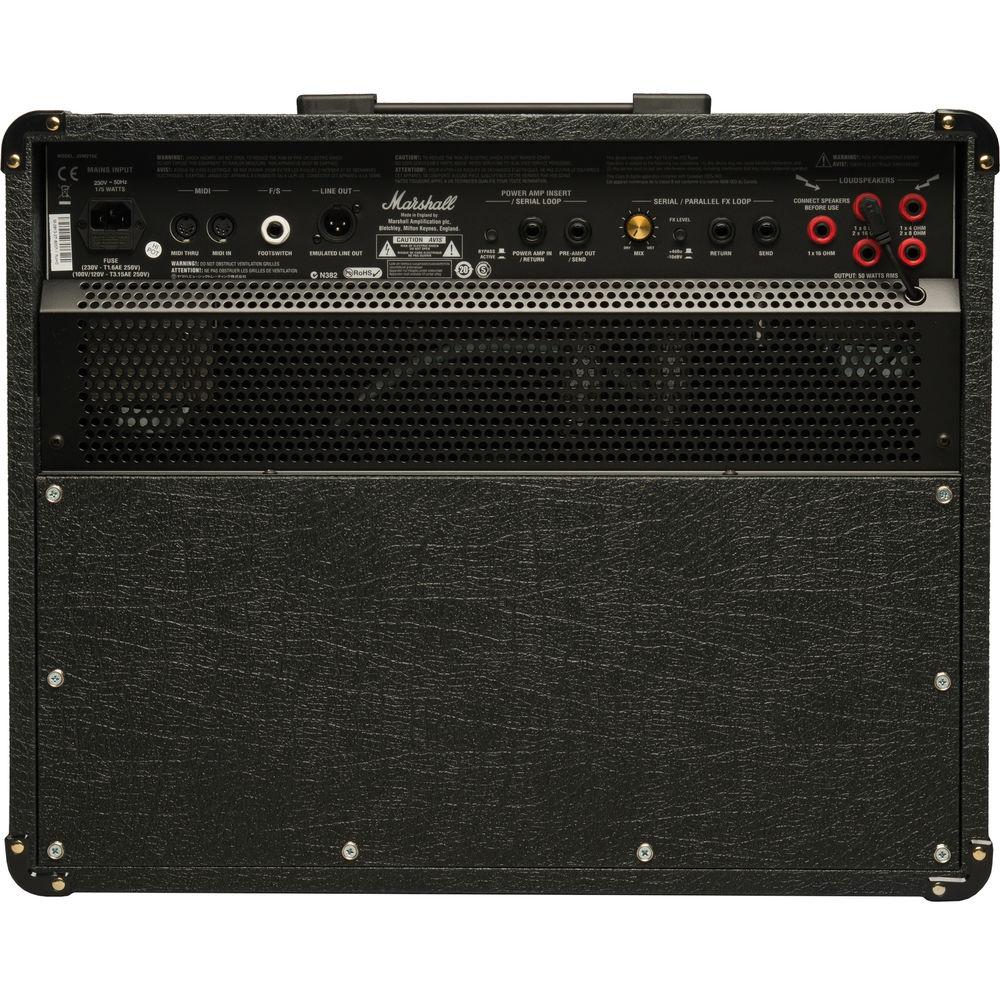

- This amplifier does have its own 1x12" cabinet, but if that's not enough, you have no less than 5x 1/4" speaker outputs at your disposal for connective purposes. These outputs are wired to handle between 4 and 16 Ohms, giving you the ability to hit a variety of different kind of cabinets, should you so choose.
- Effects Loop and Other Routing
- The JVM215C features an effects loop whose mix knob controls how much of the effected signal you want in the chain. There's also a switch between +4 dBu and -10 dBV for different types of gear. The JVM215C also sports a power amp insert and serial loop, allowing you to connect effects right before the master control, or to plug-in other preamps into the JVM10's power amp.
- Emulated Line Out
- Should you wish to connect straight to a mixer, recording device, or PA, an emulated XLR line-output slaps the sound of a 4x12" Marshall cabinet onto your signal, so that the sound going into the board more closely approximates the signal coming out of your amp.
- Presence and Resonance
- Add some additional tonal shaping with the resonance and presence knob.
- MIDI Control
- With its built-in MIDI thru/input, you can customize operation of the provided footswitch to include commands for other MIDI equipment, as well as save up to 128 different MIDI presets. Thus, you can choose between pre-coordinated effects loops instantaneously onstage-particularly useful if you have complicated effects-processing setups in a single song.
- Cabinet
- The JVM15C features a 1x12" cabinet with a Celestion G12B speaker.
In the Box Marshall Amplification JVM215C 50W 1x12 Combo Amplifier PEDL-91006 4-Way Programmable Foot Controller Power Cable Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor & Speakers Limited 90-Day Warranty on Tubes and Footswitches Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification JVM215C 50W 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification M-JVM215C-U Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 2 | | Tube Types | 4 x Preamp 12AX7/ECC83
1 x Power 12AX7/ECC83
2 x Power EL34/6CA7 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes | | Built-In Effects | Digital Reverb, Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Power Amp
1 x 5-Pin DIN Series MIDI | | Outputs | 5 x 1/4" Mono External Speaker
1 x 1/4" Mono Preamp
1 x XLR Mono Emulated Speaker
1 x speakON Series MIDI Out | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble
Channel 2: Bass, Channel Volume, Gain, Presence, Resonance, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 150 W RMS | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 23.8 x 20.1 x 10.4" / 605.0 x 510.0 x 265.0 mm Combo | | Weight | 58.42 lb / 26.5 kg Combo | | | | Package Weight | 67.0 lb | | Box Dimensions (LxWxH) | 0.3 x 0.2 x 0.1" |
