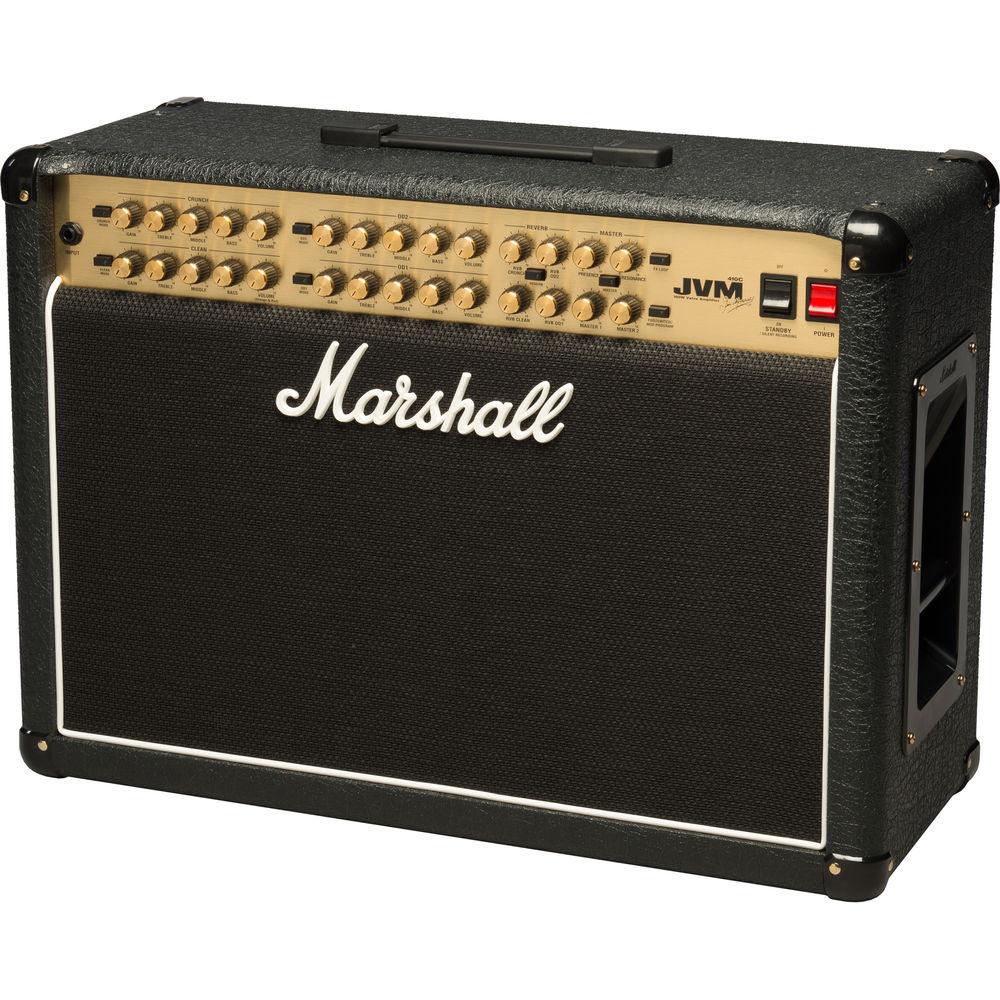

Product description Designed to impart a classic and much-lauded tone upon your electric guitar, the JVM410C from Marshall Amplification is a four channel 2x12" combo amplifier featuring 100W RMS of power. The four channels are separated into Clean, Crunch, OD1 (Overdrive 1), and OD2 (Overdrive 2). Furthermore, all of its channels boast three specific modes to boot, giving you a total of twelve different basic timbres to choose from at any one time. Each channel offers its own gain, bass, middle, treble, volume, and reverb level controls.
Within each channel, you can cycle through modes in one of two ways: with the mode buttons next to the gain nobs or with the provided footswitch. Either way, mode selection introduces different types of gain, allowing you to soar into a variety of Marshall tones, and then assign these tones to the footswitch in ways particular to your fancy. This results in four individual channels you can recall at will—quite a useful prospect for the gigging guitarist. Additionally, you can assign any channel to one of two separate master levels. - It's All About Connections

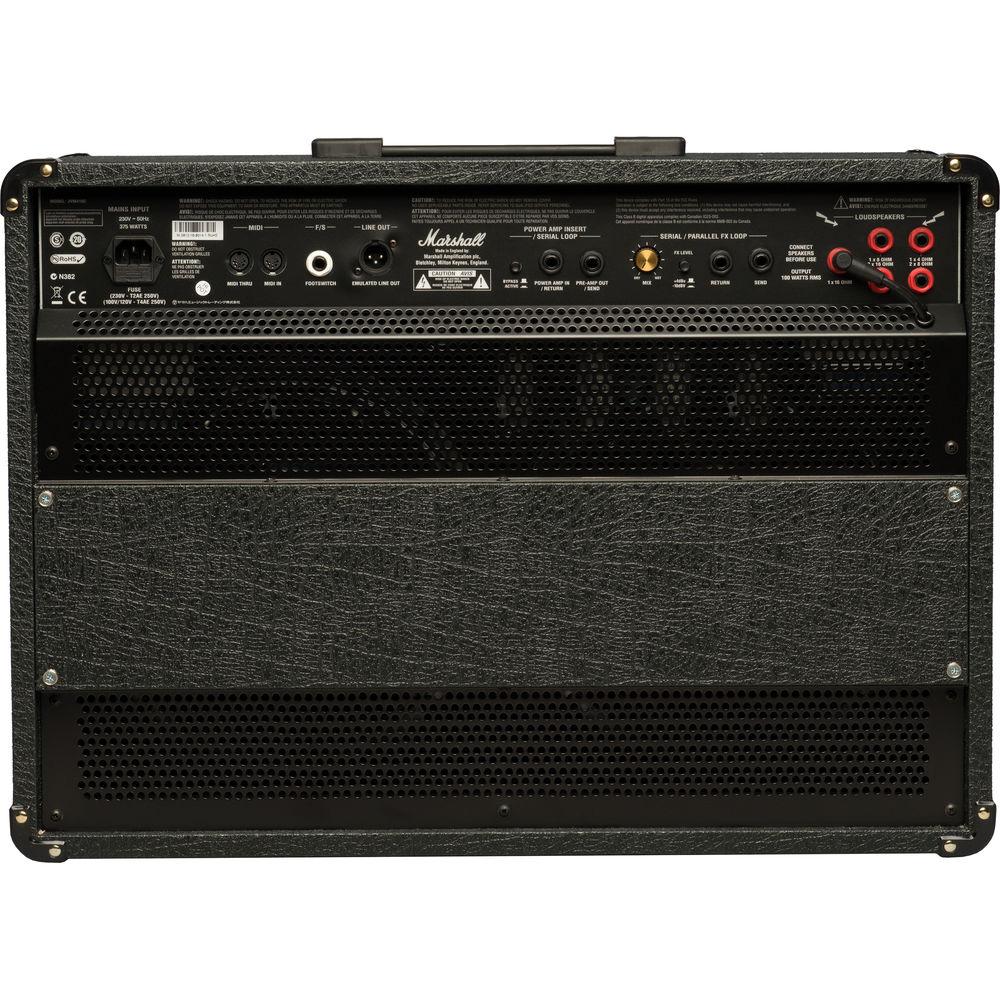

- This amplifier does have its own 2x12" cabinet, but if that's not enough, you have no less than 5x 1/4" speaker outputs at your disposal for connective purposes. These outputs are wired to handle between 4 and 16 Ohms, giving you the ability to hit a variety of different cabinets.
- Effects Loop and Other Routing
- The JVM410C features an effects loop whose mix knob controls how much of the effected signal you want in the chain. There's also a switch between +4 dBu and -10 dBV for different types of gear. The JVM410C also sports a power amp insert and serial loop, allowing you to connect effects right before the master control, or to plug-in other preamps into the JVM410's power amp.
- Emulated Line Out
- Should you wish to connect straight to a mixer, recording device, or PA, an emulated XLR line-output slaps the sound of a 4x12" Marshall cabinet onto your signal, so that the sound going into the board more closely approximates the signal coming out of your amp.
- Presence and Resonance
- Add some additional tonal shaping with the resonance and presence knob.
- MIDI Control
- With its built-in MIDI thru/input, you can customize operation of the provided footswitch to include commands for other MIDI equipment, as well as save up to 128 different MIDI presets. Thus, you can choose between pre-coordinated effects loops instantaneously onstage-particularly useful if you have complicated effects-processing setups in a single song.
- Cabinet
- The JVM410C features a 2x12" cabinet with two Celestion speakers: one Heritage and one Vintage.
In the Box Marshall Amplification JVM410C 4-Channel 100W 2x12 Combo Guitar Amplifier PEDL-91005 6-Way Programmable Foot Controller Power Cable Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor & Speakers Limited 90-Day Warranty on Tubes and Footswitches Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification JVM410C 4-Channel 100W 2x12 Combo Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification M-JVM410C-U Specs | | | Amplifier Type | Tube | | Output Power | 100 W RMS | | Channels | 4 | | Tube Types | 4 x Preamp 12AX7/ECC83
1 x Power 12AX7/ECC83
4 x Power EL34/6CA7 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes | | Built-In Effects | Digital Reverb, Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Power Amp
1 x 5-Pin DIN Series MIDI | | Outputs | 5 x 1/4" Mono External Speaker
1 x 1/4" Mono Preamp
1 x XLR Mono Emulated Speaker
1 x speakON Series MIDI Out | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble
Channel 2: Bass, Channel Volume, Gain, Presence, Resonance, Treble
Channel 3: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble
Channel 4: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 70 W RMS | | Input Impedance | 16 ohms Mono | | | | Dimensions (WxHxD) | 27.2 x 20.1 x 10.4" / 690.0 x 510.0 x 265.0 mm Combo | | Weight | 76.06 lb / 34.5 kg Combo |
