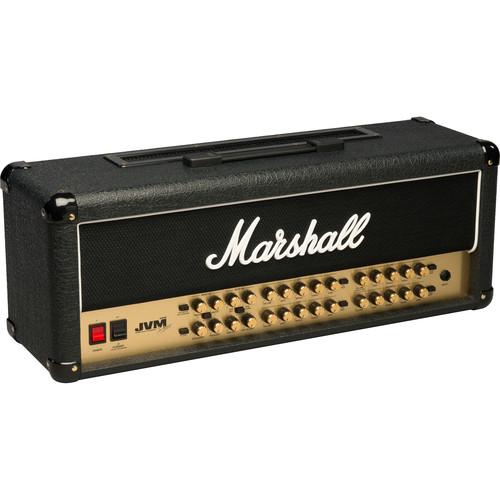

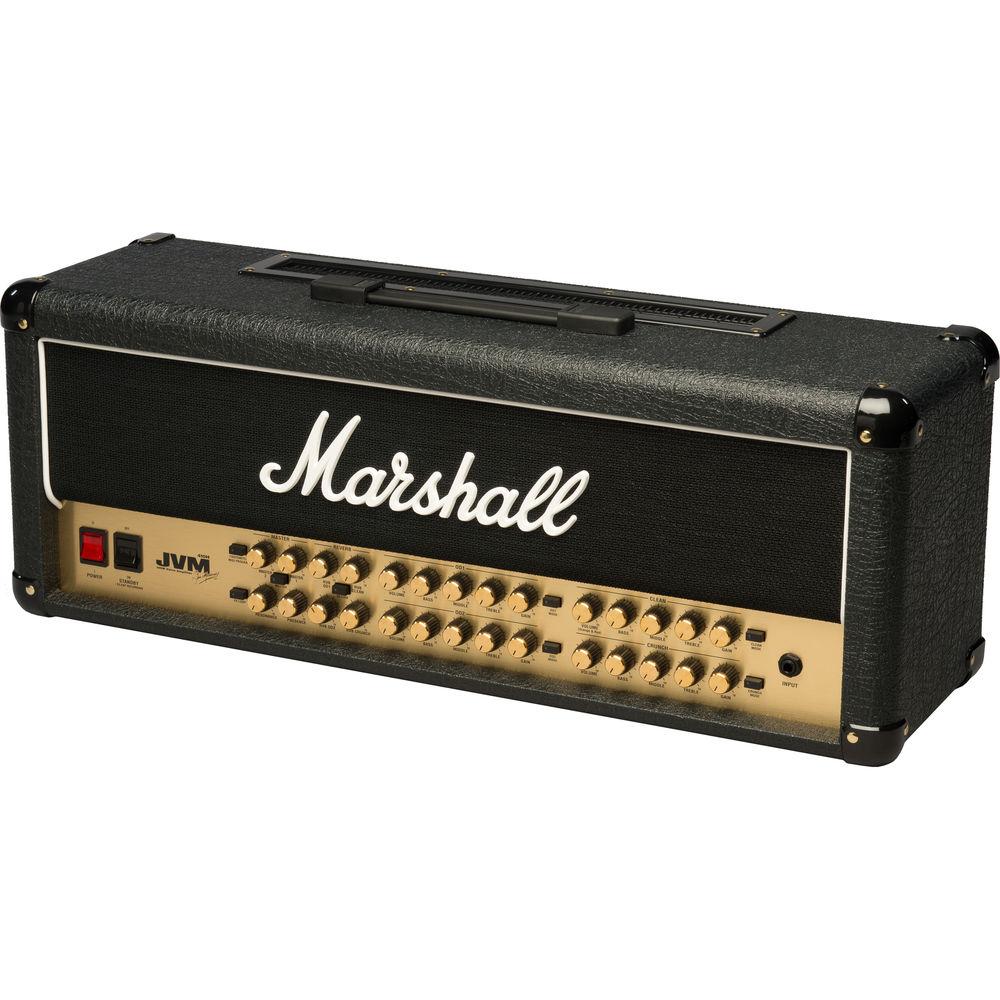

User Manual for Marshall Amplification JVM410H 4-Channel 100W Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Marshall Amplification JVM410H 4-Channel 100W Guitar
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification JVM410H 4-Channel 100W Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

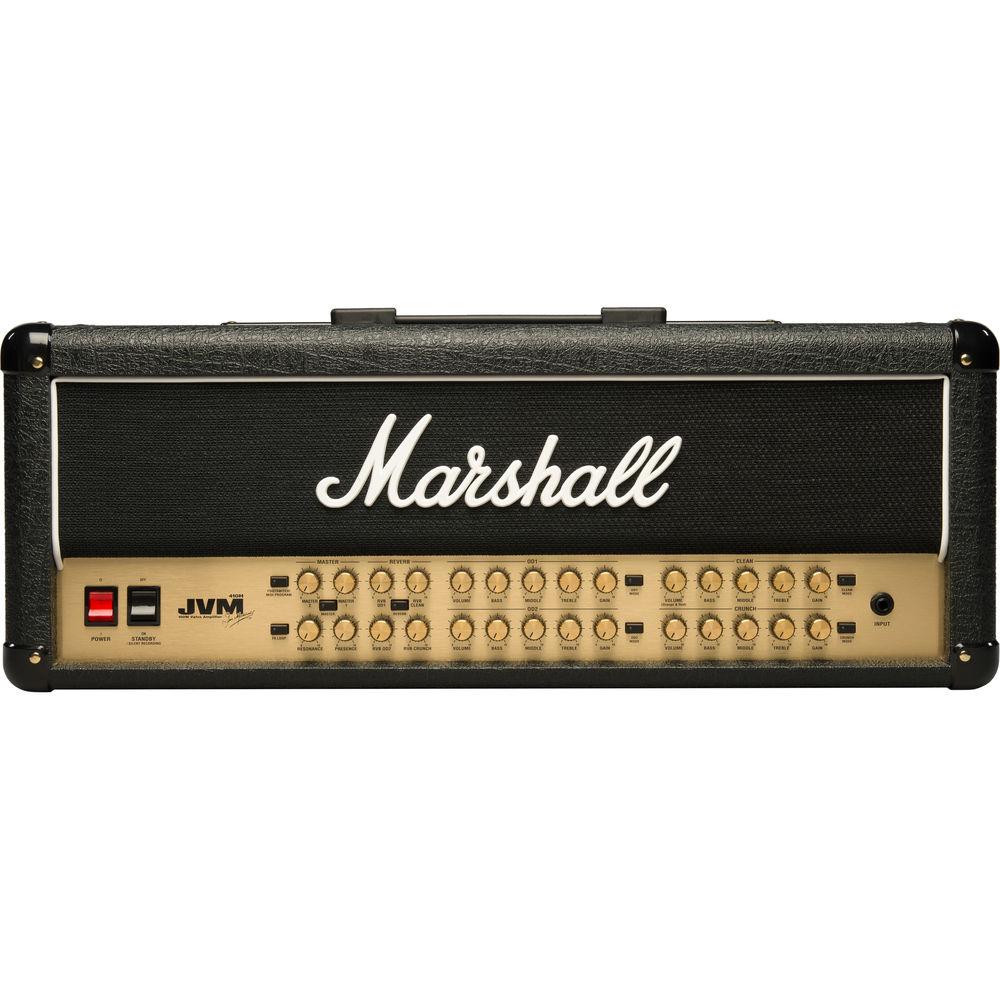

Product description Designed to impart a classic and much-lauded tone upon your electric guitar, the JVM410H from Marshall Amplification is a four-channel amplifier head offering 100W RMS of power. The four channels are separated into Clean, Crunch, OD1 (Overdrive 1), and OD2 (Overdrive 2). Furthermore, all of its channels boast three specific modes to boot, giving you a total of twelve different basic timbres to choose from at any one time. Each channel offers its own gain, bass, middle, treble, volume, and reverb level controls.
Within each channel, you can cycle through modes in one of two ways: with the mode buttons next to the gain nobs, or with the provided footswitch. Either way, mode selection introduces different types of gain, allowing you to soar into a variety of Marshall tones, and then assign these tones to the footswitch in ways particular to your fancy. This results in four individual channels you can recall at will—quite a useful prospect for the gigging guitarist. Additionally, you can assign any channel to one of two separate master levels. - It's All About Connections

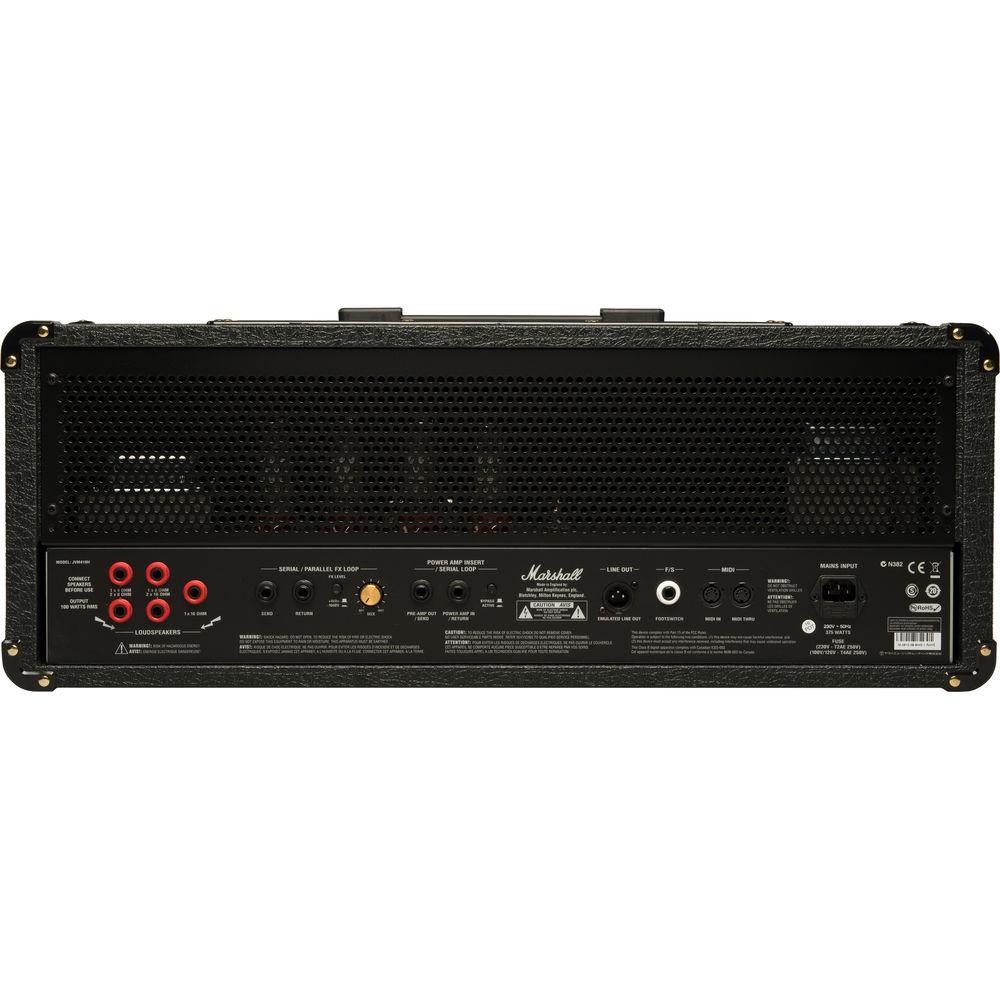

- This amplifier offers five 1/4" speaker outputs at your disposal for connective purposes. These outputs are wired to handle between 4 and 16 Ohms, giving you the ability to hit a variety of different kind of cabinets.
- Effects Loop and Other Routing
- The JVM410H features an effects loop whose mix knob controls how much of the effected signal you want in the chain. There's also a switch between +4 dBu and -10 dBV for different types of gear. The JVM410H also sports a power amp insert and serial loop, allowing you to connect effects right before the master control or plug-in other preamps into the JVM410's power amp.
- Emulated Line Out
- Should you wish to connect straight to a mixer, recording device, or PA, an emulated XLR line output slaps the sound of a 4x12" Marshall cabinet onto your signal. This allows the sound going into the board to more closely approximate the signal coming out of your amp.
- Presence and Resonance
- Add some additional tonal shaping with the resonance and presence knob.
- MIDI Control
- With its built-in MIDI thru/input, you can customize operation of the provided footswitch to include commands for other MIDI equipment, as well as save up to 128 different MIDI presets. Thus, you can choose between precoordinated effects loops onstage, particularly useful if you have complicated effects processing setups in a single song.
In the Box Marshall Amplification JVM410H 4-Channel 100W Guitar Amplifier Head PEDL-91005 6-Way Programmable Foot Controller Power Cable Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor & Speakers Limited 90-Day Warranty on Tubes and Footswitches Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification JVM410H 4-Channel 100W Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification M-JVM410H-U Specs | | | Amplifier Type | Tube | | Output Power | 100 W RMS | | Channels | 4 | | Tube Types | 4 x Preamp 12AX7/ECC83
1 x Power 12AX7/ECC83
4 x Power EL34/6CA7 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes | | Built-In Effects | Digital Reverb, Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Power Amp
1 x 5-Pin DIN Series MIDI | | Outputs | 5 x 1/4" Mono External Speaker
1 x 1/4" Mono Preamp
1 x XLR Mono Emulated Speaker
1 x speakON Series MIDI Out | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble
Channel 2: Bass, Channel Volume, Gain, Presence, Resonance, Treble
Channel 3: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble
Channel 4: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble | | | | Dimensions (WxHxD) | 29.5 x 12.2 x 8.5" / 750.0 x 310.0 x 215.0 mm Combo | | Weight | 48.50 lb / 22 kg Combo |
