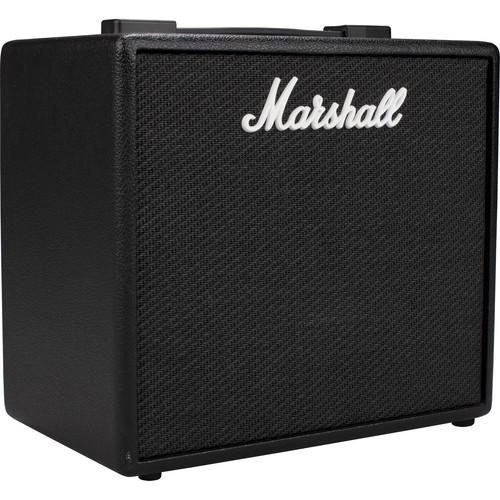

User Manual for Marshall Amplification Marshall CODE25 25W 1x10" Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Marshall Amplification Marshall CODE25 25W 1x10"
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification Marshall CODE25 25W 1x10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|
Product description The CODE25 from Marshall Amplification is a 25W RMS 1x10" combo amplifier designed for guitars. It emulates both vintage and modern Marshall tones while adding high-quality effects into the mix courtesy of Softube. Fourteen preamps, four power amps, and eight cabinets have been modeled in conjunction with Softube to offer you 100 presets and a plethora of customizable timbres.
The CODE comes stocked with 100 user-modifiable presets, so you can set up your own amp-cab configuration, then add compression, stompbox distortion, auto-wah, pitch shifter, phaser, flanger, tremolo, and chorus into your chain as you see fit. Tap-tempo delays and different types of reverbs are available as well. When you've crafted your dream tone, you can save the result as a preset.
Furthermore, utilizing the amplifier's Bluetooth capabilities, you can stream music from your smartphone, tablet, or device straight to the CODE via the Gateway app. You can also connect to your computer via USB and record straight to your DAW, thereby turning your amplifier into an interface. If you'd like to wire an iPhone or other device directly into the amp, you can do so through its 1/8" inch stereo input. Also, you can monitor privately through its 1/8" headphone jack If you don't want to disturb your neighbors. - Modeling and Effects from Marshall and Softube
-
- 14 Preamps:
- JTM45 2245, 1962 Bluesbreaker, 1959SLP Plexi, JCM800 2203, JCM2555 Silver Jubilee, JCM2000 DSL100, JVM410H, and more
- 4 Power Amp Voicings:
- EL34, 5881, EL84, and 6L6 MST
- 8 Cabinet Models:
- 1960, 1960V, 1960AX, 1960HW, 1936, 1936V, 1912, and 1974X
- 24 Effects:
- Compressor, stompbox distortions, auto-wah, pitch shifter, chorus, phaser, flanger, tremolo, delays, reverbs, and more
- Additional Features
-
- Use up to five effects at once
- Stream music via Bluetooth
- Connect to computers via USB
- Marshall Gateway App compatible
- Built-in tuner
In the Box Marshall Amplification Marshall CODE25 25W 1x10" Combo Amplifier - Power Cable
- Limited 3-Year Warranty on Labor and Speakers
- Limited 5-Year Warranty on Parts
Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification Marshall CODE25 25W 1x10" Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification CODE25 Specs | | | Amplifier Type | Modeling | | Output Power | 25 W RMS | | Channels | 1 | | Effects Loop | No | | Built-In Effects | Auto-Wah, Chorus, Delay, Digital Reverb, Distortion/Overdrive, Echo, Flanger, Phaser, Spring Reverb, Tremolo | | Presets & Storage | User Presets: 100 | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/8" Stereo Line Level | | Outputs | 1 x USB Mono Interface
1 x 1/8" Stereo DI | | Tone Section | Bass, Gain, Mid, Preamp Volume, Treble | | | | Configuration | 1 x 10" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 25 W RMS | | | | Dimensions (WxHxD) | 13.8 x 13.4 x 8.5" / 350.0 x 340.0 x 215.0 mm Combo | | Weight | 13.45 lb / 6.1 kg Combo | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 16.1 x 14.4 x 8.9" |
