User Manual for Marshall Amplification MG15GR 4-Channel Solid-State Combo Amplifier with Reverb & MP3 Input Click to enlarge the picture
Contents of the user manual for the Marshall Amplification MG15GR 4-Channel Solid-State Combo
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification MG15GR 4-Channel Solid-State Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

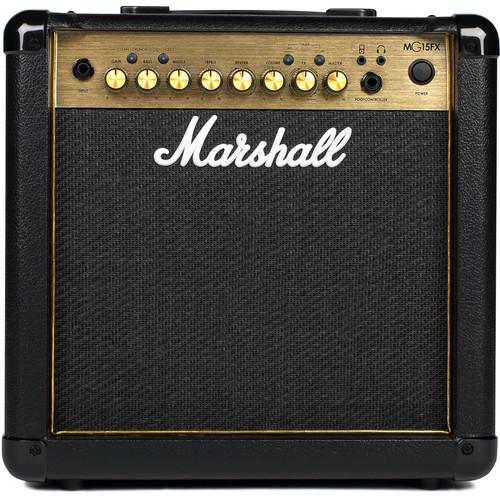

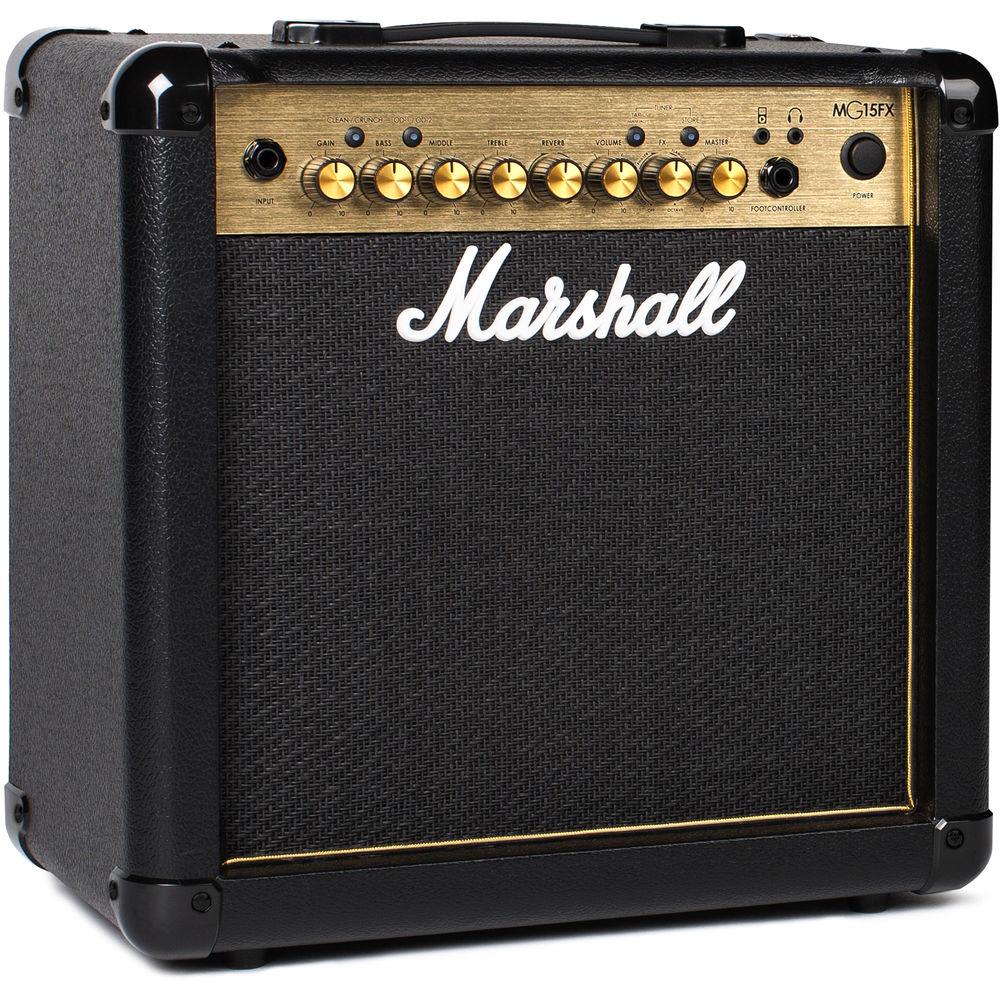

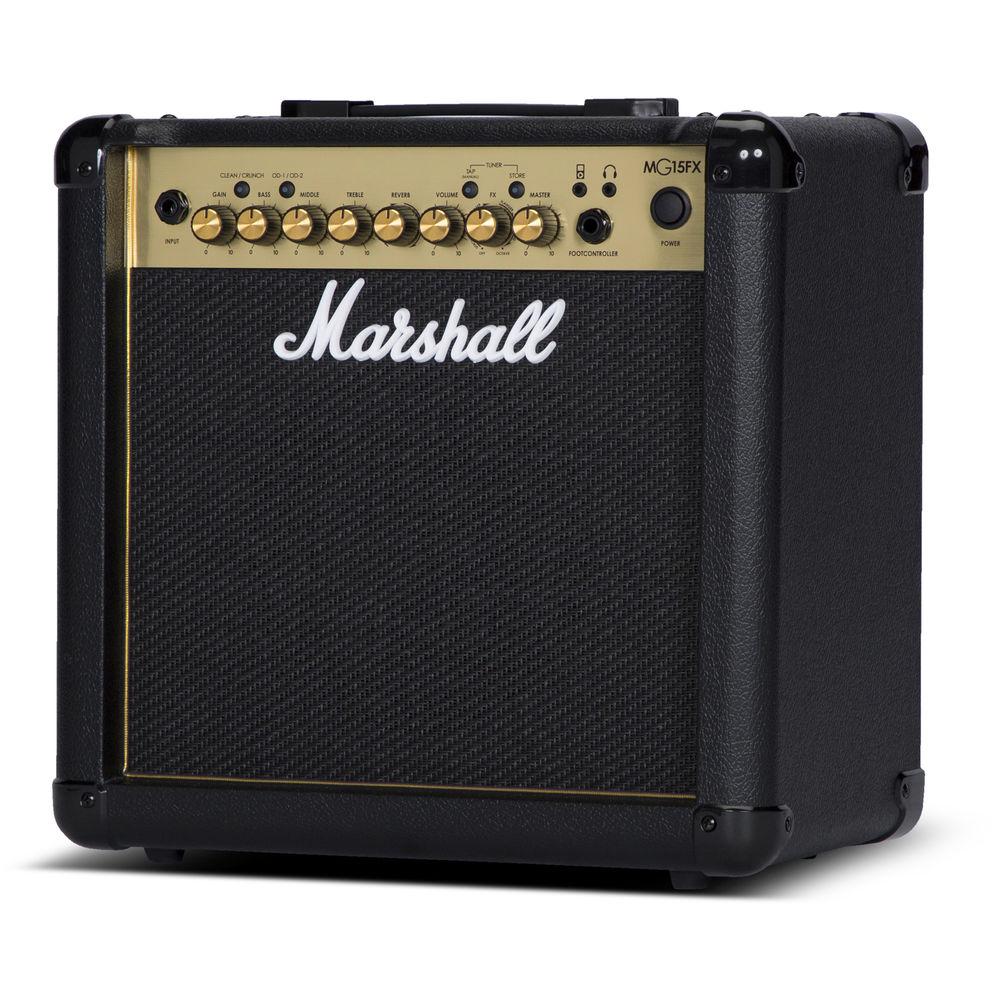

Product description The Marshall Amplification MG15GR is a four-channel, solid-state combo amplifier for electric guitar. Part of the gold series, the amp features offers a single 8" speaker and four channels; Clean, Crunch, Overdrive 1, and Overdrive 2. The Clean channel offers a harmonic-enhanced clean tone, while the Crunch channel adds a bit of distortion. Each of the Overdrive settings offers modern, high-gain tone, with OD-2 providing the highest output.
The amp can be operated in either a Manual or Preset mode. In Manual mode, the amp's settings always match the physical positions of the knobs, while in Preset mode, the position of all controls except the Master Volume is stored within each channel, and the physical position of the knobs will not match the settings of the amplifier. This means you can set up four distinct amp characters ahead of time and switch among them during the gig with an optional footswitch.
The tone of all four channels can be adjusted with the three-knob EQ section and stored within the channel's memory for instant recall at a later time. A dedicated reverb offers digital simulations of studio verbs or spring tanks, and this reverb can be stored/recalled, along with your tone setting, in each channel slot.
Additional features include a master volume control, a headphone output for silent practicing, an MP3 / line in to jam along with your favorite tunes, and a Store button to easily save presets. The MG15GFX is compatible with the optional PEDL-90008 footswitch and ships with a standard IEC power cord. The optional PEDL-90008 has an onboard tuner and each footswitch can be assigned to a different stored function. On a purely cosmetic level, the gold plating on the control panel and gold trimming lining the speaker lends the amplifier a distinctive look. - Key Features at a Glance
-
- 15W output
- Single 8" speaker
- Four Preset Channels
- Equalization
- Effects
- Chorus
- Phaser
- Flanger
- Delay (with tap-tempo)
- Octave
- Reverb
- All EQ, effects, and reverb settings are stored within each of the four preset channels
- 3.5mm MP3 / line in for auxiliary sound sources
- 3.5mm headphone output (mutes speaker for silent practice sessions)
- Manual or Preset operation modes
- Store button to easily save presets
- Compatible with optional PEDL-90008 footswitch
- When using the optional footswitch, holding both the Tap switch and the Store switch will activate the tuner
In the Box Marshall Amplification MG15GR 4-Channel Solid-State Combo Amplifier with Reverb & MP3 Input (15W) IEC Power Cord Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification MG15GR 4-Channel Solid-State Combo Amplifier with Reverb & MP3 Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Marshall Amplification MG15GR 4-Channel Solid-State Combo Amplifier with Reverb & MP3 Input can be downloaded in PDF format at the link stated below.
Technical parametersMarshall Amplification MG15GR Specs | | | Amplifier Type | Solid-State | | Output Power | 15 W RMS | | Channels | 4 | | Output Impedance | 8 Ohms Mono | | Built-In Effects | Digital Reverb | | Presets & Storage | User Presets: 4 | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/8" Stereo Line Level
1 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/8" Stereo Headphone | | Tone Section | Bass, Channel Volume, Mid, Treble | | | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 15 W | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 18.9 x 16.5 x 8.9" / 480.0 x 420.0 x 225.0 mm Combo | | Weight | 23.81 lb / 10.8 kg Combo | | | | Package Weight | 18.55 lb | | Box Dimensions (LxWxH) | 17.8 x 15.5 x 8.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
