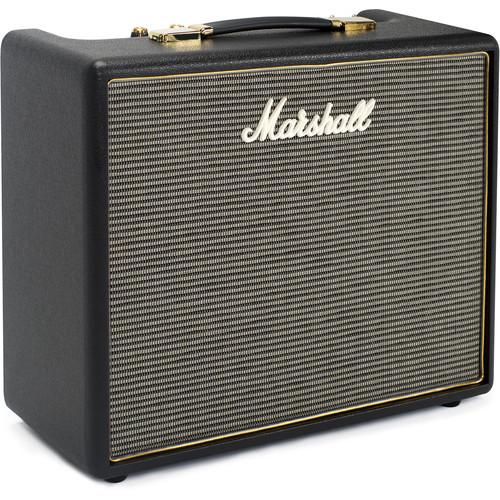

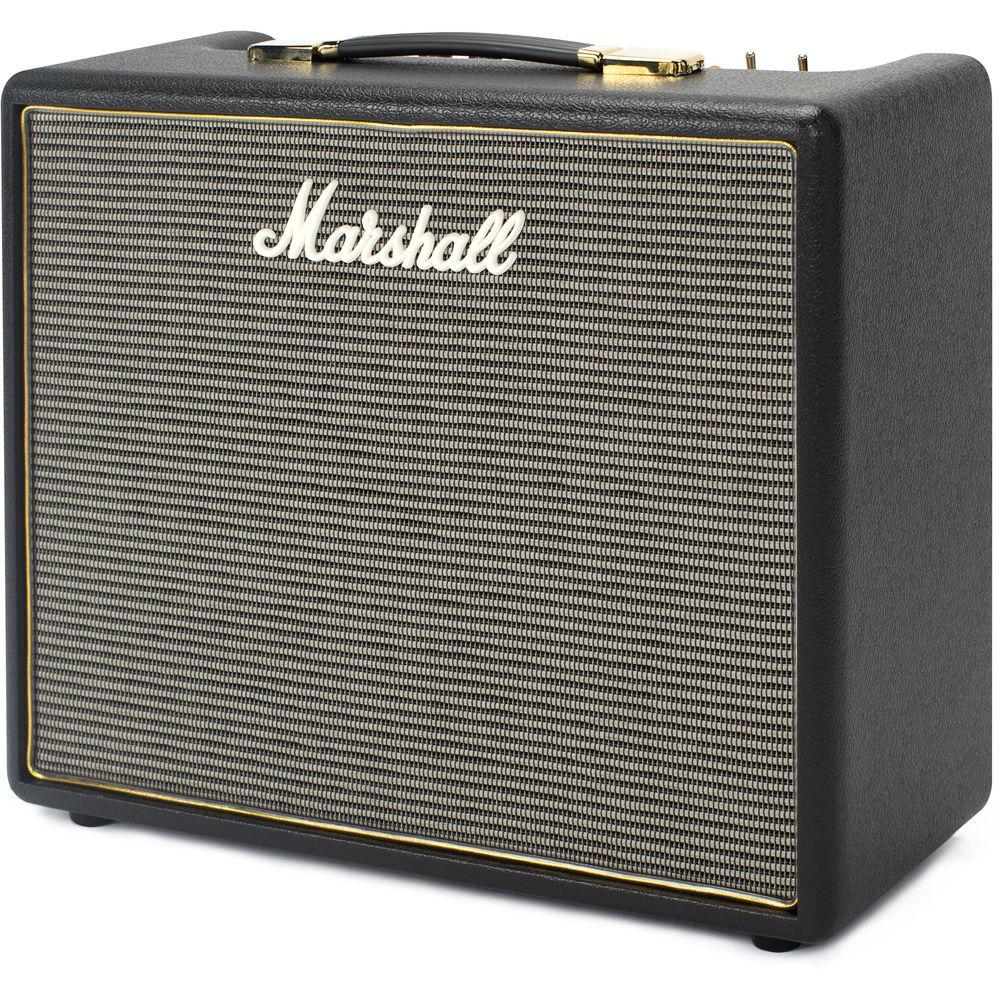

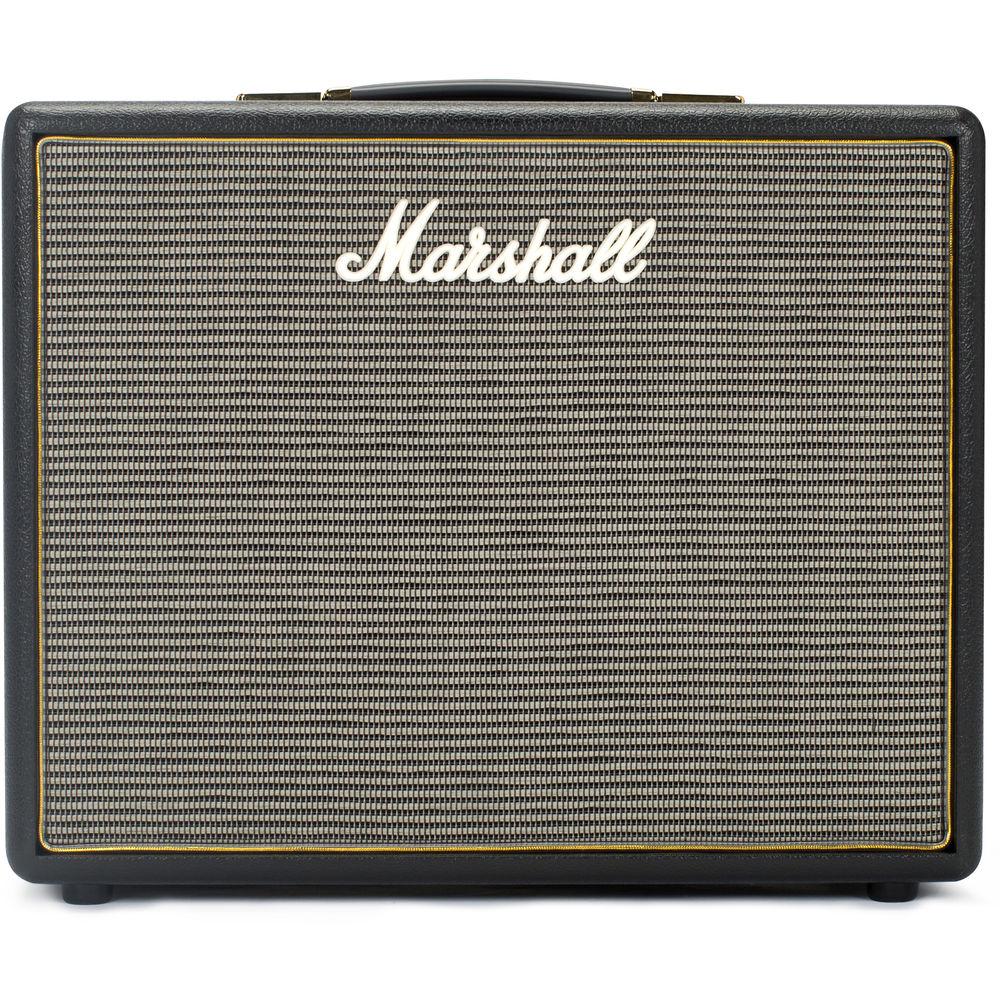

User Manual for Marshall Amplification Origin 5 5W 1x8 Combo Amplifier with FX Loop and Boost Click to enlarge the picture
Contents of the user manual for the Marshall Amplification Origin 5 5W 1x8
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification Origin 5 5W 1x8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

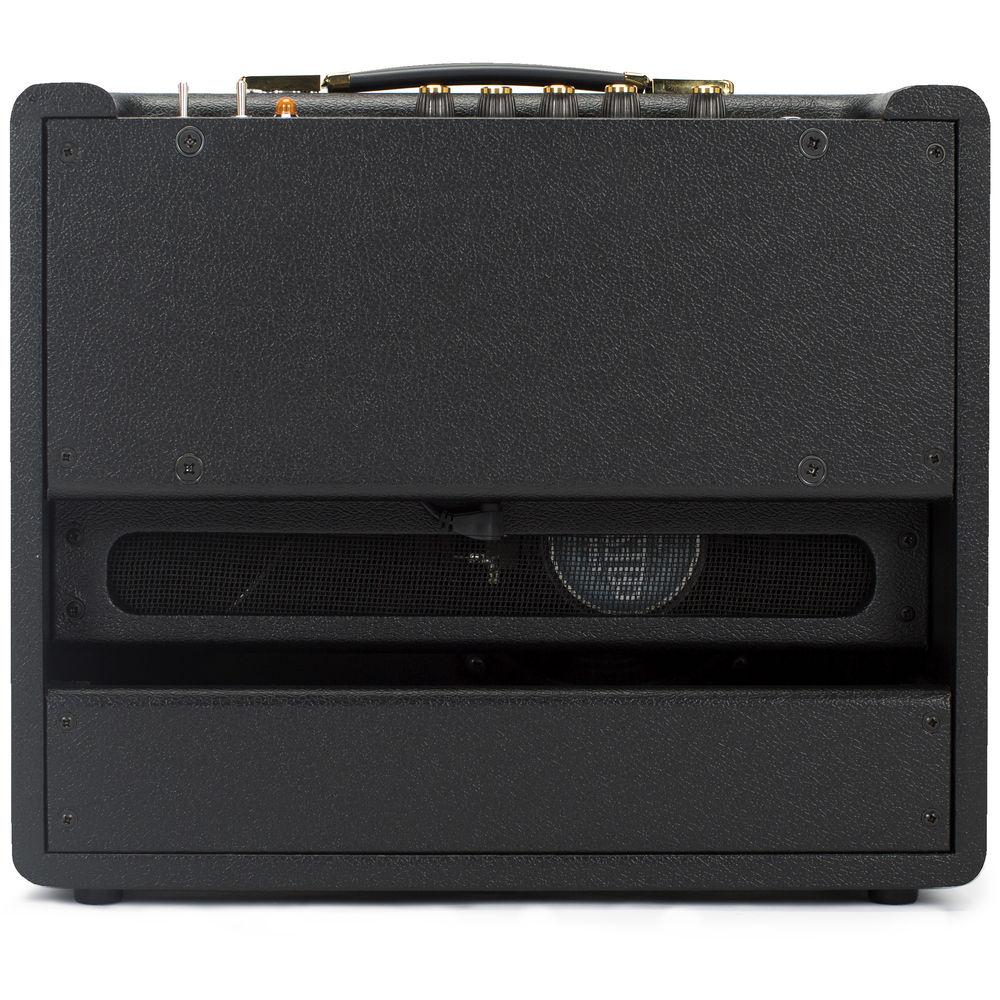

Product description The Marshall Amplification Origin 5 is a 5W combo amplifier intended for use with electric guitars. It utilizes a tube-powered design, with two ECC83 preamp tubes and one EL84 tube for the power amp. With an 8” Celestion Eight-15 speaker, the amp gives you a tone that screams Marshall, despite its relatively small size.This is a one channel amplifier with controls for bass, middle, treble, and volume.Additionally, you’ll find a Tilt tone control, a filter independent from the main equalizer circuit. The Tilt knob changes the voice of the amp from a modern tone to a more vintage timbre. Furthermore, the volume knob plays host to a pull-boost feature which adds some extra gain into the signal, giving you the pleasant breakup of tube-based distortion.With the included footswitch, you can control the pull boost with a tap of your toe. Turn your attention to the rear of the amplifier, and you'll notice 1/4" jacks for an external effects loop. This is useful for patching your outboard gear and pedals directly into the Origin 5's signal path. - Add a Boost
- Using the foot-switchable gain boost, you can add that extra level of gain to generate overdriven Marshall tone. Without a footswitch, you can use the push-pull mechanism built into the volume knob.
- Tilt Control
- This amp may only have one channel, but using the tilt control, you can blend your sound between normal and high treble voices.
- Front-Panel Power Reduction Switch
- Marshall's reducing technology, called Powerstem, allows you to utilize high or low power modes without affecting tonal quality.
In the Box Marshall Amplification Origin 5 5W 1x8 Combo Amplifier with FX Loop and Boost IEC Power Cord PEDL-90012 Footswitch Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Limited 90-Day Warranty on Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification Origin 5 5W 1x8 Combo Amplifier with FX Loop and Boost in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification Origin 5 Specs | | | Amplifier Type | Tube | | Output Power | 5 W | | Channels | 1 | | Tube Types | 2 x Preamp 12AX7/ECC83
1 x Power EL84/6BQ5 | | Output Impedance | 16 Ohms Mono | | Effects Loop | Yes | | Built-In Effects | None | | Master Volume | No | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Tone, Treble | | | | Speaker Through/Output | 1 x 1/4" | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Semi-Open Mono | | Power Rating | 15 W | | Input Impedance | 16 ohms Mono | | Covering | Tolex | | | | Dimensions (WxHxD) | 18.3 x 14.5 x 7.5" / 466.0 x 369.0 x 191.0 mm Combo | | Weight | 20.72 lb / 9.4 kg Combo | | | | Package Weight | 31.7 lb | | Box Dimensions (LxWxH) | 22.3 x 20.2 x 11.0" |
