User Manual for Marshall Amplification Origin 50 50W 1x12 Combo Amplifier with FX Loop and Boost Click to enlarge the picture
Contents of the user manual for the Marshall Amplification Origin 50 50W 1x12
- Product category: Guitar Amplifiers Marshall Amplification
- Brand: Marshall Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Amplification Guitar Amplifiers
 |
User manual for the Marshall Amplification Origin 50 50W 1x12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Amplification product will considerably shorten its lifespan!
|

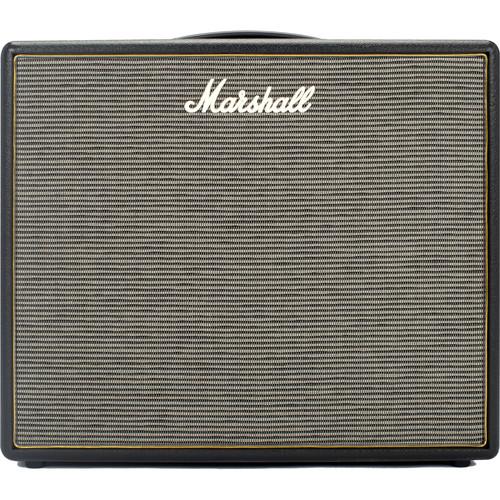

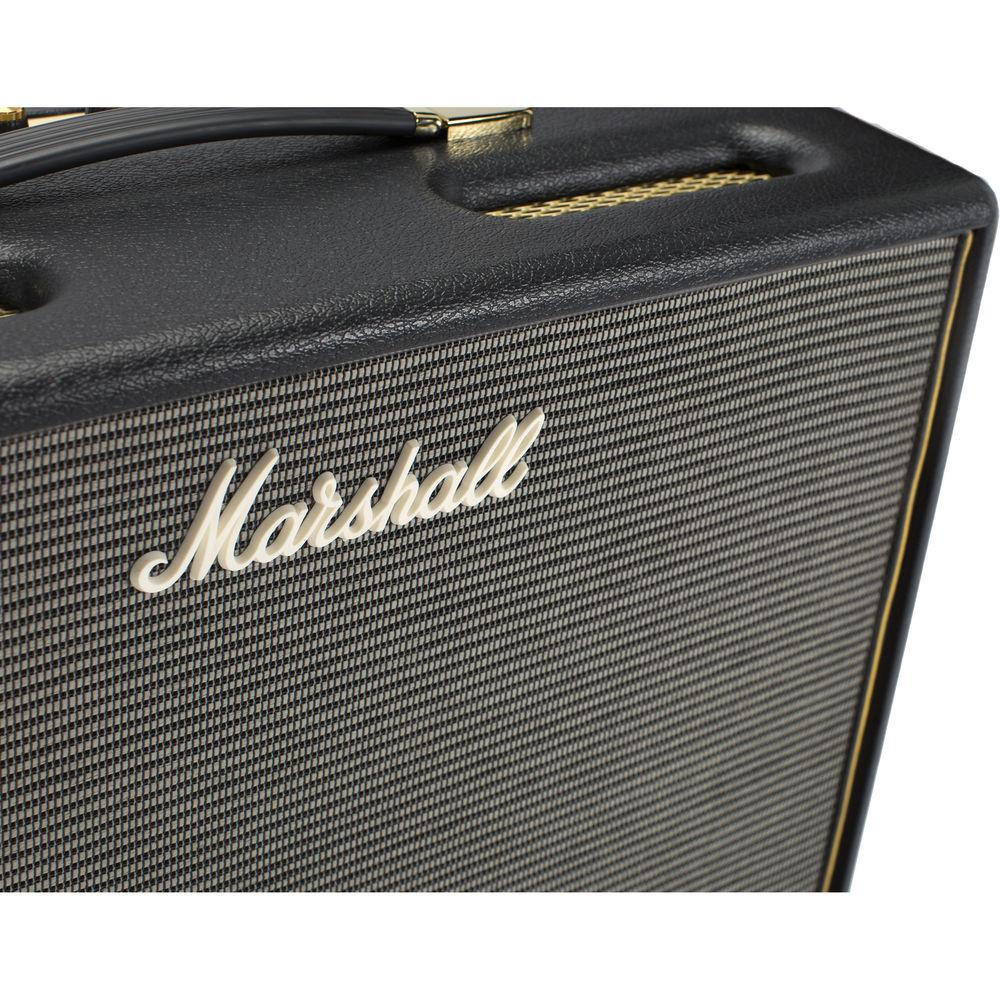

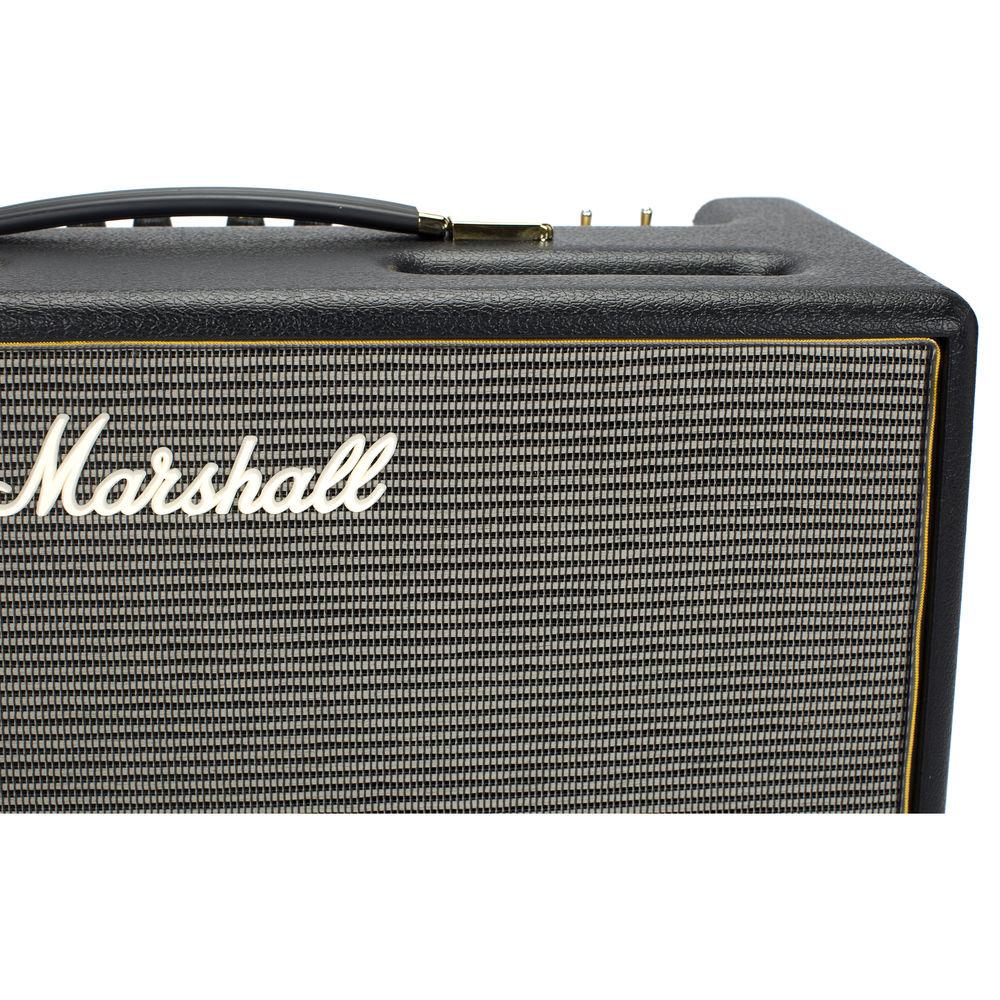

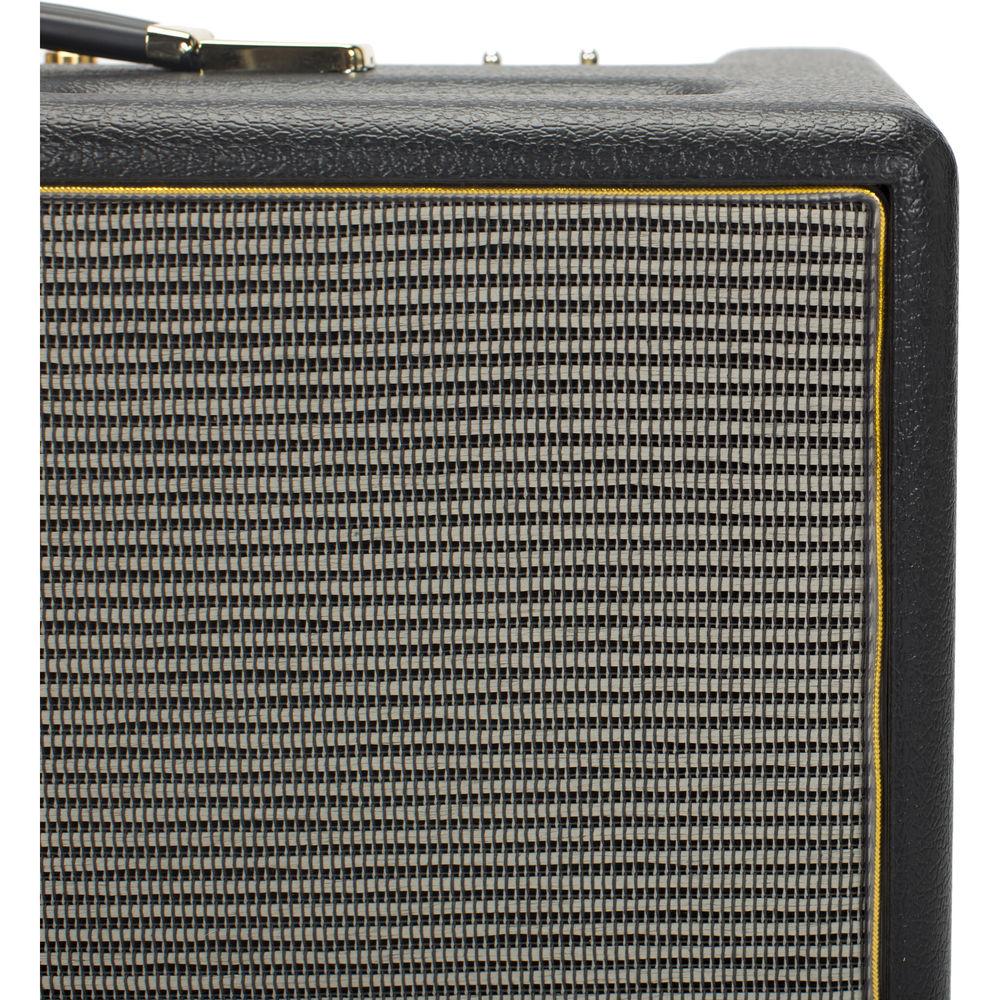

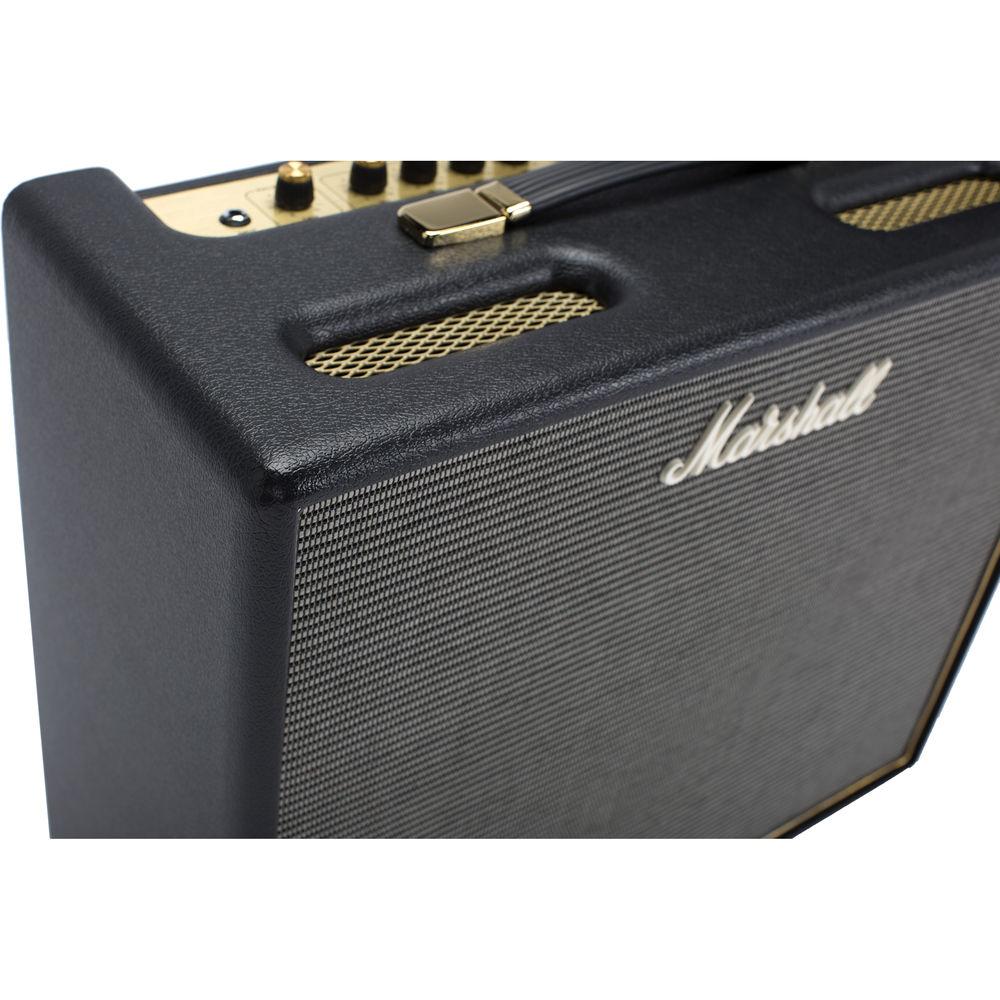

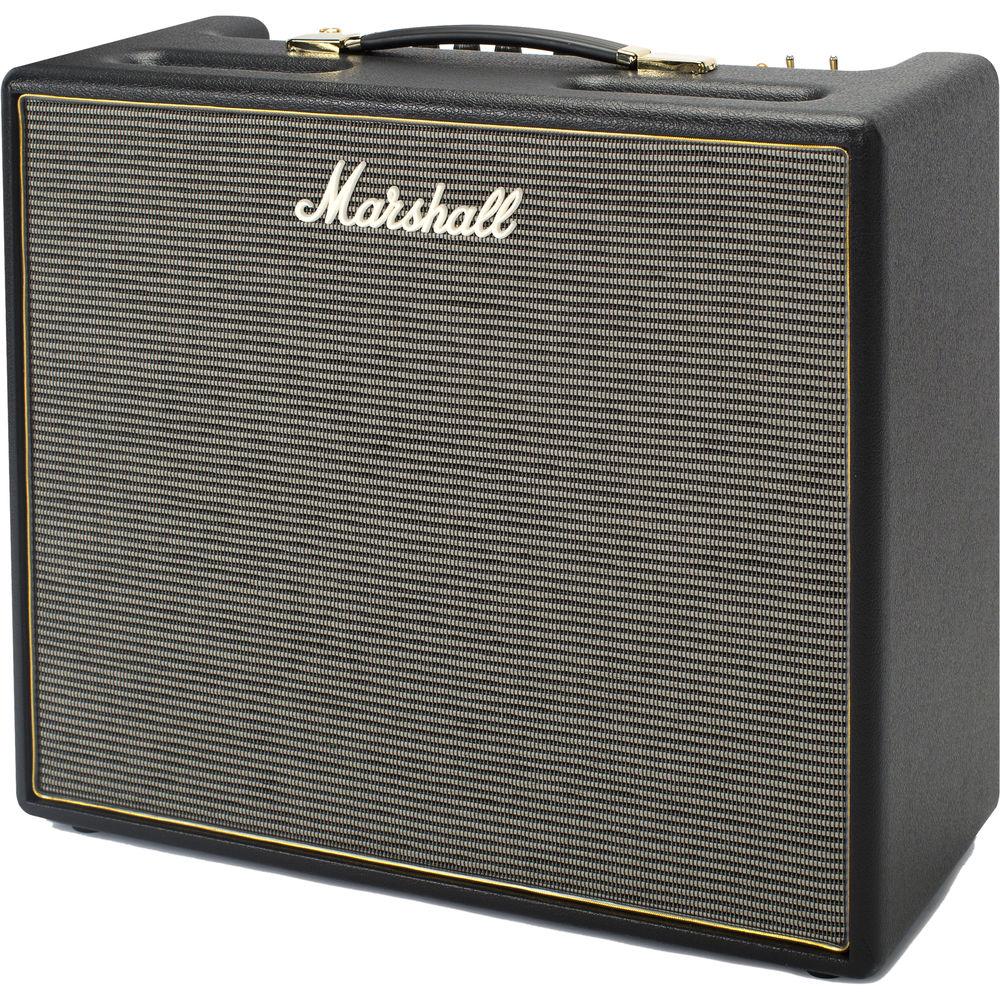

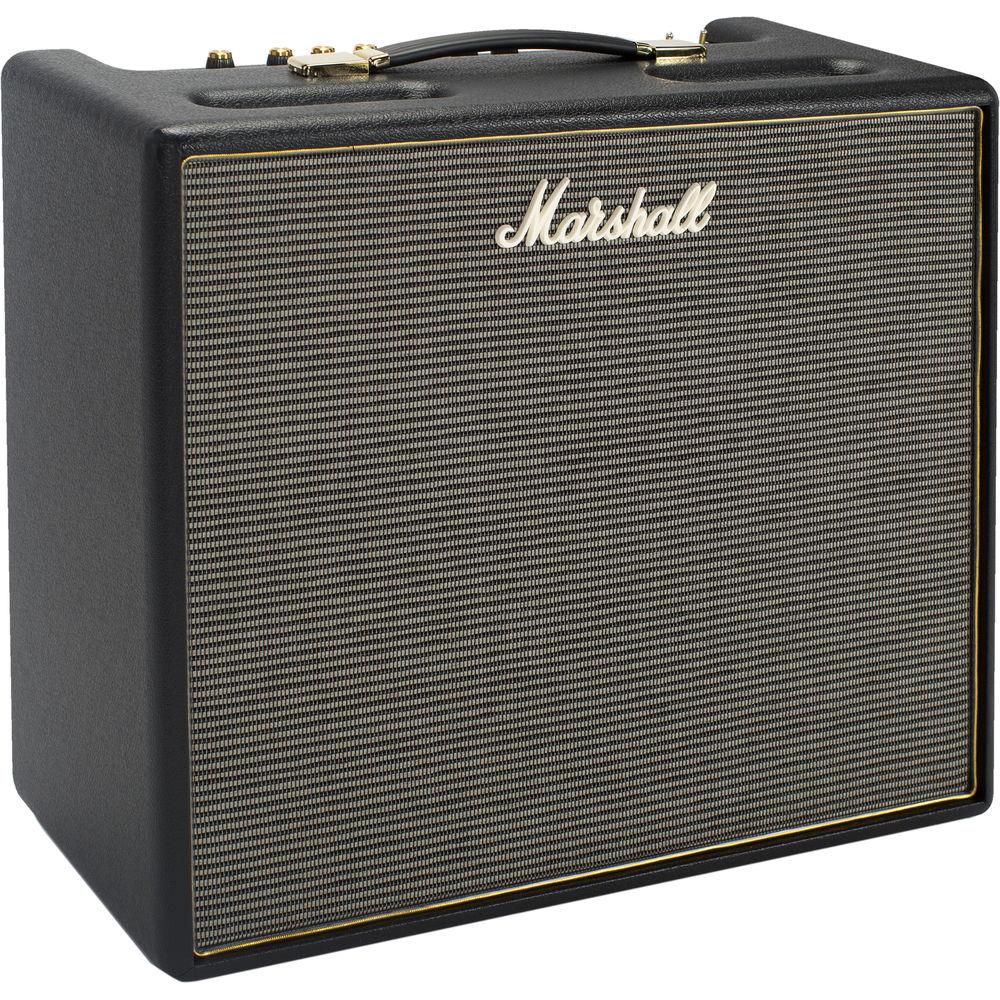

Product description The Marshall Amplification Origin 50 is a 50W combo amplifier intended for use with electric guitars. It utilizes a tube-powered design, with Three ECC83 preamp tubes and two EL84 tubes for the power amp. With a 12" Celestion G12N-60 Midnight 60 speaker, the amp gives you a tone that screams Marshall. This is a one channel amplifier with controls for bass, middle, treble, and volume. Additionally, you’ll find a Tilt tone control, a filter independent from the main equalizer circuit. The Tilt knob changes the voice of the amp from a modern tone to a more vintage timbre. Furthermore, the volume knob plays host to a pull-boost feature which adds some extra gain into the signal, giving you the pleasant breakup of tube-based distortion. With the included footswitch, you can control the pull-boost with a tap of your toe.
Turn your attention to the rear of the amplifier, and you'll note three 1/4" speaker outputs for routing to 16- and 8-Ohm cabinets. In addition to the 1/4" footswitch input and 1/4" DI output, you'll see 1/4" jacks for an external effects loop. This is useful for patching your outboard gear and pedals directly into the Origin 5's signal path. - Add a Boost
- Using the foot-switchable gain boost, you can add that extra level of gain to generate overdriven Marshall tone. Without a footswitch, you can use the push-pull mechanism built into the volume knob.
- Tilt Control
- This amp may only have one channel, but using the tilt control, you can blend your sound between normal and high treble voices.
- 1/4" DI Output
- The DI output can be used to route sound straight to the house PA or recording interface, and sports a loudspeaker emulation that gives you the sound of a miked cab over this line.

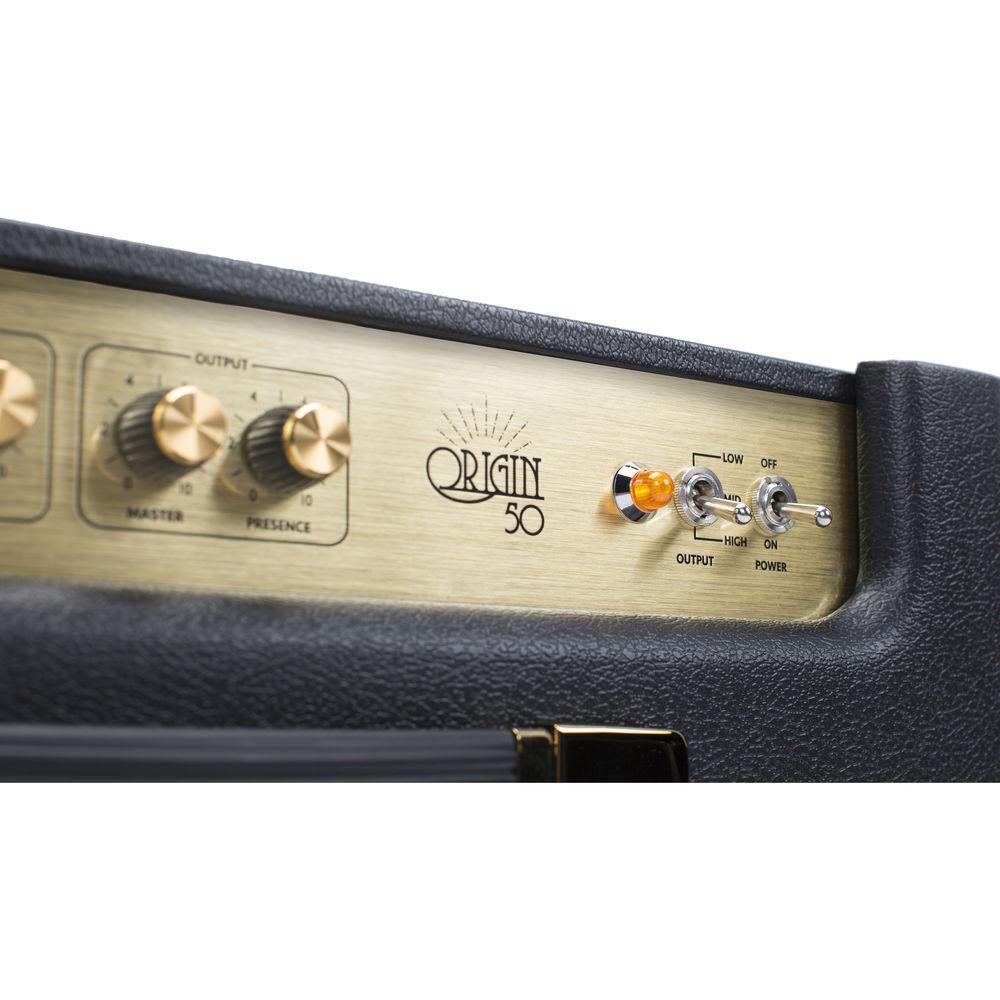

- Front-Panel Power Reduction Switch
- Marshall's reducing technology, called Powerstem, allows you to utilize high or low power modes without affecting tonal quality.
In the Box Marshall Amplification Origin 50 50W 1x12 Combo Amplifier with FX Loop and Boost IEC Power Cord PEDL-90016 Footswitch Limited 5-Year Warranty on Parts Limited 3-Year Warranty on Labor and Speaker Limited 90-Day Warranty on Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Amplification Origin 50 50W 1x12 Combo Amplifier with FX Loop and Boost in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Amplification Origin 50 Specs | | | Amplifier Type | Tube | | Output Power | 50 W | | Channels | 1 | | Tube Types | 3 x Preamp 12AT7/ECC82
2 x Power EL34/6CA7 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | None | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Mono Footswitch | | Outputs | 3 x 1/4" Mono External Speaker
1 x 1/4" Mono DI | | Tone Section | Channel 1: Bass, Gain, Mid, Presence, Tone, Treble | | | | Speaker Through/Output | 3 x 1/4" | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Semi-Open Mono | | Power Rating | 60 W | | Input Impedance | 16 ohms Mono | | | | Dimensions (WxHxD) | 22.8 x 18.9 x 9.7" / 580.0 x 480.0 x 245.0 mm Combo | | Weight | 40.12 lb / 18.2 kg Combo | | | | Package Weight | 54.25 lb | | Box Dimensions (LxWxH) | 28.5 x 24.5 x 14.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Marshall Amplification Origin 50 50W 1x12 Combo Amplifier with FX Loop and Boost
| Subject: Warm up | | Date: 11.09.2021 13:03:28 | Name: Dean Vitasovic | | How much do you need to Wait before start playing the origin 50c, for the tubes to warm up? | | Post reply |
