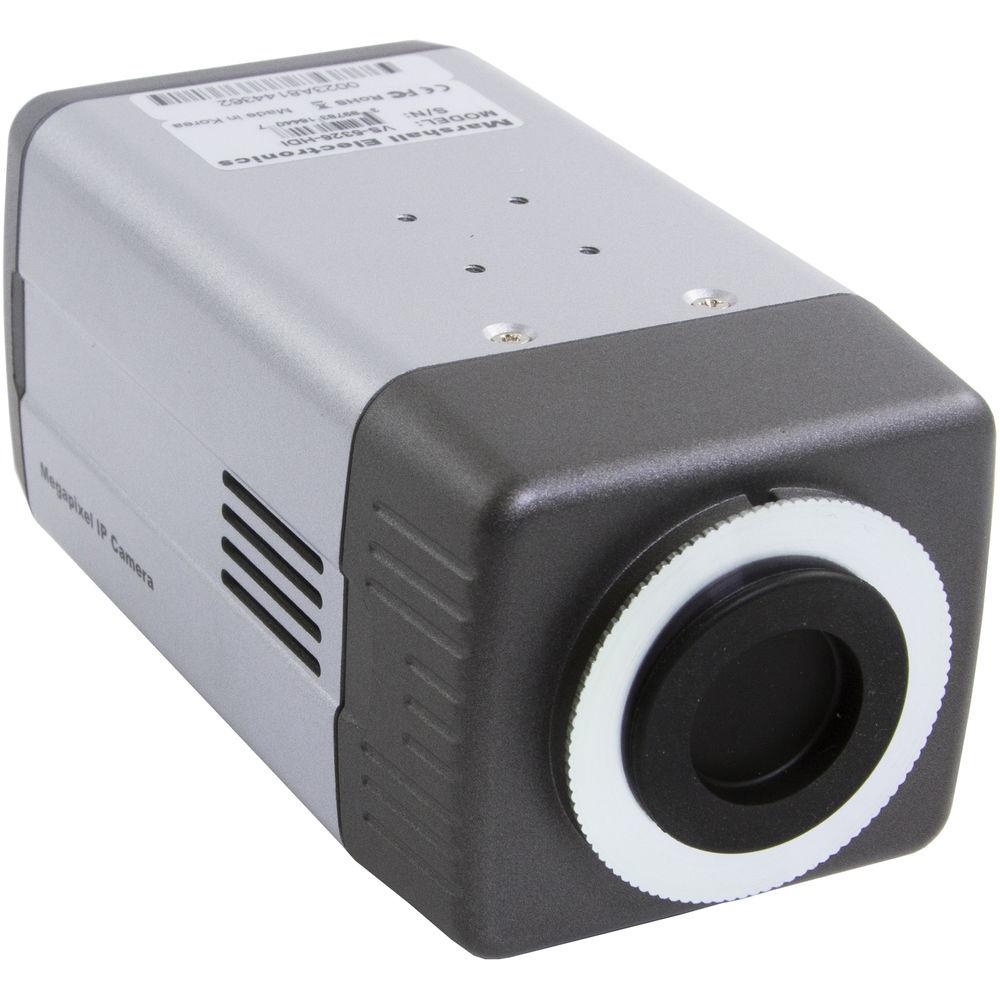

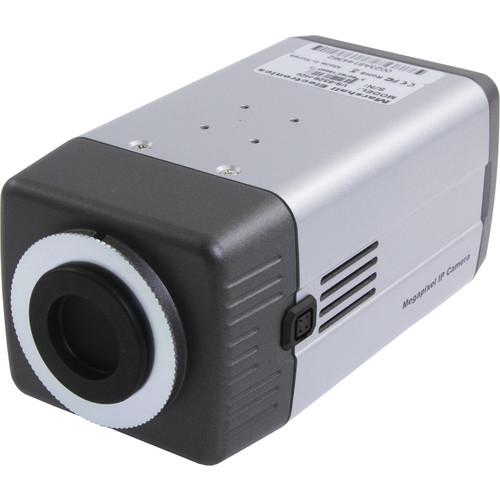

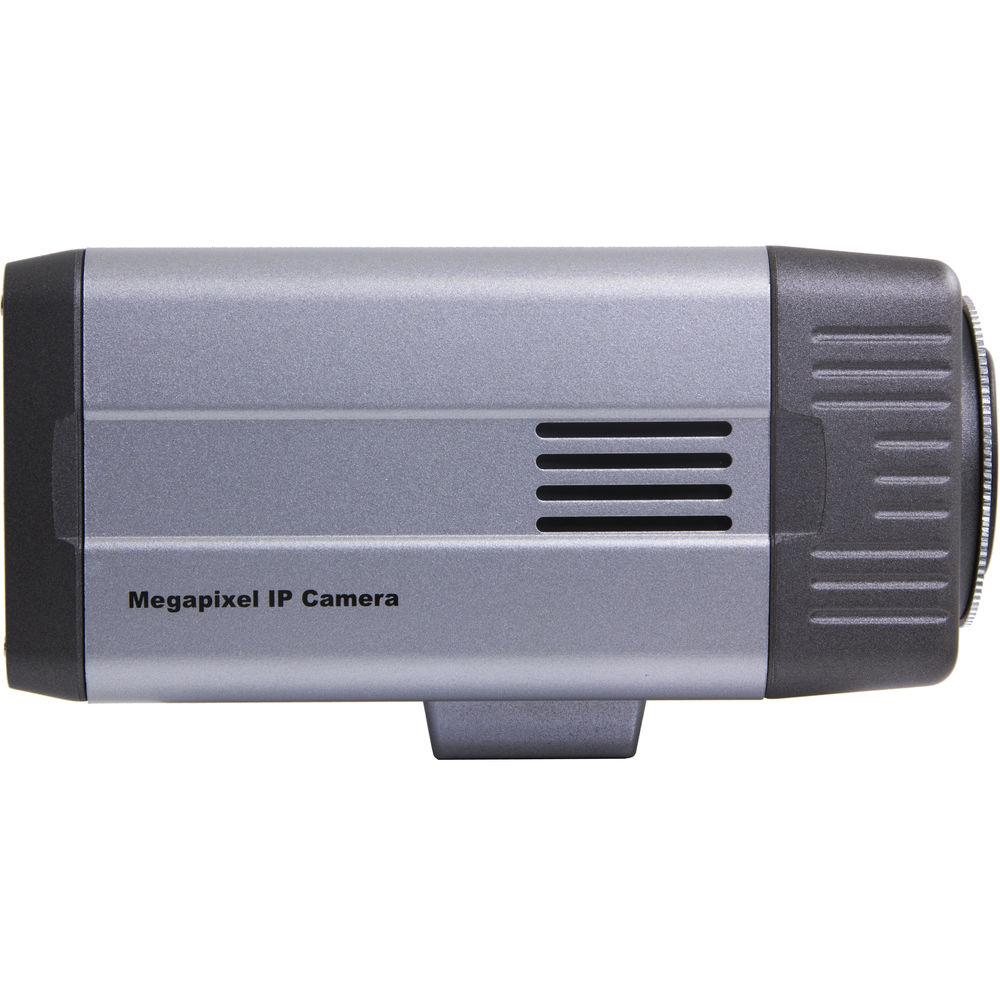

Product description The 1080p60 IP Box Camera from Marshall Electronics features a 1/2.8" progressive scan CMOS sensor that allows the camera to capture full HD images. The camera uses H.264 and MJPEG compression format for low bandwidth consumption. Although the camera doesn't come with any lens, it comes equipped with a C/CS mount for use with separately available lenses. - True WDR to capture images in varied light conditions
- Can be powered via a DC power supply or over PoE
- Supports quadruple streaming
UPC: 801813179002 In the Box Marshall Electronics 1080p Box IP Camera with HDMI Output (No Lens) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 1080p Box IP Camera with HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-5326-HDI Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Lens Type | Auto DC iris, P-Iris (option) | | Lens Mount | C/CS mount | | Zoom | Lens dependent | | Focal Length | Lens dependent | | Maximum Aperture Ratio | Lens dependent | | Angle of View | Lens dependent | | Minimum Illumination | Color: 0.07 lux
B/W: 0.001 lux at f/1.2 with 50 IRE | | Electronic Shutter Speed | p30: 1/30 to 1/50000 sec
p60: 1/60 to 1/50000 sec | | Privacy Masking | 8 regions (polycon windows) | | Flip / Mirror | Horizontal, vertical | | Image Enhancement | AGC, AE, AWB, TDN, 2D/3DNR, DSS, True WDR, Defog, DIS, DPC,and LSC | | | | Compression | H.264, MJPEG | | Frame Rate | Maximum 60 fps at 1920 x 1080 | | Bitrate | Primary: 32 kbps to 16 Mbps
3 x Secondary: 32 kbps to 4 Mbps | | Resolution | 352 x 240 to 1920 x 1080 | | Streaming | Primary: H.264
3 x Secondary: H.264/MJPEG | | OSD | Multi-lingual | | Output | HDMI | | | | Compression | G.711 / AAC | | Sampling Rate | G.711: 8 kHz
AAC: 32 kHz / 44.1 kHz / 48 kHz | | Bitrate | G.711: 64 kbps
AAC: 64 kbps / 128 kbps | | Streaming | G.711: Full-duplex
AAC: Half-duplex | | Input / Output | 1 x line-in (mono)

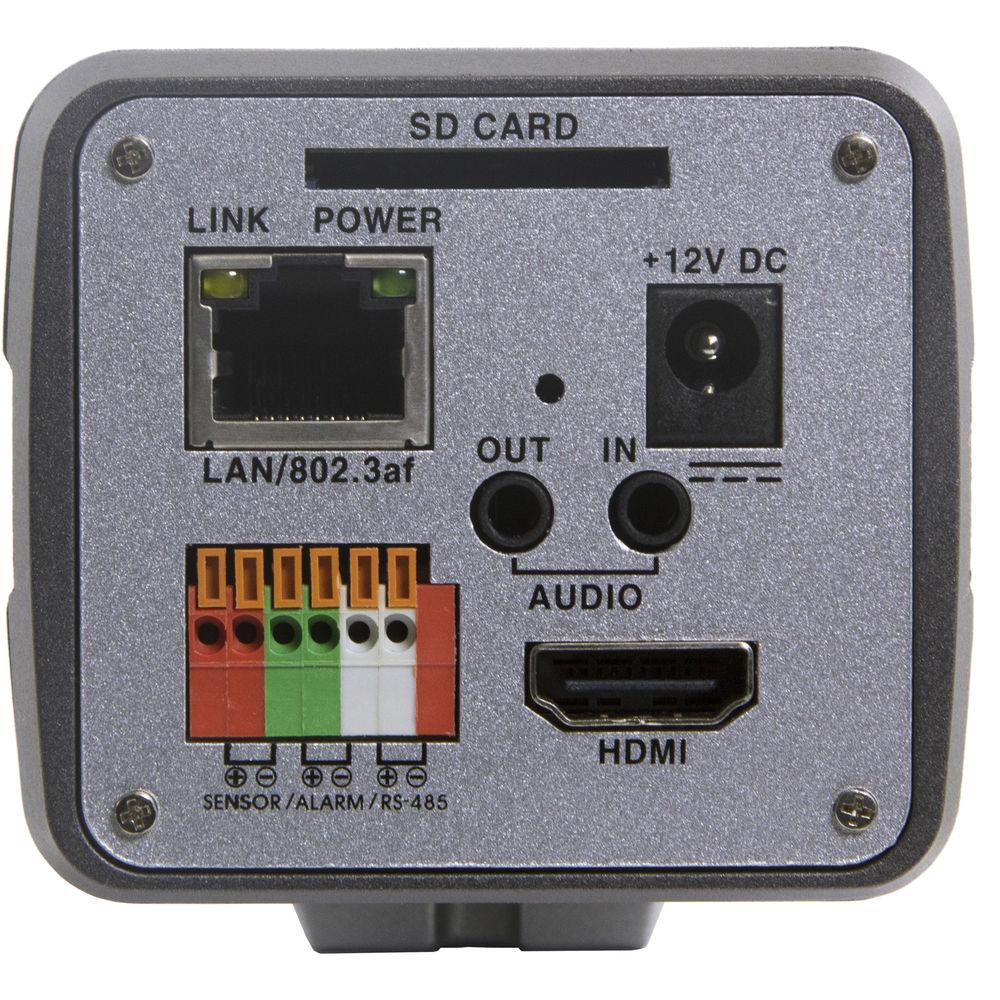

1 x line-out (mono) | | | | Event | Sources: Motion, sensor input, client disconnection
Actions: Notification (E-mail), FTP, PTZ preset, alarm control, recording | | Certifications | CE, FCC, KC, RoHS | | External Devices | 1 x sensor-in (dry contact, NO/NC)
1 x alarm-out (dry contact, NO)
1 x RS-485 port | | Edge Storage | SD/SDHC slot | | Power Supply | Minimum 12 VDC 1.5 A, PoE (Power over Ethernet): 802.3af | | Power Consumption | 12 VDC/PoE: Maximum 12 VDC 8.76 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 20 to 80% RH | | Dimension | 2.6 x 5.0 x 2.6" (66.60 x 127.20 x 67.20 mm) | | Weight | 13.3 oz (376 g) | | | | Package Weight | 1.105 lb | | Box Dimensions (LxWxH) | 7.4 x 5.1 x 4.9" |
