Product description

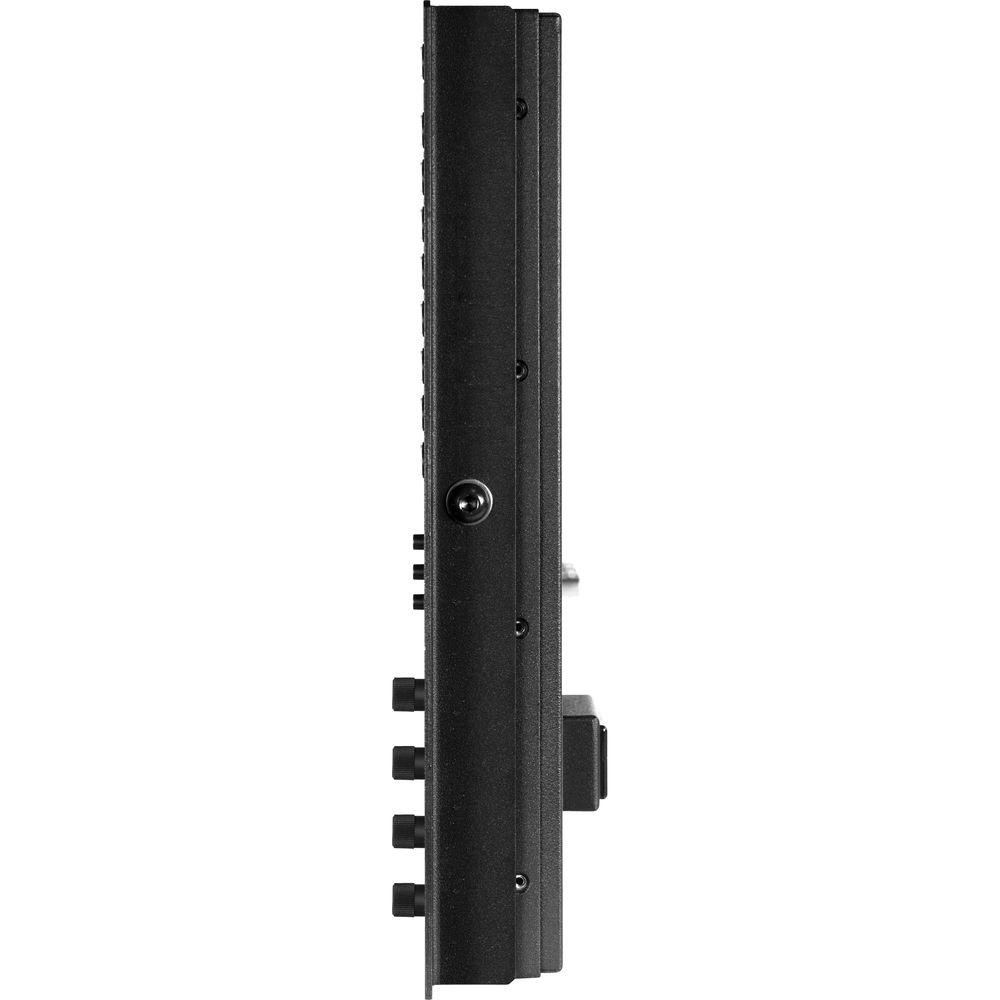

1920 x 1080 LED-Backlit Panel
• • This monitor features an all-digital 1920 x 1080 LED-Backlit display. The LCD panel features a brightness of 400 cd/m² and a 600:1 contrast ratio making it ideal in a variety of environments and lighting conditions.

Multi-mode, Vectorscope, and Waveform Monitor Mode

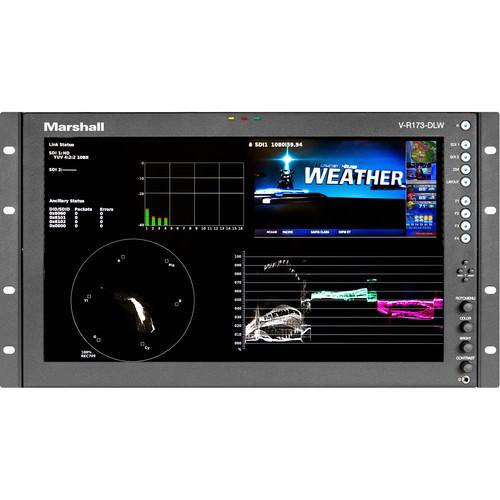

• • This monitor series includes a real-time waveform monitor and vectorscope along with support for SDI, HD-SDI, 3G-SDI, and Dual Link SDI. With the monitor in multi-mode, the monitor will break into four quadrants and display signal input information (link status), embedded audio levels, a waveform monitor, a vectorscope, and live video simultaneously. Additional layouts provide the ability to view the Waveform monitor, vectorscope, SDI Link status, and Video individually.

Closed Captioning Decoding
• • The DLW monitor allows for decoding of closed captioning in the EIA-608 or EIA-708.

OSD Features (On-Screen Display)
• • Embedded time code and an embedded audio presence indicator can be displayed on the screen in a variety of configurations. Closed caption presence indication is also provided for 608/708 captions.

Advanced Features
• • In-Monitor display allows on-screen text and tally indication, controlled locally or remotely via a variety of industry standard protocols. Color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features allowing the monitor to be at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.

Four User-Definable Function Buttons
• • Four user-definable function buttons allow quick access to numerous settings and features including aspect ratio, monochrome mode, color temperature, and more.

Waveform Monitor
• • The built-in waveform monitor can be displayed in various aspect ratios, positions, and transparency options. The waveform monitor displays YUV/RGB in both Overlay and Parade modes.

Real-Time Color Vectorscope
• • The built-in vectorscope allows users to monitor color gamut range in real time. It displays in various sizes, positions, and transparency options.

Audio Level Meters
• • De-embeds and displays up to 16 channels of audio using sixteen 40-segment tri-color audio meters with user-adjustable reference levels.

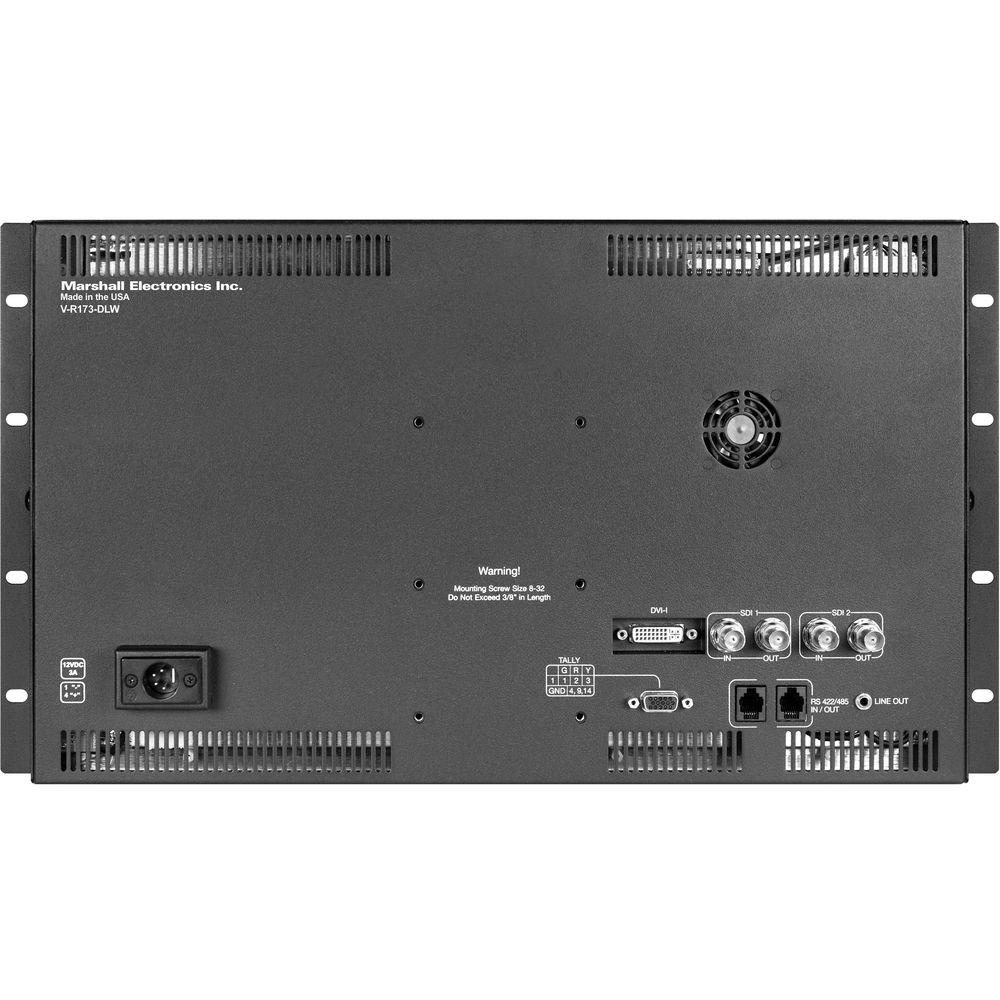

Inputs
• • 2 x 3G-SDI inputs with loop-through and SD-SDI, HD-SDI, & 3G-SDI support
  • SDI inputs can be used in tandem to do dual link
  • 1 x DVI-I input supports digital DVI, HDMI (without audio), analog video (RGB, YPbPr) to 162 MHz

Processing
• • 10-bit image processor
  • 4 x 3 and 16 x 9 aspect ratios
  • High quality motion adaptive deinterlacer
  • Timecode (LTC / VITC)
  • 608/708 closed captioning
  • Waveform monitor
  • Vectorscope
  • Ancillary data window
  • 16 channels of audio metering (SDI inputs only)
  • Standard Marshall IMD processing
  • RotoMenu controlled OSD
  • Four programmable function buttons
  • System statistics monitoring in OSD
  • Variety of markers

Other Features
• • Hard Tally (red, yellow, green LEDs)
  • Soft Tally (in IMD)
  • RS-485 interface supports Marshall, image video, and TSL protocols
  • System supports color calibration
  • RS-485 based firmware update
