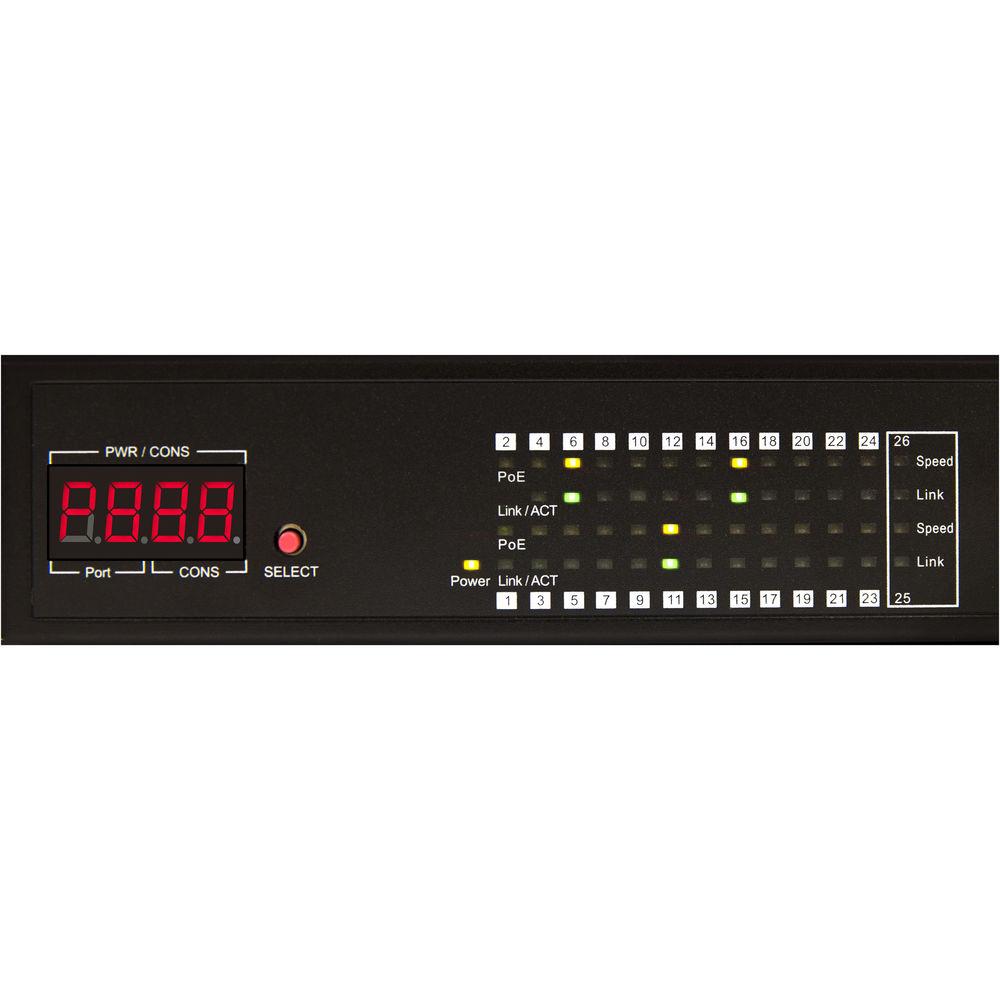

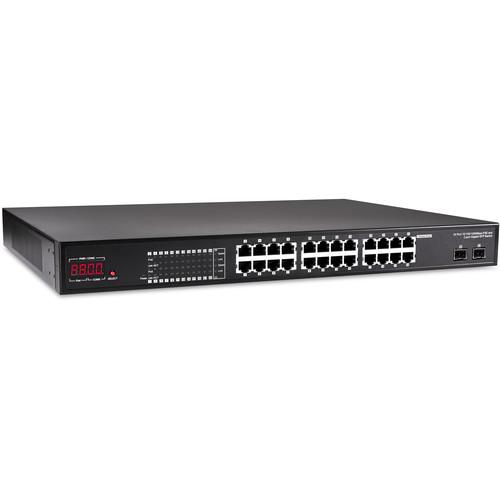

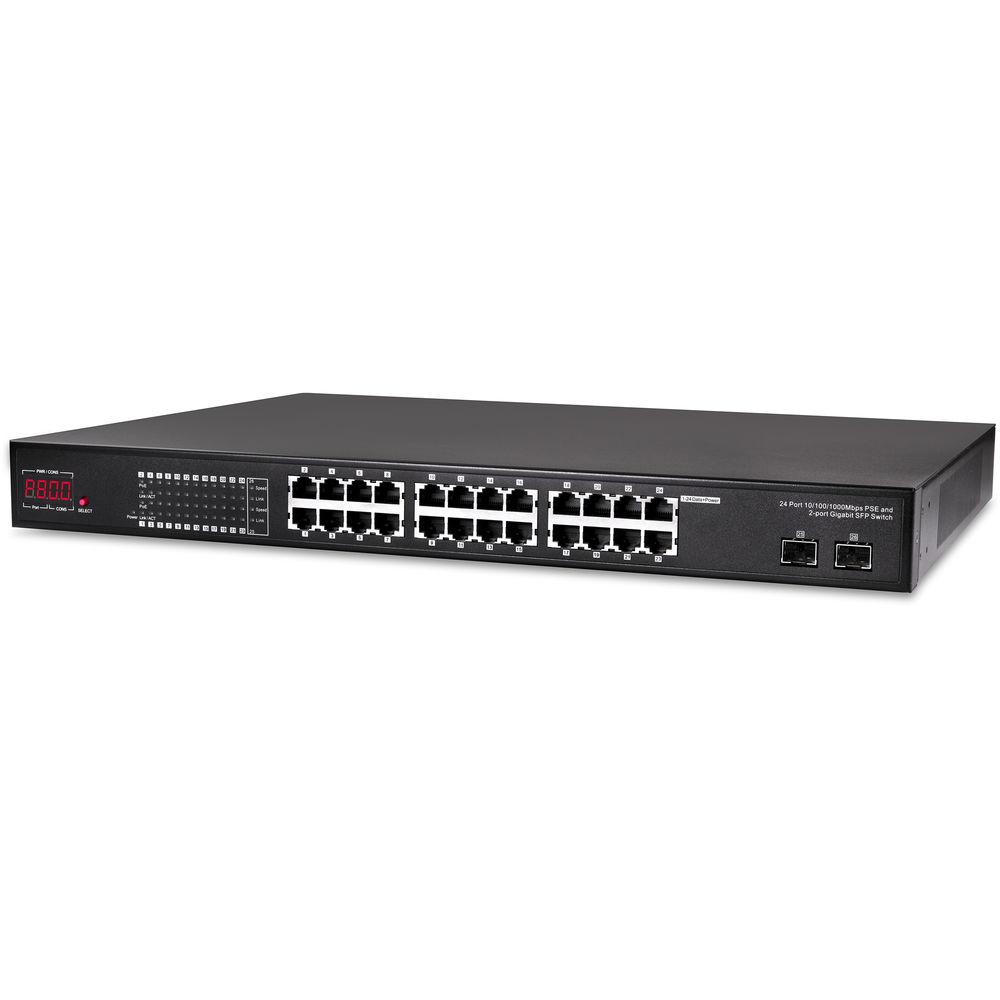

User Manual for Marshall Electronics 24-Port 10 100 1000 Mbps PSE Switch with 2-Port Gigabit SFP Click to enlarge the picture
Contents of the user manual for the Marshall Electronics 24-Port 10 100 1000
- Product category: Network Switches, Bridges & Hubs Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Network Switches, Bridges & Hubs
 |
User manual for the Marshall Electronics 24-Port 10 100 1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: VS-SW-100 is 26-port 10/100/1000 Power over Ethernet switch, which consists of 24 PSE/PoE, ports with an additional 2 SFP uplink port. The VS-SW-100 has been designed specifically for use with IP cameras, encoders and decoders. It is compliant with PoE IEEE 802.3af/802.3at. Each of the 24 PSE/PoE ports can concurrently supply. This avoids the use of multiple power supplies and makes system installation a snap. Supporting 24 PTZ IP cameras from one power outlet makes this an efficient and environmentally friendly solution.
- Key Features
-
- Provides 24 10/100/1000 switching ports and Gigabit SFP ports
- All ports support auto MDI-X function
- Dedicated full-duplex bandwidth to the each port
- Non-blocking and non-head-of-line blocking full-wire speed forwarding
- Auto-learning networking configurations
UPC: 801813181142 In the Box Marshall Electronics 24-Port 10/100/1000 Mbps PSE Switch with 2-Port Gigabit SFP Marshall VS-SW-100 Rack mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 24-Port 10 100 1000 Mbps PSE Switch with 2-Port Gigabit SFP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-SW-100 Specs | | | Device Type | Switch - 24 ports - unmanaged | | Enclosure Type | Rack-mountable | | Subtype | Gigabit Ethernet | | Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 800 W | | MAC Address Table Size | 8K entries | | Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, non blocking ports, 160KB packet buffer | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at | | Status Indicators | Power, PoE, link/activity | | | | Interfaces | 24 x 1000Base-T - RJ-45 - PoE+ - 30 W
2 x - SFP - uplink | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 960 Watt | | | | Rack Mounting Kit | Included | | Compliant Standards | FCC | | | | Width | 17.4 in | | Depth | 12.8 in | | Height | 1.7 in | | Weight | 12.13 lbs | | | | Min Operating Temperature | 32
