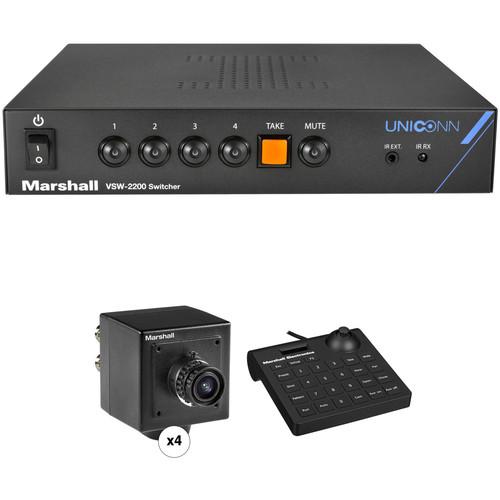

User Manual for Marshall Electronics 4 x 3G-SDI Mini-Broadcast POV Cameras with Switcher & Mini Joystick Kit Click to enlarge the picture
Contents of the user manual for the Marshall Electronics 4 x 3G-SDI Mini-Broadcast
- Product category: POV Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics POV Cameras
|
User manual for the Marshall Electronics 4 x 3G-SDI Mini-Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description This B&H Kit combines four Marshall Electronics 3G-SDI Mini POV Cameras with a Switcher and PTZ/OSD Joystick Controller for comprehensive live streaming, switching, conferencing, and other broadcast applications.
The small form factor cameras capture 2.5MP images and feature interchangeable 3.7mm M12 prime lenses. They record up to 1080p59.94/29.97 resolution, and have a low light-friendly minimum illumination of 0.2 lux in color and 0.005 lux with DSS on. The switcher offers seamless switching regardless of format, and provides up to a quad-view output via HDMI. - Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher Useful in small multimedia operations including live streaming, teleconferencing, camera switching, and more, the Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher offers an easy-to-use video switching solution in a compact form factor. The VSW-2200 can switch four 3G/HD/SD-SDI signals to either a single HDMI or SDI output. A second HDMI output offers a multi-view display for seeing all angles simultaneously. Switching between sources is seamless, regardless of format or frame rate. Audio can be passed through from each input or embedded from a single input. If incorporating into an A/V integration setup, remote control can be achieved via the included IR remote, or through Ethernet with software control. Rack ears are included in order to fit the VSW-2200 into half a rack space.
Features - Seamless, glitch-free switching
- Accepts multiple formats, frame rates, interlaced video, and progressive video simultaneously
- HDMI and SDI program outputs
- Independently selectable Program and Preview output formats
- Pass-through or mute embedded audio (two channels, one AES pair)
UPC: 801813177114 - 4 x Marshall Electronics CV502-MB 2.5MP 3G-SDI Compact Broadcast Compatible Camera with 3.7mm Lens (M12 Mount, Power Pigtail) Suitable for use in broadcast situations as well as reality TV, sports, racing, houses of worship, and security applications, the Marshall CV502-MB 2.5MP 3G-SDI Compact Broadcast Compatible Camera with 3.7mm Lens provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and includes an interchangeable 3.7mm lens in an M12 mount. The camera captures HD video at 1080p 29.97/59.94, 1080i 59.94, and 720p 59.94 fps, allowing you to easily integrate the camera into an infrastructure that supports broadcast frame rates. The camera incorporates one 3G/HD-SDI output as well as a CVBs (composite) video output.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera or be used in low-light videoconferencing situations. It features digital wide dynamic range (WDR), motion detection, and privacy masking, making this camera a flexible option for capturing intrusions into sensitive areas. And the auto white balance function helps deliver normal looking video under changing conditions. Menu settings are available via an OSD, and the built-in joystick allows you to navigate the settings. An included power pigtail allows you to connect to an optional power supply. - General Overview
-
- 2.5MP, 1/3" CMOS sensor
- 1080p video at up to 59.94 fps
- 720p video at up to 59.94 fps
- 0.2 lux in Color, 0.1 lux in B/W
- Connects to a TV or DVR via a BNC connection
- Die-cast aluminum camera housing protects the camera from external impacts
- The camera features one 3G/HD-SDI and one composite (CVBS) output connector
- Display Parameters
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and Manual White Balance
- Auto Electronic Shutter Speed: 1/30 to 1/30,000 sec
- Automatic Gain Control
- OSD Joystick
- This camera incorporates a joystick controller that allows you to navigate and select from the menu via the OSD
- RS-485 Interface
- This camera has an RS-485 interface, allowing you to connect to an optional DVR or control the camera using either Pelco or P/D or Sony VISCA protocol
UPC: 801813179255 - Marshall Electronics Camera PTZ/OSD Menu Mini Joystick Controller Marshall Electronics' Camera PTZ/OSD Menu Mini Joystick Controller has an integrated LCD on-screen menu that lets you easily change the settings, functions, and even the direction of a Marshall RS-485 enabled camera. This PTZ/OSD controller can connect up to 225 cameras, and it comes with 12 VDC power supply. UPC: 801813175424
In the Box - VSW-2200 4x1 Seamless 3G-SDI Switcher atbdttvwybecfrxsqztcfyryzxuabrtwc
- Rack Ears
- Power Supply
- AC Power Cord
- IR Remote Control
- IR Receiver Extension Cord
- Limited 1-Year Warranty
- 4 x CV502-MB 2.5MP 3G-SDI Compact Broadcast Compatible Camera with 3.7mm Lens (M12 Mount, Power Pigtail)
- Camera PTZ/OSD Menu Mini Joystick Controller
Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 4 x 3G-SDI Mini-Broadcast POV Cameras with Switcher & Mini Joystick Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher
| Video Inputs | 4 x 3G/HD/SD-SDI BNC | | Supported Input Formats | 1080p60/59.94/50/25/24/23.98
1080i59.94/50
720p59.94/50
NTSC
PAL | | Embedded Audio Input | Two-channel or one 5.1-channel surround mix from SDI (48 kHz sample rate) | | Video Outputs | Preview: 1 x HDMI
Program: 1 x 3G/HD/SD-SDI, 1 x HDMI | | Supported Output Formats | 1080p60/59.94/50/25/24/23.98
720p60/59.94/50 | | Power Supply | 12 VDC, 5 A | | Power Consumption | 14.5 W Nominal | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% RH, non-condensing | | ESD Protection | Human Body Model: ±12 kV Air-gap discharge, ±8 kV contact discharge | | Dimensions | 9.4 x 7.9 x 1.8" / 239 x 201 x 44 mm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 14.75 x 9.6 x 4.45" | - 4 x Marshall Electronics CV502-MB 2.5MP 3G-SDI Compact Broadcast Compatible Camera with 3.7mm Lens (M12 Mount, Power Pigtail)
| Sensor | 1/3" CMOS Sensor (approximately 2.5 MP) | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux | | Lens Mount | M12 | | Lens | 3.7 mm | | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p 59.94 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1080p 29.97
1080i 9.94
720p 59/94/29/97
Composite (CVBS) NTSC | | Electronic Shutter | NTSC: 1/30 to 1/30000 | | White Balance | AWB/AWC-Set/Manual/Indoor/Outdoor | | Backlight Compensation | WDR/BLC/HLC | | Control Interface | RS-485
PELCO-P/D
Sony-VISCA protocol
8bits data, 1 stop bit, no parity, 2400~115200 bps | | Temperature & Humidity | Operating: 14 to 122 °F / -10 to 50 °C | | Power | Voltage: 12 VDC (7 to 15 VDC Range)
Consumption: Max 6 W | | Certification | CE, FCC, RoHS, KCE | | Dimensions (W x H x D) | 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm | | Weight | 5.6 oz / 160 g | | | | Box Dimensions (LxWxH) | 12.0 x 6.2 x 3.2" | - Marshall Electronics Camera PTZ/OSD Menu Mini Joystick Controller
| Display Screen | 128 x 32 LCD | | Power Adapter Input | 100 to 240 VAC, 50/60 Hz | | Power Output | 12 VDC | | Power Supply | 12 VDC, 1 A ±10% | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Relative Humidity | ≤90% (no cream node) | | Communication | RS485 Half-duplex | | Baud Rate | 2400 bps / 4800 bps / 9,600 bps / 19,200 bps / 38,400 bps | | Dimensions (L x W x H) | 7.1 x 6.5 x 3.5" (180 x 165 x 90 mm) | | | | Box Dimensions (LxWxH) | 7.15 x 6.7 x 3.55" |
