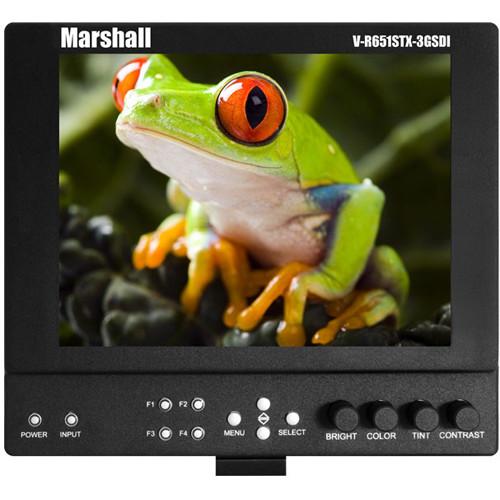

Product description Combining a 6.5" screen with a lightweight design and 10-bit processing of analog signals, the Marshall 6.5" On-Camera Monitor with 3G-SDI & BP-900 Series Type Battery Mount features composite, component, and SDI inputs and outputs. The front of the monitor incorporates four user configurable buttons for quick access to often used menu functions. The display panel features a 500:1 contrast ratio and 650 nit brightness for a sharp clear image, and the screen is designed to minimize light reflections so it is suitable for use indoors or outdoors.
The panel features a wide viewing angle of 160 by 140° so you can view your image comfortably with seeing significant shifts in color or contrast. The monitor incorporates various camera support viewing modes such as peaking, false color, and RGB check field, and supports user selectable 16:9 or 4:3 aspect ratios with adjustable on screen markers. As the panel is smaller than 1920 x 1080, the monitor scales full HD video signals to fit on the screen, however a pixel-to-pixel mode allows you to selectively view parts of your image without scaling artifacts, while an optical-grade polycarbonate screen protects the surface of the panel from the normal rigors of production. - Super Transflective
- Designed specifically for outdoor applications with high ambient light, Marshall's outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments.
- False Color
- The False Color filter is used to aid in the setting of camera exposure. As the camera iris is adjusted, elements of the image will change color based on the luminance or brightness values, providing the camera operater with a visual exposure reference.
- Peaking Filter
- The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus, different parts of the image will have RED colored edges. This indicates that this portion of the image is sharp or in focus.
- Battery Compatibility
- This unit features a battery mount for Canon BP-900 Type batteries. This model's battery mount and optional battery mounts provide a total of nine different battery configurations for providing mobile operation in the field. Marshall's battery adapters can be interchanged (or "swapped out") by the end-user.
- Scratch Resistant Screen
- An optical-grade screen protects the surface of the far more delicate LCD panel. This makes the monitor's screen scratch resistant, obviating the need for optional aftermarket panel protectors that may offer inferior optical quality.
- User Markers
-
- Center
- In full screen or 16:9 display mode, you can superimpose the following screen markers:
- 4:3
- 13:9
- 14:9
- 1.85:1
- 2.35:1
- 95% Safe
- 93% Safe
- 90%Safe
- 88% Safe
- 85% Safe
- 80% Safe
- User
- In 4:3 mode you can superimpose the following screen markers:
- 95% Safe Area
- 93% Safe Area
- 90% Safe Area
- 88% Safe Area
- 85% Safe Area
- 80% Safe Area
- 4-Pin XLR Power Connector
- The monitor features a 4-pin XLR power input so you can power it from a 12 volt battery or the included AC power adapter.
- Marshall Modules
- The monitor incorporates a slot for optional Marshall input/output modules. Please note that modules must be factory installed.
- Mounting
- The monitor features a 1/4"-20 threaded mounting hole on the bottom of the monitor.
In the Box Marshall Electronics 6.5" On-Camera Monitor with 3G-SDI & BP-900 Series Type Battery Mount - Power Adapter
- Canon Battery Plate
- Limited 1-Year Warranty, Extendable to 2 Years with Product Registration
User Manual PDF 366.5kbazsxrcqdy Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 6.5" On-Camera Monitor with 3G-SDI & BP-900 Series Type Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD651STX-3GSDI-CM Specs | Application | On-Camera & Field Monitor | | LCD Size | 6.5" | | Video System | NTSC, PAL | | Picture Elements | 1024 x 768 | | Aspect Ratio | 4:3 | | Contrast Ratio | 500:1 | | Brightness | 650cd/m² | | Color Gamut | YUV
RGB | | Viewing Angle (CR≥10) | 160° x 140° | | Input and Output Connectors | Input
SD/HD/3G-SDI: 1 x BNC
Composite Video: 1 x BNC
Component Video: 3 x BNC
Output
SD/HD/3G-SDI: 1 x BNC
Composite Video: 1 x BNC
Component Video: 3 x BNC | | Video Formats | 1080p
1080i
720p
625i
525i | | Color Temperature | D65
D 55
D93 | | Picture Controls | Brightness, Color, Tint, Contrast, Menu, F1-F4 | | Remote Control | No | | Power Requirements | 12VDC
Power Supply (XLR)
100-240VAC, 50/60Hz
Battery | | Power Consumption | 12W | | Dimensions (WxHxD) | 6.8 x 6 x 1.9" / 17.3 x 15.2 x 4.8 cm | | Weight | 1.3 lbs / 0.6 kg |
