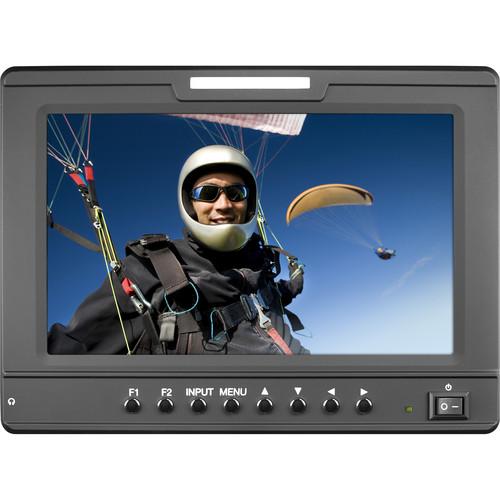

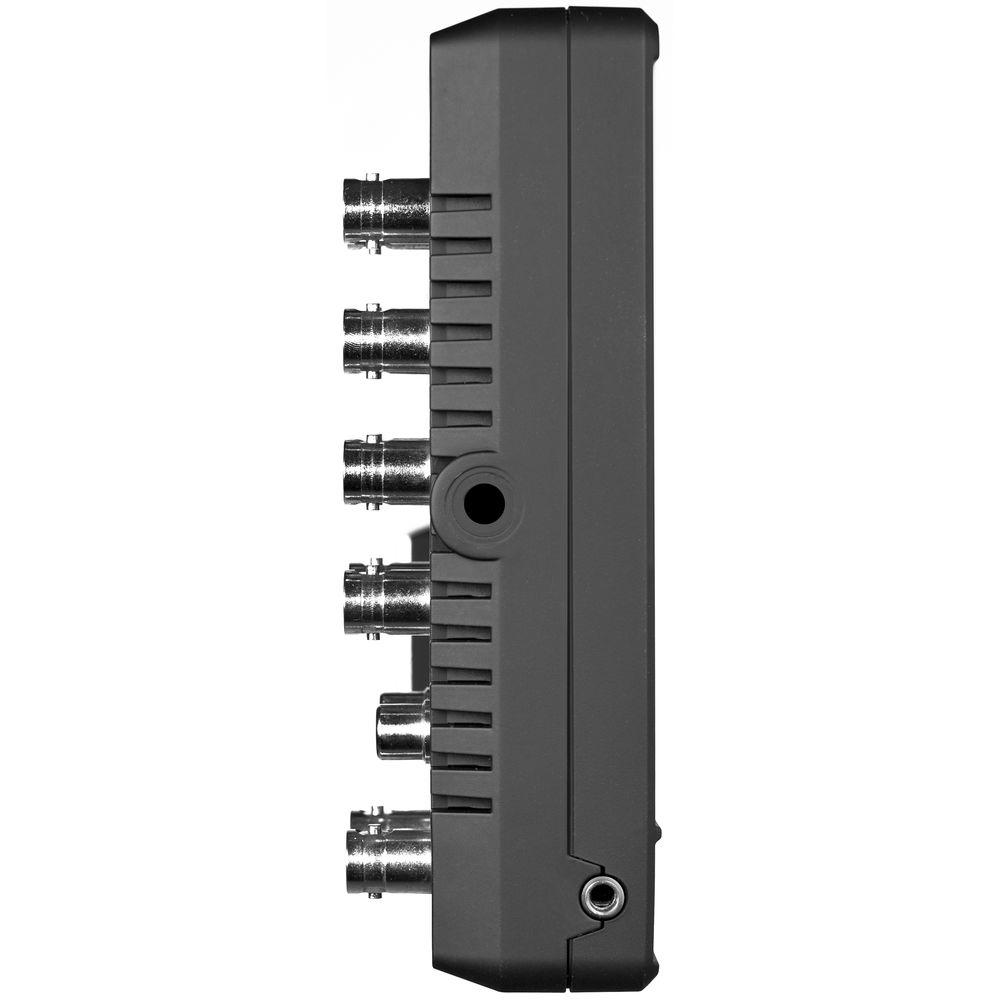

User Manual for Marshall Electronics 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount Click to enlarge the picture
Contents of the user manual for the Marshall Electronics 7" 1024 x 600
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
 |
User manual for the Marshall Electronics 7" 1024 x 600 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount from Marshall Electronics features a 500 cd/m2 brightness output, 700:1 contrast ratio, and a 1024 x 600 resolution. It also features multiple inputs and allows you to move between HD, 3G, and analog formats. You can adjust the color, exposure, picture orientation, or the aspect ratio of the image from full screen to 4:3, 14:9 and 16:9 using the menu at the front of the monitor. The base plate mounts on to the back of the monitor and accepts different types of battery plates. - False Color Filter
- The false color filter is used to set the camera exposure. As the camera iris is adjusted, elements of the image will change color based on the luminance or brightness values.
- Peaking Filter
- The peaking filter removes all the colors from the display and a black-and-white image remains. The internal processor will display red color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED-colored edges, indicating that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED-colored edges.
- Special Features
-
- Picture-in-picture
- Image flip
- False color level indication
- Peaking filter focus assist
- Zebra filters
- Screen markers
- HDMI CSC auto
- HDMI ratio auto
- Pre-set gamma points
- Self-sensing function
- Re-clocked/re-shaped function
- Other Features
-
- Multiple inputs including HDMI, 3G-SDI, component, and composite
- Three color tally (Red, Yellow, Green)
- 1/4" mounting on four sides plus VESA mount
- Lightweight design
- Audio level display from HDMI or SDI inputs
- On-screen framing marks
- 4-pin XLR for ENG power supplies
UPC: 801813189438 In the Box Marshall Electronics 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount Base Plate for Quick Change Battery System Power Adapter Limited 1-Year Warranty (Extends to 2-Year with Registration) User Manual PDF 495.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

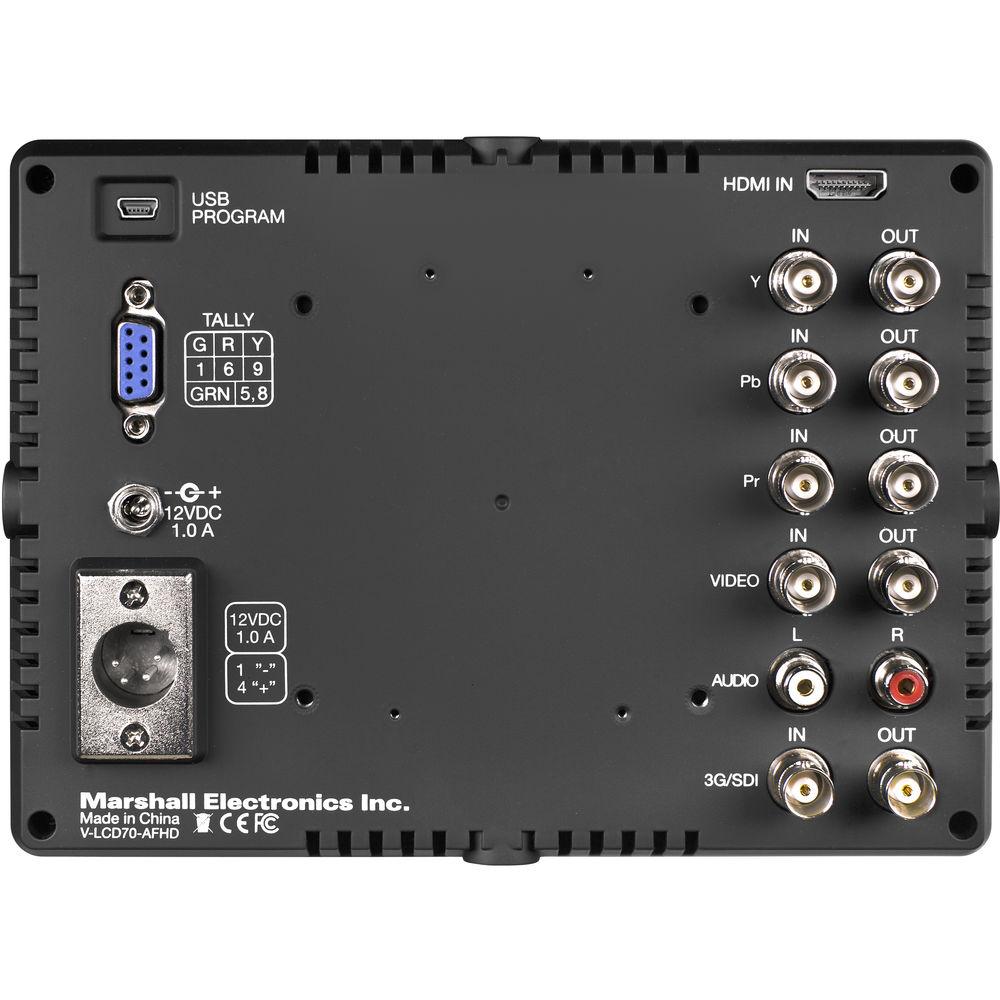

Technical parametersMarshall Electronics VLCD70AFHD-SL Specs | | | Number of Panels | 1 | | Panel Size | 7" (17.8 cm) diagonal | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Active Area | 6 x 3.5" (153.6 x 90 mm) | | Brightness | 500 cd/m2 | | Contrast Ratio | 700:1 | | Color Gamut | YUV, RGB | | Viewing Angle (CR≥10) | 170° x 170° | | Backlight Type | LED | | Frame Rates | 1080p/1080i/720p/625i/525i | | Color Temperature | D65, D55, and D93 | | | | Video Input Connectors | CVBS
YPbPr
SD-SDI
HD-SDI
3G-SDI
HDMI | | Video Output Connectors | CVBS
YpbPr
SD-SDI
HD-SDI
3G-SDI
Input status display | | Audio Outputs | Embedded audio SDI
3.5 mm headphones
Input status display
Audio bars
Channels | | Control Input | Tally / GPI
Controls on the front panel
User-defined function buttons | | | | Voltage | 12 VDC | | Consumption | 20 W | | Power Switch | Yes | | Connector | 5.5 mm XLR connector | | | | Certification and Compliance | FCC-Class A, CE, RoHS | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Mounting | 1/4"-20 bracket | | Dimensions | 7.5 x 5.6 x 1.3" (19 x 14.2 x 3.3 cm) | | Weight | Main Body: 16 oz (454 g) |
