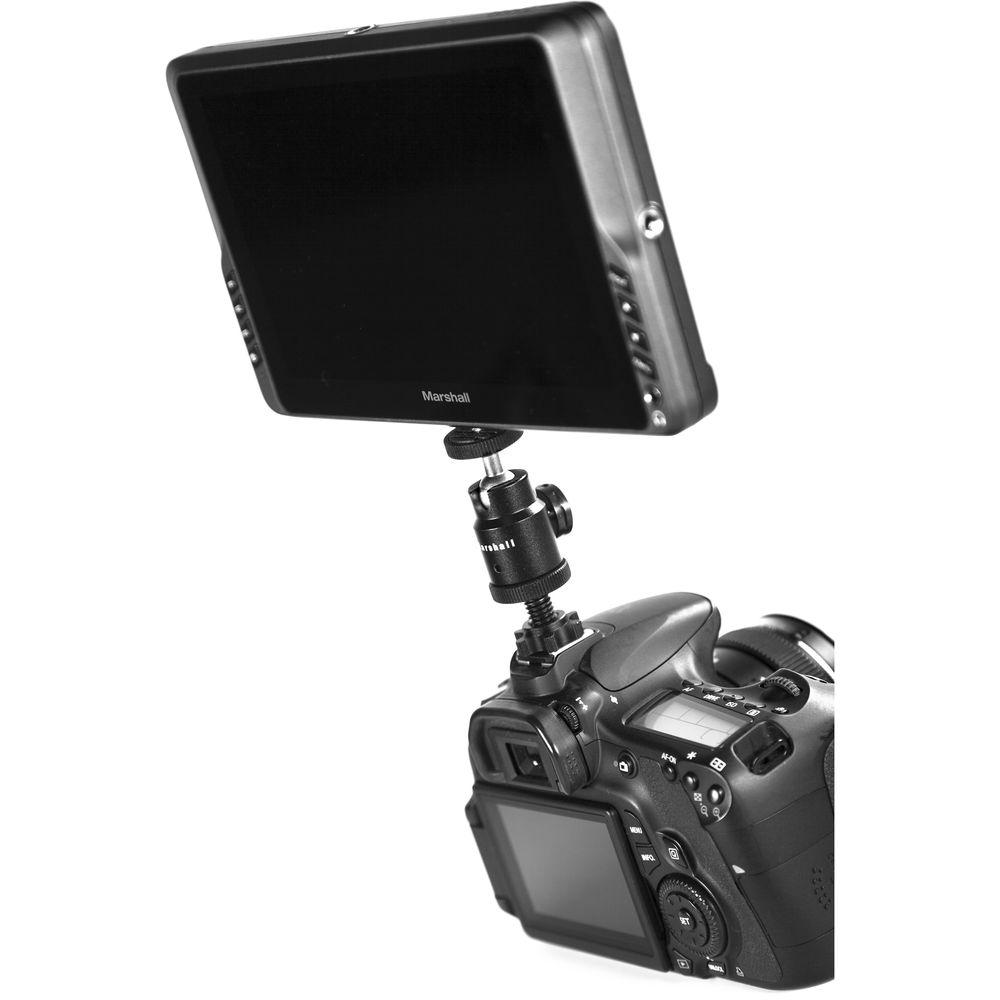

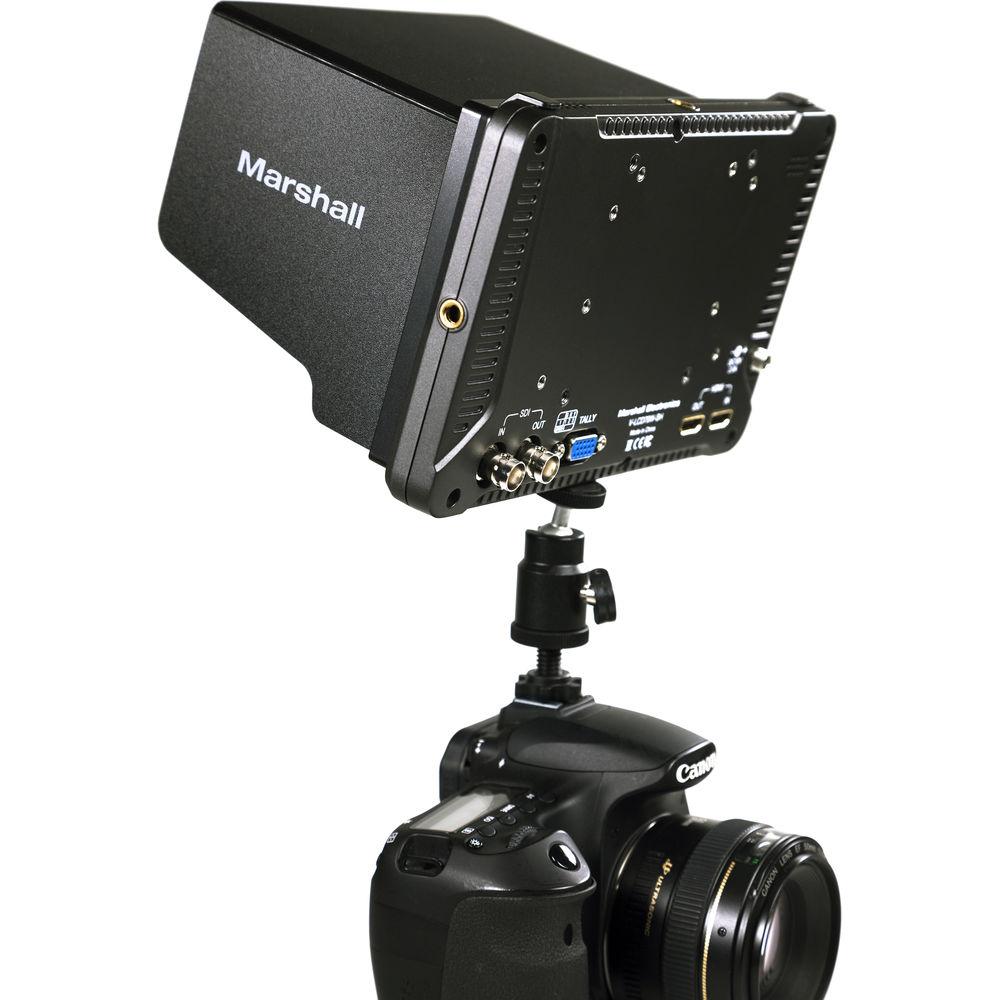

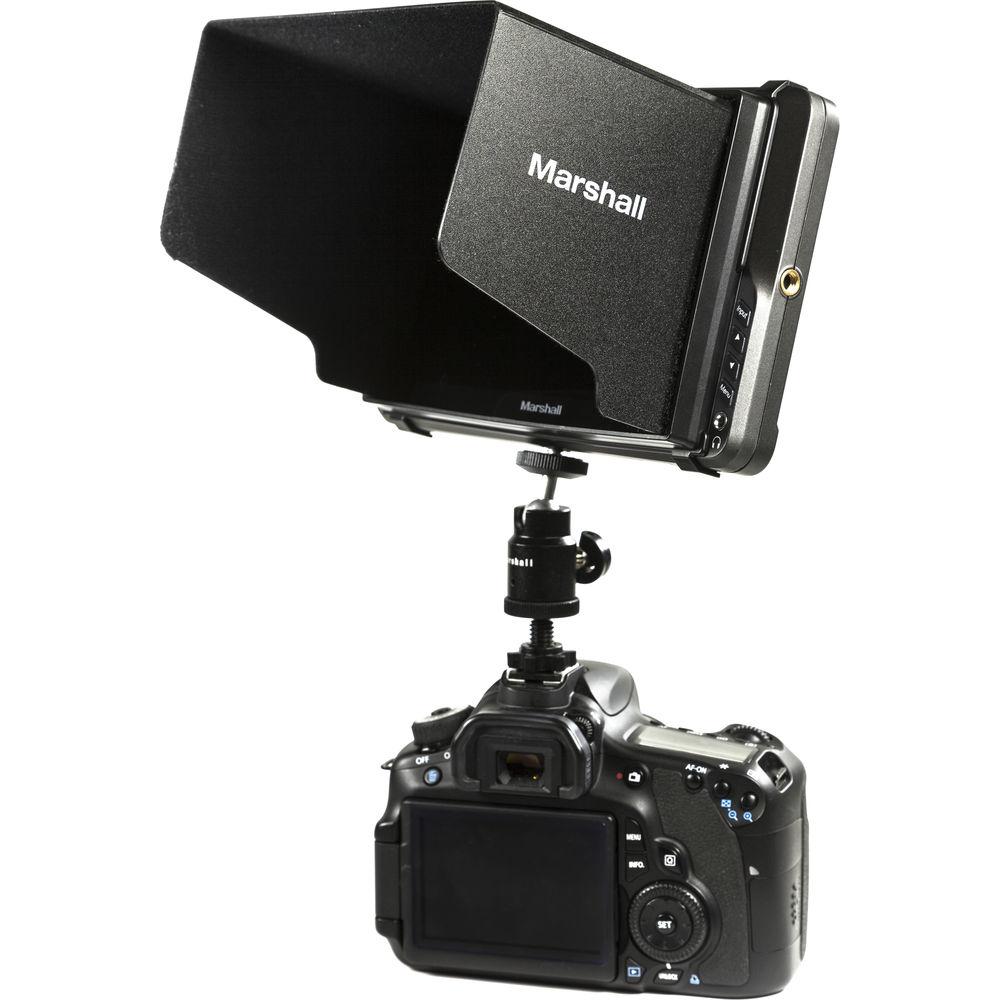

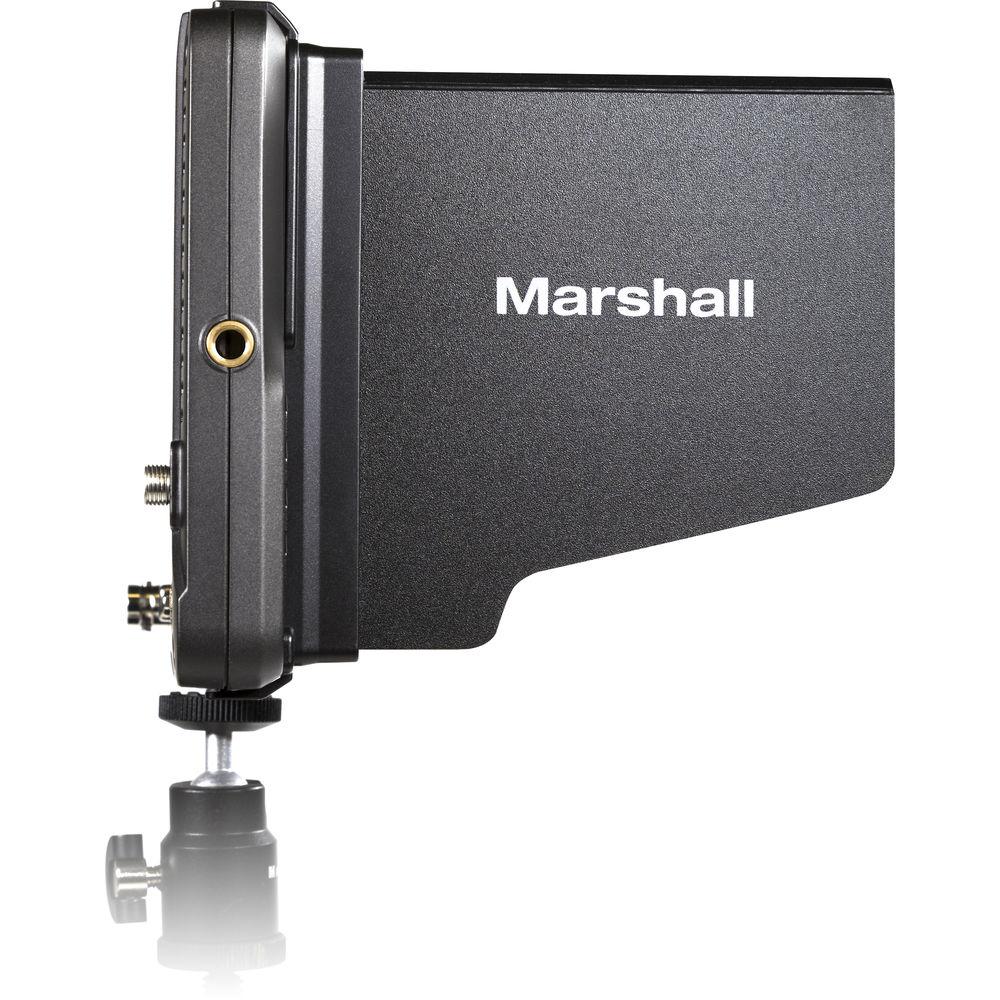

Product description The 7" 1920 x 1200 Camera-Top Monitor with Sony Battery Mount from Marshall Electronics features a 450 cd/m2 brightness output, 1000:1 contrast ratio, and a full HD+ (1920 x 1200) resolution. Weighing 1.2 lb, it is optimized for DSLR or video camera tops. It supports conversion between HDMI and SDI inputs. This monitor also features onscreen waveform, image flip, false color, and audio metering. - False Color Filter
- The false color filter is used to set the camera exposure. As the camera iris is adjusted, elements of the image will change color based on the luminance or brightness values.
- Peaking Filter
- The peaking filter removes all the colors from the display and a black-and-white image remains. The internal processor will display red color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED-colored edges, indicating that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED-colored edges.
- Other Features
-
- Image flip
- False color
- Peaking filter
- Pixel-to-pixel
- HDMI 1.4 (with loop out or conversion to SDI)
- 3G-SDI (HD-SDI, SDI) with loop out or conversion to SDI
- Input status display
- Controls on the front panel
- Three user-defined function buttons

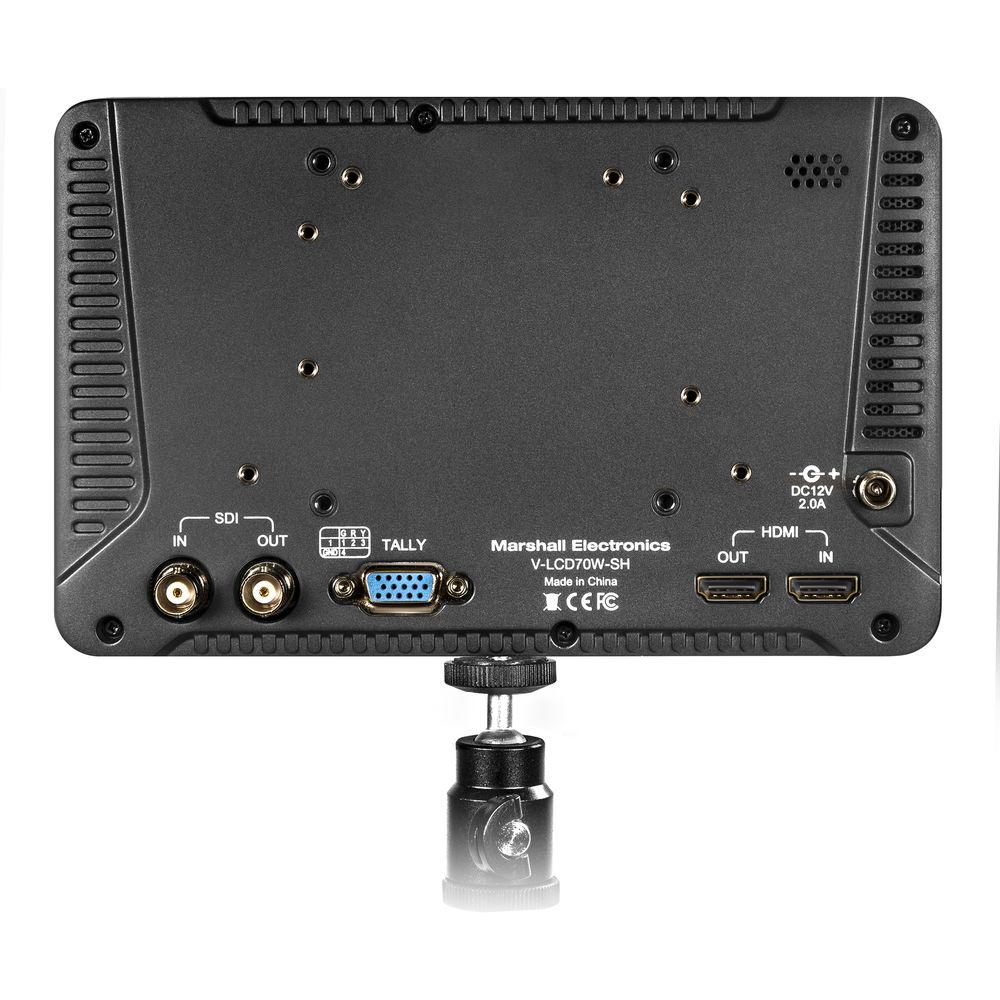

- SDI and HDMI inputs with loop out
- Built-in two color (Red/Green) tally light

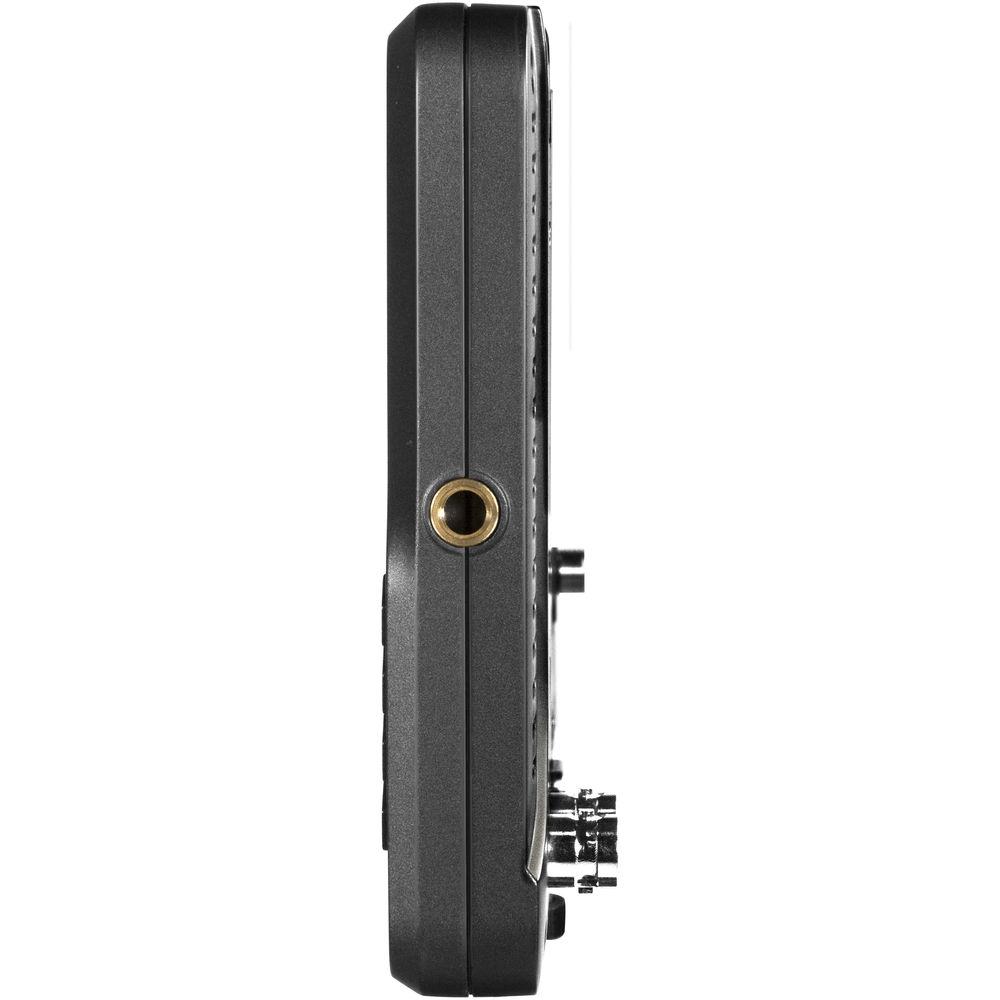

- 1/4" threaded mounts on four sides plus VESA mount

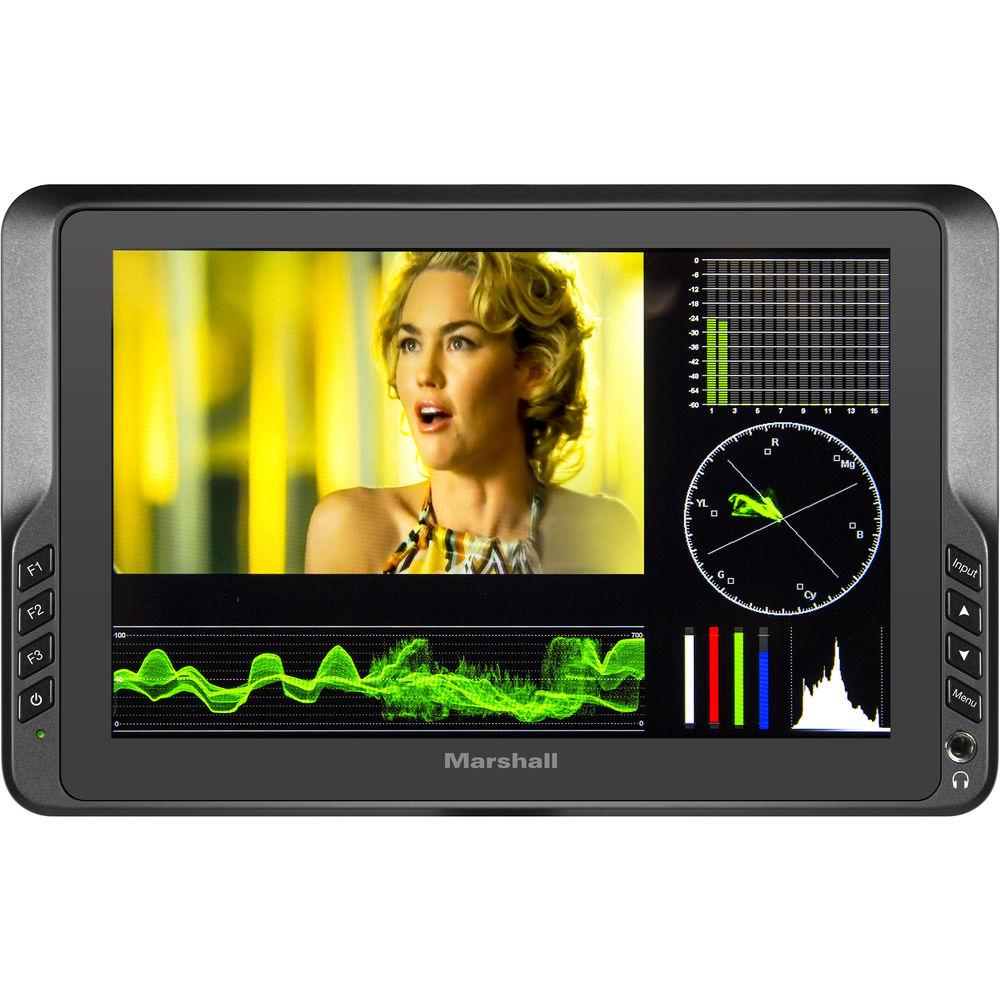

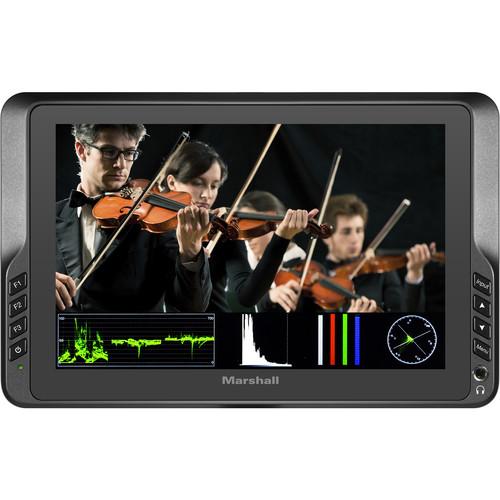

- Onscreen waveform, color vectors, histogram
- Onscreen audio bar display (16 channels)
- DSLR modes

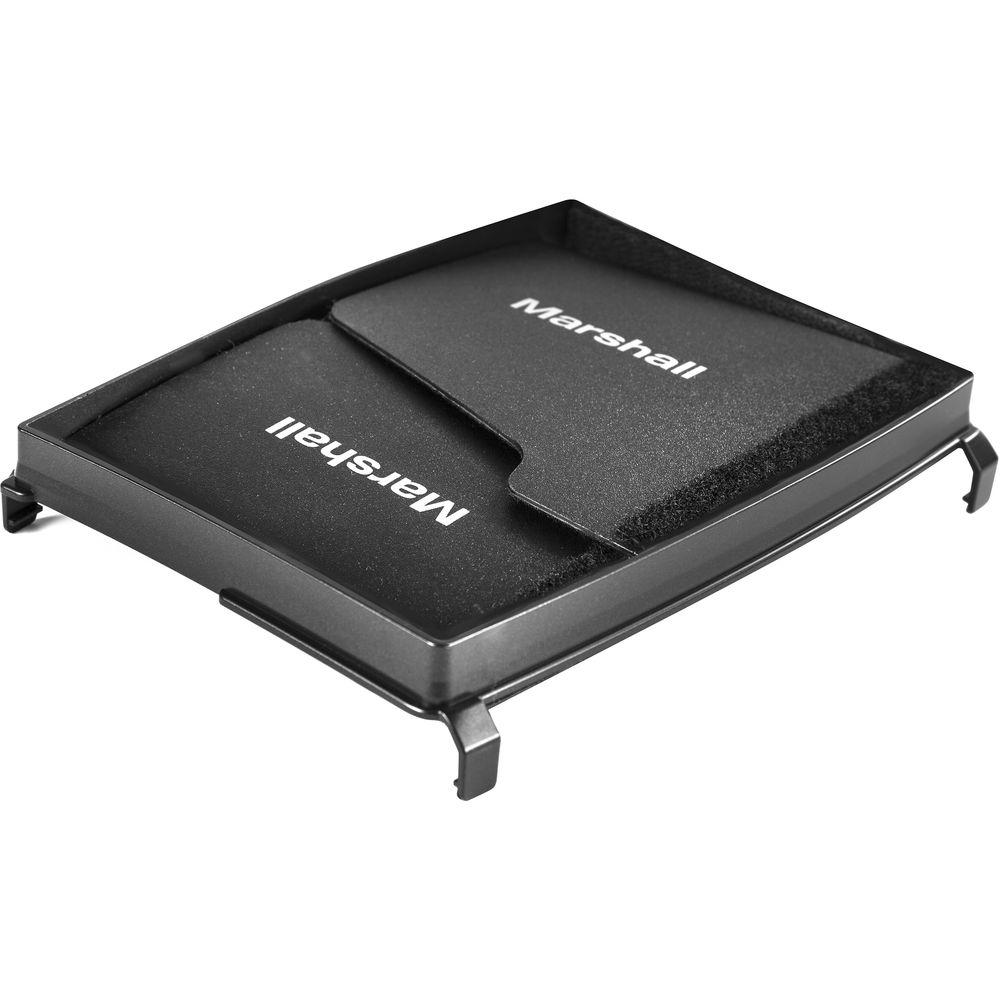

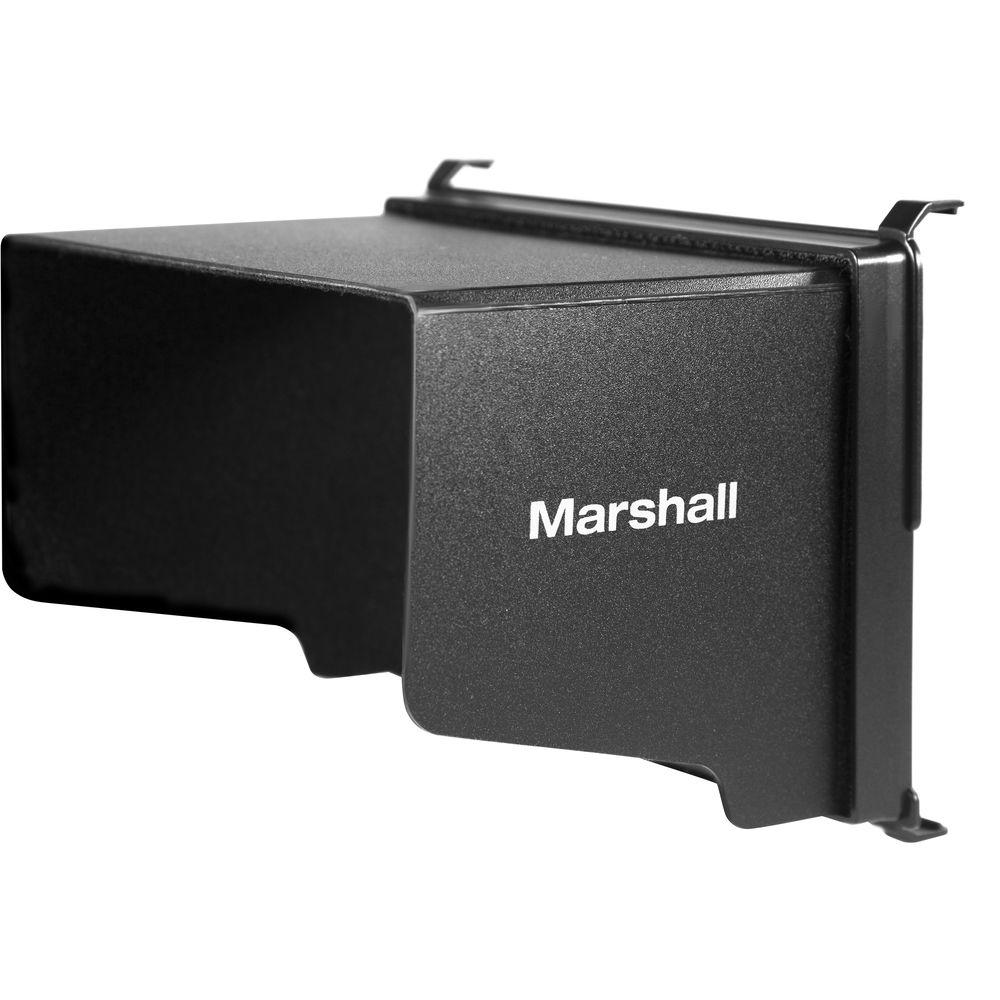

UPC: 801813189421 In the Box Marshall Electronics 7" 1920 x 1200 Camera-Top Monitor with Sony Battery Mount Sunhood Power Adapter Limited 1-Year Warranty (Extends to 2-Year with Registration) User Manual PDF 3.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 7" 1920 x 1200 Camera-Top Monitor with Sony Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD70W-SH-SL Specs | | | Number of Panels | 1 | | Panel Size | 7" (17.8 cm) diagonal | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Active Area | 3.7 x 6" (94.5 x 151.2 mm) | | Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Color Gamut | YUV, RGB | | Viewing Angle (CR≥10) | 170° x 170° | | Backlight Type | LED (adjustable) | | Color Temperature | 5500K, 6500K, 7500K, 9300K, User | | | | Input Formats | 3G-HD-SDI Input:
525i: 59.94, 60
625i: 50
720p: 25, 29.97, 30, 50, 59.94, 60
1080p: 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1080i: 50, 59.94, 60
3G - Level A:
1080p: 60, 59.94, 50
HDMI Input:
480p: 59.94, 576p: 50
720p: 25, 29.97, 30, 50, 59.94, 60
1080p: 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1080p: 50, 59.94, 60
1080i: 50, 59.94, 60
HDMI / SDI Conversions:
480i: 59.94, 576i: 50
720p: 25, 29.97, 30, 50, 59.94, 60
1080p: 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1080p: 50, 59.94, 60
1080i: 50, 59.94, 60 | | | | Voltage | 12 VDC | | Consumption | 1.1 A, 13 W maximum | | Power Switch | Yes | | Connector | Coaxial, center positive with locking ring | | | | Certification and Compliance | FCC, CE | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Mounting | 1/4"-20 mounting screw hole | | Dimensions | 4.9 x 7.7 x 1.1" (12.4 x 19.6 x 2.8 cm) | | Weight | Main Body (Without Batteries): 1.2 lb (0.54 kg) |
