User Manual for Marshall Electronics 7" LCD On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics 7" LCD On-Camera Monitor
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
 |
User manual for the Marshall Electronics 7" LCD On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics 7" LCD On-Camera Monitor (PV - Panasonic) delivers high-quality images at a resolution up to 800 x 480 pixels, and features a luminance of 800cd/m² and a contrast ratio of 800:1 to produce sharper images by displaying the finer elements of a picture.
Equipped with pixel-to-pixel mode, the Field / Camera-Top LCD Monitor displays images in their native resolution by avoiding the internal scaling function. With aspect ratio settings, you can precisely monitor different aspect ratios in 16:9, and 4:3 modes.
With RGB bias and gain function, the LCD monitor allows for fine-tuning of color balance levels and facilitates color matching with other types of monitors. False color filter helps set the camera exposure, and peaking filter assists the user in focusing and obtaining the sharpest picture. Other features of the 7" Field / Camera-Top LCD Monitor include adjustable backlight and markers, manual gamma adjustment, image flip, and RGB check field / field detect. The unit has rugged metal front panel and 4 user-configurable buttons that provide fast access to various settings and functions.

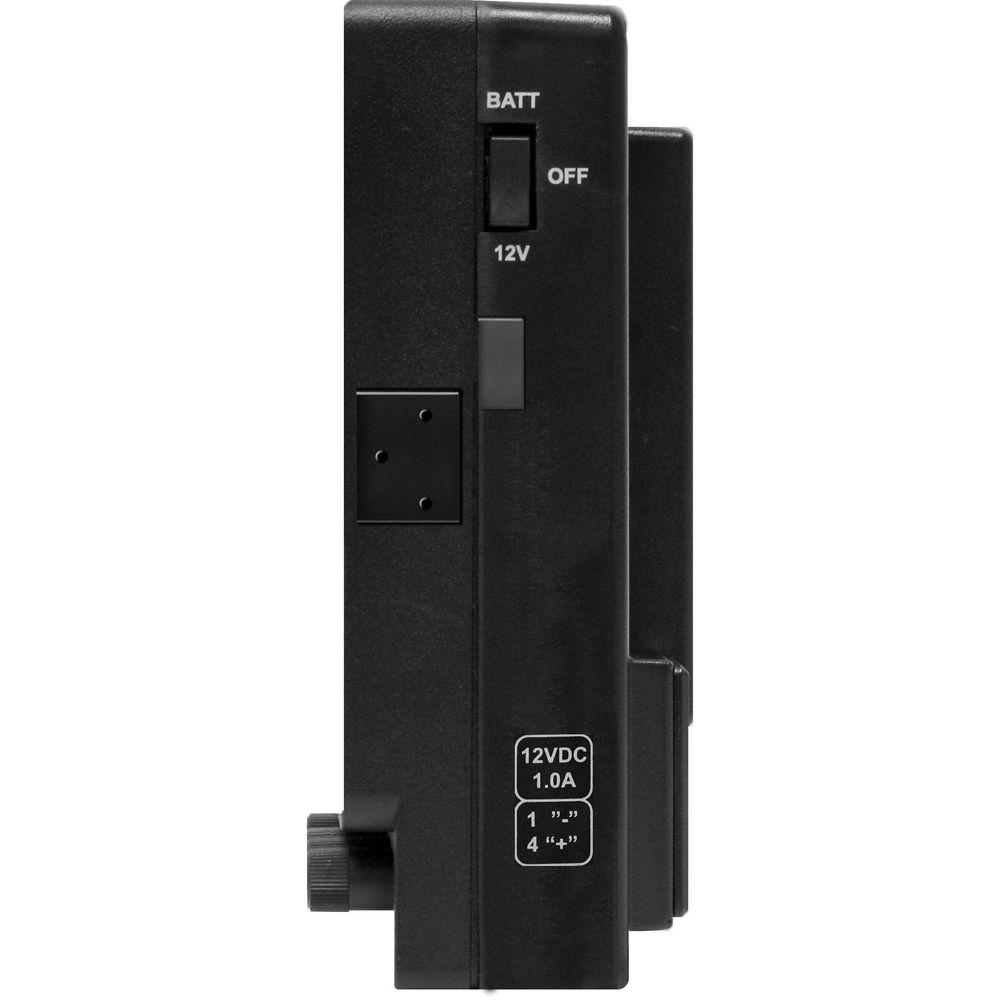

An optical grade polycarbonate screen protection ensures that the LCD has a scratch-proof screen. The display unit includes a user-replaceable battery adaptor - PV (Panasonic), 1/4"-20 mounting on all sides, 4-pin XLR power jack, and a robust power switch. - Delivers high-quality images at a resolution up to 800 x 480 pixels
- Pixel-to-pixel mode displays images in their native resolution by avoiding the internal scaling function
- Aspect ratio settings can precisely monitor different aspect ratios in 15:9, 16:9, and 4:3 modes
- RGB gain and bias control - balance the amount of RGB levels
- False color filter - helps set the camera exposure
- Peaking filter - assists the user to adjust the focus for obtaining the sharpest picture
- Adjustable backlight and markers
- Image flip - vertical image flip allows for flexibility in mounting the monitor in many positions
- RGB check field / field detect
- 4 user-configurable buttons - provides fast access to various settings and functions
- Made of optical grade polycarbonate scratch-proof protective screen
- Includes a user-replaceable battery adaptor - PV (Panasonic)
- Features 1/4"-20 mounting on all sides, 4-pin XLR power jack, and a robust power switch

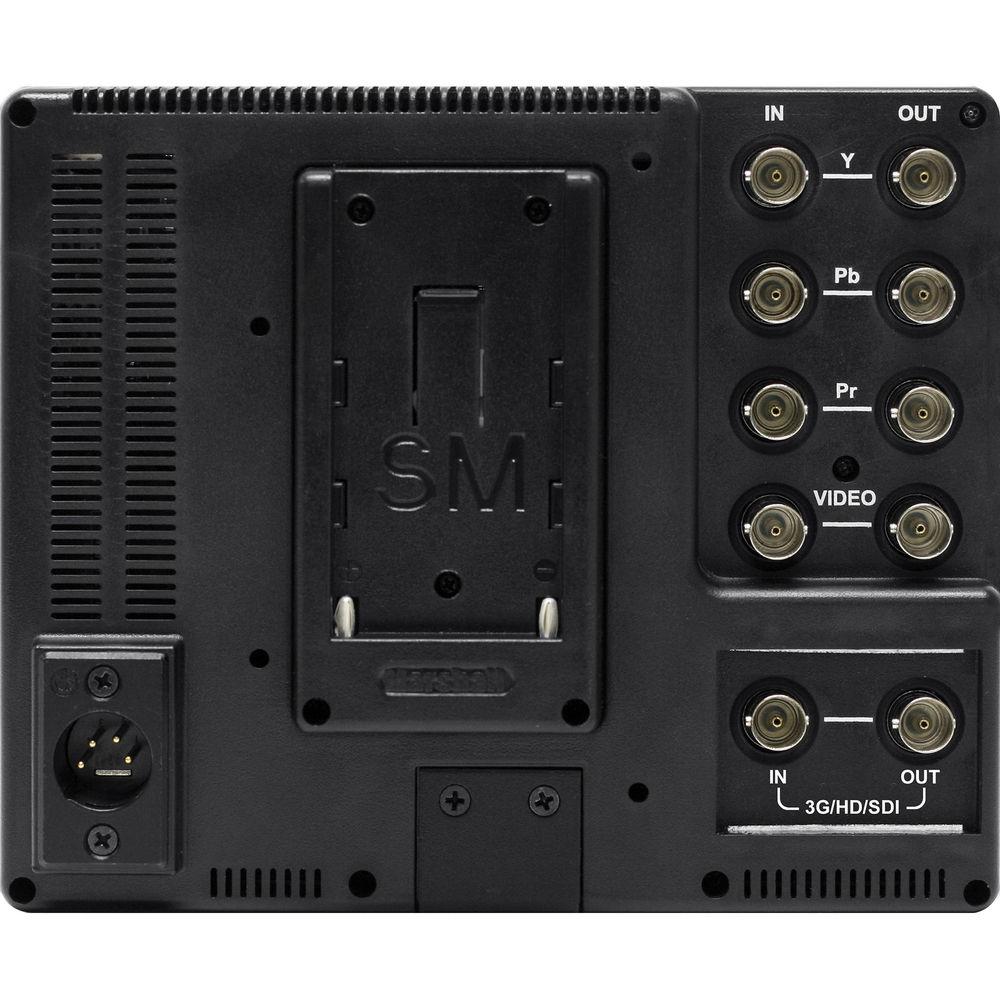

UPC: 801813151626 In the Box Marshall Electronics 7" LCD On-Camera Monitor (PV - Panasonic) V-PS12-5V-XLR Power Supply cqsqvuwxxtyaceaxad PV (Panasonic) Battery Adaptor Operating Instructions Limited 1-Year Warranty (Monitor Warranty Extendable to 2 Years with Product Registration) User Manual PDF 292.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics 7" LCD On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD70XHB-3GSDI-PV Specs | Screen Size | 7" Diagonal (152.4 x 91.44 mm) | | Resolution | 800 x 480 | | Pixel Pitch | 0.1905 mm (H/V) | | Brightness | 800cd/m² | | Contrast Ratio | 800:1 | | Inputs | Composite x 1, Component x 1, 3G-SDI x 1 | | Outputs | Composite x 1, Component x 1, 3G-SDI x 1 | | Power Consumption | 1A (Max) @ 12VDC (12W Max) | | Battery Adaptor | PV (Panasonic) | | Dimensions (WxHxD) | 7.03 x 5.67 x 2.17" (178.5 x 144.01 x 55.11 mm) | | Weight (Approx.) | 1.9 lb (0.86 kg) | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 13.6 x 7.6 x 6.3" |
