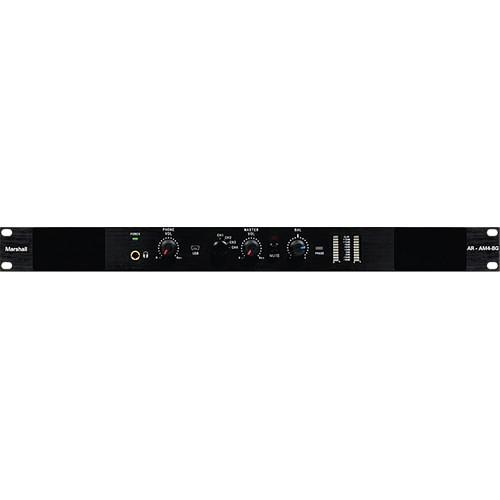

User Manual for Marshall Electronics AR-AM4-BG 4-Channel Analog Audio Monitor with Peak Meters Click to enlarge the picture
Contents of the user manual for the Marshall Electronics AR-AM4-BG 4-Channel Analog Audio
- Product category: Rack Mount Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Rack Mount Monitors
|
User manual for the Marshall Electronics AR-AM4-BG 4-Channel Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall AR-AM4-BG is a 4-channel audio monitor with front-panel peak meters housed in a rackmount with a footprint of just 1RU. The unit comes equipped with 4 XLR stereo inputs and 1 output. The DSP controlled equalizer combined with a sophisticated limiting compressor produces crystal clear sound, making it ideal for virtually any speaker system. Whether it's in a studio or high-end editing workstation, the AR-AM4-BG is a great addition to any professional video setup. - High Quality Audio Monitors
- The AR-AM series is the newest addition to Marshall's existing line of Audio Monitors. This new series establishes a benchmark for high-quality, low cost, rack-mount, near-field audio monitoring. They feature high fidelity speakers and DSP audio processing, with a variety of configurations. These new analog audio racks are ideal for TV facilities, studios, post production, VTR bays, mobile production vehicles, satellite links, and wherever audio monitoring is required.
- Equipped with high fidelity miniature speakers and bi-color phase indicator.
- Volume and balance controls.
- A front panel USB port allows digital speaker delay control.
- High quality DSP processing.
- Rear panel RS-485 for external control.
- Four analog stereo-balanced XLR inputs.
- One passive stereo-balanced XLR output.
- Dual tri-color bar graph peak meters.
- Headphones automatically mute internal speakers.
- CE approved and RoHS compliant.
UPC: 801813133622 In the Box Marshall Electronics AR-AM4-BG 4-Channel Analog Audio Monitor with Peak Meters Power Supply with 4-Pin XLR Connector AC Power Cable Limited 1-Year Warranty User Manual PDF 203.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics AR-AM4-BG 4-Channel Analog Audio Monitor with Peak Meters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics AM-AM4-BG Specs | Speaker Output | 5W | | Inputs/Outputs | Analog Stereo: XLR, Balanced (x4 Inputs, x1 Output) | | Power Requirements | 100-240VAC
29VDC | | Power Consumption | 40W | | Dimensions (WxHxD) | 18.9 x 1.8 x 6" (48 x 4.6 x 15.2cm) | | Weight | 4.6 lbs (2.1kg) | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 20.8 x 11.9 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
