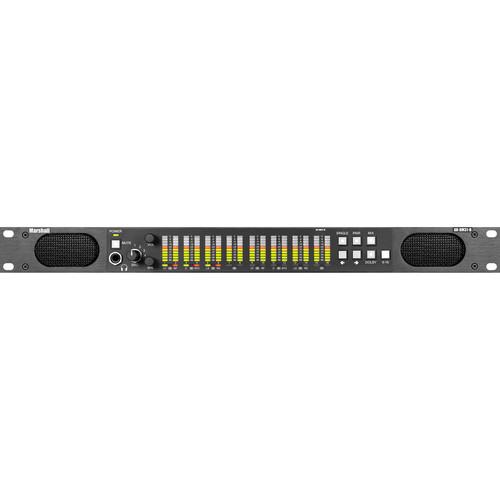

User Manual for Marshall Electronics AR-DM31-B 16-Channel Digital Audio Monitor with Tri-Color LED Bar Graphs Click to enlarge the picture
Contents of the user manual for the Marshall Electronics AR-DM31-B 16-Channel Digital Audio
- Product category: Rack Mount Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Rack Mount Monitors
 |
User manual for the Marshall Electronics AR-DM31-B 16-Channel Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The 1 RU AR-DM31-B 16-Channel Digital Audio Monitor with Tri-Color LED Bar Graphs from Marshall Electronics is a digital audio rackmount monitor which is ideal for use in TV facilities, studios, post production, VTR bays, mobile production vehicles, satellite links, and other settings where multichannel audio monitoring is required. The AR-DM31-B supports 16 audio channels and has four slots for interchangeable input/output modules. This unit provides 100% digital processing, Class-D (digital) amplification, selectable stereo downmix modes, Dolby Digital/Dolby E decoding capability (with optional ARDM-D552 module), a 1/4" headphone jack with level control, and a USB port for on-site firmware upgrades.
The AR-DM31-B provides 10-segment tri-color bar graphs, while supporting VU and peak metering. Channel, Group, Mix, Dolby, Balance selection, and saved configurations are easily accessed via the system's large navigation buttons. For audio playback, the AR-DM31-B provides internal speakers.
The Digital Audio Monitor is equipped with features to help broadcasters comply with CALM and EBU loudness regulations. The monitor provides timely visual and audio alerts, e-mail notifications, and complete logging of non-compliant signals.
Marshall Electronics 16-Channel Digital Audio Monitors are equipped with features to help broadcasters comply with CALM and EBU loudness regulations. The monitors provide timely visual & audio alerts, email notifications, and complete logging of non-compliant signals. - 16 Tri-Color VU/PPM 10-Segment LED Bar Graphs
- User-configurable with a variety of modules
- Class-D audio amplification
- Dolby Digital/Dolby E decoding (with optional ARDM-D552 module)
- Selectable stereo downmix modes
- USB 2.0 port enables on-site firmware upgrades
- Ethernet port allows remote alarm monitoring
- Balance and volume control
UPC: 382384173069 In the Box Marshall Electronics AR-DM31-B 16-Channel Digital Audio Monitor with Tri-Color LED Bar Graphs (1 RU) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics AR-DM31-B 16-Channel Digital Audio Monitor with Tri-Color LED Bar Graphs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics AR-DM-31B Specs | Controls | Volume
Balance
Mute
SRC Switch Selector | | Connectors | 1 x 4-Pin XLR, power input
1 x USB 2.0 port, female
1 x 1/4" phone jack, female
1 x RJ45 port, female | | Power Consumption | < 45 W | | Voltage | 24 VDC | | Dimensions | 18.94 x 1.75 x 12.83" (48.11 x 4.45 x 32.59 cm) | | Weight | 3.7 lb (1.7 kg) | | | | Package Weight | 11.85 lb | | Box Dimensions (LxWxH) | 25.75 x 17.2 x 7.5" |
