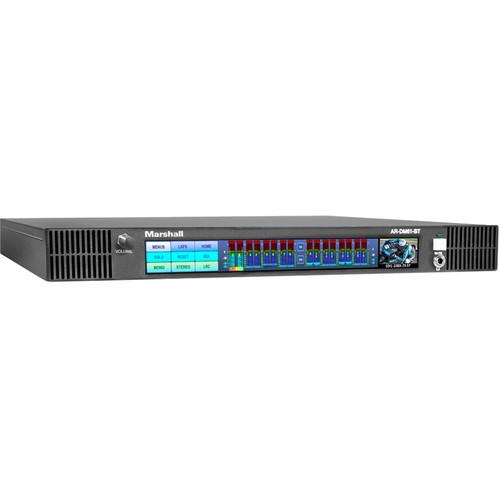

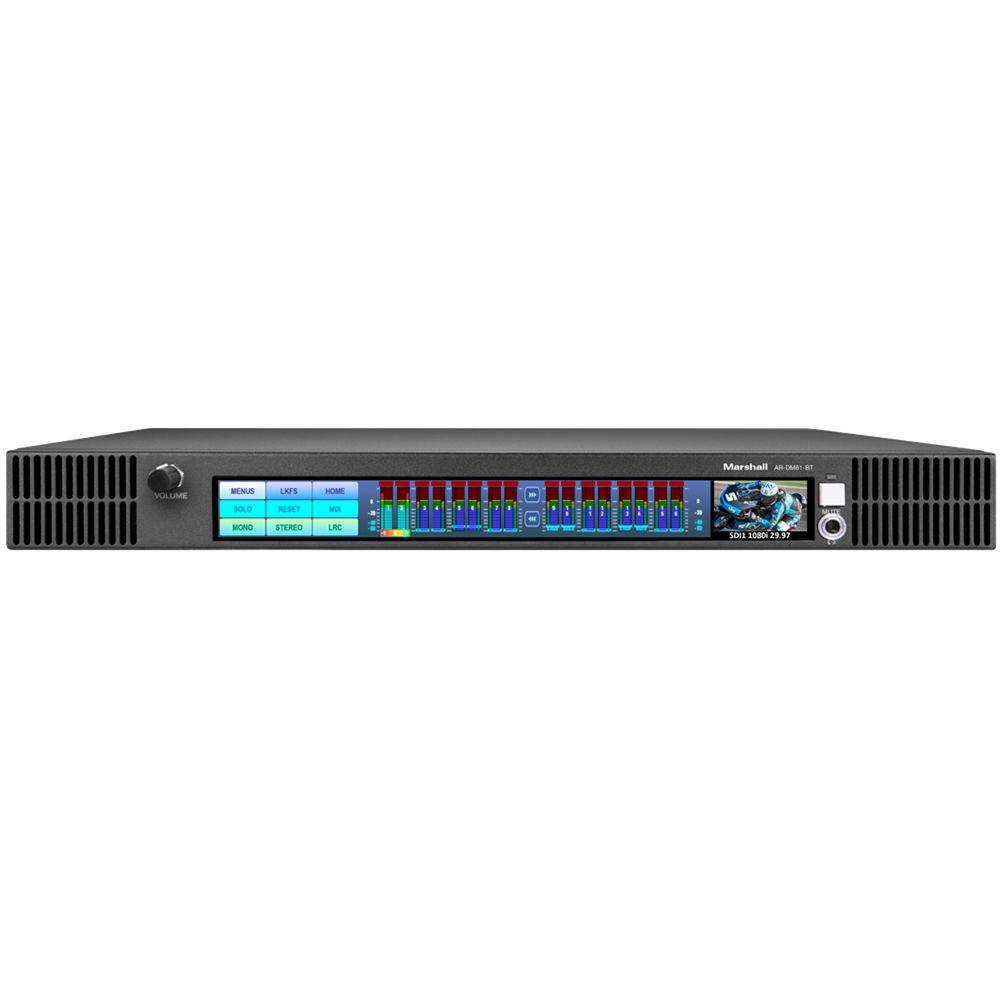

Product description The AR-DM61-BT Multi-Channel Digital Audio Monitor from Marshall is offered as a powerful audio/video quality-control solution and can be used for TV stations, broadcast trucks, transfer stations, and house of worship facilities.It features flexible matrix routing, format conversion tools, and a pair of speakers packed into a single rack unit (1 RU). Built with a 10" wide LCD touchscreen, the AR-DM61-BT can display up to sixty-four audio channels from multiple signal types and includes a built-in live video preview confidence monitor.Furthermore, the AR-DM61-BT supports two dedicated 3G-SDI inputs with loop-through (one MADI compatible), one HDMI input, four stereo AES inputs, eight balanced analog audio inputs, and eight balanced analog outputs. The sealed speaker enclosures maximize output in a small form factor for use in noisy control room environments where space is crucial.Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future-proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Finally, additional support is available for the latest Dolby formats, Dante networked audio technology, and a built-in web server for software updates, storing, and retrieving presets. - 10" intuitive touchscreen LCD panel displays up to sixty-four channels vertical or two detailed channels horizontal with LKFS bars and peak indicators
- Built-in live video preview monitor
- Accepts inputs from multiple signal types with format conversion and matrix routing
- High-powered stereo speakers (up to 100 dB output)
- Push-to-mute functionality
- Support for all current Dolby formats including 7.1 surround sound
- Optional Dante networked audio module
- Store and retrieve saved presets via web server
- Software upgradeable "future-proof" platform
UPC: 801813189827 In the Box Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor 24 VDC Power Adapter Removeable Rack Ears Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

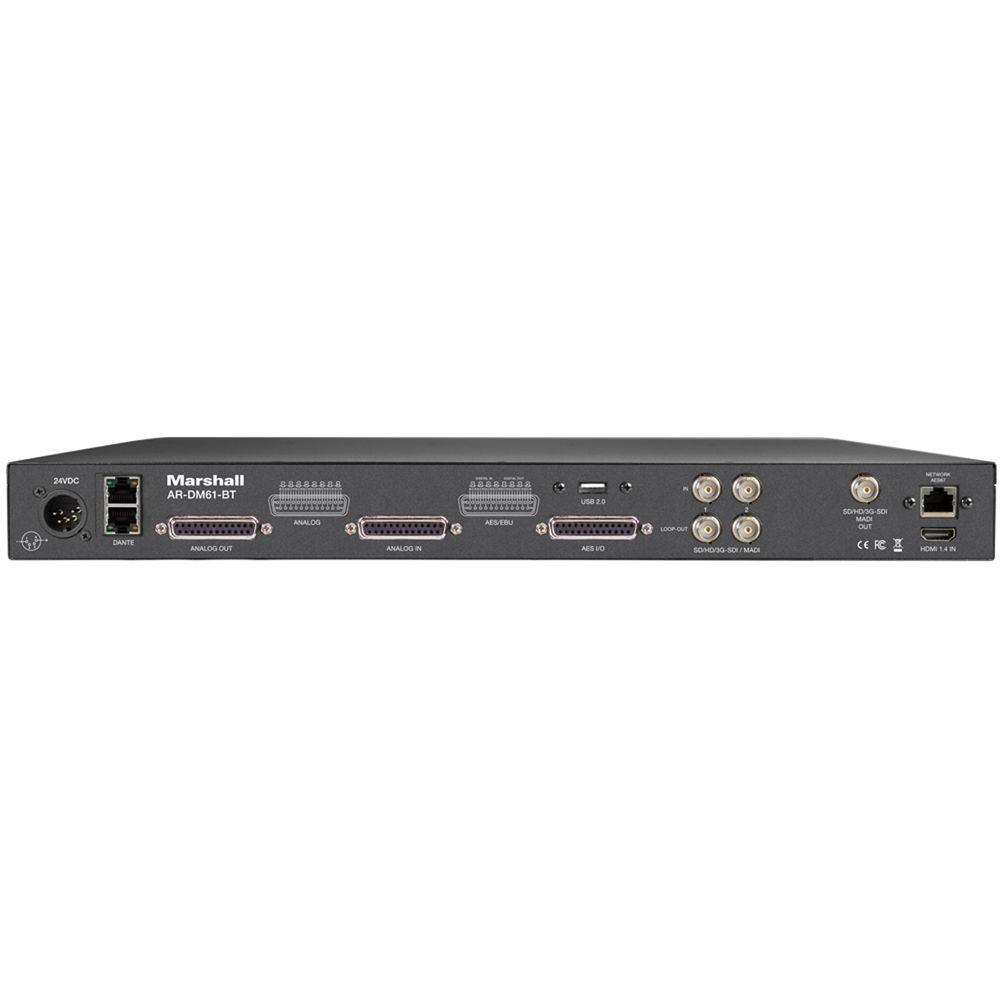

Technical parametersMarshall Electronics AR-DM61-BT Specs | Inputs and Outputs | 2 x 3G-SDI inputs with loop-through (2 or both MADI compatible)
1 x additional HDMI input
1 x 3G-SDI or MADI output | | Analog Inputs | 8 x balanced analog inputs (-20 ~ +60 dBV gain) on "D" connector | | AES Audio | 4 x stereo AES inputs and outputs on one "D" connector | | Analog Output | 8 x balanced analog outputs (-10 dB or +4 dB switchable) on "D" connector | | Module Slot | Dolby or Dante optional modules | | Ethernet | RJ45 with IP addressing | | Headphone | 1/4" / 6.3 mm front-facing headphone jack | | Power Supply | 24 VDC power adapter (120/240 VAC, 50/60 Hz) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
