User Manual for Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter Click to enlarge the picture
Contents of the user manual for the Marshall Electronics Battery-Powered 3G-SDI to HDMI
- Product category: Signal Converters Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Signal Converters
 |
User manual for the Marshall Electronics Battery-Powered 3G-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

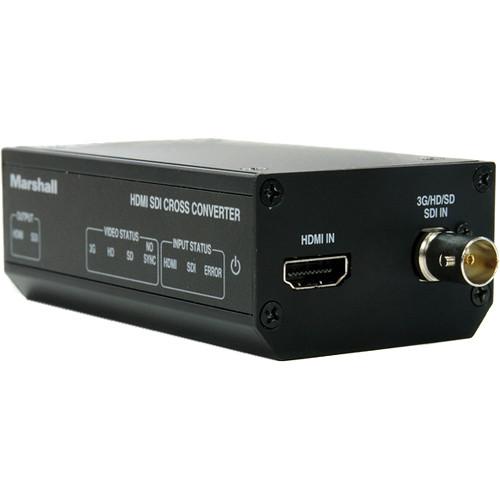

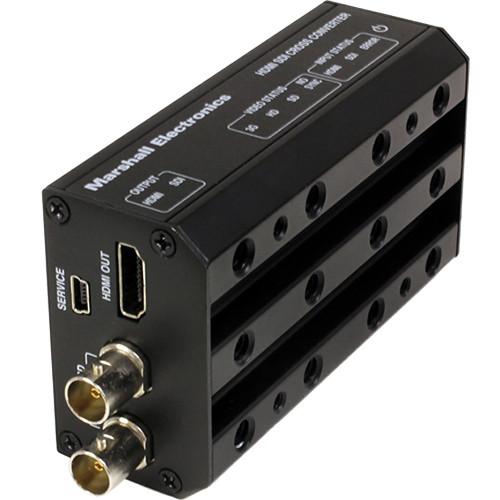

Product description The Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter (Sony L Series) is used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports. Accepting input from a 3G-SDI source, it can be used to provide signals to an HDMI source while simultaneously supplying the same input through the 3G-SDI output port. Featuring automatic input video format detection, the converter allows automatic input port switching of the signal to their respective output ports.
With a built-in SD format interlacer, the Portable Battery-Powered 3G-SDI to HDMI Cross Converter supports 480p to 480i conversion required for DSLR while recording. Including a SL (Sony L series) battery plate, the cross converter can be used with a 7.2V or a 14.4V battery for operation. In addition, it also includes an EIA 12V jack that is used to power the unit via a power adaptor.

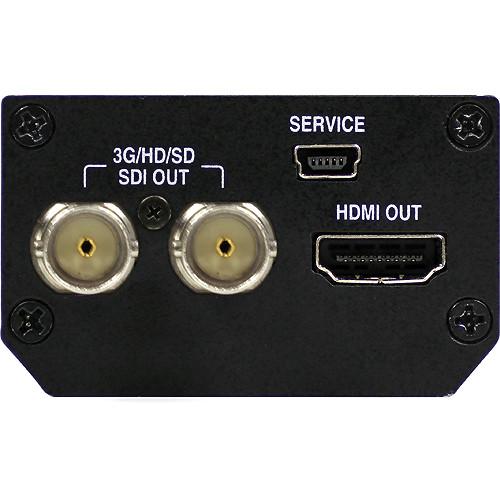

The Portable Battery-Powered 3G-SDI to HDMI Cross Converter comes with an 8-position piano switch for input port selection and power save, and features LED indicators which indicate speed and health of the connection. A USB service port is also included for future upgrade of the converter. The converter is housed in a rugged metal alloy case, and includes 1/4-20 dual size mounting holes. - Used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports
- Accepts input from 3G-SDI / HDMI source
- Simultaneous Output on both output ports
- Automatic input video format detection
- Automatic input port switching
- Built-in SD format interlacer
- Supports 480p to 480i conversion required for DSLR while recording
- Built-in color bar test pattern generator
- Includes a SL battery plate
- Can be used with a 7.2V or a 14.4V battery for operation
- EIA 12V jack - used to power the unit via a power adaptor
- 8-position piano switch - for input port selection and power save
- 4-pin XLR 12VDC Input available as an option
- LED indicators - indicate speed and health of the connection
- USB service port is included for future upgrade for the converter
- Housed in a rugged metal alloy case

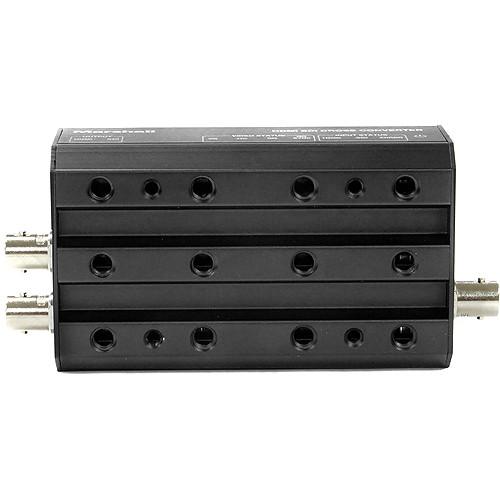

- Includes 1/4-20 dual size mounting holes
- Ideal for any director, camera operator, or production video village
UPC: 801813153019 In the Box Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter (Sony L Series) Sony L Series Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-XDI Specs | Dimensions (WxDxH) | 3.91 x 2.28 x 1.38" (9.93 x 5.79 x 3.5 cm) | | Weight | 0.475 lb (215 g) (without battery) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
