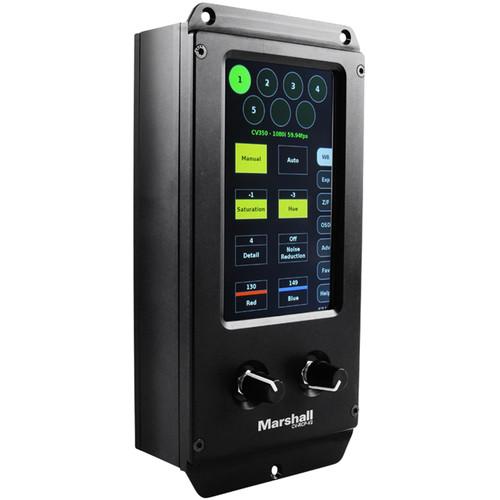

User Manual for Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller
- Product category: RCPs & MCPs Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics RCPs & MCPs
|
User manual for the Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall CV-RCP-V2 Touchscreen Multi-Camera Controller provides control of up to seven cameras via a 5" touchscreen panel and two fine-tune control dials. The CV-RCP-V2 is pre-programmed with control protocols for all Marshall broadcast cameras plus select popular cameras from other brands. Use this compact unit to conveniently adjust, paint, and match your cameras from a control room or broadcast truck. The CV-RCP-V2 employs readily available 3-pin XLR cables for distances up to 1000' and can be converted to fiber for extended distances. Cables are not included with the controller and must be sourced separately. Your camera settings can be adjusted individually or applied globally without the OSD menu appearing in your video feed. Choose your settings via the touchscreen panel, then use the two dials for on-the-fly fine-tuning. Controllable parameters include exposure, white balance, gamma, black levels, and more. To speed up your workflow, the CV-RCP-V2's interface offers favorites settings, save features, self-help dialogs, and smart menus/sub-menus. Housed in a sturdy aluminum case, the Marshall CV-RCP-V2 controller runs on either the included AC adapter or on 12 VDC power. Its USB port can be used for saving presets to a memory stick or for firmware updates. - Camera Compatibility
- Comes pre-programmed with control protocols for all Marshall cameras including POV, varifocal models, zoom, and PTZ cameras as well as popular cameras from other brands.
- Camera Paint Functions
- Individually or globally adjust camera settings like white balance, exposure, black levels, gamma, red/blue gain, shutter, frame rate, resolution and more.
- Touchscreen and Dial Controls
- A large 5" touchscreen panel and two fine-tune dials enable you to easily and quickly adjust your settings.
- Remote Control
- Adjust and match up to seven cameras at distances up to 1000' with common 3-pin XLR cables. The controller can be converted for fiber use over extended distances.
UPC: 801813191059 In the Box Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller Universal 12V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV-RCP-V2 Specs | | | Number of Cameras Supported | Maximum: x 7 | | Touchscreen | 5" / 127 mm | | Maximum Cable Distance | 1000' / 305 m | | Camera Connector | 3-Pin XLR: x 1 (female) | | DC Input | Barrel: x 1 | | Firmware Updates | USB: x 1 | | | | Housing Material | Aluminum | | Dimensions (HxWxD) | 8.4 x 4 x 2.5" / 213.4 x 101.6 x 63.5 mm
(including knobs) | | Weight | Not specified by manufacturer | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.1 x 10.3 x 4.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Marshall Electronics CV-RCP-V2 Touchscreen Multi-Camera Controller
| Subject: Marshall cv-rcp-v2 | | Date: 08.11.2022 15:17:45 | Name: Kabir Busnov | | Is there any option for reseting this device? | | Post reply |
| Subject: My device is stuck on raspberry pi screen. | | Date: 04.04.2022 20:01:22 | Name: Dan | | Yeah, It drops to the standard linux / raspberry pi command line. It's like it's not booting into the script. I have also tried to update it by putting the newest update on a flash drive, but it doesn't seem to get far enough into the boot to detect the update file. | | Post reply |
| Subject: My device is stuck on raspberry pi screen. | | Date: 01.03.2022 19:19:09 | Name: Dan Johnson | | Could I get a new image to flash my device? It drops to command line when booted. Cv-RCP-v2 | | Post reply |
| Subject: Cv rcp v2 | | Date: 31.01.2022 17:10:04 | Name: Ron | | When plugged in switches on and no further display or a tion | | Post reply |
