User Manual for Marshall Electronics CV225-MB Pro Series 2.5MP Full HD Weatherproof Lipstick Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV225-MB Pro Series 2.5MP
- Product category: POV Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics POV Cameras
 |
User manual for the Marshall Electronics CV225-MB Pro Series 2.5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

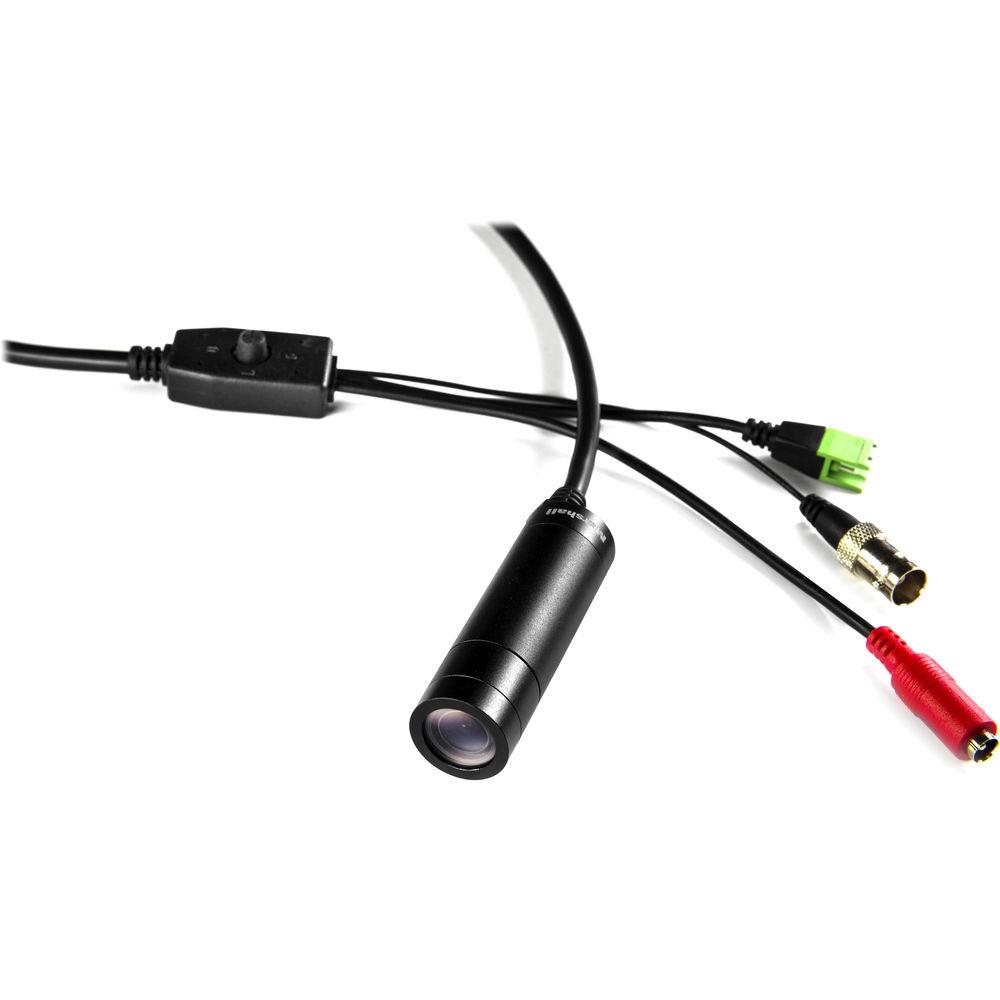

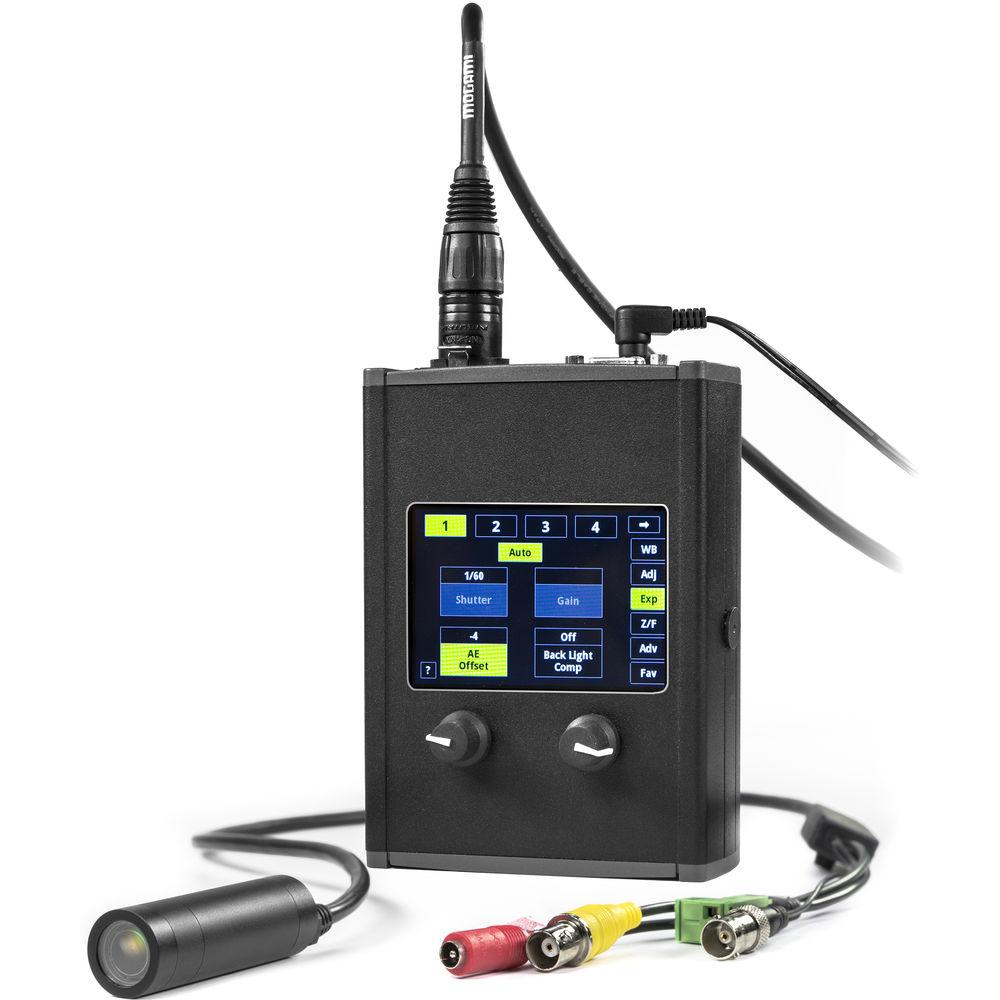

Product description The CV225-MB Pro Series 2.5MP Full HD Weatherproof Lipstick Camera from Marshall Electronics lets you capture clear HD images. It features improved colors, enhanced low-light performance, and clear PID stamped signals. The camera also lets you perform remote adjustments without pulling up OSD menus. The proprietary pixel technology offers low-noise ratio while allowing the camera to capture sharp, vivid color images in low-light conditions, as low as 0.2 lux in color. This Pro-Series POV camera offers field-of-view flexibility with interchangeable lenses and convenience of 3G/HD-SDI outputs, maintaining broadcast standards for POV camera applications. The RS-485 connection offers remote camera control communication via Sony, VISCA, or Pelco protocols, and compatibility with separately available Marshall touchscreen RCP camera control units. - Features
-
- 1/3" 2.5MP CMOS sensor
- 16:9 native aspect ratio
- 3.7mm MP M12 mount lens (interchangeable)
- IP67 weatherproof camera enclosure with 1/4"-20 mounting options on rear panel
- 0.76" cylinder
- 3G/HD-SDI connections via BNC
- Modes: Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedestal)
- Supports Wide Dynamic Range (ACCE), Digital Noise Reduction (DNR), Digital Defog, and HLC
- OSD joystick on cable assembly
- Applications
-
- Broadcast television
- Professional sports
- College sports
- OB vans/trucks
- Concert and studio music video
- Reality TV
- Performing arts
- Culinary shows
- Car TV shows
- Hidden camera shows
- International racing circuits
- Off-road racing
- Horse racing
- House of worship
- POV video shots
UPC: 801813185652 In the Box Marshall Electronics CV225-MB Pro Series 2.5MP Full HD Weatherproof Lipstick Camera (29.97/59.94 fps) 12V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV225-MB Pro Series 2.5MP Full HD Weatherproof Lipstick Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV225-MB Specs | Imaging Sensor | 2.5 MP 1/3" CMOS sensor | | Total Pixels | 1956 x 1266 (2,476,296 total) | | Active Pixels | 1944 x 1092 (2,122,848 total) | | Scanning System | 16:9 progressive scan | | Video Output | 3G/HD-SDI | | Resolution | 1920 x 1080p 29.97/59.94
1920 x 1080i 59.94
1280 x 720p 29.97/59.94 | | Horizontal | More than 1000 TVL | | Lens Mount | 3.6mm f/2.0 M12 mount - interchangeable without cap | | Electric Shutter | Manual (1/30 or 1/25 to 1/30,000 sec) | | Auto White Balance | Auto
Auto exit
Preset
Manual (Red-Gain, Blue-Gain) | | Digital Noise Reduction | Off/Low/Middle/High | | Wide Dynamic Range | Off/Low/Middle/High | | Mirror Image | Mirror, horizontal, or vertical flip | | Focal Length | 3.6mm | | Aperture | f/2.0 | | Storage Temperature | -20 to 70°F / -10 to 50°C | | Operating Humidity | IP67-rated; ability to submerge in water up to 45 minutes at a time | | Power Supply | 12 VDC, 1.0 A | | Power | 12 VDC (7 -15 VDC) | | Consumption | Maximum 6 W | | Dimensions | 0.7 x 0.7 x 2.4" / 1.95 x 1.95 x 6.25 cm | | Weight | Approx. 0.17 lb / 80 g (with cable) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.4 x 5.0 x 2.6" |
