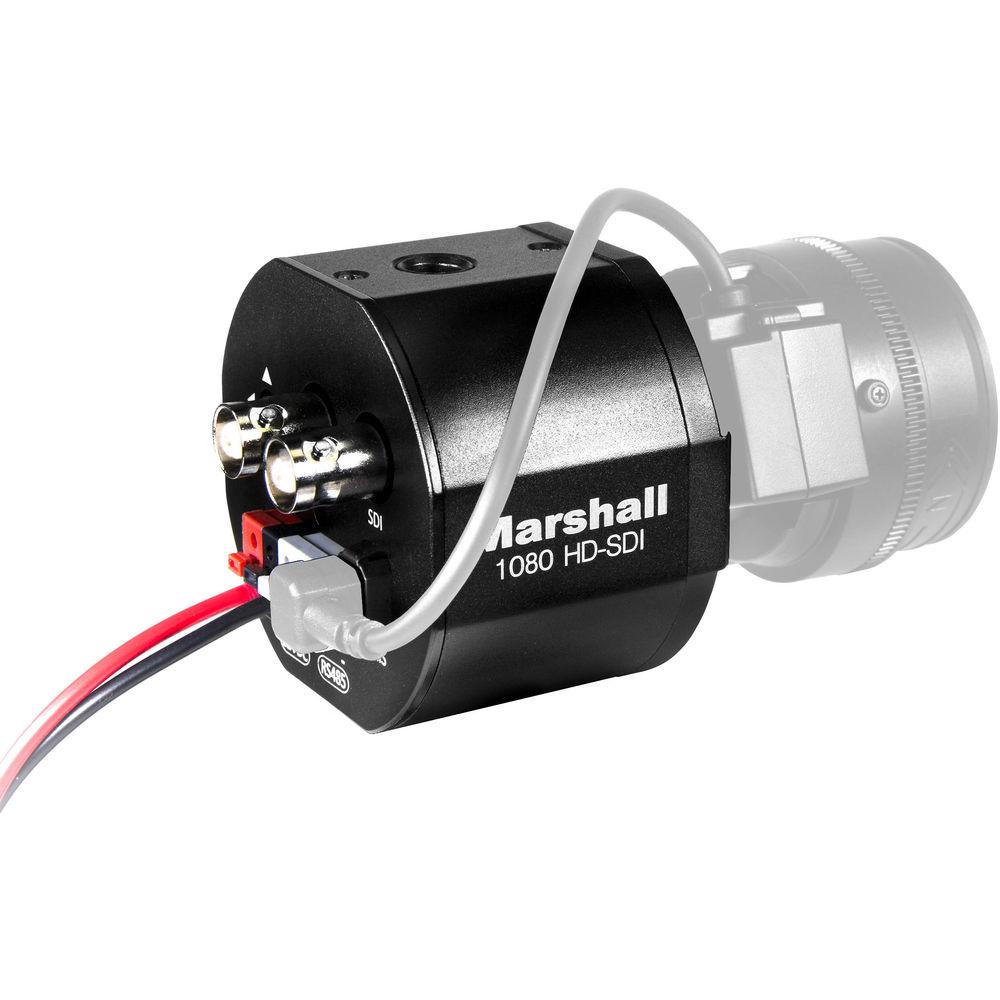

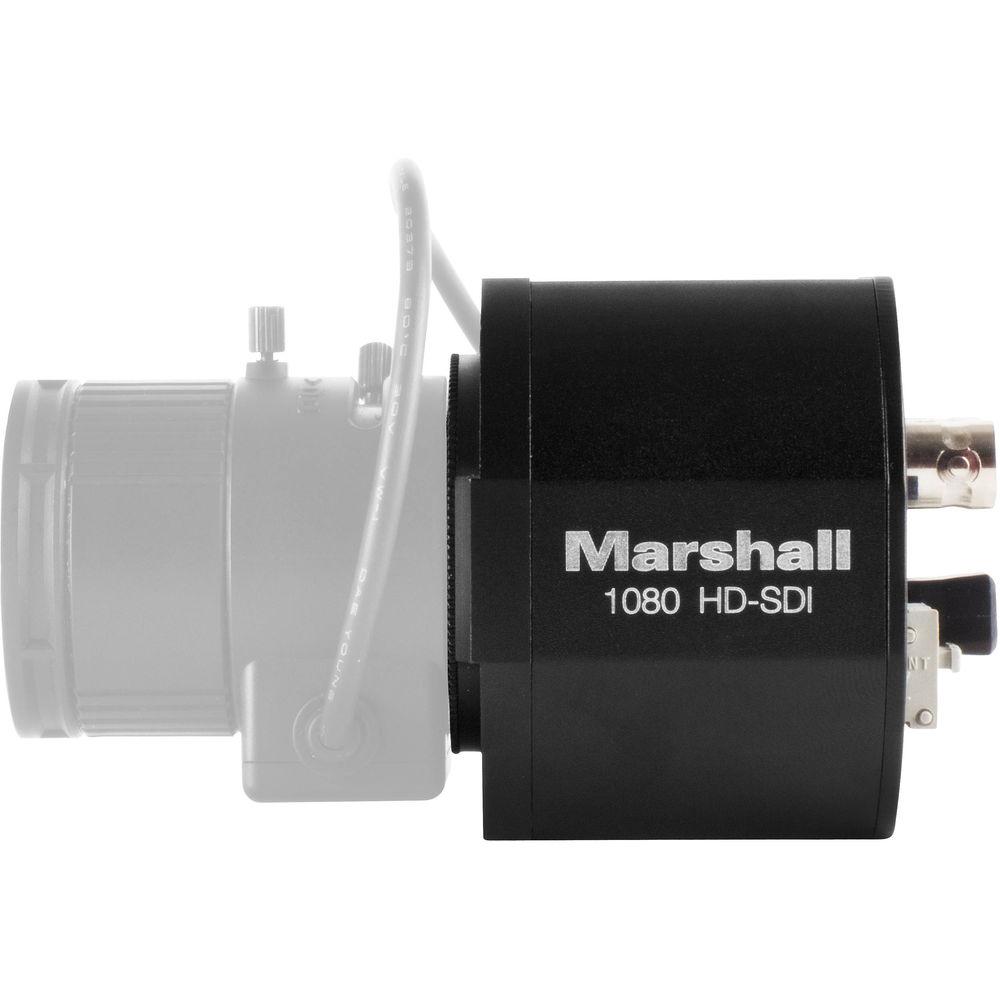

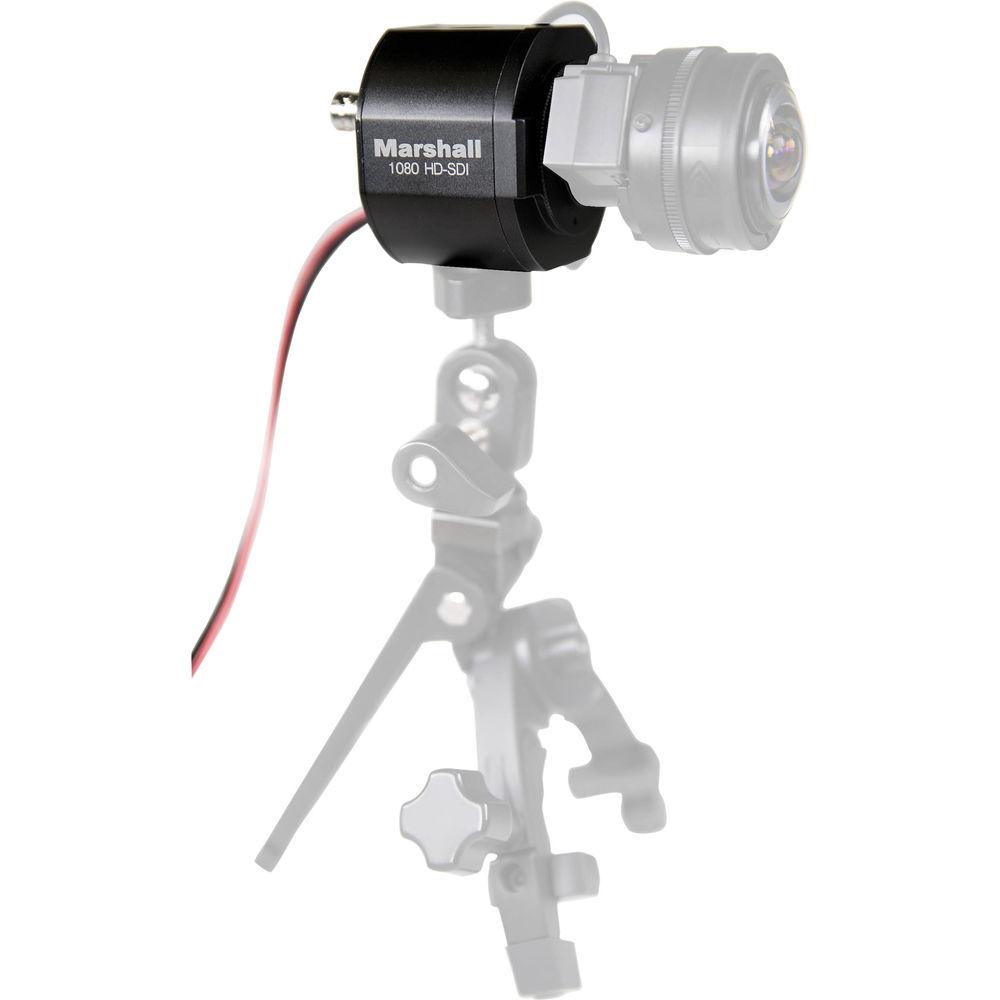

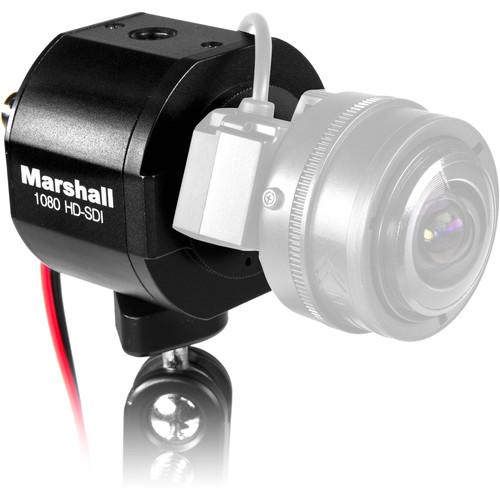

Product description Suitable for use in broadcast situations as well as Reality TV, Sports, Racing, Houses of Worship, and Security applications the Marshall CV343-CS 2.5MP HD/3G-SDI Compact Progressive Camera provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and accepts optional C-mount or CS-mount lenses supporting auto-iris. The camera captures HD video at 1080p 25/30/50/60 fps, 1080i 50/60 as well as 720p 50/60 fps allowing you to easily integrate the camera into an infrastructure that supports progressive frame rates. The camera incorporates one HD/3G-SDI output as well as a CVBS (composite) video output.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features Digital Wide Dynamic Range, motion detection, and privacy masking, which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance functions helps to deliver normal looking video under changing conditions. Menu settings are available via an OSD, and the built in joystick allows you to navigate the settings. An included power pigtail allows you to connect to an optional power supply. - General Overview
-
- 2.5MP, 1/3" CMOS sensor
- 1080p video at up to 60 fps
- 720p video at up to 60 fps
- 0.2 lux in Color, 0.1 lux in B/W
- Connects to a TV or DVR via a BNC connection
- Die-cast aluminum camera housing protects the camera from external impacts

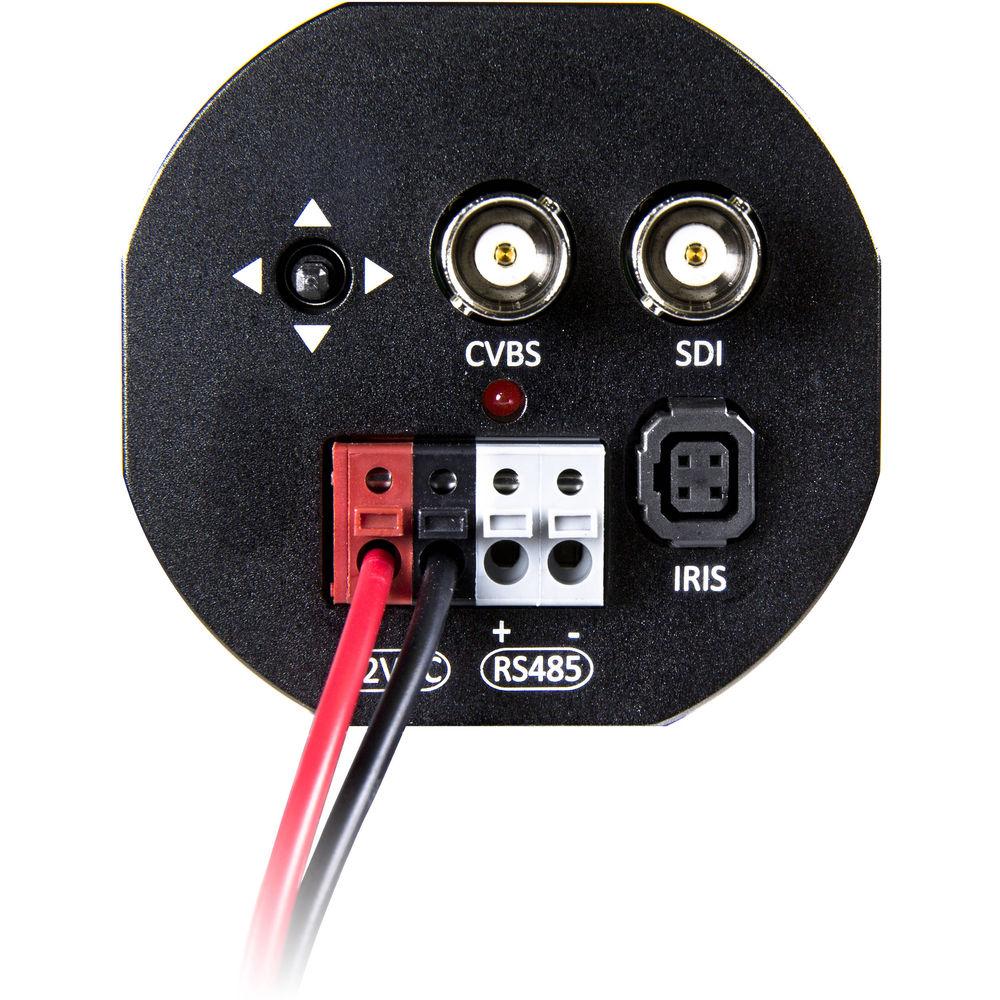

- The camera features one HD/3G-SDI and one composite (CVBS) output connector
- Display Parameters
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and Manual White Balance
- Auto Electronic Shutter Speed: 1/30 to 1/30,000 sec
- Automatic Gain Control
- Simultaneous Outputs
- Both of the camera's outputs are active and outputting video signals at all times the camera is on.
- OSD Joystick
- This camera incorporates a joystick controller that allows you to navigate and select from the menu via the OSD.
- RS-485 Interface
- This camera has an RS-485 interface, which allows you to connect to an optional DVR or control the camera using either Pelco or P/D or Sony VISCA protocol.
UPC: 801813179064 In the Box Marshall Electronics CV343-CS 2.5MP 3G-SDI/Composite Compact Progressive Camera (Power Pigtail) Power Pigtail RS-485 Cable and Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV343-CS 2.5MP 3G-SDI Composite Compact Progressive Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV343-CS Specs | Sensor | 1/3" CMOS Sensor (approximately 2.5 MP) | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux | | Lens | Mount: CS/S with DC-Auto Iris Included Lens: None | | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p: 50/60 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1080p: 25/30
1080i: 50/60
720p: 50/60
Composite (CVBS)
NTSC
PAL | | Electronic Shutter | NTSC: 1/30 to 1/30000
PAL: 1/25 to 1/30000 | | White Balance | AWB/AWC-Set/Manual/Indoor/Outdoor | | Backlight Compensation | WDR/BLC/HLC | | Control Interface | RS-485
PELCO-P/D
Sony-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200 bps | | Temperature & Humidity | Operating: 14 to 122 °F / -10 to 50 °C | | Power | Voltage: 12 VDC (7 to 15 VDC Range)
Consumption: Max 6 W | | Certification | CE, FCC, RoHS, KCE | | Dimensions (W x H x D) | 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm | | Weight | 5.6 oz / 160 g | | | | Package Weight | 1.13 lb | | Box Dimensions (LxWxH) | 9.45 x 5.1 x 2.8" |
