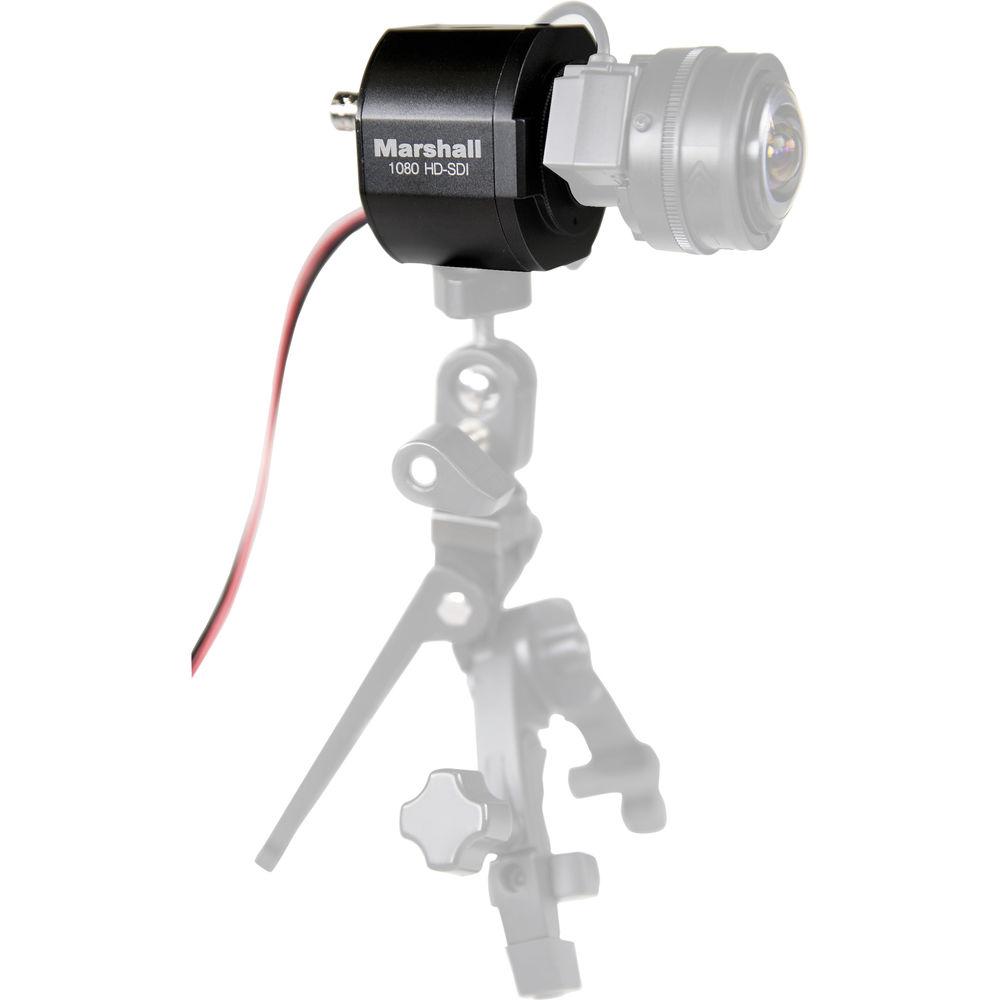

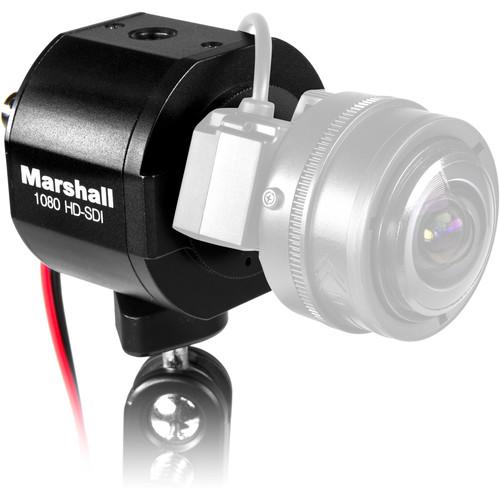

User Manual for Marshall Electronics CV343-CSB 2.5MP 3G-SDI Composite Compact Broadcast Compatible Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV343-CSB 2.5MP 3G-SDI Composite
- Product category: POV Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics POV Cameras
 |
User manual for the Marshall Electronics CV343-CSB 2.5MP 3G-SDI Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description Suitable for use in broadcast situations as well as Reality TV, Sports, Racing, Houses of Worship, and Security applications the Marshall CV343-CSB 2.5MP HD/3G-SDI Compact Broadcast Compatible Camera provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and accepts optional C-mount or CS-mount lenses supporting auto-iris. The camera captures HD video at 1080p 29.97/59.94, 1080i 59.94, and 720p 59.94 fps allowing you to easily integrate the camera into an infrastructure that supports broadcast frame rates. The camera incorporates one HD/3G-SDI output as well as a CVBs (composite) video output.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features Digital Wide Dynamic Range, motion detection, and privacy masking, which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance functions helps to deliver normal looking video under changing conditions. Menu settings are available via an OSD, and the built in joystick allows you to navigate the settings. An included power pigtail allows you to connect to an optional power supply. - General Overview
-
- 2.5MP, 1/3" CMOS sensor
- 1080p video at up to 59.94 fps
- 720p video at up to 59.94 fps
- 0.2 lux in Color, 0.1 lux in B/W
- Connects to a TV or DVR via a BNC connection
- Die-cast aluminum camera housing protects the camera from external impacts
- The camera features one HD/3G-SDI and one composite (CVBS) output connector
- Display Parameters
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and Manual White Balance
- Auto Electronic Shutter Speed: 1/30 to 1/30,000 sec
- Automatic Gain Control
- Simultaneous Outputs
- Both of the camera's outputs are active and outputting video signals at all times the camera is on.
- OSD Joystick
- This camera incorporates a joystick controller that allows you to navigate and select from the menu via the OSD
- RS-485 Interface
- This camera has an RS-485 interface, which allows you to connect to an optional DVR or control the camera using either Pelco or P/D or Sony VISCA protocol.
UPC: 801813179071 In the Box Marshall Electronics CV343-CSB 2.5MP 3G-SDI/Composite Compact Broadcast Compatible Camera (Power Pigtail) Power Pigtail RS-485 Cable and Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV343-CSB 2.5MP 3G-SDI Composite Compact Broadcast Compatible Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV343-CSB Specs | Sensor | 1/3" CMOS Sensor (approximately 2.5 MP) | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux | | Lens | Mount: CS/S with DC-Auto Iris Included Lens: None | | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p: 59.94 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1080p: 29.97
1080i: 9.94
720p: 59/94/29/97
Composite (CVBS)
NTSC | | Electronic Shutter | NTSC: 1/30 to 1/30000 | | White Balance | AWB/AWC-Set/Manual/Indoor/Outdoor | | Backlight Compensation | WDR/BLC/HLC | | Control Interface | RS-485
PELCO-P/D
Sony-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200 bps | | Temperature & Humidity | Operating: 14 to 122 °F / -10 to 50 °C | | Power | Voltage: 12 VDC (7 to 15 VDC Range)
Consumption: Max 6 W | | Certification | CE, FCC, RoHS, KCE | | Dimensions (W x H x D) | 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm | | Weight | 5.6 oz / 160 g | | | | Package Weight | 1.13 lb | | Box Dimensions (LxWxH) | 9.45 x 5.0 x 2.85" |
