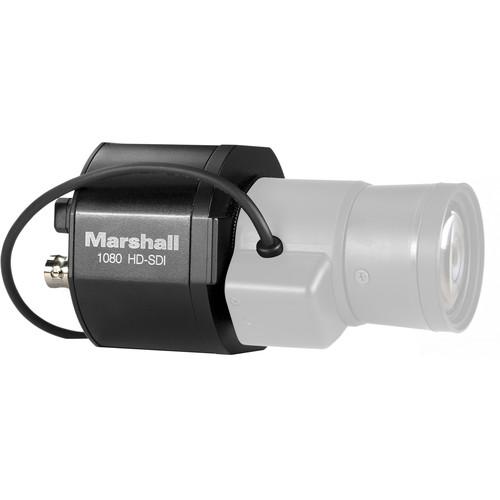

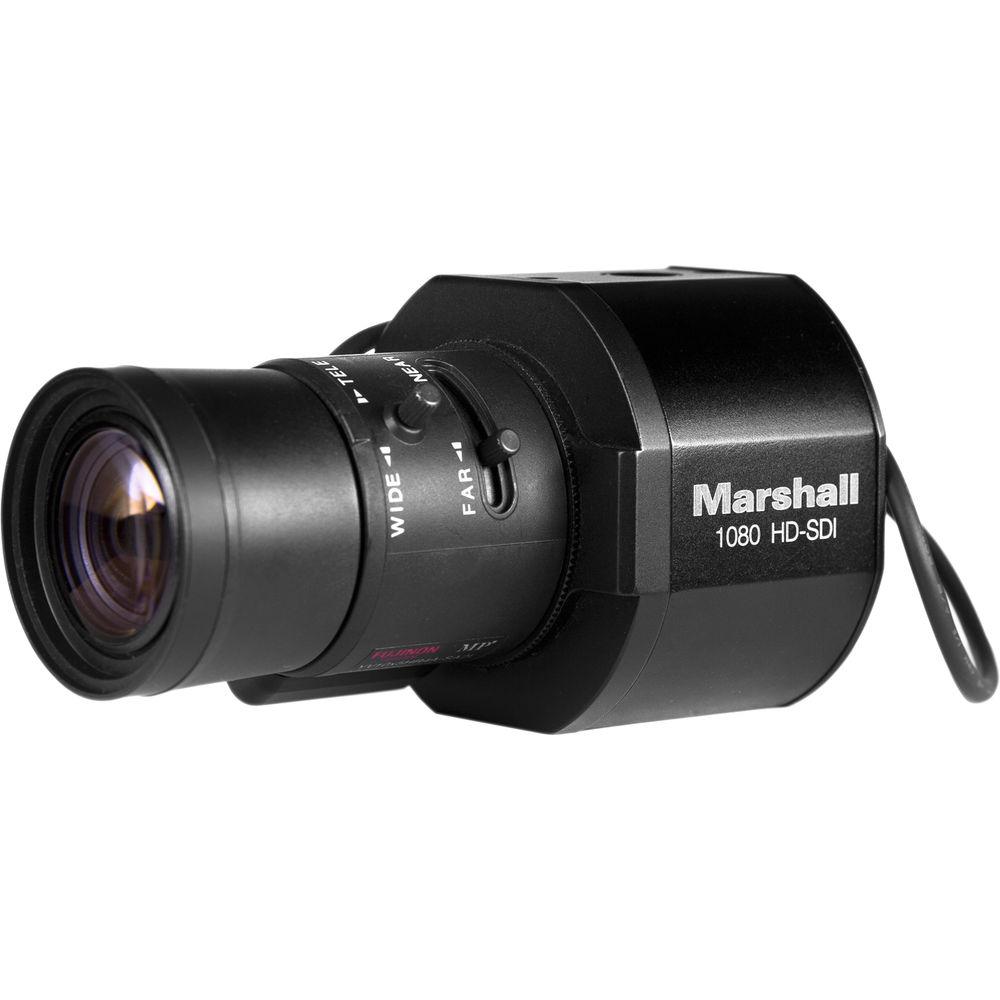

Product description Suitable for use in broadcast situations as well as Reality TV, Sports, Racing, Houses of Worship, and Security applications the Marshall CV345-CS 2.5MP HD/3G-SDI Compact Progressive Camera provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and accepts optional C-mount or CS-mount lenses supporting auto-iris. The camera captures HD video at 1080p 25/30/50/60 fps, 1080i 50/60 as well as 720p 50/60 fps allowing you to easily integrate the camera into an infrastructure that supports progressive frame rates. The camera incorporates one HD/3G-SDI and one HDMI output.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features Digital Wide Dynamic Range, motion detection, and privacy masking, which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance functions helps to deliver normal looking video under changing conditions. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The power cable includes an integrated joystick that allows you to navigate the OSD, it also integrates a TRS connector for audio input and an RS-485 connector for remote control. - General Overview
-
- 2.5MP, 1/3" CMOS sensor
- 1080p video at up to 60 fps
- 720p video at up to 60 fps
- 0.2 lux in Color, 0.1 lux in B/W
- Connects to a TV or DVR via a BNC connection
- Die-cast aluminum camera housing protects the camera from external impacts

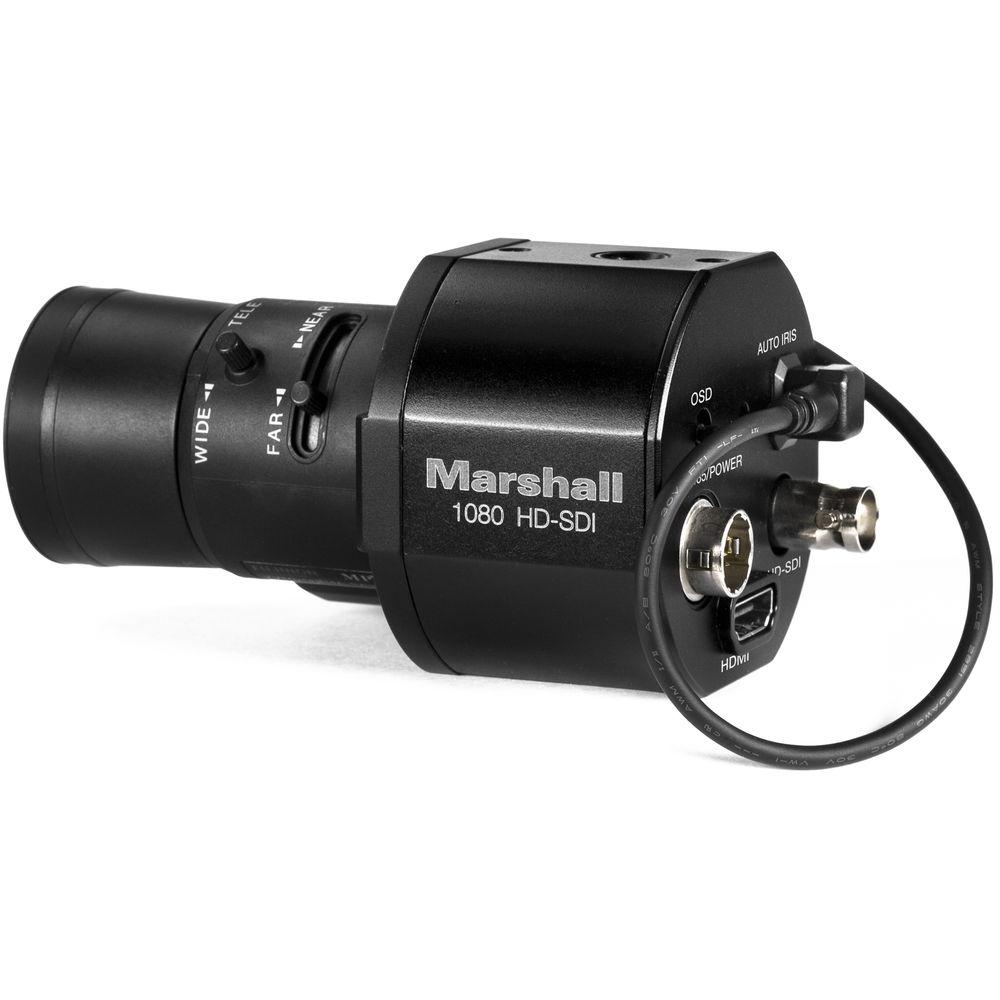

- The camera features one HD/3G-SDI and one HDMI output connector
- Display Parameters
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and Manual White Balance
- Auto Electronic Shutter Speed: 1/30 to 1/30,000 sec
- Automatic Gain Control
- Simultaneous Outputs
- Both of the camera's outputs are active and outputting video signals at all times the camera is on.
- OSD Joystick

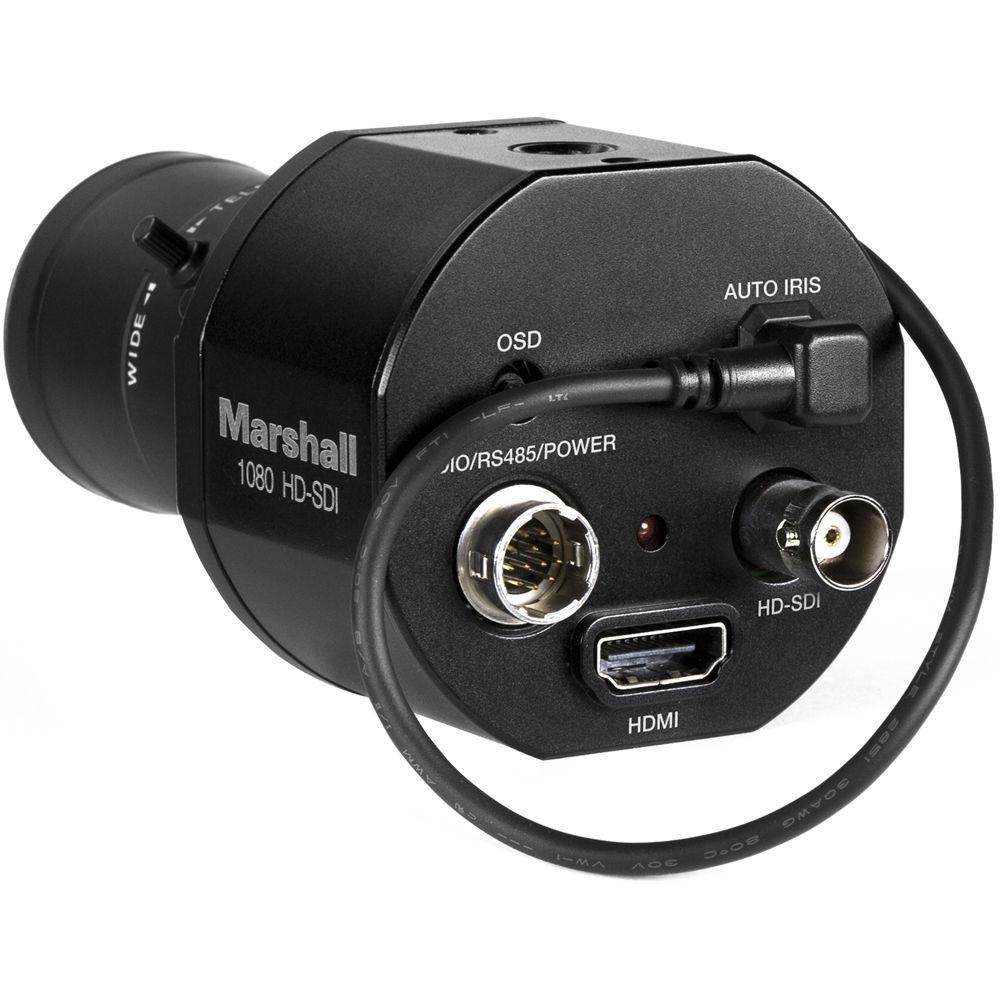

- The camera incorporates a Lemo connector and includes a breakout cable that provides a joystick for OSD navigation, an RS-485 connector, a TRS connector for audio input, as well as a power connector for an optional power supply.
UPC: 801813179088 In the Box Marshall Electronics CV345-CS 2.5MP 3G-SDI/HDMI Compact Progressive Camera (Breakout Cable) Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV345-CS 2.5MP 3G-SDI HDMI Compact Progressive Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV345-CS Specs | Sensor | 1/3" CMOS Sensor (approximately 2.5 MP) | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux | | Lens | Mount: CS/S with DC-Auto Iris Included Lens: None | | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p: 50/60 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1080p: 25/30
1080i: 50/60
720p: 50/60
HDMI
1080p: 50/60
1080i: 60
720p: 50/60 | | Electronic Shutter | NTSC: 1/30 to 1/30000
PAL: 1/25 to 1/30000 | | White Balance | AWB/AWC-Set/Manual/Indoor/Outdoor | | Backlight Compensation | WDR/BLC/HLC | | Control Interface | RS-485
PELCO-P/D
Sony-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200 bps | | Temperature & Humidity | Operating: 14 to 122 °F / -10 to 50 °C | | Power | Voltage: 12 VDC (7 to 15 VDC Range)
Consumption: Max 6 W | | Certification | CE, FCC, RoHS, KCE | | Dimensions (W x H x D) | 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm | | Weight | 5.6 oz / 160 g | | | | Package Weight | 1.245 lb | | Box Dimensions (LxWxH) | 9.4 x 5.05 x 2.95" |
