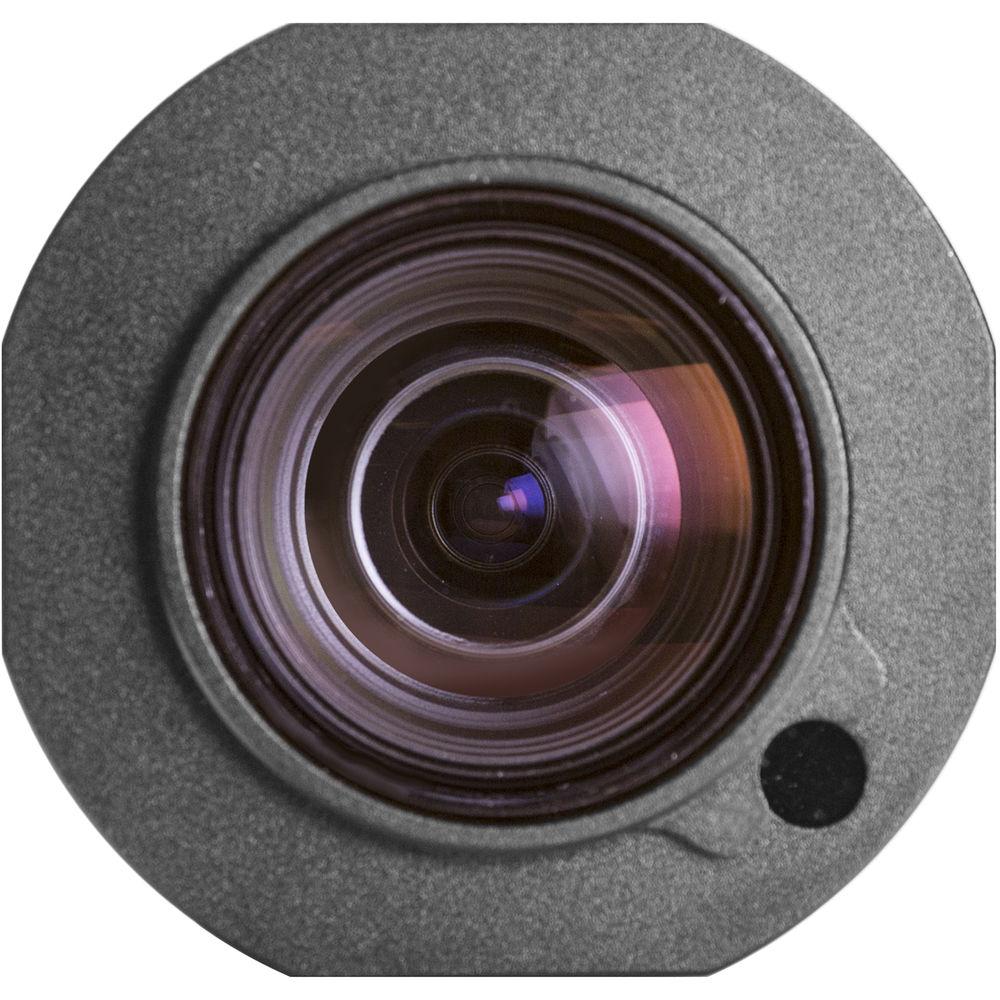

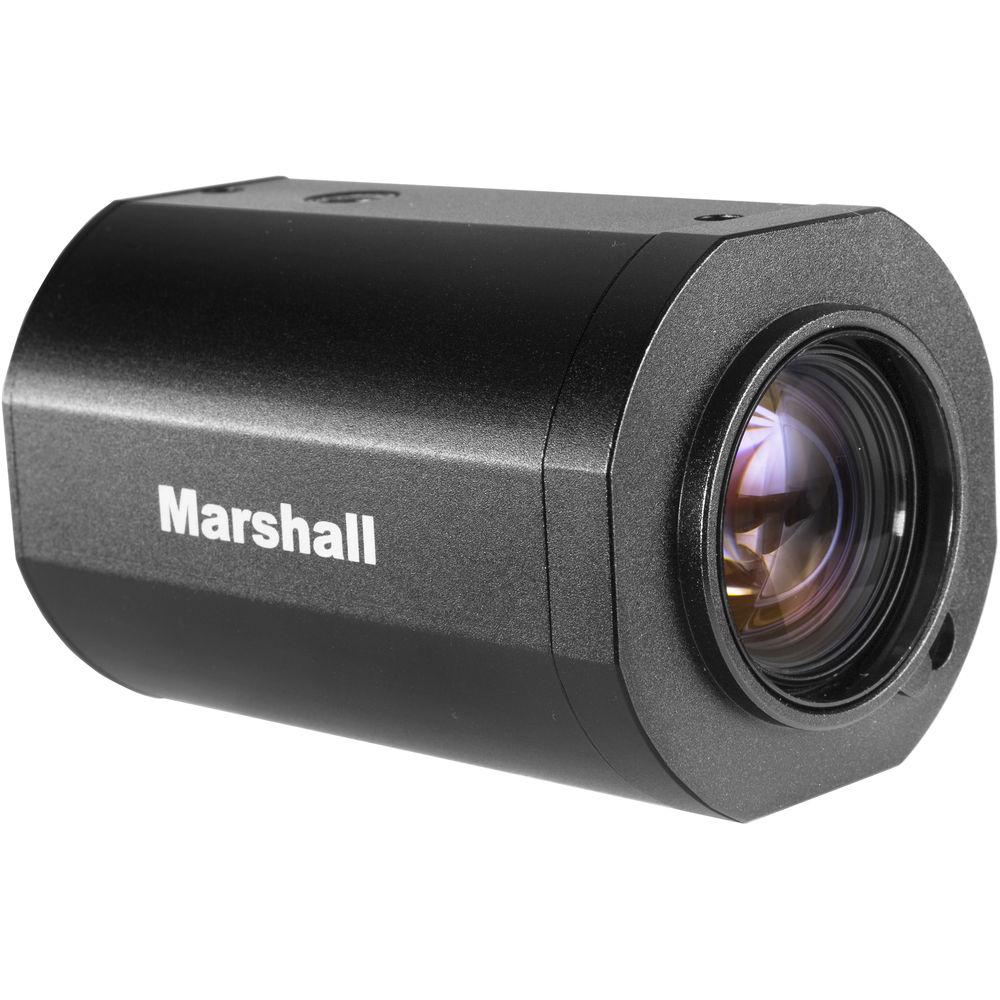

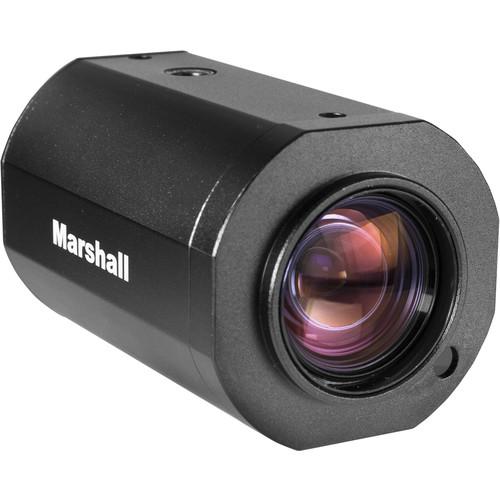

Product description Suitable for use in broadcast situations as well as reality TV, sports, houses of worship, and security applications, the Marshall CV350-10XB Compact 10X Full-HD Camera provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and incorporates a 10x zoom lens. HD video is captured at 1080p and 720p at 59.94, and it supports 1080i at 59.94 outputting via SDI or HDMI.
With a minimum illumination of 0.2 lux in day/color or 0.1 lux in night/B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features 3D-DNR, motion detection, and privacy masking which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance function helps deliver normal looking video under changing conditions. Menu settings are available via an OSD that is actuated by a joystick on the back of the camera. Zoom, focus, and iris can all be controlled remotely via the RS-485 connector using SONY-VISCA, and PELCO-P/D protocols. - General Overview
-
- 2.1MP, 1/3" CMOS sensor
- 0.2 Lux in Color, 0.1 lux in B/W

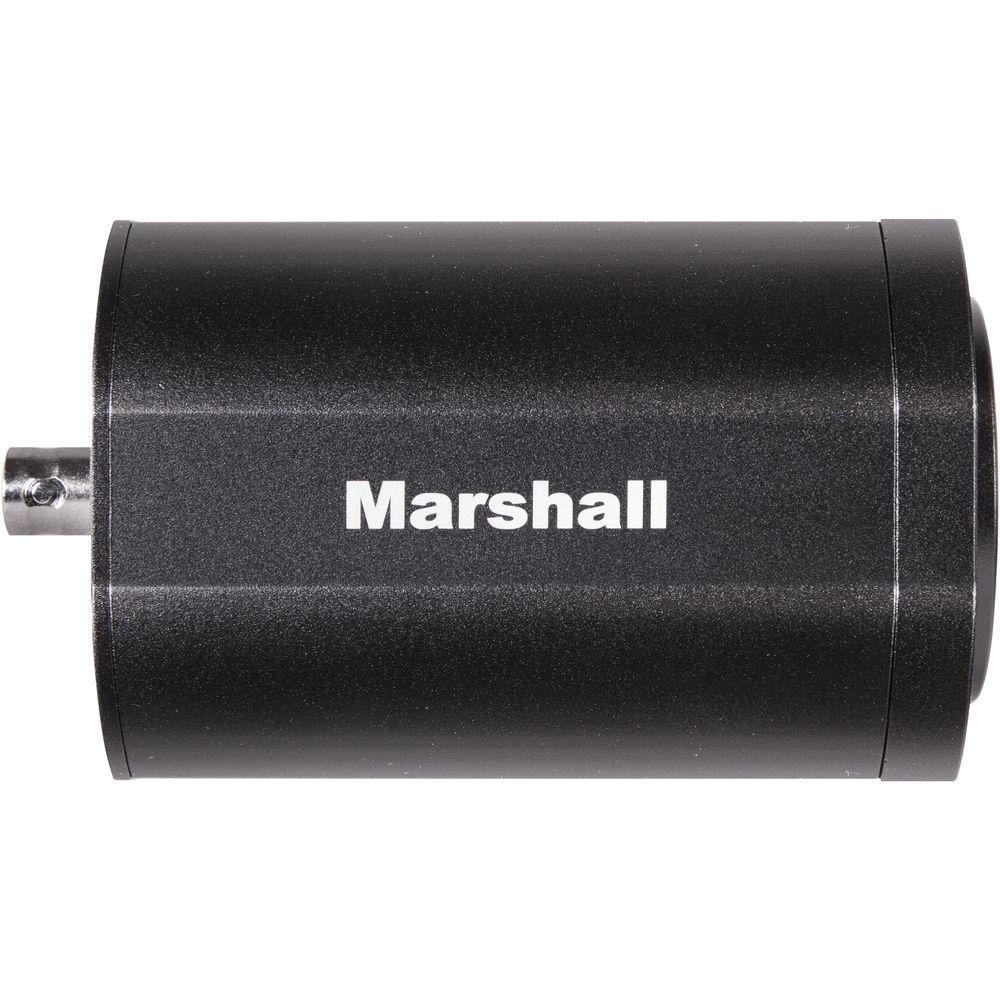

- Aluminum camera housing protects the camera from external impacts

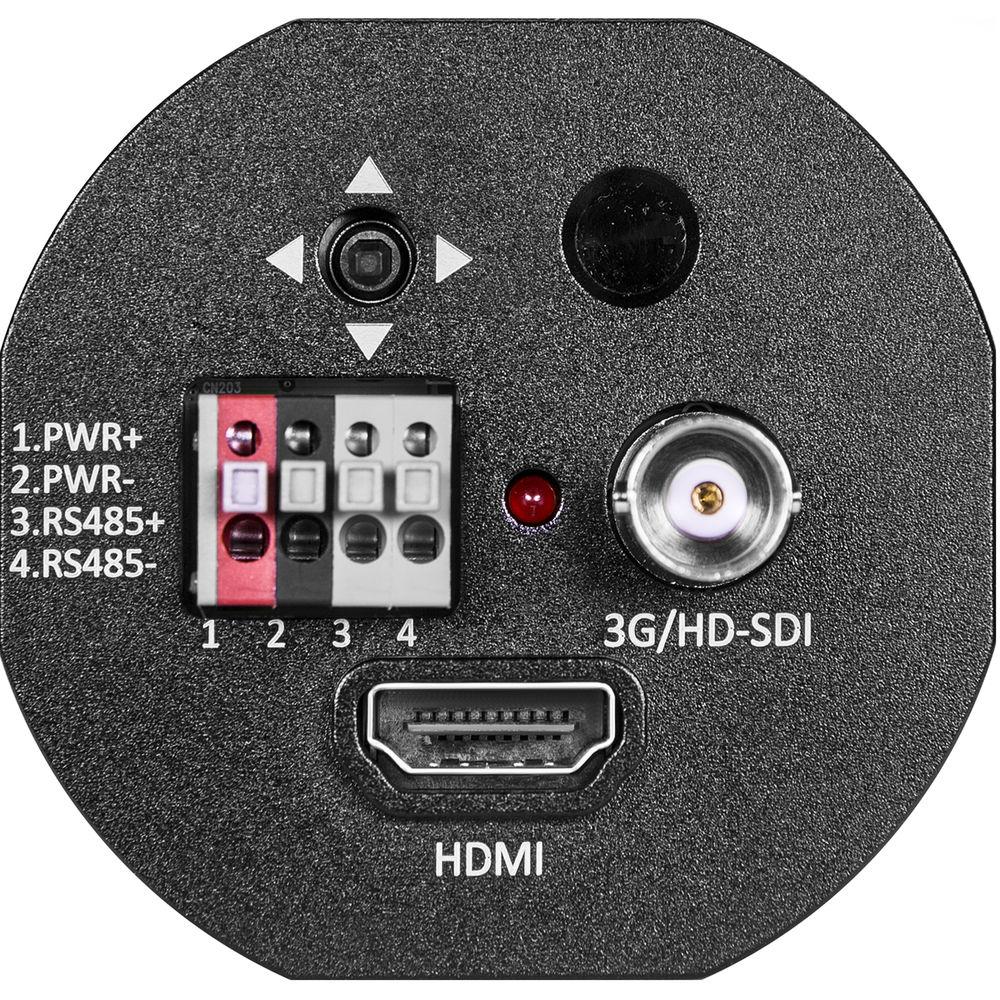

- The camera features one 3G/HD-SDI and one HDMI output connector
- Display Parameters
- It gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and manual white balance
- Auto electronic shutter speed of 1/30 to 1/30,000 sec
- Automatic gain control
- Functions
- White Balance, Privacy Mask, Image Mirror, 3DNR, Flickerless, Sharpness, Defog, Digital Image Stabilizer, Exposure, Freeze, B&W, Black Level, WDR
- OSD Joystick
- The camera incorporates a joystick for OSD navigation.
- Remote Adjustable
- Iris
Zoom
Focus
Brightness
Exposure
Sharpness
Saturation
Contrast
Gamma
Gain (Red/Blue)
White Balance UPC: 403926186993 In the Box Marshall Electronics CV350-10XB Compact 10X Full-HD Camera 12 VDC Power Pigtail Universal 12 VDC Power Cord IR Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV350-10XB Compact 10X Full-HD Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV-350-10XB Specs | Sensor | 1/3" CMOS Sensor (approximately 2.1 MP) | | Pixel Resolution | Effective Pixels: 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Day: 0.2 Lux
Night: 0.1 Lux
DSS On: 0.005 Lux | | Lens | 4.7 to 47mm
f/1.6 to f/3.0 | | Zoom | Optical: 10x
Digital: 12x
Optical + Digital: 120x | | Angle of View | Wide: 57.7°
Tele: 6.4° | | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p: 59.94
HD-SDI SMPTE 292M (1.485 Gbps)
1080p: 29.97
1080i: 59.94
720p:59.94
HDMI
1080p: 59.94/29.97
1080i: 59.94
720p: 59.94 | | Electronic Shutter | NTSC: 1/30 to 1/30,000 | | Control Interface | UART(5V Level)
Sony-VISCA protocol
8-bit data, 1 stop bit, no parity, 2400~115200 bps | | Temperature & Humidity | Operating: -4 to 140°F / -20 to 60°C | | Power | Voltage: 12 VDC (7 to 15 VDC)
Consumption: Max 6 W (4.8 W / lens inactive, 5.5 W / lens active) | | Dimensions (W x H x D) | 3.74 x 2.38 x 2.28" / 95 x 60 x 58 mm | | | | Package Weight | 1.605 lb | | Box Dimensions (LxWxH) | 9.4 x 5.05 x 2.85" |
