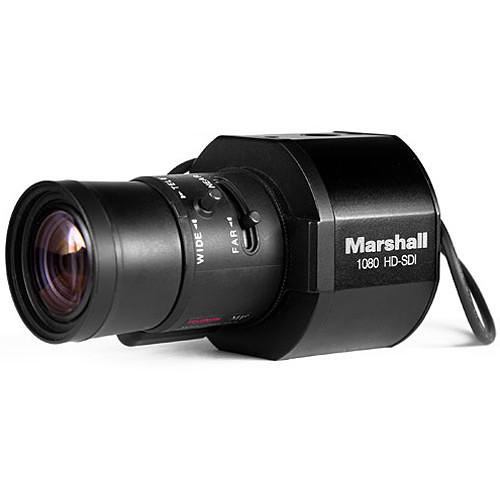

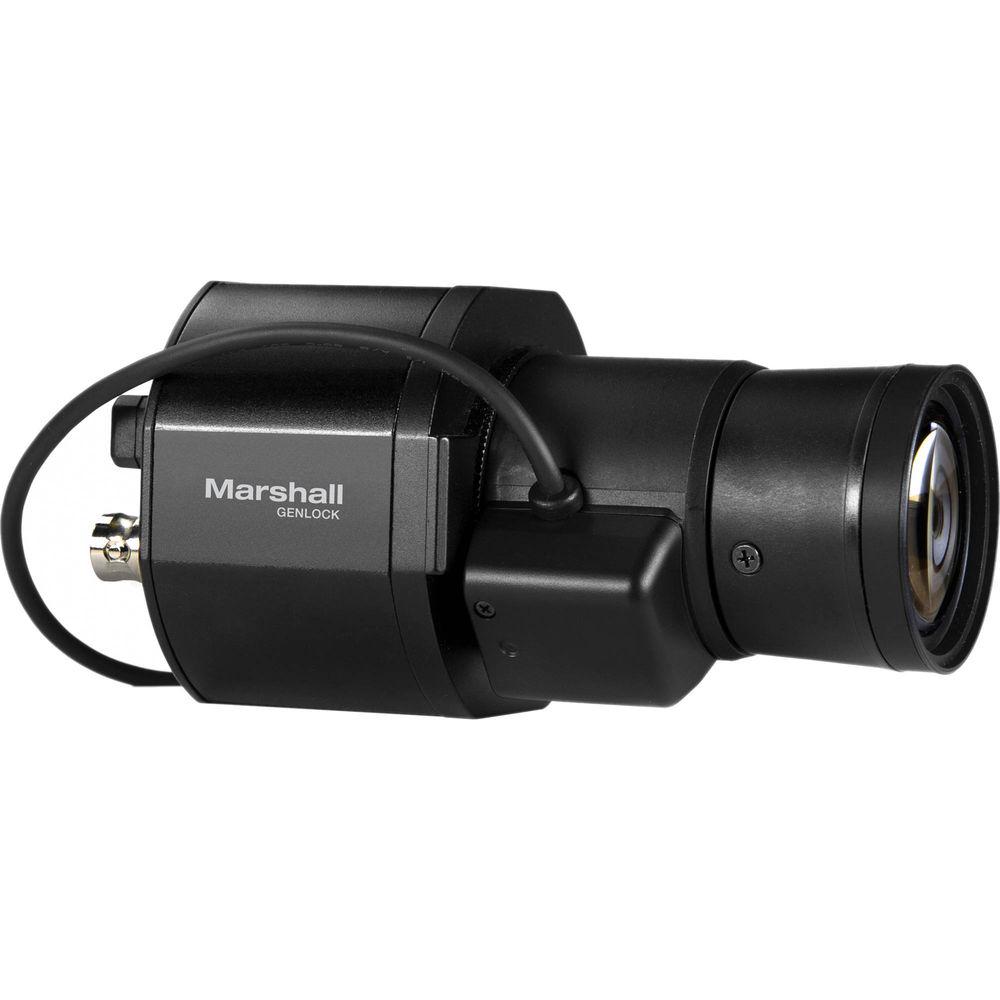

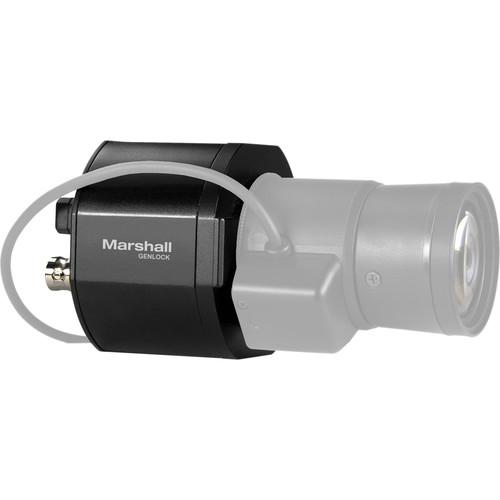

Product description Supporting broadcast-quality Full HD video in a versatile, small form factor package, the Marshall CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera is suitable for a wide range of applications including reality TV, sports, racing, houses of worship, and surveillance/security. The camera features a 2.5MP 1/3" CMOS sensor that supports 1080p, 1080i, and 720p video up to 60 fps over 3G/HD-SDI and HDMI outputs. A CS/C mount lens mount gives you field of view flexibility with support for DC-Auto Iris control on compatible lenses. A LEMO-style I/O port and included breakout cable provides additional connectivity, including RS-485, mic input, power input, and a tri-level genlock sync input and output for multi-camera shoots. The camera can be setup to automatically adjust to the resolution and frame rate of sync source, so long as it is supported by the camera.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. Its surveillance chops are further bolstered by the presence of features such as back light compensation, motion detection, and privacy masking. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The breakout cable includes an integrated joystick that allows you to navigate the OSD, with navigation buttons also on present on the back of the camera. - Features
-
- 2.5MP 1/3" CMOS Sensor
- CS/C lens mount and DC-Auto Iris control port
- 3G/HD-SDI and HDMI outputs
- Supports 1080p, 1080i, and 720p resolutions up to 60 fps
- Genlock tri-level sync at camera level to ensure clean switching between cameras; Sync in 3G-SDI (1080p 59.94/50/60) and HD-SDI (1080i 59.94/50/60 and 1280x720p 59.94/50/60)
- Camera will adjust to resolution and frame rate of sync source
- LEMO-style I/O breakout cable: Sync-IN, Sync-OUT, RS-485 (Visca/Pelco), 12V power input connector, and TRS mic input with 2.5V power
- 0.2 lux (Day Color), 0.1 lux (Night B/W), 0.005Lux (DSS On)
- Optical multi-coated IR cut filter
- WDR function adjusts automatically to bright and dark areas within FOV
- Back light compensation
- 3D noise reduction
- Motion detection and privacy mask
- OSD menu joystick on breakout cable
- Free downloadable software to control camera settings via RS-485 (requires separately available USB to RS-485 converter)
- Stepped (red/blue) gain control, gamma, shutter, brightness
UPC: 801813180503 In the Box Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera Breakout I/O Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI HDMI Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV365-CGB Specs | | | Image Sensor | 2.5 MP 1/3" CMOS | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1,000 TVL | | Min. Illumination | 0.2 lux (Day), 0.1 lux (Night), 0.005 lux (DSS on) | | Sync System | Internal | | Lens Mount | C/CS with DC-Auto Iris | | | | Video Output Connectors | 1 x 3G/HD-SDI (BNC)
1 x HDMI 1.3a (Type A) | | Output Formats | 3G-SDI SMPTE 424M (2.97 Gbps)
1920 x 1080p 50/59.94/60 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1920 x 1080p 25/29.97/30 fps
1920 x 1080i 50/59.94/60 fps
1280 x 720p 25/30/50/59.94/60 fps
HDMI
1920 x 1080p 25/29.97/30/50/59.94/60
1920 x 1080i 50/59.94/60
1280 x 720p 25/30/50/59.94/60 | | | | Audio Input Connectors | 1 x 3.5 mm TRS (on breakout cable) | | Level | 1 Vrms (2.5 V mic bias) | | Bit Depth | 16, 20, 24, 32 bit | | Sampling Rate | 48 kHz | | Gain | -12 dB to 59.5 dB | | | | Sync Input | Tri-level
| | Sync Output | Tri-level reference out | | | | RS-485 | PELCO-P/D, SONY-VISCA protocol
8-bit data, one stop bit, no parity, 2,400 to 115,200 bps | | | | Exposure | Auto / manual | | White Balance | Auto (3000 to 8000K)
ATW (1900 to 11000K)
Manual | | Electronic Shutter | NTSC: 1/30 to 1/30,000
PAL: 1/25 to 1/30,000 | | | | Power Requirement | 12 VDC (7 to 15 VDC) | | Maximum Power Consumption | 6 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 2.36 x 2.36 x 2.2" (60 x 60 x 56 mm) | | Weight | 6.3 oz (180 g), without lens and I/O breakout cable | | | | Package Weight | 1.295 lb | | Box Dimensions (LxWxH) | 9.4 x 5.05 x 2.7" |
