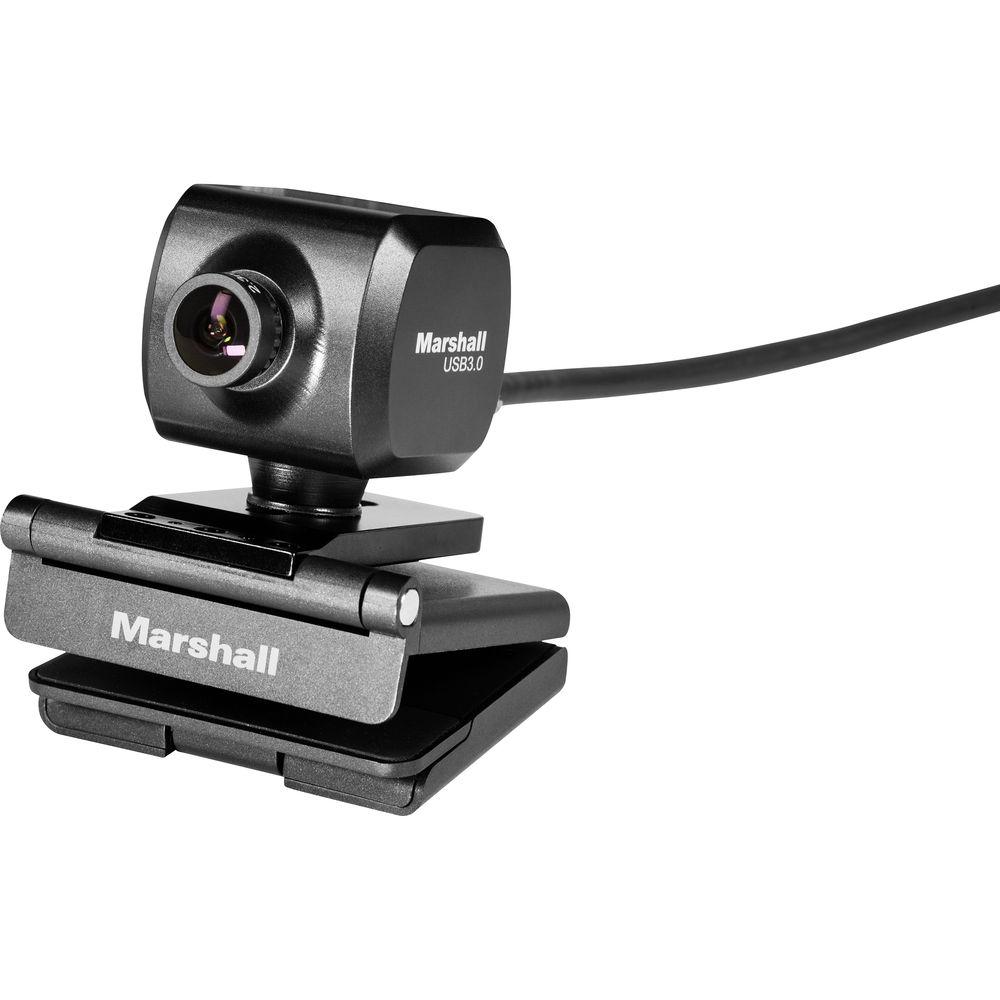

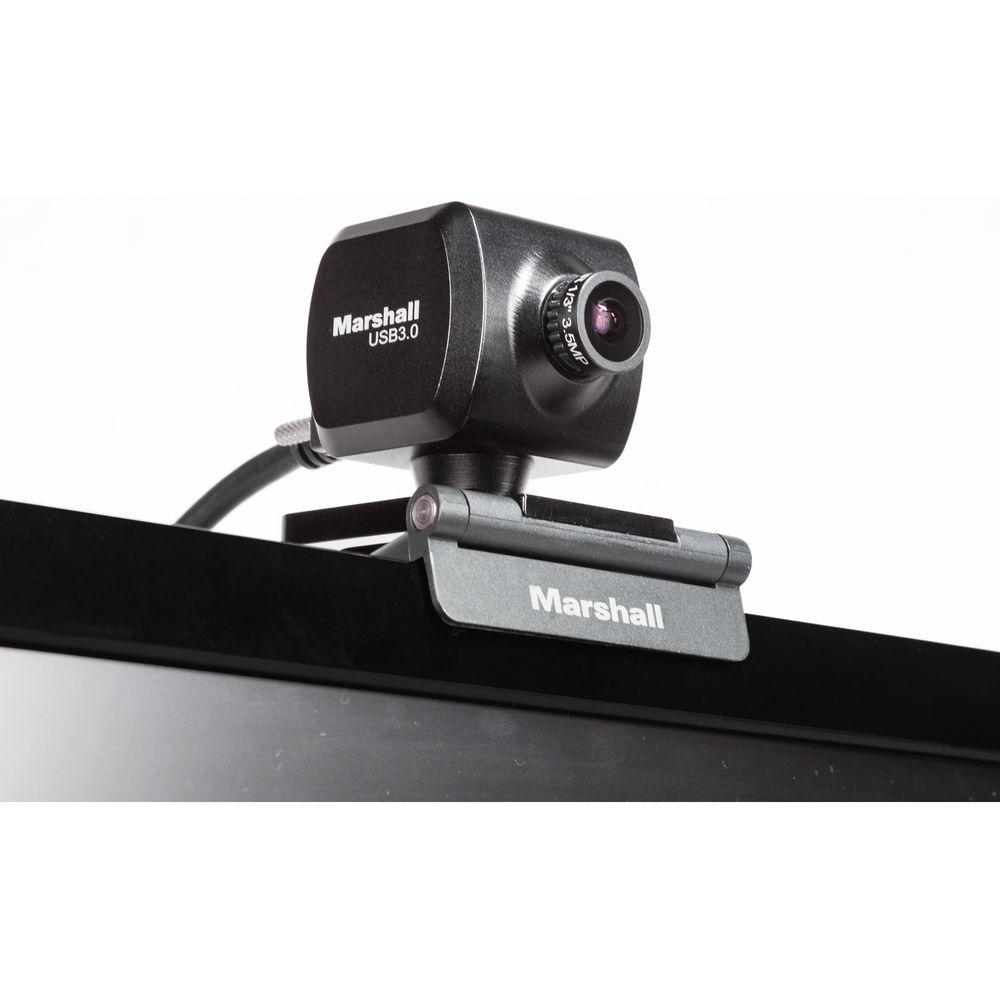

Product description The Marshall Electronics CV502-U3 USB 3.0 HD POV Camera is a professional POV solution for huddle rooms, teleconferencing, podcasting, streaming, or any other computer-related application that requires a live video feed. The 1920 x 1080 progressive-scan 1/3" type CMOS sensor provides high-quality images at up to 1080p resolution at 60 fps. The large sensor and bright native lens ensure a wide dynamic range for less clipped highlights, and clean low-light images with reduced grain compared to options with smaller sensors. The included lens is secured inside the M12 lens mount, and can be replaced with a separately available M12 lens for different focal length options. A locking USB cable and monitor clamp are included, for connecting to your computer and mounting the camera atop your monitor. - Includes Wide-Angle Stock Lens
- While the camera features an M12 mount for interchangeable lenses, the installed 2.3mm wide angle lens provides a large 126° angle of view with minimal distortion. If your needs are different, attach a different lens (available separately) to match your desired coverage area.
Note: Check the Marshall Electronics website for a list of compatible lenses - Plug-and-Play USB Control
- UVC 1.5 camera control automatically syncs the CV502-U3 to optimal settings for any monitor or computer screen being used, adjusting for screen resolution, frame rate, brightness, color, and bandwidth settings.
- Locking USB Cable

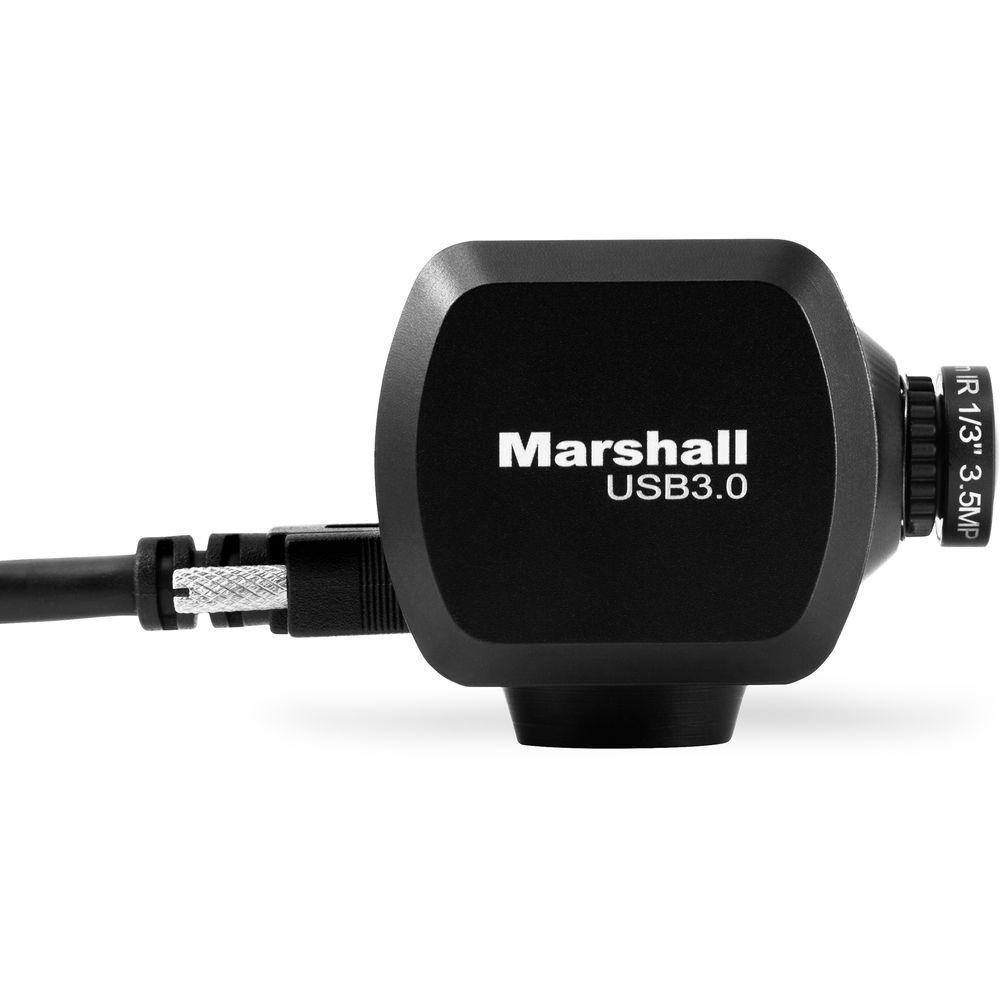

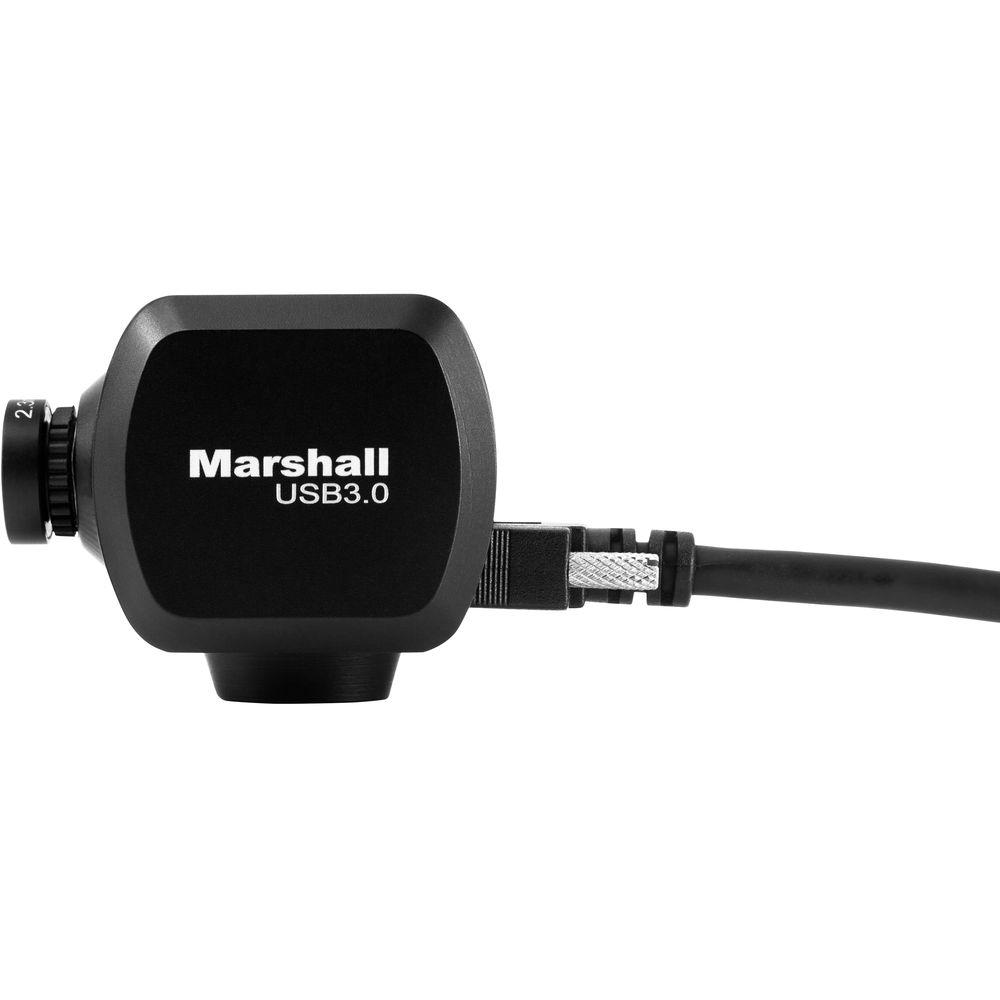

- The included USB cable locks with thumbscrews (like a VGA cable) to prevent dropouts from accidental unplugging.
UPC: 801813187328 In the Box Marshall Electronics CV502-U3 USB 3.0 HD POV Camera Universal 1/4"-20 Camera Clip Mount Locking USB Cable (6.5') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV502-U3 USB 3.0 HD POV Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

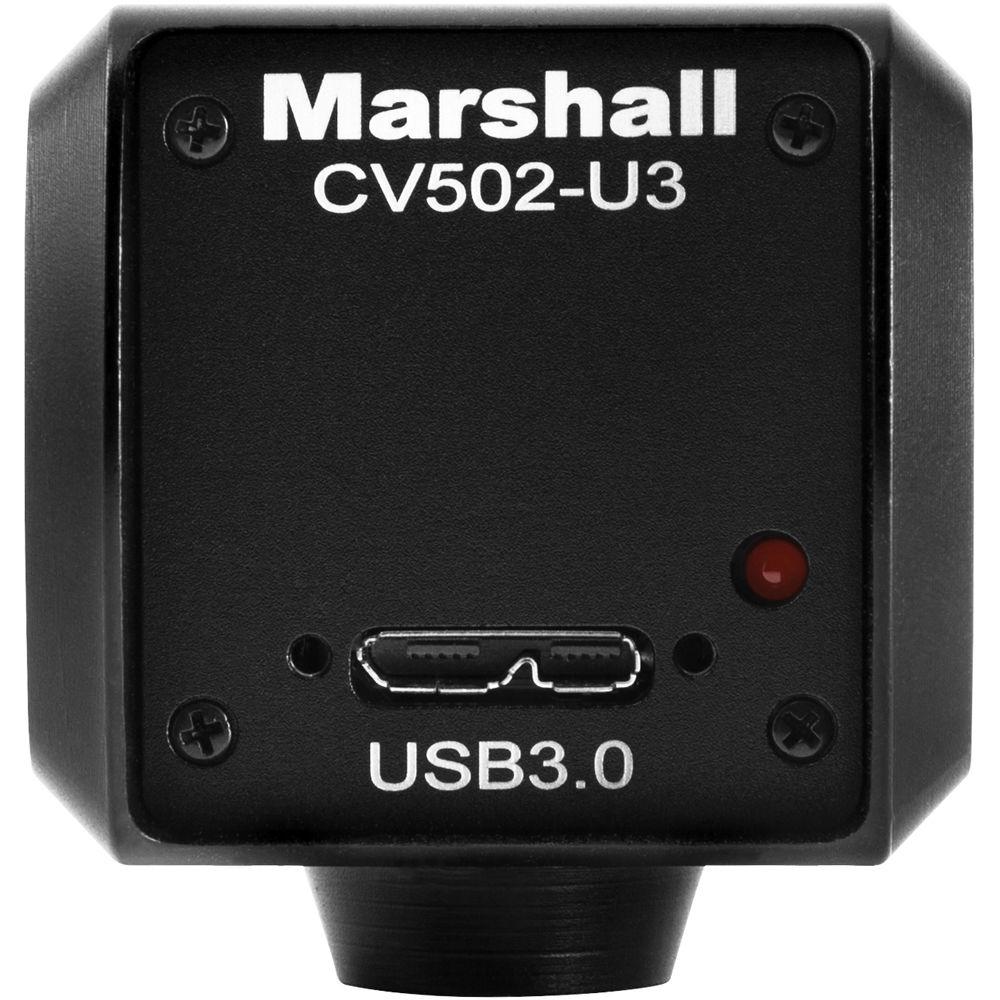

Technical parametersMarshall Electronics CV502-U3 Specs | Sensor | 2.1 MP 1/3" type progressive-scan CMOS | | Resolution | 1920 x 1080 | | Sync System | Internal | | Minimum Illumination | 0.2 lux (color) | | Video Output | USB 3.0 | | Video Resolutions | 1080p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 25/29.97/30/50/59.94/60 | | Video Sampling | 10-bit, 4:2:2 | | Lens Mount | M12 | | Lens | 2.3mm (126° AOV) | | Operating temperature | 14 to 122°F / -10 to 50°C | | System Requirements | CPU: Intel Core i3 or better
GPU: Core speed of 1500 MHz or higher
RAM: 4 GB or more
OS: Windows 7 or newer, macOS 10.8 or newer | | Dimensions | 1.5 x 1.8 x 1.7" / 39 x 45 x 43 mm | | Weight | 6 oz / 170 g (approx.) | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 6.3 x 5.45 x 3.1" |
