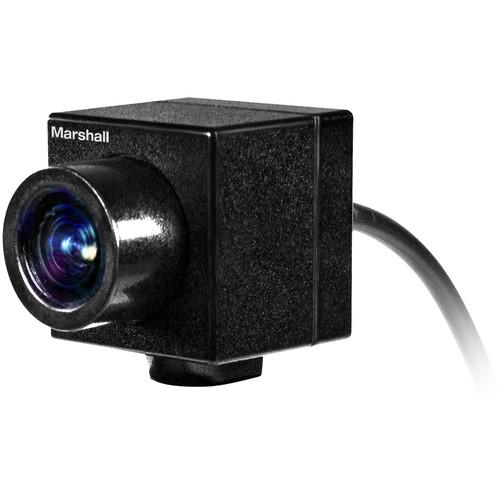

Product description The CV502-WPMB from Marshall Electronics is a mini broadcast camera that packs the features of the CV502-MB into an IP67-rated weatherproof housing, making it ideal for a variety of outdoor applications such as sporting events, nature observations, weather coverage, news, reality TV, POV shots, any other application where a compact, weatherproof camera is needed. It features a 1/3" 2.5MP CMOS sensor and is equipped with an M12 lens mount for flexible FOV options. A 3.7mm lens is included. 3G/HD-SDI and composite video outputs are provided via BNC connectors at the end of an included 10' breakout cable, enabling flexible rigging options. Over SDI, the camera can output 1080p resolution at 59.94/29.97 fps, 1080i at 59.94, and 720p at 59.94/29.97, allowing you to integrate the camera into an infrastructure that supports broadcast frame rates. Additional connectivity via the breakout cable includes power and an RS-485 connector for remote camera control via Sony VISA or PELCO protocols. - Features
-
- 2.5MP, 1/3" CMOS sensor

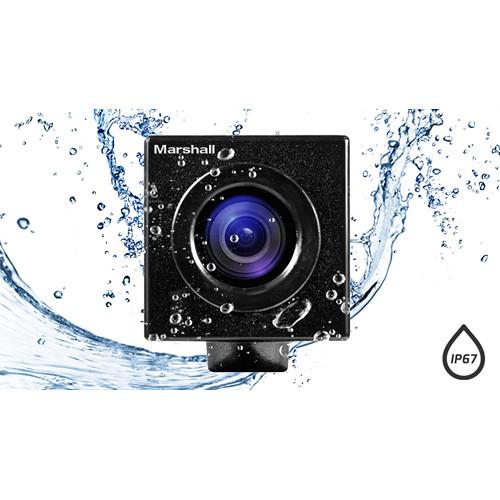

- IP67-rated weatherproof housing; submersible in water up to 3.2"

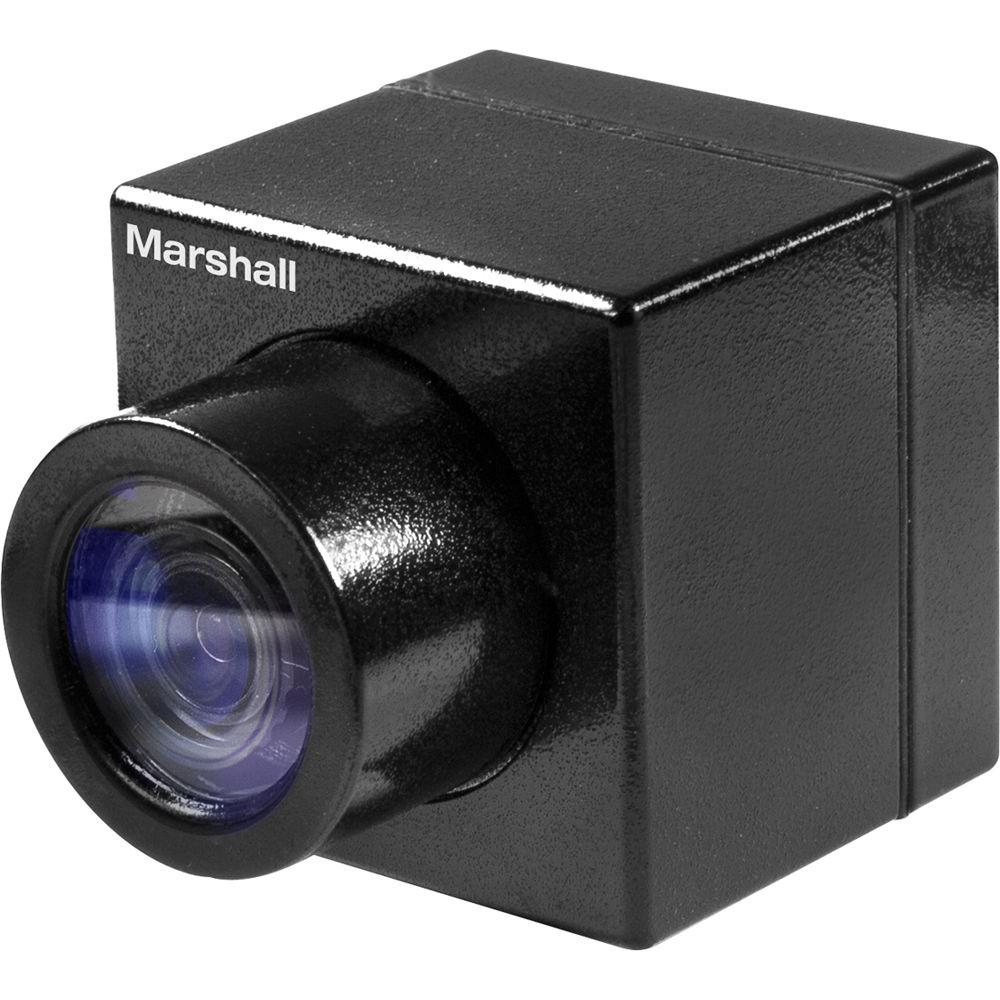

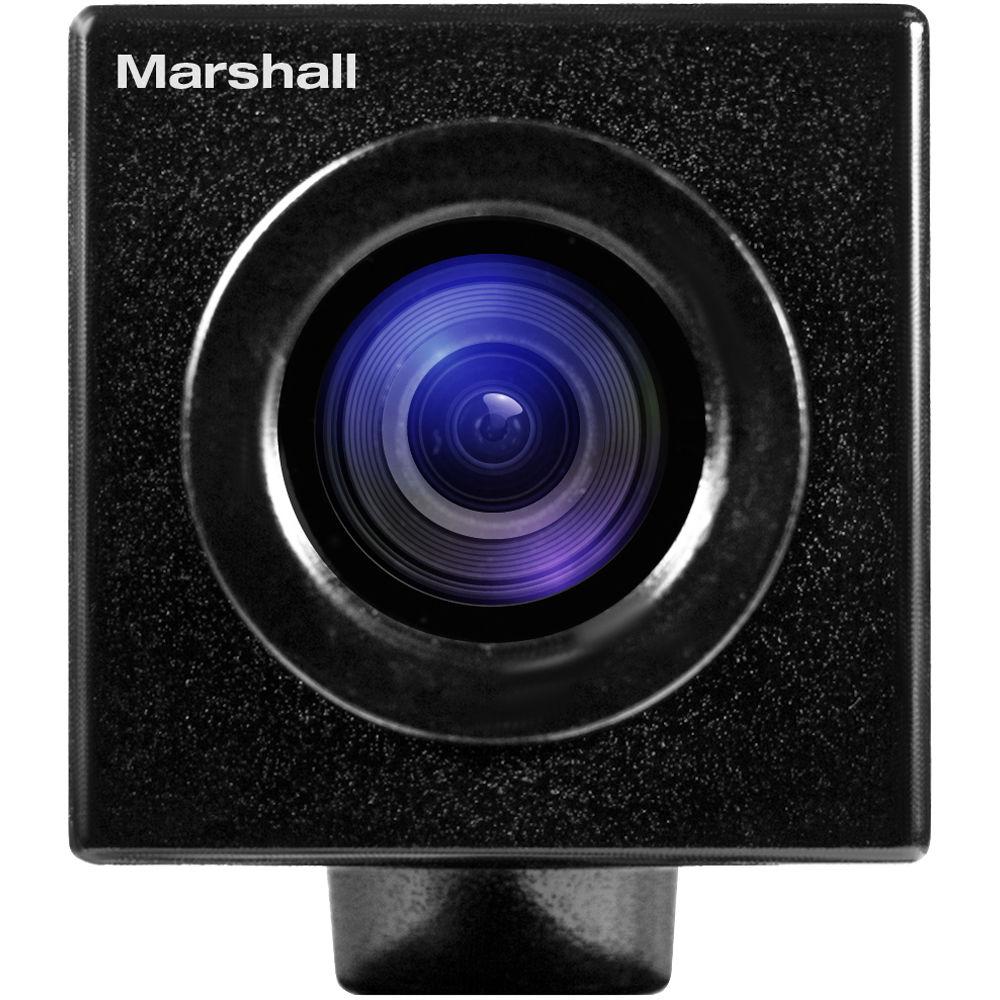

- M12 lens mount with 3.7mm lens included
- 3G-SDI and composite video outputs via 10' breakout cable
- 1080p video at 59.94/29.97 fps
- 1080i video at 59.94 fps
- 720p video at 59.94/29.97 fps
- 0.2 lux in Color, 0.1 lux in B/W
- RS-485 interface for remote camera control via Sony VISCA or PELCO protocols
- Joystick on breakout cable for OSD menu navigation

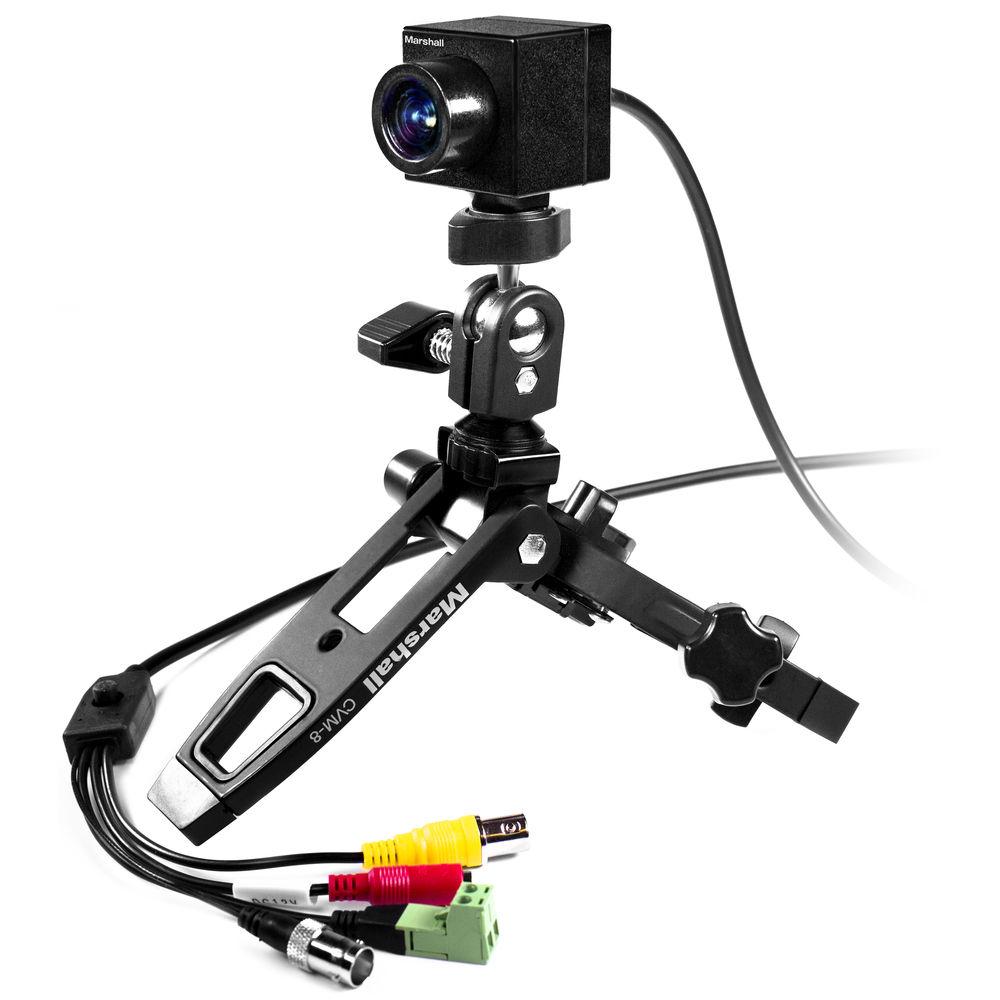

- Optional keyboard/joystick OSD controller available
- Free control software downloaded from Marshall's website
- Functions
- Day / Night System: AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
Backlight compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
Remote Control: Stepped (Red/Blue) Gain Control, Gamma, Brightness, and Shutter adjust via RS-485 (VISCA/PELCO)
Additional Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W - OSD Joystick

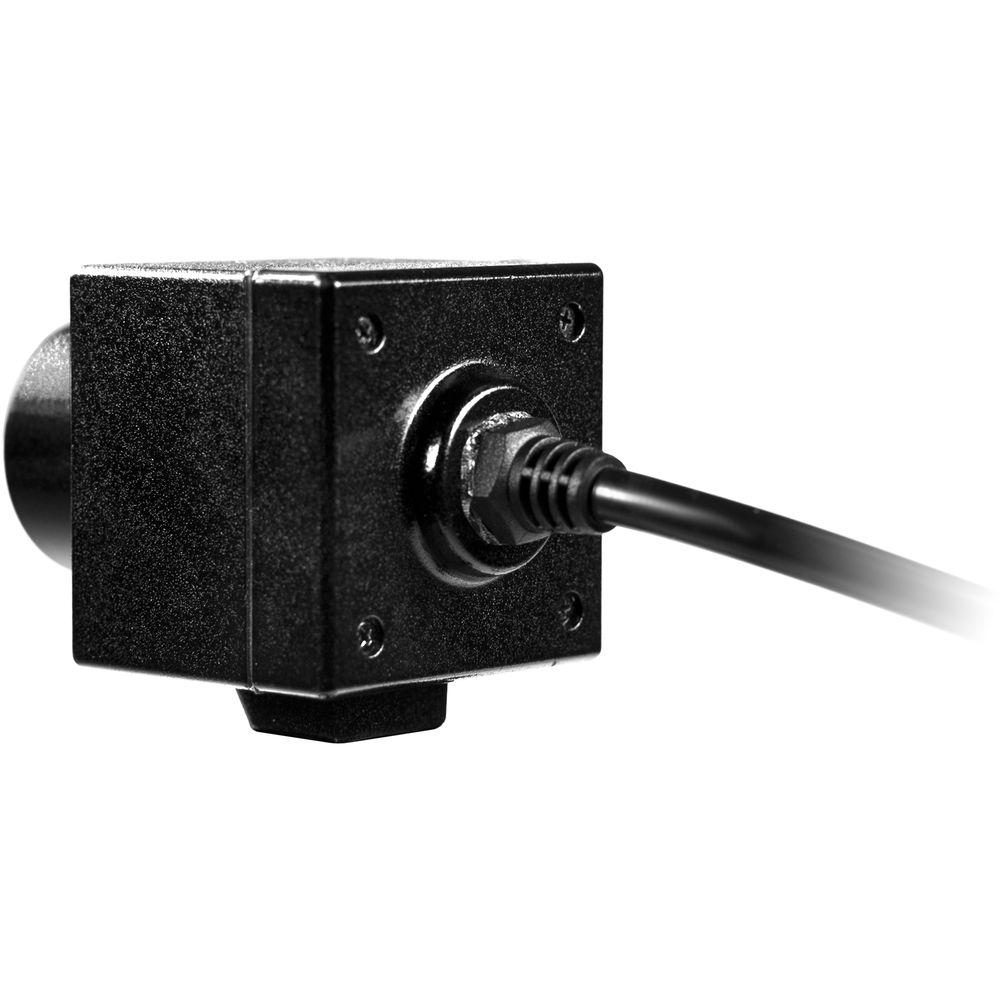

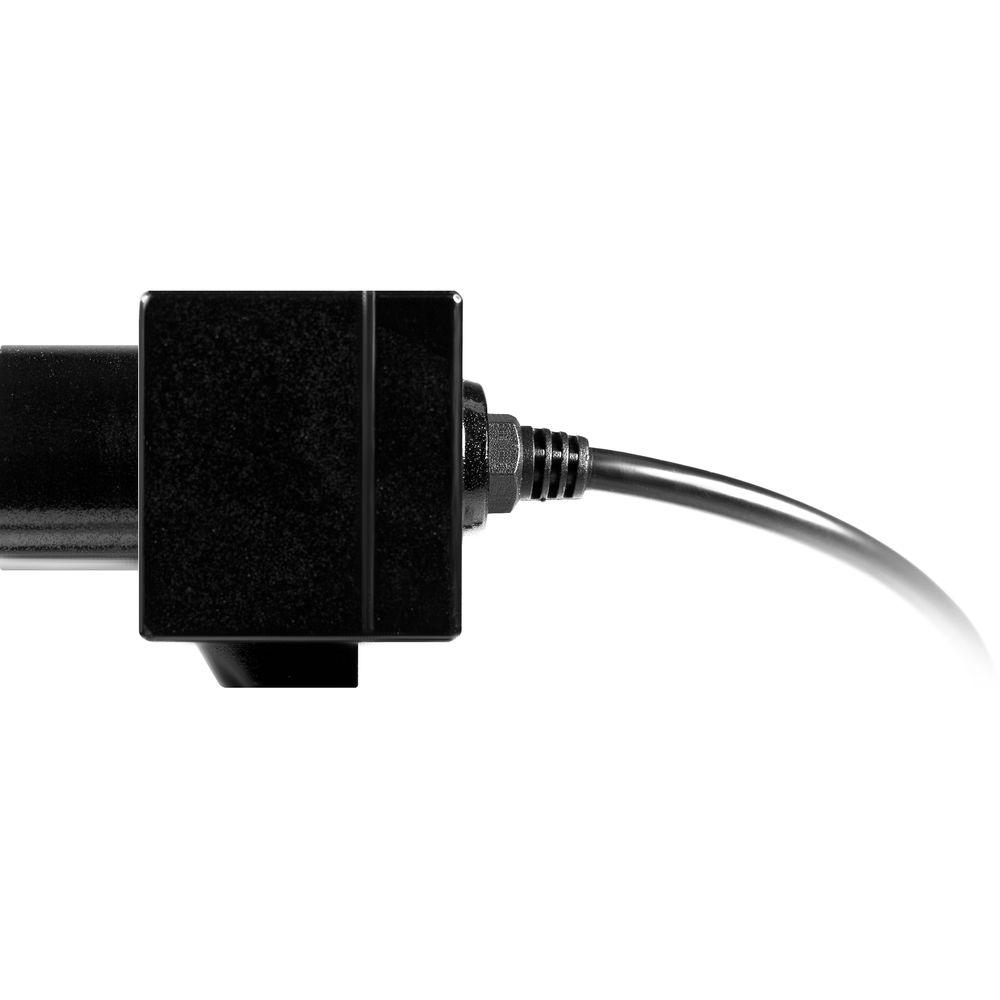

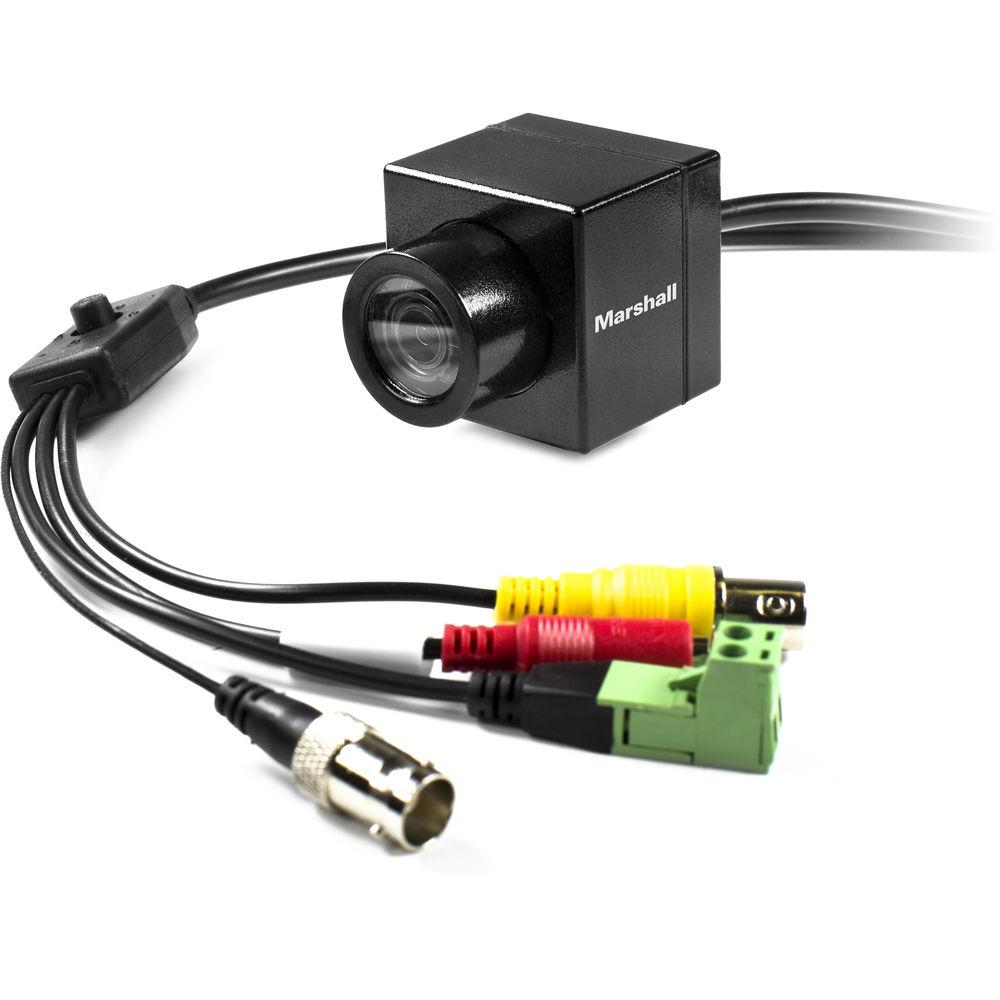

- The camera incorporates a LEMO connector and includes a breakout cable that provides a joystick for OSD navigation, an RS-485 connector, a TRS connector for audio input, as well as a power connector for an optional power supply.
UPC: 801813180893 In the Box Marshall Electronics CV502-WPMB Full HD Weatherproof Mini Broadcast Camera with 3.7mm Lens 3.7mm M12 Mount Lens 10' Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV502-WPMB Full HD Weatherproof Mini Broadcast Camera with 3.7mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV502-WPMB Specs | | | Sensor | 1/3" CMOS (approximately 2.5 MP) | | Effective Pixels | 1920 x 1080 | | Horizontal Resolution | 1000 TVL | | Sync System | Internal | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux | | | | Lens Mount | M12 | | Lens Focal Length | 3.7 mm | | | | SDI Output | 3G-SDI SMPTE 424M (2.97 Gbps)
1080p 59.94 fps
HD-SDI SMPTE 292M (1.485 Gbps)
1080p 29.97 fps
1080i 59.94
720p 59.94/29.97 | | Composite Output | 700 TVL NTSC/PAL (BNC connector) | | | | Level | 1 Vrms, 2.5 V mic bias | | Audio Bitrate | 16, 20, 24, 32-bit format, 48 kHz sample rate | | Gain | -12 to 59.5 dB | | | | Exposure | Auto / Manual | | Electronic Shutter | NTSC: 1/30 to 1/30000
PAL: 1/25 to 1/30000 | | White Balance | Auto (3,000 to 8,000° K), ATW (1,900 to 11,000° K), Manual | | | | RS-485 | PELCO-P/D and Sony-VISCA protocol
8-bit data, 1 stop bit, no parity, 2400 to 115200 bps | | | | Waterproof/Dustproof Rating | IP67 | | Operating Temperature | 14 to 122 °F (-10 to 50 °C) | | Power Input | 12 VDC (7 to 15 VDC) | | Power Consumption | Max 6 W | | Dimensions | 1.5 x 1.5 x 1.4" (37 x 37 x 35 mm) | | Weight | 4.9 oz (140 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.4 x 5.0 x 2.8" |
