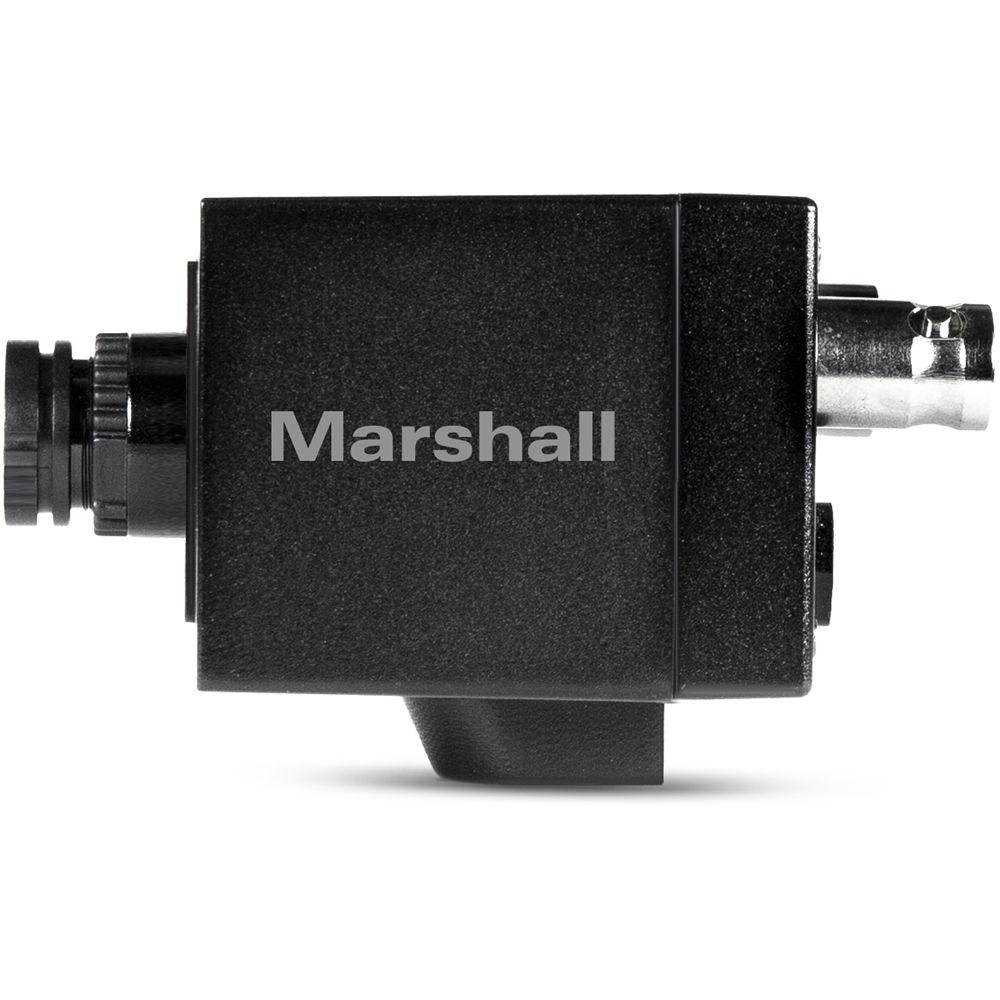

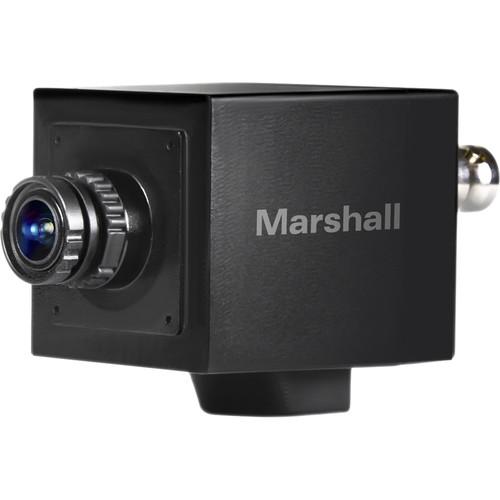

Product description Suitable for use in broadcast situations as well as reality TV, sports, racing, houses of worship, and security applications, the Marshall CV505-M 2.5MP 3G-SDI Compact Progressive Camera with 3.7mm Lens provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and includes an interchangeable 3.7mm lens in an M12 mount. The camera captures HD video at 1080p 25/30/50/60 fps, 1080i 50/60, and 720p 50/60 fps, allowing you to easily integrate the camera into an infrastructure that supports progressive frame rates. The camera incorporates one 3G/HD-SDI and one HDMI output. With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera or be used in low-light videoconferencing situations. It features digital wide dynamic range (WDR), motion detection, and privacy masking, making this camera a flexible option for capturing intrusions into sensitive areas. And the auto white balance function helps deliver normal looking video under changing conditions. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The power cable includes an integrated joystick that allows you to navigate the OSD. It also integrates a TRS connector for audio input and an RS-485 connector for remote control. - General Overview
-
- 2.5MP, 1/3" CMOS sensor
- 1080p video at up to 60 fps
- 720p video at up to 60 fps
- 0.2 lux in Color, 0.1 lux in B/W
- Connects to a TV or DVR via a BNC connection
- Die-cast aluminum camera housing protects the camera from external impacts

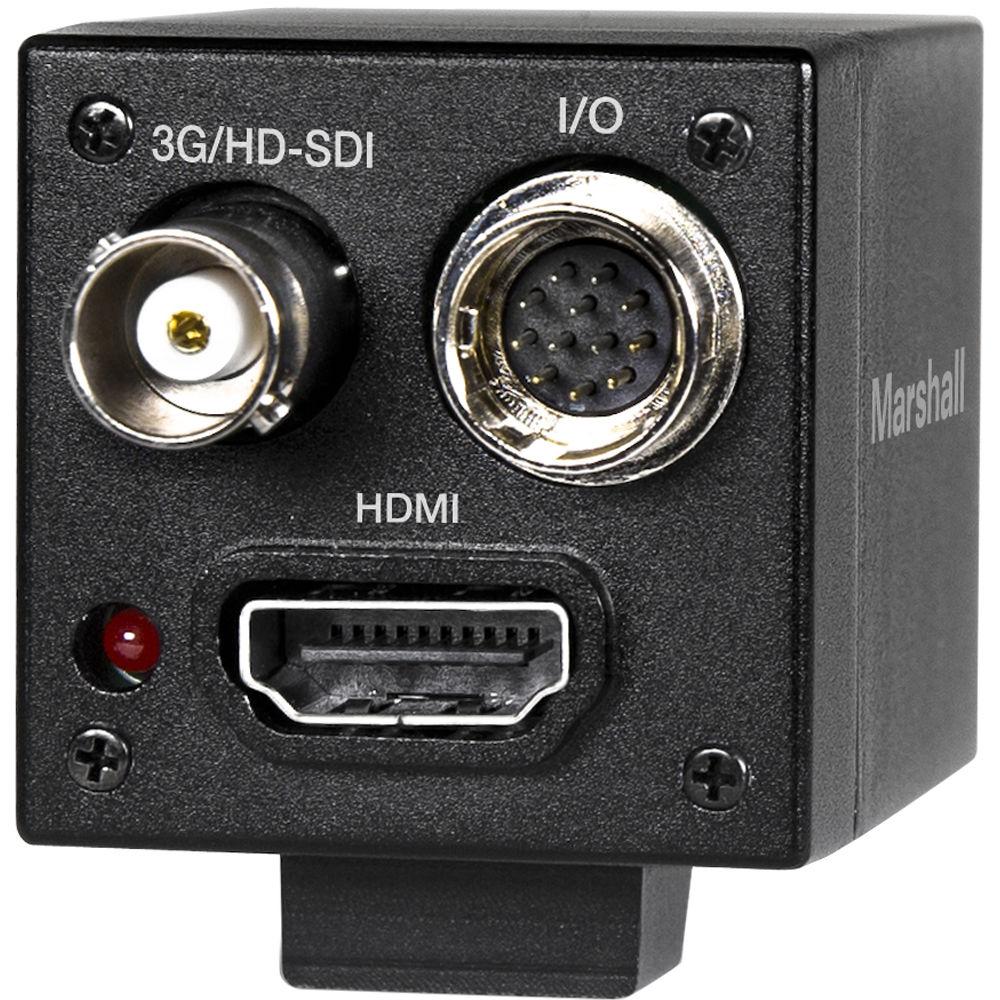

- The camera features one 3G/HD-SDI and one HDMI output connector
- Display Parameters
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
- Auto and Manual White Balance
- Auto Electronic Shutter Speed: 1/30 to 1/30,000 sec
- Automatic Gain Control
- OSD Joystick

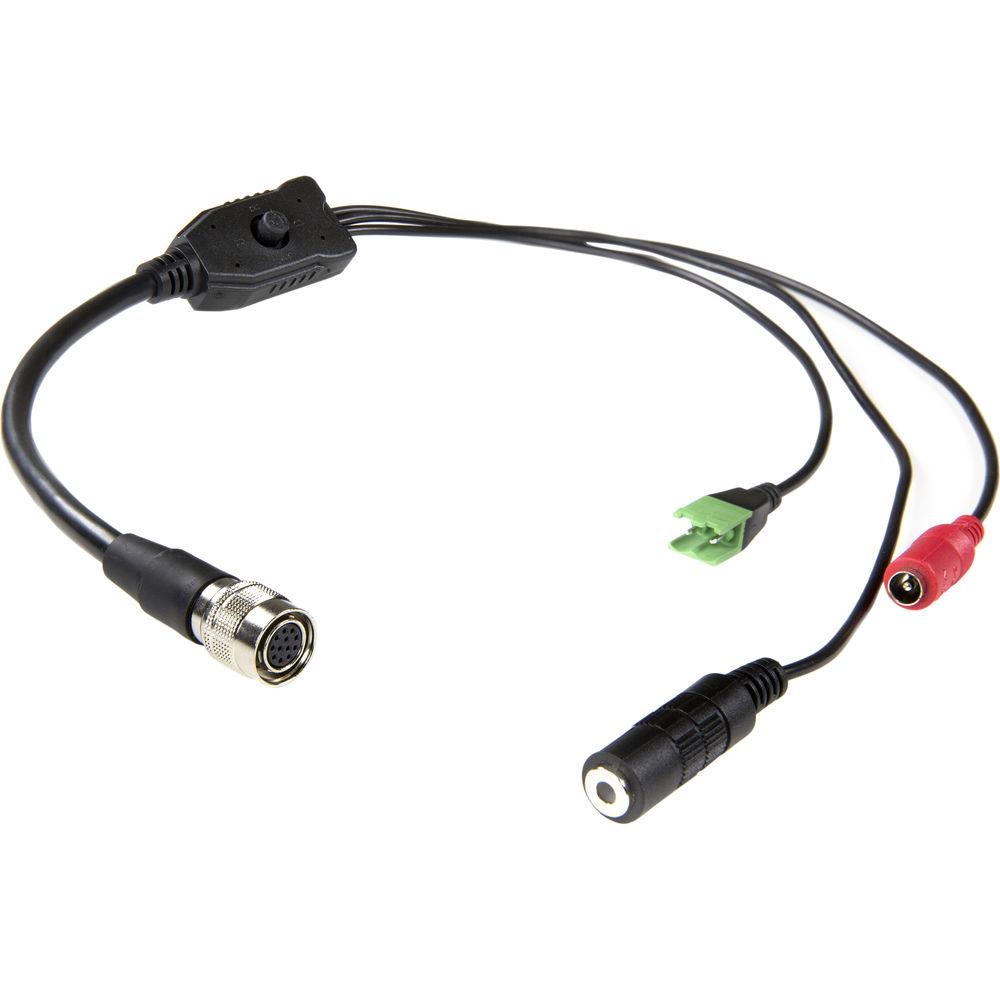

- The camera incorporates a LEMO connector and includes a breakout cable that provides a joystick for OSD navigation, an RS-485 connector, a TRS connector for audio input, and a power connector for an optional power supply.
UPC: 801813179262 In the Box Marshall Electronics CV505-M 2.5MP 3G-SDI Compact Progressive Camera with 3.7mm Lens (M12 Mount, Power/OSD Joystick/Audio Input) Breakout Cable 3.7mm Lens Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV505-M 2.5MP 3G-SDI Compact Progressive Camera with 3.7mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV505-M Specs Sensor | 1/3" CMOS Sensor (approximately 2.5 MP) | Effective Pixels | 1920 x 1080 | Horizontal Resolution | 1000 TVL | Sync System | Internal | Minimum Illumination | Color: 0.2 Lux B&W: 0.1 Lux DSS On: 0.005 Lux | Lens Mount | M12 | Lens | 3.7 mm | Video Output | 3G-SDI SMPTE 424M (2.97 Gbps) 1080p 50/60 fps
HD-SDI SMPTE 292M (1.485 Gbps) 1080p: 25/30 1080i: 50/60 720p: 50/60
HDMI 1080p: 50/60 1080i: 60 720p: 50/60 | Electronic Shutter | NTSC: 1/30 to 1/30000 PAL: 1/25 to 1/30000 | White Balance | AWB/AWC-Set/Manual/Indoor/Outdoor | Backlight Compensation | WDR/BLC/HLC | Control Interface | RS-485 PELCO-P/D Sony-VISCA protocol 8bits data, 1 stop bit, no parity, 2400~115200 bps | Temperature & Humidity | Operating: 14 to 122 °F / -10 to 50 °C | Power | Voltage: 12 VDC (7 to 15 VDC Range) Consumption: Max 6 W | Certification | CE, FCC, RoHS, KCE | Dimensions (W x H x D) | 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm | Weight | 5.6 oz / 160 g | | Package Weight | 1.185 lb | Box Dimensions (LxWxH) | 9.45 x 5.1 x 2.75" |
