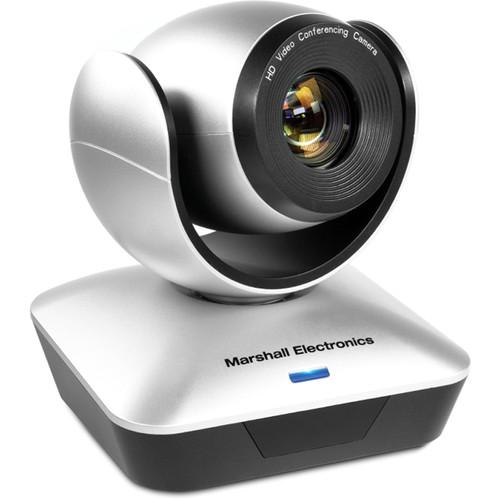

User Manual for Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV610-U2 Full HD USB
- Product category: PTZ Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics PTZ Cameras
|
User manual for the Marshall Electronics CV610-U2 Full HD USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The silver CV610-U2 Full HD USB 2.0 PTZ Camera from Marshall Electronics incorporates a 5MP 1/2.8" image sensor with a 10x optical zoom. It is suitable for small teleconference spaces, and outputs video via USB 2.0. The camera supports UVC1.5, which allows you to control the camera via the USB2.0 port as well. You can also control the camera using the RS-232 port. Outputting 1080p, 720p, and 480p, the camera captures video at 30, 15, or 8 fps, and the 10x optical and 12x digital zoom provides up to 120x zoom capability. The camera can store up to 128 preset positions, and it is compatible with common software platforms for Teleconference, Unified Communications (UC), and Huddle Spaces. - 1/2.8" sensor captures clear images
- Full HD image resolution at 30/15/8 fps
- OSD Menu
3D Noise Reduction
Electronic Shutter
Wide Dynamic Range
IR Transfer (IR Pass) - 10x optical zoom (4.7 to 47mm lens) with 12x digital
- 10 presets via IR remote setting, 128 via VISCA control, preset accuracy: 0.1°
- Mountable via table, wall, ceiling mounts included with flippable images
- Compatible with integrated video conferencing systems
- Quiet PTZ motor allows for quality transitions
UPC: 412683183640 In the Box Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera (Silver) Power Adapter Power Cable RS-232 Cable USB 2.0 Cable Remote Controller Wall Mount Bracket Double-Sided Adhesive Limited 1-Year Warranty Limited 2-Year Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV610-U2 Specs | Image Sensor | 1/2.8" | | Resolution | 5 MP | | Supported Video Resolutions | 1080p
720p
640 x 480p | | Frame Rate | 30, 15, 8 fps | | Zoom | 10x optical, 12x digital | | Lens | 4.7 to 4.7mm | | Aperture | f/1.8 to f/14 | | Pan/Tilt Adjustment | Pan: 340°
Tilt: 120° | | Interface | USB: USB 2.0 type-B
RS-232: 8-pin Mini-Din
Power: 12 VDC coaxial | | Number of Presets | 128 | | Dimensions (L x W x H) | 5.83 x 5.2 x 6.34" / 14.8 x 13.2 x 16.1 cm | | Weight | 2 lb / 900 g | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 10.2 x 8.4 x 8.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
