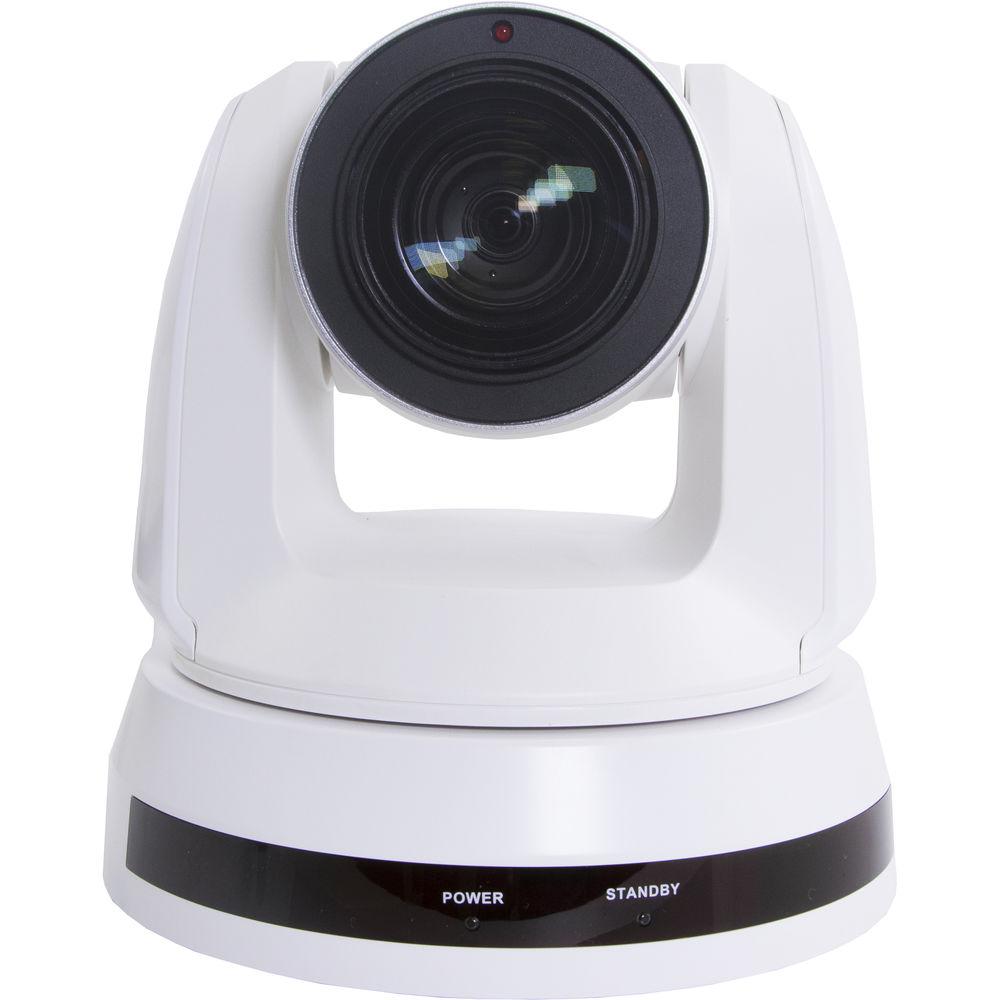

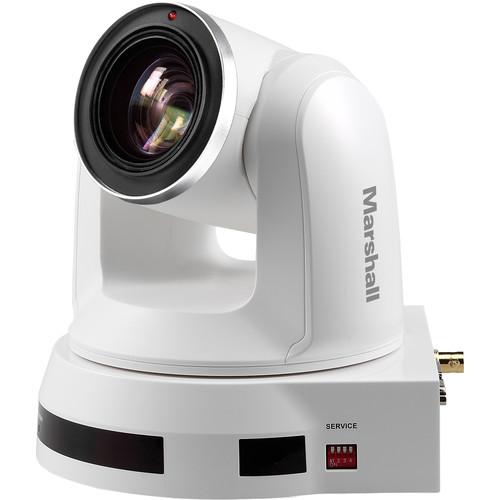

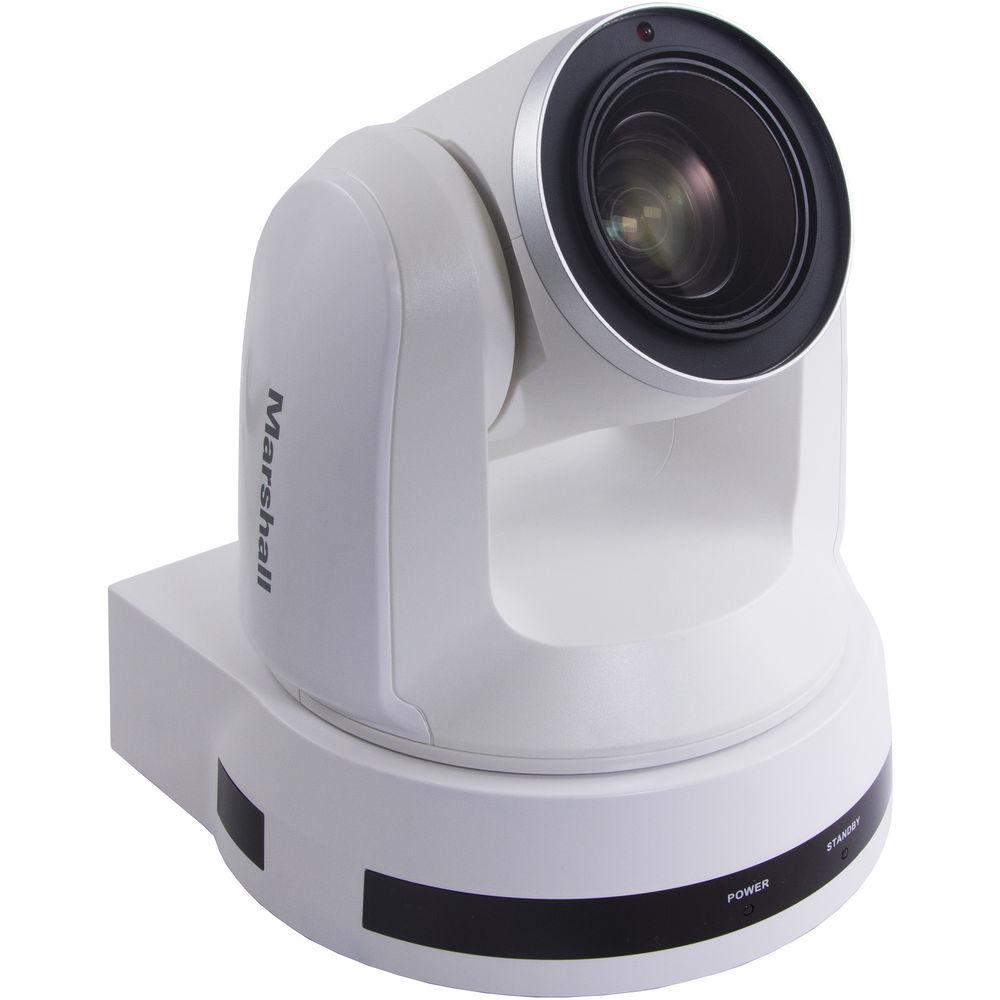

User Manual for Marshall Electronics CV612HT-4K UHD HDBaseT HDMI PTZ Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV612HT-4K UHD HDBaseT HDMI
- Product category: PTZ Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics PTZ Cameras
 |
User manual for the Marshall Electronics CV612HT-4K UHD HDBaseT HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The CV612HT-4K UHD HDBaseT HDMI PTZ Camera from Marshall Electronics is built around a professional grade 1/2.3" image sensor with a smooth 12x optical zoom and outputs 4K UHD, 1080i/p, and 720p in NTSC and PAL compatible frame rates. It supports both HDBaseT and HDMI outputs, Power over Ethernet (PoE) as well as discrete 12 VDC input via a coaxial connector (do not use 12 VDC and PoE simultaneously).
Remote operation and control via RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as gain control, white balance, exposure control, manual/auto focus, image flip, along with 128-position memory provide camera and image control. An integrated tally light enables using this camera as part of a multi-camera live production. Applications include corporate, broadcast, education, worship, healthcare, medical, government, courtroom, entertainment, music, and a variety of studio workflows. - 1/2.3" sensor captures clear images
- 4K UHD up to 29.97/25, 1080i/p up to 59.94/50
- 12x optical zoom (3.9 to 46.8mm lens)
- Image flip allows you to ceiling mount the PTZ camera using the included mounting plates
- Compatible with integrated video conferencing systems
- Quiet PTZ motor allows for quality transitions
- You can power the camera via PoE or 12 VDC via the included AC power adapter. Do not simultaneously power the camera from PoE and the power supply
UPC: 801813188332 In the Box Marshall Electronics CV612HT-4K UHD HDBaseT HDMI PTZ Camera (White) AC Power Adapter Remote Control RS-422 Connector Metal Plate A Metal Plate B 4 x M3 Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV612HT-4K UHD HDBaseT HDMI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV612HT-4K Specs | Image Sensor | 1/2.3" Single CMOS (9 MP) | | Resolution | 3840 x 2160 | | Frame Rate | 4K UHD: 29.97 / 25
1080p: 59.94 / 50
1080i: 59.94 / 50
720p: 59.94 / 50
NTSC/PAL | | Zoom | Optical: 12x
Clear Image Zoom 4K: 1.67x (20x total)
Clear Image Zoom 1080p: 2.0x (24x total) | | Lens | 3.9 to 46.8mm (approximate) | | Aperture | f/1.8 to 2.0 | | Horizontal Angle of View | 74° at wide end | | Minimum Object Distance | Wide: 0.39" / 10 mm
Tele: 59.06" / 1500 mm | | Minimum Illumination | 3.0 Lux (f/1.8, 50 IRE, 30 fps) | | Shutter Speed | 1/1 to 1/10,000 sec | | Pan/Tilt Adjustment | Pan: -170 to 170°
Pan Speed: 300°/sec
Tilt: -30 to 90°
Tilt Speed: 300°/sec | | Camera Control | Interface: RS-232/RS-422
Protocol: VISCA, PELCO D | | Output | HDBaseT
HDMI | | Power | PoE: IEEE802.3af
12 VDC | | Dimensions (L x W x H) | 7.35 x 6.85" / 18.68 x 17.40 cm | | Weight | 4.4 lb / 2 kg |
