User Manual for Marshall Electronics CV620-BK2 Broadcast Pro AV High-Definition PTZ Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV620-BK2 Broadcast Pro AV
- Product category: PTZ Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics PTZ Cameras
|
User manual for the Marshall Electronics CV620-BK2 Broadcast Pro AV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

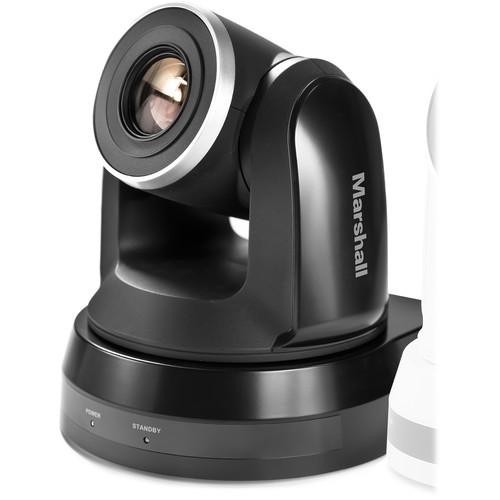

Product description The Marshall Electronics Broadcast Pro AV High-Definition PTZ Camera, in black, is designed for professional conferencing applications. It captures up to 1080p60 resolution with 20x optical zoom and features 3G/HD-SDI and DVI outputs and RS-232/RS-422 serial control. The DVI port is compatible with HDMI adapters.
The camera is built with smooth and quiet pan, tilt, zoom motors and offers simultaneous PTZ and focus control for advanced transitions. Marshall Electronics recommends the optional VS-PTC-200 controller as the preferred controller to incorporate, but the optional VS-PTC-50 and VS-TKC-100 and various 3rd-party controllers are also compatible. - Key Features
-
- 2MP 1/2.8" sensor
- Capture 1080p/i up to 60 fps, 720p up to 60 fps
- 20X optical zoom
- 3G/HD-SDI and DVI outputs (HDMI-adapter compatible)
- RS-232/RS-422 serial control
- Simultaneous 4D control for pan, tilt, zoom, and focus
- 340° horizontal pan / 120° vertical tilt
- Variable Transition Speeds: 5-300° per second with optional motionless transition controller
- Mountable on desktop, wall, ceiling
- Compatible with most integrated video management systems
- Kensington lock port
- Video resolution and frame rate select dial
- IR remote select
- Adjustable white balance, exposure, iris, gamma, black level
- Standby LED indicator
UPC: 801813188882 In the Box Marshall Electronics CV620-BK2 Broadcast Pro AV High-Definition PTZ Camera (Black) Remote Control Power Cord Power Adapter RS-422 Connector (Removable) Metal Installation Plate A Metal Installation Plate B Set of M3 Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV620-BK2 Broadcast Pro AV High-Definition PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV620 Specs | Sensor | 2 MP 1/2.8" CMOS | | Resolution | 1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25 | | Inputs/Outputs | 3G/HD-SDI: 1 x BNC output
DVI: 1 x 24-pin output
RS-232: 1 x 8-pin input, 1 x 8-pin output (loop through)
RS-422: 1 x terminal block communication port | | Lens | 4.7-94mm focal length
f/1.6 to 3.5 aperture
20x optical zoom
12x digital zoom | | Pan/Tilt | 340° horizontal pan
120° vertical tilt | | Power Input | 12 VDC barrel connector | | Security Lock Support | Kensington lock port | | Dimensions | 6.9 x 7.3 x 7.3" / 17.4 x 18.6 x 18.6 cm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 12.6 x 10.5 x 10.5" |
