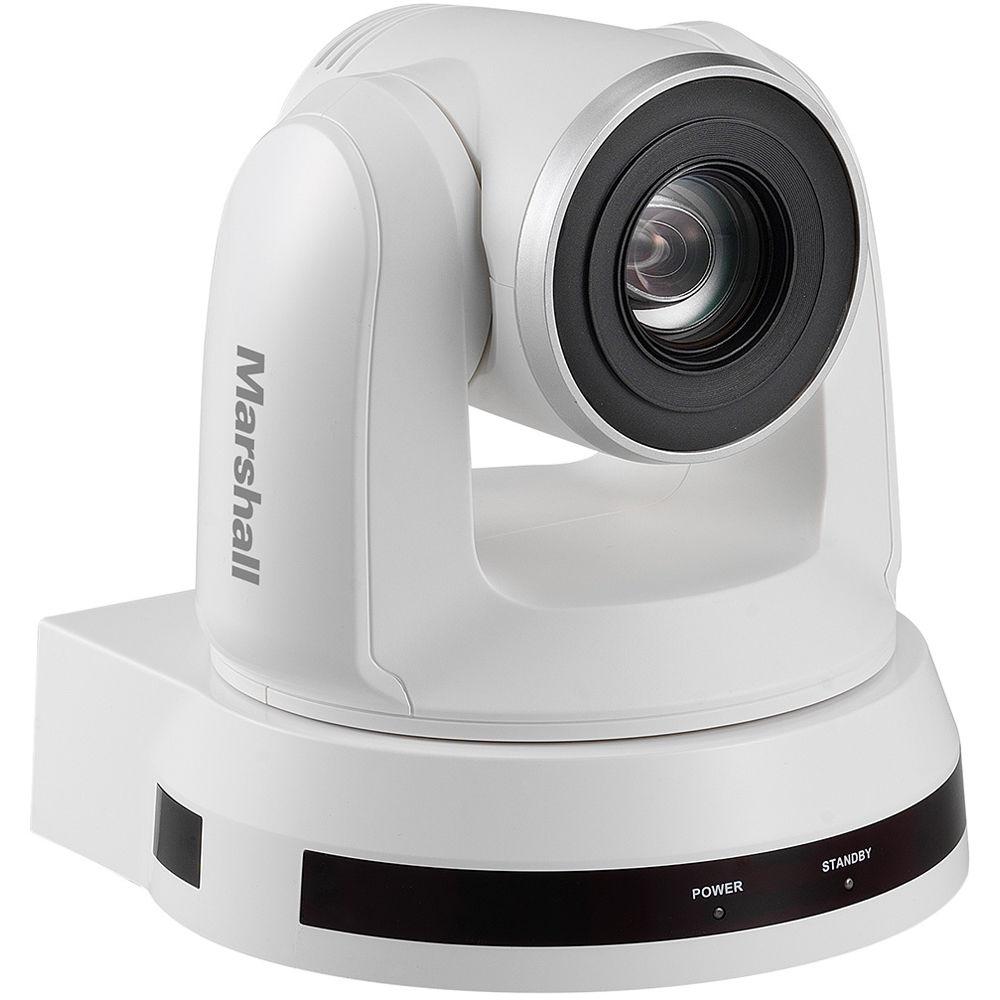

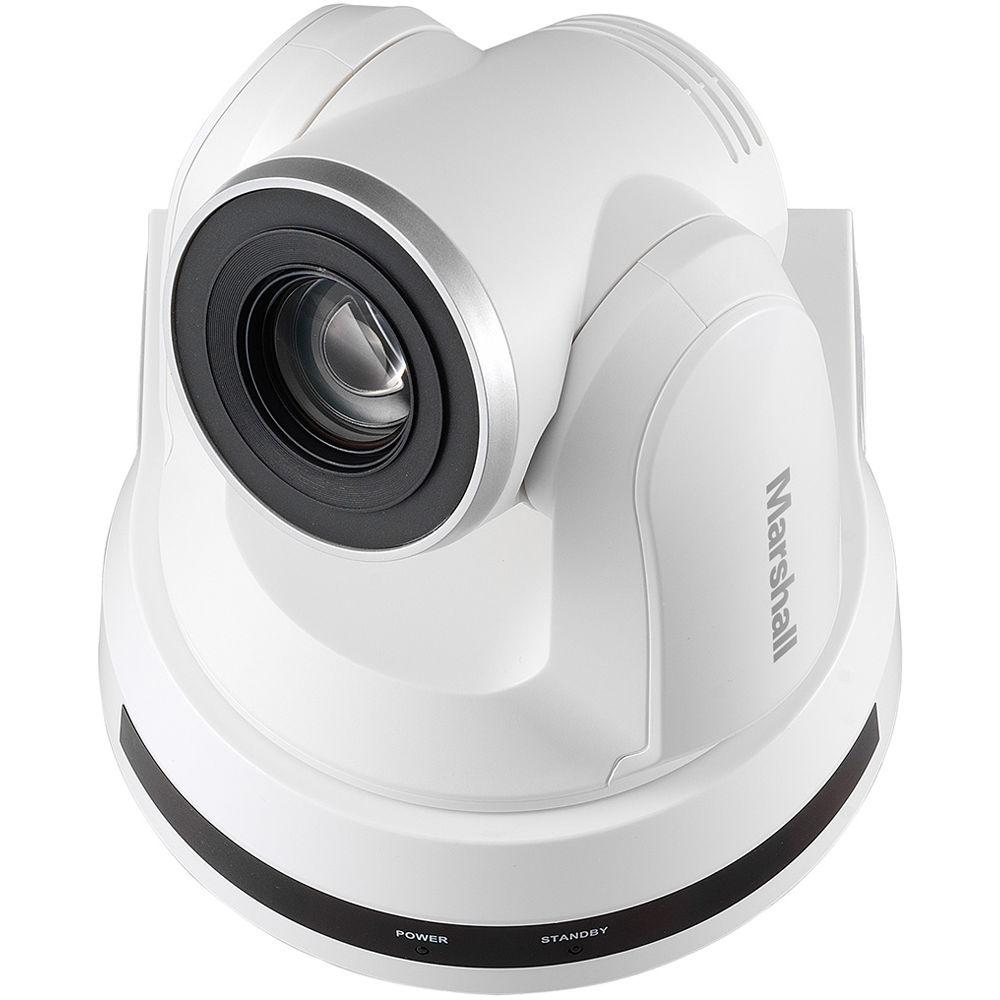

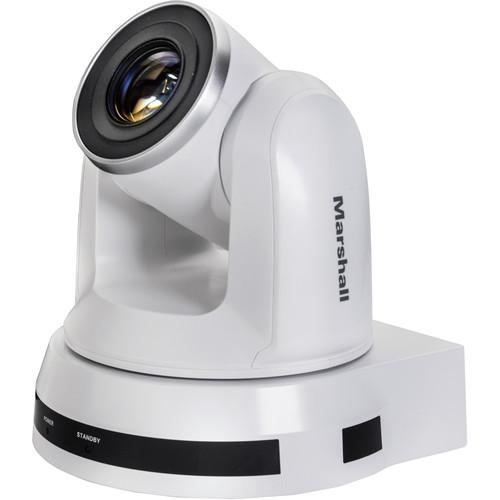

User Manual for Marshall Electronics CV620-IP HD PTZ Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics CV620-IP HD PTZ Camera
- Product category: PTZ Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics PTZ Cameras
 |
User manual for the Marshall Electronics CV620-IP HD PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description Built around a 1/2.8" 2-megapixel sensor, the Marshall Electronics CV620-IP HD PTZ Camera is a versatile, professional camera designed for corporate, broadcast, houses of worship, medical, legal, or any other professional industry which requires HD video from a remote-controllable PTZ camera. Not only does the CV620-IP feature HDMI and broadcast-ready SDI outputs, the Ethernet connection allows for IP network integration. Not only is the Ethernet connection for video, but control and PoE (Power over Ethernet) are supported as well, allowing for single-cable connection. Video can be transmitted over the network in easy-to-implement MJPEG or H.264 variants. All outputs are active simultaneously. While camera settings can be adjusted automatically, manual control over white balance, exposure, iris, gamma, gain, black level, and more are available for those that require fine image control. - 1/2.8" sensor captures clear images
- 1080p, 1080i, and 720p modes
- 20x optical zoom (4.7 to 94mm) with 12x digital zoom extension
- Mountable via table, wall, ceiling mounts included with flippable images
- Simultaneous output over SDI, HDMI, and Ethernet
- RS422/RS232 Remote Control Interface
- Compatible with integrated video conferencing systems
- Quiet PTZ motors won't disturb recorded audio
UPC: 801813188349 In the Box Marshall Electronics CV620-IP HD PTZ Camera (White) Remote Control Power Supply with Power Cord RS-422 Phoenix Connector Block Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics CV620-IP HD PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics CV620-IP Specs | Sensor | Size: 1/2.8"
Resolution: 2 MP | | Supported Resolutions | 1080p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60 | | Lens | Focal Length: 4.7-94mm
Aperture: f/1.6-3.5
Zoom: 20x optical with 12x digital | | Minimum Object Distance | Wide: 12" / 30 cm
Tele: 60" / 1.5 m | | Minimum Illumination | 1 lux (50 IRE at f/1.6 and 30 fps) | | Shutter Speed | 1 - 1/10,000 sec | | S/N Ratio | > 50 dB | | Video Compression Format | MJPEG, H.264 (SVC) | | Pan/Tilt Angle | Pan: ±170°
Tilt: -30 to +90° | | I/O | 1 x BNC, HD/3G-SDI output
1 x HDMI type A output
1 x RJ45, Ethernet
1 x 3.5mm, stereo analog audio
1 x DIN, RS-232 input
1 x DIN, RS-232 output
1 x 9-pin Phoenix, RS-422
1 x USB, firmware | | Dimensions | 6.85 x 7.32 x 7.19" / 17.4 x 18.6 x 18.5 cm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 9.01 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 10.0" |
