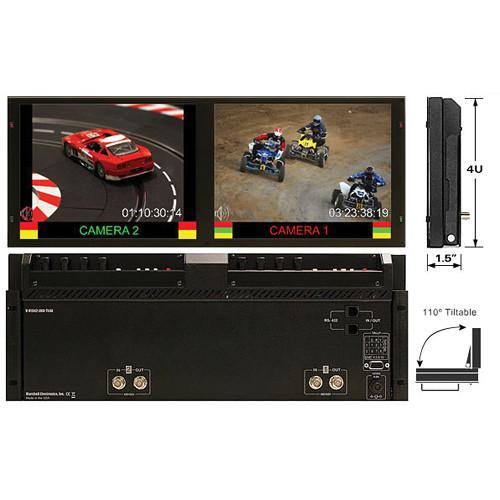

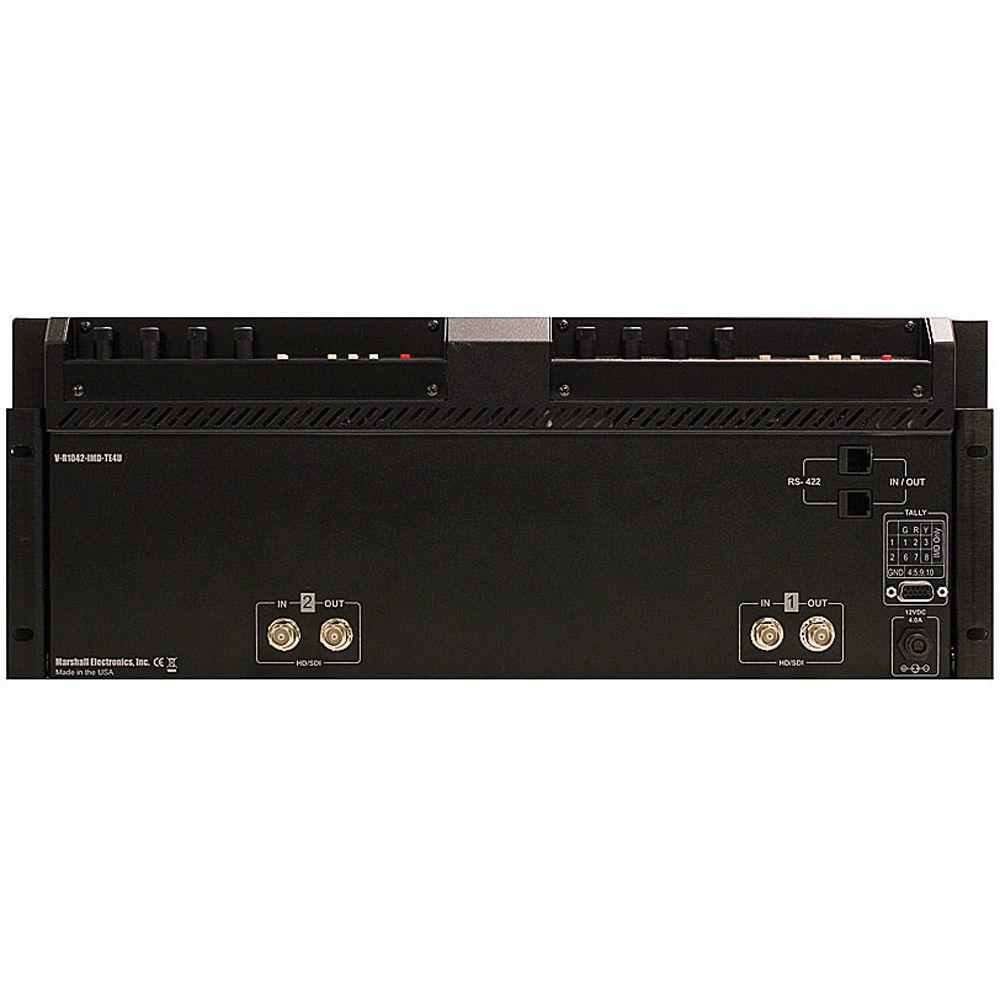

Product description The Marshall Electronics Dual 10.4" Rack Mounted Monitor Set with 3G/HD/SD-SDI includes two 10.4" LCD displays with 1024 x 768 RGB dot resolution. The unit requires only 4 rack units of space. Each display features its own 3G/HD/SD-SDI input connections with loop-through, a 700:1 contrast ratio, and support for 16.7 million colors.

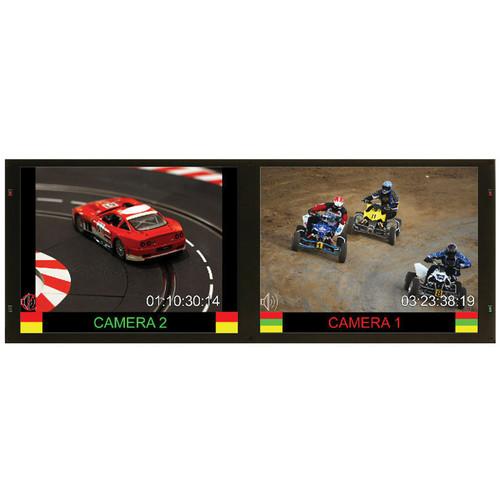

In-Monitor Display information eliminates the need for an additional under monitor display for Tally, video timecode, three-color "Soft" Tallies, and an audio presence indicator. RS-422/485 connections with loop-through provide control communication and IMD functionality. V-R1042-IMD-3GTE is compatible with Image Video, NVISION, TSL and MEI tally and control protocols.
Additional features include ultra-wide viewing angles, adjustment settings memory, multiple Frame Marker Overlays, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. The backlight has a life expectancy of 5 years or 50,000 hours. - Dual 10.4" LCD displays with 1024 x 768 RGB Dots (2.4 Million Pixels)
- Occupies only 4 rack units of space
- 3G/HD/SD-SDI inputs with loop through
- Contrast ratio rated at 700:1 and support for 16.7 million colors
- In-Monitor Display information and Tally
- RS-422/485 connection with loop-through
- Supports Image Video, NVISION, TSL and MEI tally and control protocols
- 5 Year (50,000 Hour) Backlight Life
- Unique RotoMenu feature for fast, direct, and easy menu navigation
- High resolution scaling and high quality deinterlacing
- Ultra-wide viewing angle, 170° horizontal and vertical for superior visibility
- Field upgradeable firmware capability via RS-422 / 485 port
UPC: 801813158571 In the Box Marshall Electronics Dual 10.4" Rack Mounted Monitor Set with 3G/HD/SD-SDI Limited 1-Year Warranty, Extendable to 2-Year with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Dual 10.4" Rack Mounted Monitor Set with 3G HD SD-SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R1042-IMD-3GTE Specs | Display Size | Diagonal: 10.4" (264.16 mm)
WxH: 8.28 x 6.21" (210.43 x 157.82 mm) | | Resolution | 1024 x 768 (16.7 million colors) | | Dot Pitch | 0.0685 (H) x 0.2055 (V) mm | | Brightness | 300 cd/m² | | Contrast Ratio | 700:1 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Signal System | NTSC/PAL auto recognition | | Interface | HD-SDI/SDI Multi rate input (x1, per panel)
HD-SDI/SDI Multi rate output (x1, per panel)
RS-422 input (x1)
RS-422 output (x1)
Tally
12 V DC input | | Power Consumption | Approx. 24 Watt (2.0A @ 12 VDC) | | Dimensions | WxHxD: 9.64 x 7 x 1.73" (24.48 x 17.78 x 4.39 cm)
Rack Units: 4 | | Weight | 3.1 lb (1.41 kg) | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 24.0 x 9.0 x 9.0" |
